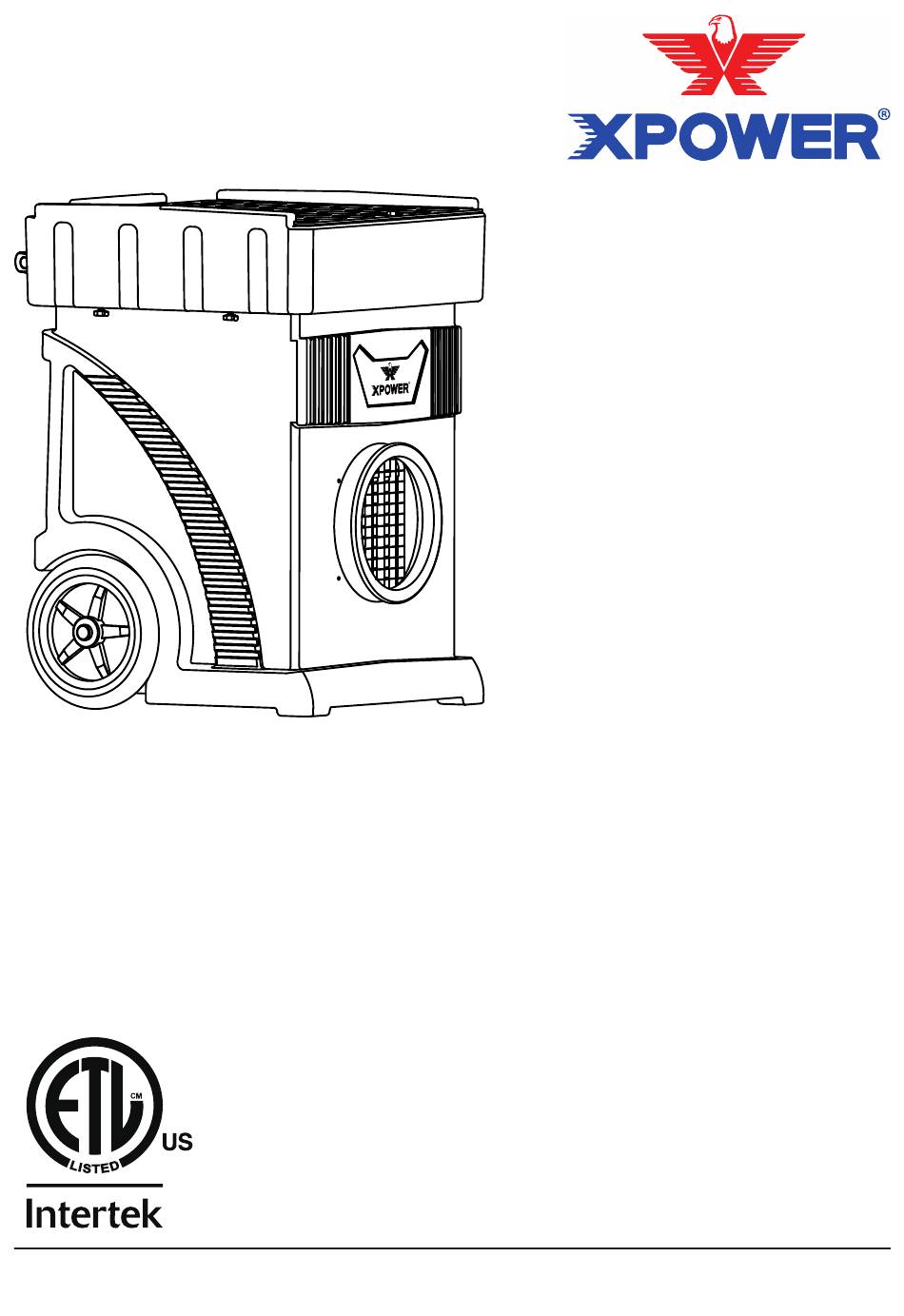

- Page 1 Air Scrubber Owner's Manual Model: AP-1500D Series, AP-1800D Series, AP-2500D Series (115V~, 60Hz) Read and save these instructions www.xpower.com | 1-(855)-855-8868 | info@xpower.com Index: NA-1-A40 Edition: 1.3.Final...
-
Page 2: Safety Instructions
• If the appliance is damaged or it malfunctions, continue to use it. Unplug the product from the electrical outlet. Refer to troubleshooting guide or contact XPOWER. • Store in a dry area, away from exposure to sunlight, extreme temperature and humidity, or other extreme environments, when not in use. -
Page 3: Parts Description
Parts Description Machine 19 20 21 23 24 25 26 27 28 English - 3... - Page 4 (1) Inlet Grille Cover Screw (13) Fan (25) Speed Switch Knob (2) Inlet Grille Cover (14) Motor Left Housing (26) Control Panel (3) Handle Screw (15) Motor Control Circuit (27) Speed Switch Circuit (4) Rubber Pad Board Assembly Board (5) Motor Inlet Grille Cover (16) Rivet Nut (28) Circuit Breaker (6) Time Meter*...
-
Page 5: Items Included
Air Scrubber Introduction • XPOWER’s unique and highly innovative Air Scrubbers create a fresh and clean environment for various purposes. • With a special designed powerful motor, XPOWER Air Scrubbers are able to provide suction in even difficult areas. • The included filtration system can capture a wide range of compounds and prevents organism migration from location to location. - Page 6 Installation and Operation Guide Remove Filter Package (If Any) Remove the packages of the filter before the first useage. Zero Setting • The accuracy of the pressure gauge might be affected by transportation. • Before the first usage, you should zero the pressure gauge in order to ensure the accuracy of the measurement.
- Page 7 Installing the Handle (1) Screw off the hex screw with a hex screw driver on the inlet grill cover 。 (2) Take out the inlet grill cover. (3) Put the screws through the holes on handle and the back of the machine housing.
- Page 8 Extension Setup (Optional) Exhaust Ducting • Turn off the machine. • Attach the ducting hose to the exhaust. Selecting a Location (Important) • Enclosed Area: For optimal efficiency and longer filter lifespan, the Air Scrubber should be operated in an enclosed area. Keep all doors, windows and other outside entrances to the room closed.
- Page 9 Control Panel Activity Indicator Air Quality Setting Button Good Moderate Poor HOURS Time Meter Air Quality Monitor Circuit Breaker Power Switch Speed Switch Air Quality Sensor Pressure Gauge Air Quality Monitor • When this monitor blinks, it indicates the Air Quality Sensor is now preparing for detection.
-
Page 10: Reset Button
• Even if the pressure gauge shows negative pressure is still lower than the values below, it’s suggested to check and replace the filters every 6 months. (See Page 12: Filter Maintenance) AP-1500D Series AP-1800D Series AP-2500D Series Without Carbon Filter 270 Pa. -
Page 11: User Maintenance Instructions
Transportation Transport with Trolley Handle • Press down the trolley handle to tilt Trolley up the air scrubber Handle on the wheels. Exhuast • Push forward to transport with the trolley handle. Wheels User Maintenance Instructions Frequent maintenance is recommended on this appliance. Failure to follow the maintenance instructions may cause failure of the appliance and void the warranty. -
Page 12: Rear View
Machine Maintenance • When not in use, unplug, and uninstall power cords and all the extensions. Store the appliance in a dry and cool indoor place. Make sure it’s out of reach of children. • Use a damp cloth to wipe the surface of the housing. Do not clean the unit with water directly. - Page 13 Filter Maintenance To ensure the best filtration efficiency and to prevent secondary pollution of used filters, you should replace or clean the filters frequently or when the filter clean/change light illuminates. Please follow the instructions below. Unload the filters (See Also Page 3: Parts Description) •...
- Page 14 • When placing the filter, the side with label should face up. The arrow on the label should point to the exhaust. * All replacement filters are available on www.xpower.com. English - 14...
-
Page 15: Troubleshooting Guide
25 feet. The additional The circuit breaker trips. Press circuit reset button. electrical receptacle has no power If troubleshooting does not resolve your problem, please contact XPOWER or other parties authorized by XPOWER for further instructions. English - 15... -
Page 16: Technical Specification
Technical Specification Machine Specification MODEL NUMBER AP-1500D Series AP-1800D Series AP-2500D Series Voltage/ 115 V~, 60 Hz Frequency Amperage 1.5 A 3.5 A 8.0 A Rated Airflow 700 CFM 1100 CFM 1800 CFM Speed Control Variable Speeds Cord Length 13 ft. / 4.0 m 25 ft. - Page 17 Filter Specification FILTER MODEL Type of Filter Size Thickness Function NUMBER NFS16 Nylon Mesh Filter 16 x 16 in. Primary filtration for RP20 20 x 20 in. 1 in. visible and coarse Rigid Polyester particles. Filter RP24 24 x 24 in. 1 in.
-
Page 18: Year Limited Warranty
(1) Please finish the online warranty registration before usage. Visit www.xpower.com/ service-support/warranty-registration. (2) This Limited Warranty applies with its own timeliness. Contact XPOWER or visit www.xpower.com for more information. Items mentioned but not limited to below are not covered by warranty: (1) Power cord, filters or any other components considered as a “consumable parts”... - Page 19 (1) Request a RMA (Return-Merchandise-Authorization) number. (2) Use the original or an equivalent packaging, prepay shipping charges at your own expense to the address provided by XPOWER, with the RMA number on the shipping label or the packaging. (3) Include all the original parts and components.
- Page 20 XPOWER Manufacture, INC. 668 S. 6th Ave., City of Industry, CA 91746 USA www.xpower.com | 1-(855)-855-8868 | info@xpower.com Read and save these instructions Index: NA-1-A40 Edition: 1.3.Final...
