SGM304, SGM364, SGM365, SGM466
091605
21"
(533mm)
Models
30"
36"
46"
2 3/4" (70mm) to Combustible Rear Wall
3/4" (19mm) to Non-Combustible Rear Wall
25"
(635mm)
Web: http://www.dacor.com
Corporate Phone: 800-793-0093
PGM304, PGM365
30", 36", 46" Wide,
Preference™ Gas Cooktops
"A"

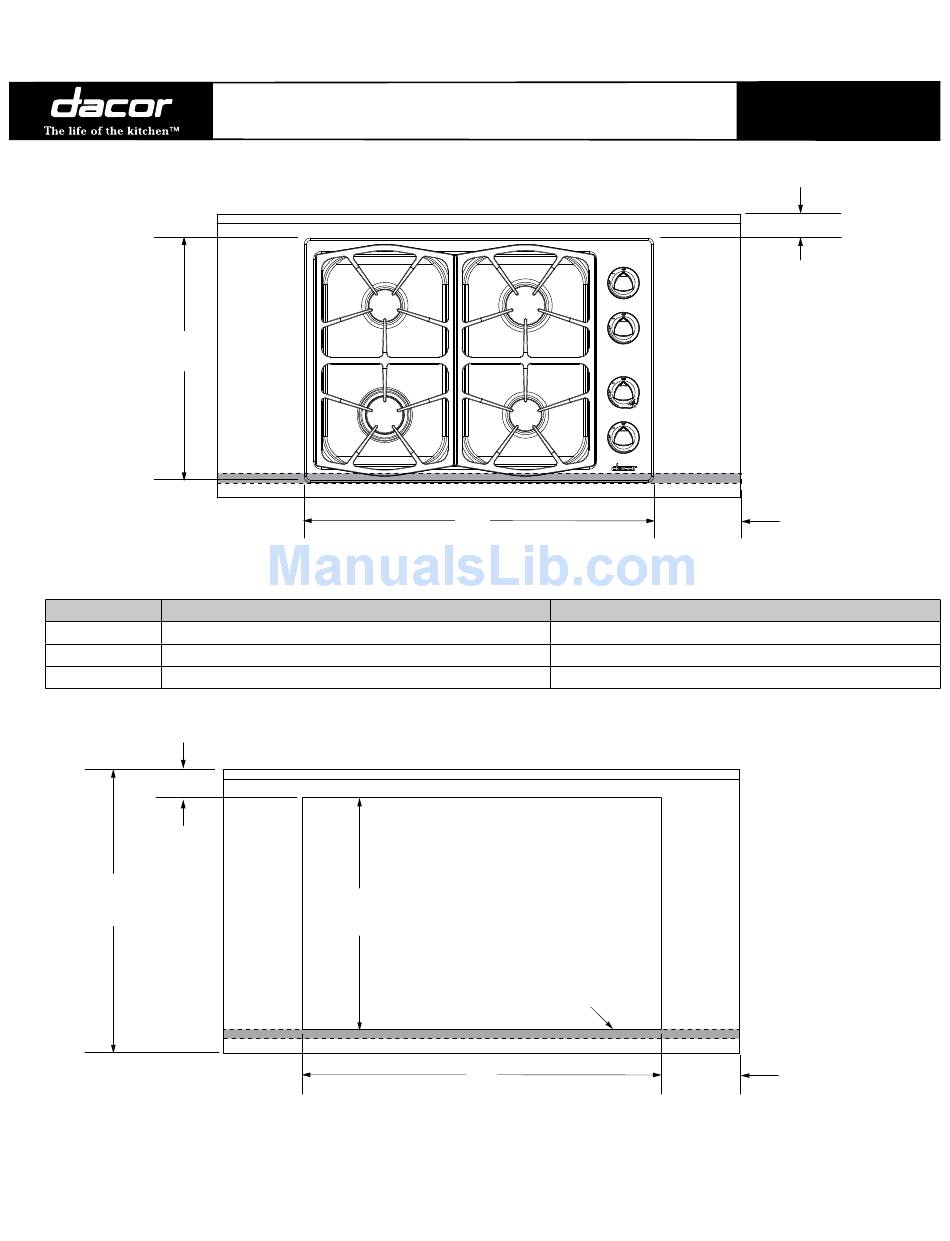

ovErALL DIMENSIoNS
(PGM304 Shown)
"A" Cooktop Width
30" (762mm)
36" (914mm)
46" (1168mm)
19 7/8"
(505mm)
toP vIEW CoUNtErtoP CUtoUt
Flush with
backside of
cabinet front
"B"
Specifications are subject to change without notice.
See installation instructions for additional details.
PLANNING
GUIDE
1/2
2" (51mm) to Combustible Rear Wall
0" (0mm) to Non-Combustible Rear Wall
6" (152mm) Min.
from edge of cooktop
to combustible
side wall above
finished countertop
(both sides)
"B" Cooktop Cutout Width
27 1/2" (699mm)
33 3/4" (857mm)
44 1/2" (1130mm)
7" Min. from edge of
cutout to combustible
side wall above
finished countertop
(both sides)
4.3
L65335 rev E
