2. Descriptions
2.1 Meter Description

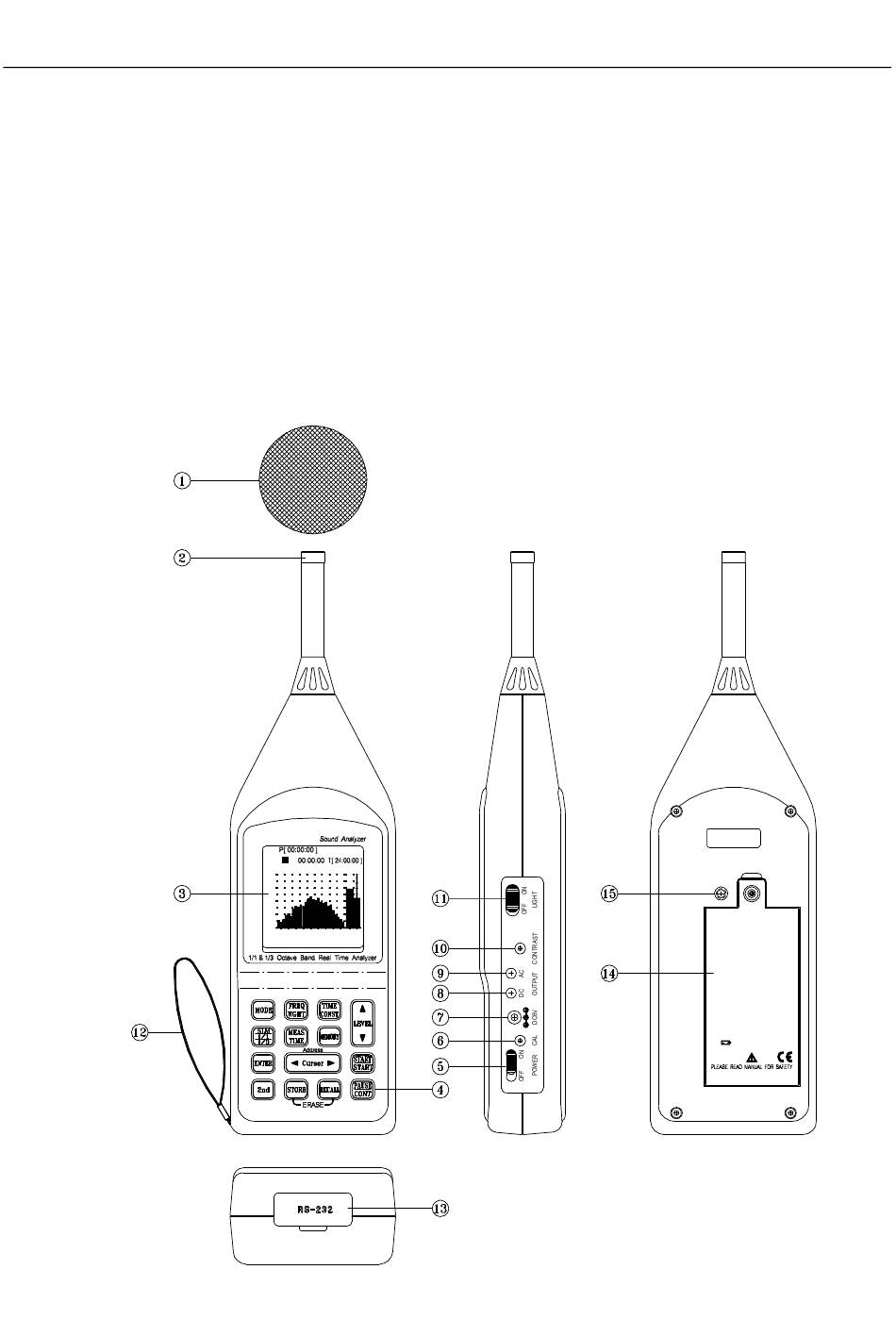

Refer to the diagram below for the following descriptions.
1.
Windscreen
2.
Microphone
3.
Display
4.
Operation keys
5.
6VDC adapter jack
6.
DC analog output jack
7.
AC analog output jack
8.
Comparator output jack
FAST
L
A
W
65.2 dB
100
dB
80
60
40
20
Hz
31.5
125
500
2k
8k
L
W
[ 1 / 3 OCT ] 01 / 06 / 19 14:26:39
9.
Trig IN jack
10. Micro SD card slot
11. Power switch
12. Hand strap
13. USB port
14. Battery compartment
Tripod mounting screw
15.
6
SOUND ANALYZER
1/1 & 1/3 OCTAVE BAND
IEC 651 IEC 804 TYPE 2
IEC 1260 CLASS2
ACCURACY : ¡Ó1.5dB
IEC LR14 1.5V X 4
