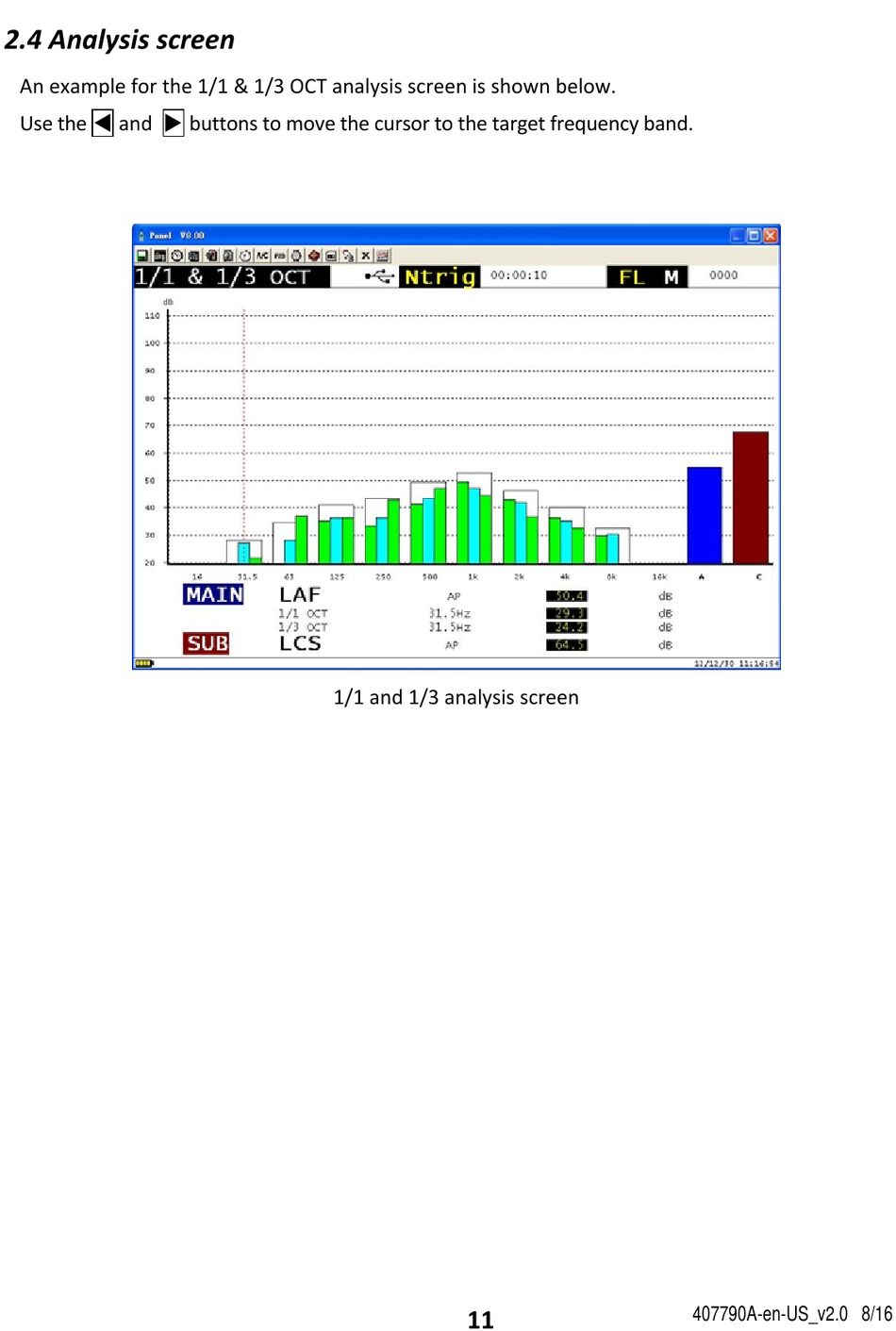

 2.4 Analysis screen
An example for the 1/1 & 1/3 OCT analysis screen is shown below.
Use the    and     buttons to move the cursor to the target frequency band.


1/1 and 1/3 analysis screen
407790A-en-US_v2.0 8/16
11
