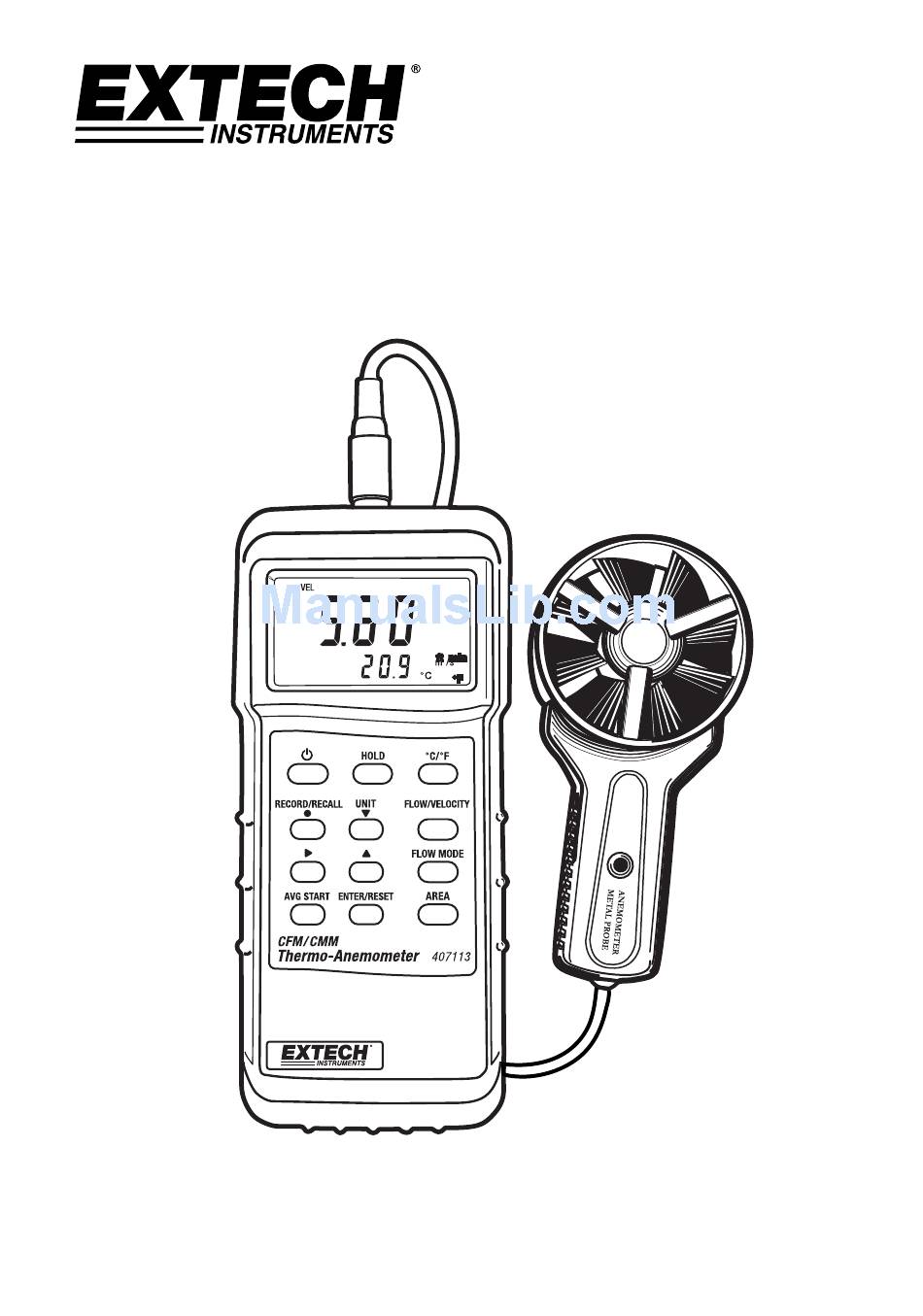

- Page 1 User Guide Heavy Duty CFM Thermo-Anemometer Model 407113 contact: www.ponpe.com sale@ponpe.com...
-
Page 2: Specifications

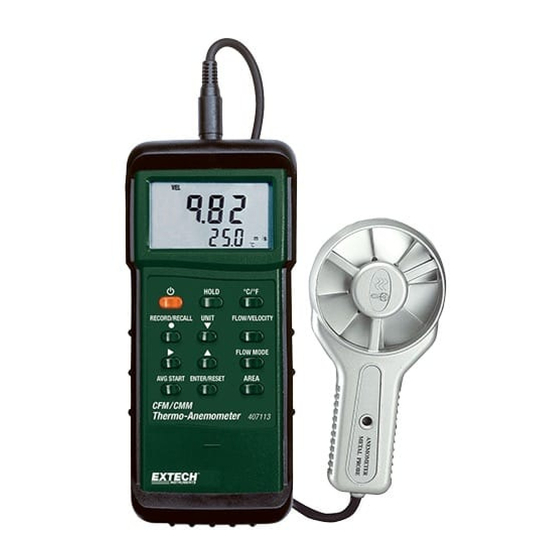

Introduction Congratulations on your purchase of the Extech 407113 CFM meter. This handheld meter can display Air Flow (CFM) with Area or Air Velocity with Temperature on a 10,000-count (0 to 9999) dual display LCD. Other functions include MIN/MAX Record/Recall, RS-232 PC interface, and Data Hold. - Page 3 0.001 to 100 0 to 9,999m CFM (cubic feet per minute) 0-999,900 ft /min 0.001 to 100 0 to 9,999ft Air Temperature Range Resolution Accuracy 32 to 175 F (0 to 80 F (0.8 407113-EN v3.6 4/14 contact: www.ponpe.com sale@ponpe.com...
-
Page 4: Meter Description
Meter Description Sensor Input RS-232 PC Interface jack LCD Display Vane Rubber Holster Keypad Battery compartment (rear) Note: To access the rear battery compartment, first remove the rubber holster that jackets the meter. 407113-EN v3.6 4/14 contact: www.ponpe.com sale@ponpe.com... -
Page 5: Operation
Press HOLD again to return to normal operation. Maximum and Minimum Recording The 407113 allows the user to record and view the highest (MAX) and lowest (MIN) readings. Press the RECORD/RECALL button once. The REC indicator will appear on the display and the meter will begin recording the MAX and MIN values. - Page 6 RS-232 PC Interface The 407113 is equipped with a 3.5mm phone jack (meter top) for connection to a PC for data acquisition purposes. For streaming of data to a PC via the RS232 Output jack, the optional 407001-USB kit (RS232 to USB cable and driver CD) along with the 407001 software (available free at www.extech.com) are required.
-
Page 7: Useful Equations And Conversions
Unit of Measure Conversion Table ft/min knots km/h 1 m/s 196.87 1.944 2.24 1 ft/min 0.00508 0.00987 0.01829 0.01138 1 knot 0.5144 101.27 1.8519 1.1523 1 km/h 0.2778 54.69 0.54 0.6222 1 MPH 0.4464 87.89 0.8679 1.6071 407113-EN v3.6 4/14 contact: www.ponpe.com sale@ponpe.com... -
Page 8: Warranty
Warranty FLIR Systems, Inc. warrants this Extech Instruments brand device to be free of defects in parts and workmanship for one year from date of shipment (a six month limited warranty applies to sensors and cables). If it should become necessary to return the instrument for service during or beyond the warranty period, contact the Customer Service Department for authorization. Visit the website www.extech.com for contact information. A Return Authorization (RA) number must be issued before any product is returned. The sender is responsible for shipping charges, freight, insurance and proper packaging to prevent damage in transit. This warranty does not apply to defects resulting from action of the user such as misuse, improper wiring, operation outside of specification, improper maintenance or repair, or unauthorized modification. FLIR Systems, Inc. specifically disclaims any implied warranties or merchantability or fitness for a specific purpose and will not be liable for any direct, indirect, incidental or consequential damages. FLIR’s total liability is limited to repair or replacement of the product. The warranty set forth above is inclusive and no other warranty, whether written or oral, is expressed or implied. Calibration, Repair, and Customer Care Services FLIR Systems, Inc. offers repair and calibration services for the Extech Instruments products we sell. NIST certification for most products is also provided. Call the Customer Service Department for information on calibration services available for this product. Annual calibrations should be performed to verify meter performance and accuracy. Technical support and general customer service is also provided, refer to the contact information provided below. Support Lines: U.S. (877) 439‐8324; International: +1 (603) 324‐7800 Technical Support: Option 3; E‐mail: support@extech.com Repair & Returns: Option 4; E‐mail: repair@extech.com Product specifications are subject to change without notice Please visit our website for the most up‐to‐date information www.extech.com FLIR Commercial Systems, Inc., 9 Townsend West, Nashua, NH 03063 USA Copyright © 2014 FLIR Systems, Inc. All rights reserved including the right of reproduction in whole or in part in any form www.extech.com 407113-EN v3.6 4/14 contact: www.ponpe.com sale@ponpe.com...
