Summary of Contents for Extech Instruments 407114

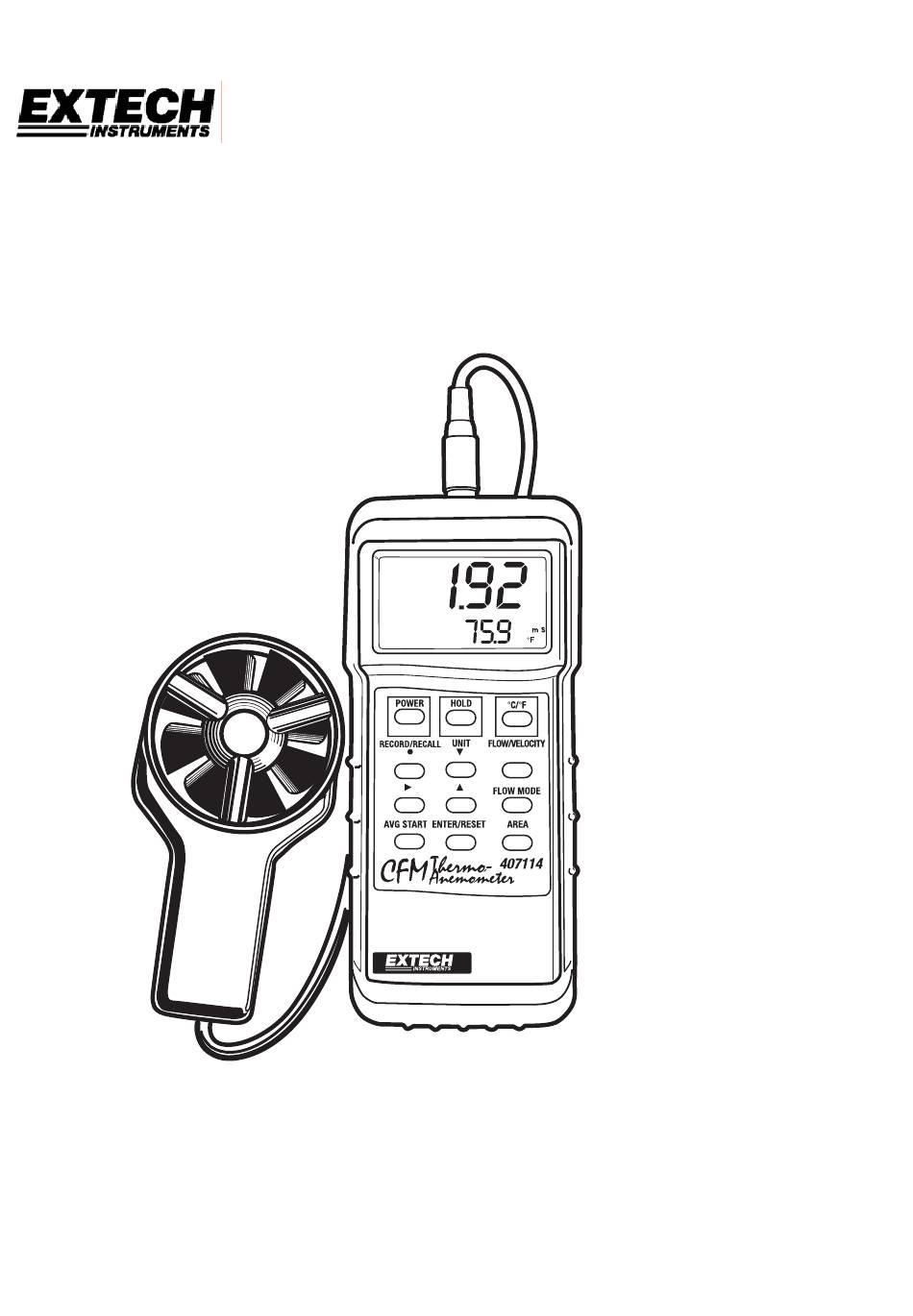

- Page 1 User's Manual CFM Thermo Anemometer Air Velocity, Air Flow, and Temperature Model 407114...
- Page 2 Congratulations on your purchase of the Extech CFM Thermo Anemometer. This instrument measures Air Velocity, Air Flow (volume) and Temperature. The RS-232 PC interface provides data acquisition functionality. Proper use of this meter will provide years of reliable service. Model 407114 Version 2.0 November 2005...
-
Page 3: Specifications
CMM (cubic meters/min) 0-999,900 m /min 0.001 to 0 to 9,999m CFM (cubic ft/min) 0-999,900 ft /min 0.001 to 0 to 9,999ft Air Temperature Range Resolution Accuracy F (0.8 32 - 122 F (0 - 50 Model 407114 Version 2.0 November 2005... -
Page 4: Meter Description
AREA Used when manually entering the area of a duct. Refer to the Operation section of this manual. 7. Battery compartment located on the back of the instrument. The rubber protective jacket must be removed from the meter to access the compartment. Model 407114 Version 2.0 November 2005... -
Page 5: Operation
3. Press HOLD again to return to normal operation. Maximum and Minimum Recording The 407114 allows the user to record and view the highest (MAX) and lowest (MIN) readings. 1. Press the RECORD/RECALL button once. The REC indicator will appear on the display and the meter will begin keeping track of the MAX and MIN values. -
Page 6: Battery Replacement
5. Close the battery compartment and replace the meter’s protective jacket RS-232 PC Interface The 407114 is equipped with a 3.5mm phono jack (meter top) for connection to a PC. To obtain the Model 407001 Windows data acquisition kit, contact Extech Instruments. The kit includes a cable that connects the meter to a PC. -
Page 7: Warranty
Warranty EXTECH INSTRUMENTS CORPORATION warrants this instrument to be free of defects in parts and workmanship for one year from date of shipment (a six month limited warranty applies to sensors and cables). If it should become necessary to return the instrument for service during or beyond the warranty period, contact the Customer Service Department at (781) 890-7440 ext. -
Page 8: Useful Equations And Conversions
Unit of Measure Conversion Table ft/min knots km/h 1 m/s 196.87 1.944 2.24 1 ft/min 0.00508 0.00987 0.01829 0.01138 1 knot 0.5144 101.27 1.8519 1.1523 1 km/h 0.2778 54.69 0.54 0.6222 1 MPH 0.4464 87.89 0.8679 1.6071 Model 407114 Version 2.0 November 2005...
