Probe Descriptions - Extech Instruments HDV7C-55-HD-1 User Manual

Introduction
The probes covered in this manual are designed for use with the
HDV700 High Definition VideoScope. The probes are controlled by
the touch-screen icons on the HDV700.
The HDV700 user manual and additional translations of this probe
manual are available from the support site (see the Support
section).

Probe Descriptions

The probes are described in the following sections, see the Specifi-
cations and Safety sections for additional information.
The HDV700 offers many useful features including capturing still
images and video, changing camera views, and controlling work-
lights; please refer to the HDV700 user manual for complete
information.
HDV7C-55–HD–1 HD Camera Probe
The HD camera probe head is 0.2 in. (5.5 mm) in diameter and its
probe length is 3.3 ft. (1 m). The camera resolution is 1280 x 720.

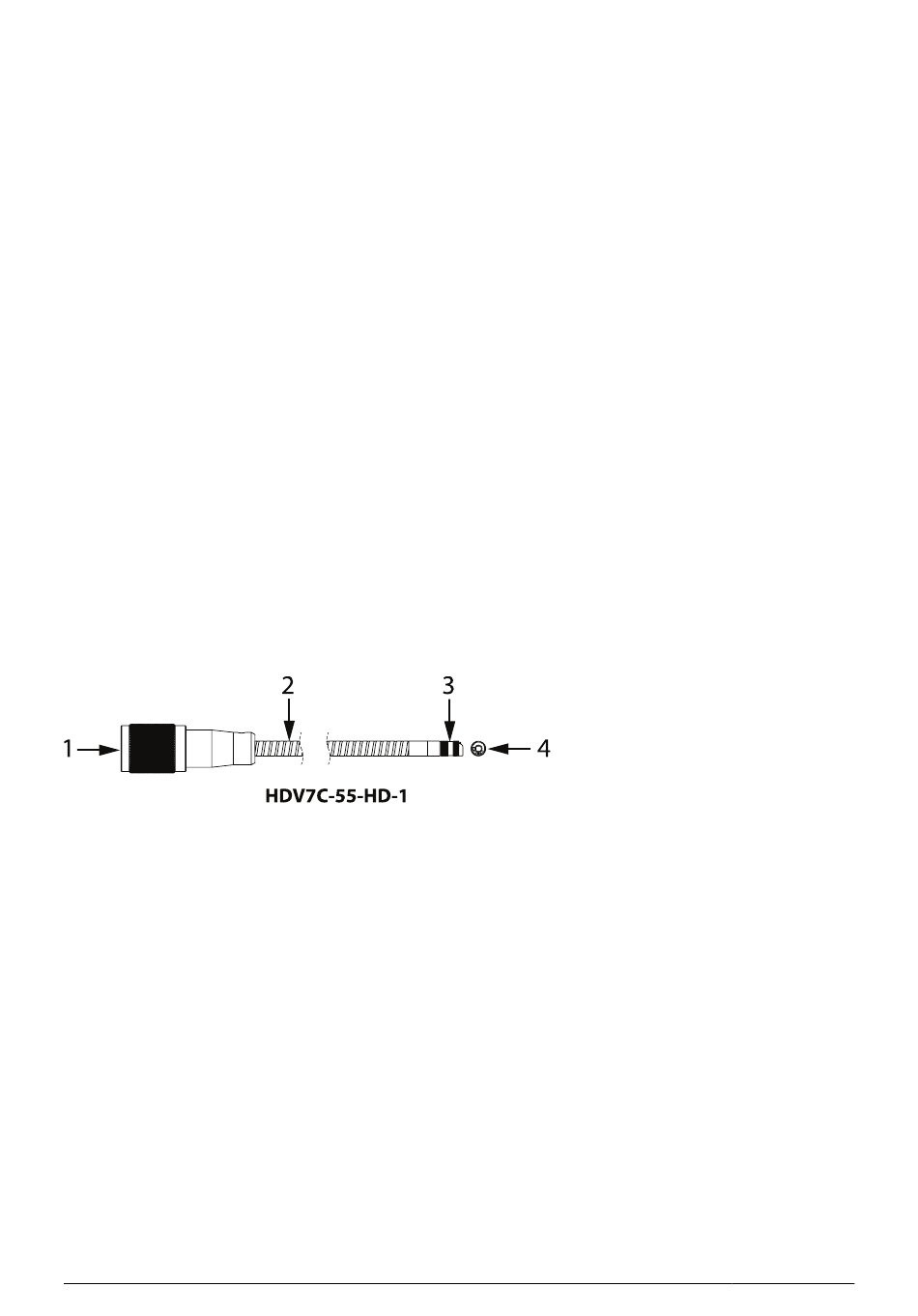

1. HDV700 connector
2. Probe
3. Probe head
4. HD camera lens and worklights
