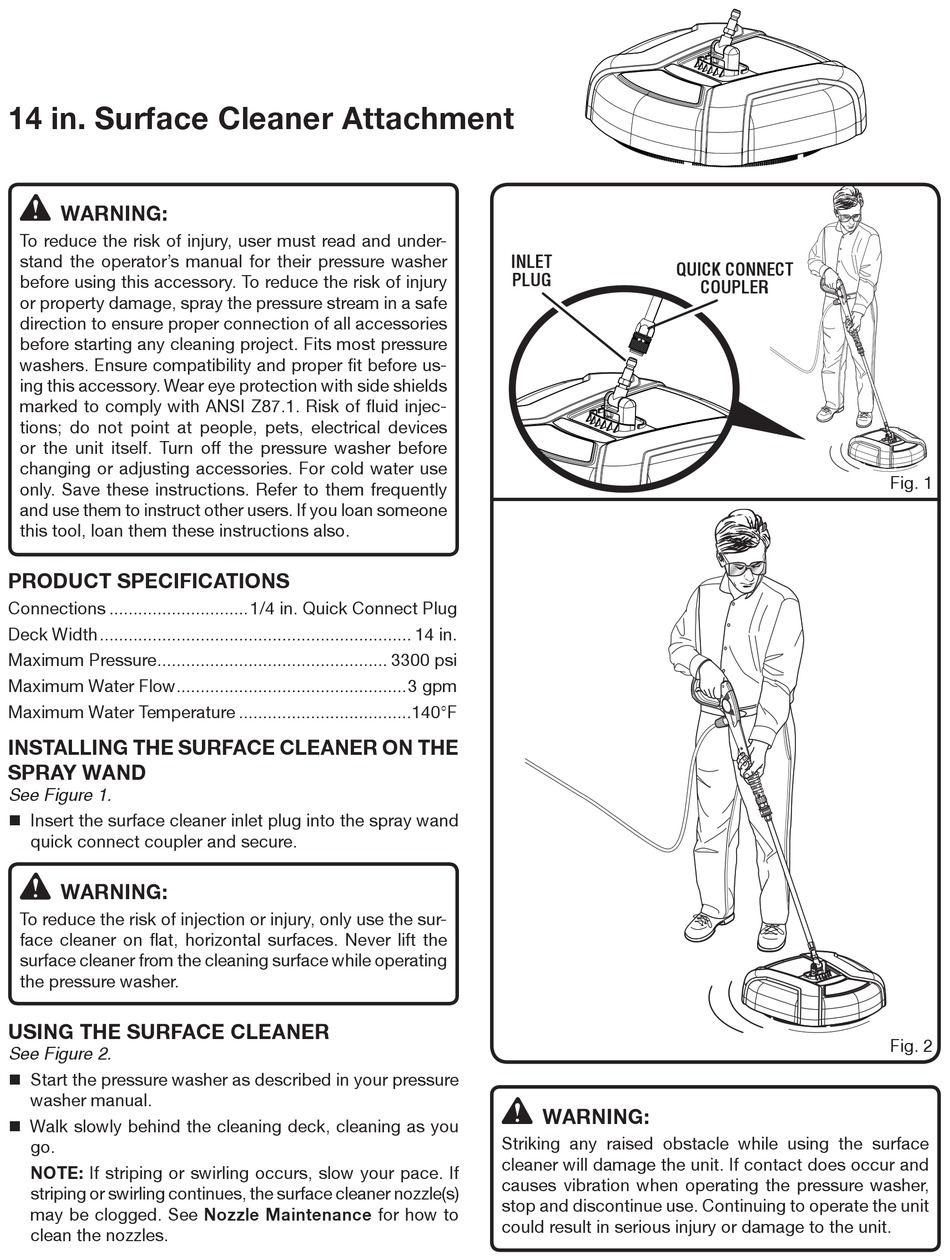

Ryobi PS803152 Quick Start Manual

14 in. Surface Cleaner Attachment
WARNING:
To reduce the risk of injury, user must read and under-
stand the operator's manual for their pressure washer
before using this accessory. To reduce the risk of injury
or property damage, spray the pressure stream in a safe
direction to ensure proper connection of all accessories
before starting any cleaning project. Fits most pressure
washers. Ensure compatibility and proper fit before us-
ing this accessory. Wear eye protection with side shields
marked to comply with ANSI Z87.1. Risk of fluid injec-
tions; do not point at people, pets, electrical devices
or the unit itself. Turn off the pressure washer before
changing or adjusting accessories. For cold water use
only. Save these instructions. Refer to them frequently
and use them to instruct other users. If you loan someone
this tool, loan them these instructions also.
PRODUCT SPECIFICATIONS
Connections .............................1/4 in. Quick Connect Plug
Deck Width ................................................................. 14 in.
Maximum Pressure ................................................ 3300 psi
Maximum Water Flow ................................................3 gpm
Maximum Water Temperature ....................................140°F
INSTALLING THE SURFACE CLEANER ON THE
SPRAY WAND
See Figure 1.
n Insert the surface cleaner inlet plug into the spray wand
quick connect coupler and secure.
WARNING:
To reduce the risk of injection or injury, only use the sur-
face cleaner on flat, horizontal surfaces. Never lift the
surface cleaner from the cleaning surface while operating
the pressure washer.
USING THE SURFACE CLEANER
See Figure 2.
n Start the pressure washer as described in your pressure
washer manual.
n Walk slowly behind the cleaning deck, cleaning as you
go.
NOTE: If striping or swirling occurs, slow your pace. If
striping or swirling continues, the surface cleaner nozzle(s)
may be clogged. See Nozzle Maintenance for how to
clean the nozzles.
INLET
QUICK CONNECT
PLUG
WARNING:
Striking any raised obstacle while using the surface
cleaner will damage the unit. If contact does occur and
causes vibration when operating the pressure washer,
stop and discontinue use. Continuing to operate the unit
could result in serious injury or damage to the unit.
COUPLER
Fig. 1
Fig. 2
