  • Page 1 ULXD6-8 Boundary and Gooseneck Base Transmitters Online user guide for ULXD6 and ULXD8 transmitters. Version: 10.1 (2022-A)

  • Page 2: Table Of Contents

    Shure Incorporated Table of Contents Receiver Front Panel ULXD6-8 Boundary and Gooseneck Base Transmitters 3 Using QLX-D with a Shure ULX-D System IMPORTANT SAFETY INSTRUCTIONS Mute/Active Button WARNING High-Pass Filter Quickstart Instructions Transmitter RF Power General Description Locking Transmitter Controls...

  • Page 3: Ulxd6-8 Boundary And Gooseneck Base Transmitters

    Shure Incorporated ULXD6-8 Boundary and Gooseneck Base Transmitters IMPORTANT SAFETY INSTRUCTIONS READ these instructions. KEEP these instructions. HEED all warnings. FOLLOW all instructions. DO NOT use this apparatus near water. CLEAN ONLY with dry cloth. DO NOT block any ventilation openings. Allow sufficient distances for adequate ventilation and install in accordance with the manufacturer’s instructions.

  • Page 4: Warning

    Do not short circuit; may cause burns or catch fire • Do not charge or use battery packs other than Shure rechargeable batteries • Dispose of battery packs properly. Check with local vendor for proper disposal of used battery packs.

  • Page 5: Quickstart Instructions

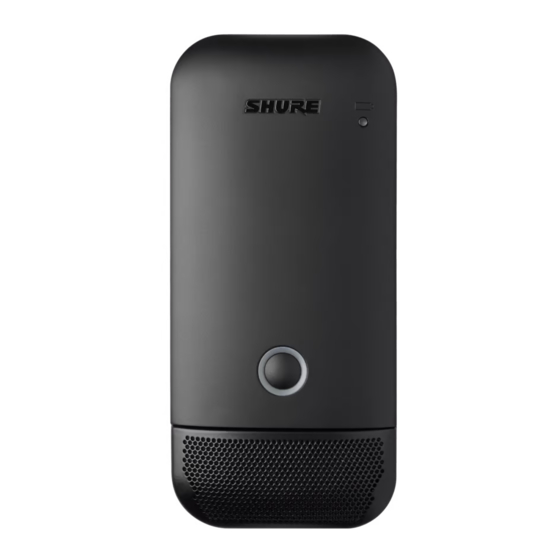

    Shure Incorporated Quickstart Instructions General Description ULX-D series boundary and gooseneck base transmitters add new designs to Shure's breakthrough ULX-D wireless line. Boundary and gooseneck base transmitters offer cable-free flexibility for corporate conference rooms, government facilities, ® educational institutions, A/V conferencing, and live sound reinforcement. Use Shure Wireless Workbench software and net­...

  • Page 6: Optional Accessories

    4-bay networked docking station to provide power to charge gooseneck and SBC450 boundary microphones 8-bay networked docking station to provide power to charge gooseneck and SBC850 boundary microphones 8-Bay Shure Battery Charger SBC800 6' USB-A cable with wall plug for charging Wireless Transmitters SBC10-USB-A Shure Lithium-Ion Rechargeable Battery SB900B...
  • Page 7 Shure Incorporated MX415LP/S MX415RLP/N MX415LPDF/C MX415LPDF/S MX415RLPDF/N MX415RLPDF/C MX415RLPDF/S MX405WLP/N MX405WRLP/N MX410WLP/N MX410WRLP/N MX415WLP/N MX415WRLP/N MX410WLPDF/N MX410WRLPDF/N MX415WLPDF/N MX415WRLPDF/N 7/23...

  • Page 8: Transmitter Controls And Connectors

    Shure Incorporated Transmitter Controls and Connectors ① Power Button Press to power on; press and hold to power off. ② Mute/Active Button Four settings are available for the mute/active button: ◦ Toggle: Press to switch between active and mute states ◦...

  • Page 9: Connecting Gooseneck Microphone To Ulxd8 Base

    Shure Incorporated ◦ On (red) = Less than 30 minutes of battery life remain ◦ On (green) = Microphone docked on charging station ◦ On (amber) = Battery is missing or is not inserted correctly ⑤ Infrared (IR) Port Align with receiver IR port to send settings to transmitter.

  • Page 10: Batteries

    Boundary and gooseneck base transmitters can be powered by Shure rechargeable batteries or two AA batteries (included). The receiver front panel displays battery charge level in hours/minutes for Shure batteries and in bars for AA batteries. For ac­ curate monitoring, set battery type in the IR Presets menu using the receiver front panel or Wireless Workbench and perform an IR sync.

  • Page 11: Shure Rechargeable Batteries

    Note: Turning off a networked docking station also turns off any docked transmitters. Transmitters will resume charging when the power is restored. To provide power during operation, connect to an optional Shure USB power supply (SBC10-USB-A). The SBC10 power supply and the SBC450 and SBC850 docking stations fully charge Shure rechargeable batteries in about three hours.
  • Page 12 Shure Incorporated Alkaline Battery Life 10 mW 8:00 to 5:55 5:55 to 3:50 3:50 to 1:45 1:45 to 0:45 0:45 to 0:15 0:15 to 0:00 NiMH Battery Life 10 mW 10:00 to 7:15 7:15 to 4:30 4:30 to 1:45 1:45 to 0:45...

  • Page 13: Changing Transmitter Settings

    Shure Incorporated Battery Life 10 mW 0:15 to 0:00 Changing Transmitter Settings Each transmitter has the following adjustable settings: • Mute button and mute LED behavior or brightness • High-pass filter • RF power • Power lock • Initial state from charger •...

  • Page 14: Receiver Front Panel

    Note: If using a QLX-D receiver, you must use Wireless Workbench to make changes to transmitter settings. Using QLX-D with a Shure ULX-D System Transmitters and receivers from QLX-D and ULX-D component groups can be paired to form audio channels.

  • Page 15: Mute/Active Button

    Shure Incorporated On the receiver front panel, hold enter while pressing menu to enter the advanced menu. Press menu to advance to Preset bn gn. The IR window will flash. Align the transmitter IR window with the receiver to send the presets to the transmitter.

  • Page 16: Locking Transmitter Controls

    Shure Incorporated RF Power Setting System Range Application For hostile RF environments or long­distance ap­ 20 mW >100 m (330 ft.) plications Menu path: IR PRESETS > GOOSENECK / BOUNDARY > RF POWER Note: Using the 20 mW setting decreases the transmitter battery runtime and reduces the number of compatible systems.

  • Page 17: Encrypting A Single Transmitter To A Single Receiver

    Shure Incorporated Encrypting a Single Transmitter to a Single Receiver From the receiver menu: DEVICE UTILITIES > ENCRYPTION >  ON (Auto) Press ENTER. Perform an IR Sync to share the encryption key with the selected transmitter. Removing Encryption From the receiver menu: DEVICE UTILITIES > ENCRYPTION > OFF Press ENTER.

  • Page 18: Frequency Range

    Shure Incorporated Frequency Range Band Frequency Range ( MHz ) Power ( mW )* 470 to 534 1/10/20 470 to 534 1/10/20 479 to 534 1/10 470 to 510 1/10/20 534 to 598 1/10/20 534 to 598 1/10/20 534 to 565...

  • Page 19: Specifications

    Up to 8 hours 40 minutes See Battery Runtime Chart The SB900B Shure rechargeable battery uses SBC200, SBC800 and SBC220 chargers. Dimensions 113.94 mm x 61.83 mm x 34.28 mm (4.48 in. x 2.43 in. x 1.35 in.) H x W x D...
  • Page 20 Up to 8 hours 20 minutes See Battery Runtime Chart The SB900B Shure rechargeable battery uses SBC200, SBC800 and SBC220 chargers. Dimensions 136.94 mm x 78.27 mm x 40.77 mm (5.39 in. x 3.08 in. x 1.60 in.) H x W x D...

  • Page 21: Important Product Information

    Licensing of Shure wireless microphone equipment is the user’s responsibility, and licensability de­ pends on the user’s classification and application, and on the selected frequency. Shure strongly urges the user to contact the appropriate telecommunications authority concerning proper licensing, and before choosing and ordering frequencies.
  • Page 22 Note: EMC conformance testing is based on the use of supplied and recommended cable types. The use of other cable types may degrade EMC perfor­ mance. The CE Declaration of Conformity can be obtained from: www.shure.com/europe/compliance Authorized European representative: Shure Europe GmbH...
  • Page 23 Shure Incorporated Global Compliance Jakob-Dieffenbacher-Str. 12 75031 Eppingen, Germany Phone: +49-7262-92 49 0 Email: info@shure.de www.shure.com （一）本产品符合“微功率短距离无线电发射设备目录和技术要求”的具体条款和使用场景； （二）不得擅自改变使用场景或使用条件、扩大发射频率范围、加大发射功率（包括额外加装射频功率放大器），不得擅自更改 发射天线； （三）不得对其他合法的无线电台（站）产生有害干扰，也不得提出免受有害干扰保护； （四）应当承受辐射射频能量的工业、科学及医疗（ISM）应用设备的干扰或其他合法的无线电台（站）干扰； （五）如对其他合法的无线电台（站）产生有害干扰时，应立即停止使用，并采取措施消除干扰后方可继续使用； （六）在航空器内和依据法律法规、国家有关规定、标准划设的射电天文台、气象雷达站、卫星地球站（含测控、测距、接收、 导航站）等军民用无线电台（站）、机场等的电磁环境保护区域内使用微功率设备，应当遵守电磁环境保护及相关行业主管部门 的规定。 23/23...
