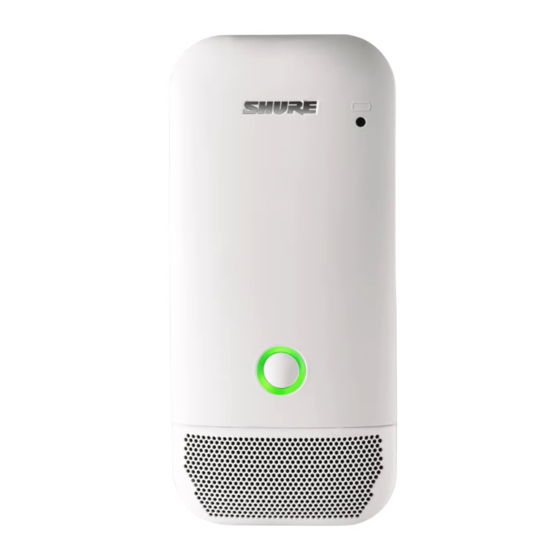

Shure ULXD6 User Manual

Boundary and gooseneck base transmitters
Hide thumbs Also See for ULXD6:
Table of Contents

Advertisement

Quick Links

Download this manual
Shure Publications | User Guides | ULXD6 ULXD8
Publications User Guides
›
Download PDF
English

Table of Contents

IMPORTANT SAFETY
INSTRUCTIONS
Settings
Transmitter RF Power
http://pubs.shure.com/guide/ULXD6-ULXD8/en-US
ULXD6-ULXD8 (English)
›
ULXD6 ULXD8
Boundary and Gooseneck Base
Transmitters
IMPORTANT SAFETY
INSTRUCTIONS
1. READ these instructions.
2. KEEP these instructions.
3. HEED all warnings.
4. FOLLOW all instructions.
5. DO NOT use this apparatus near water.
6. CLEAN ONLY with dry cloth.
7. DO NOT block any ventilation openings. Allow
sufficient distances for adequate ventilation and
install in accordance with the manufacturer's
instructions.
8. DO NOT install near any heat sources such as open
flames, radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
Do not place any open flame sources on the product.
9. DO NOT defeat the safety purpose of the polarized
or grounding type plug. A polarized plug has two
blades with one wider than the other. A grounding
type plug has two blades and a third grounding
prong. The wider blade or the third prong are
provided for your safety. If the provided plug does
9/20/17, 11)49 AM
Page 1 of 31

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ULXD6 and is the answer not in the manual?

Questions and answers

Related Manuals for Shure ULXD6

Summary of Contents for Shure ULXD6

  • Page 1: Table Of Contents

    Shure Publications | User Guides | ULXD6 ULXD8 9/20/17, 11)49 AM Publications User Guides ULXD6-ULXD8 (English) › › Download PDF ULXD6 ULXD8 English Boundary and Gooseneck Base Transmitters Table of Contents IMPORTANT SAFETY IMPORTANT SAFETY INSTRUCTIONS INSTRUCTIONS Quick Start Instructions General Description 1.
  • Page 2 Shure Publications | User Guides | ULXD6 ULXD8 9/20/17, 11)49 AM not fit into your outlet, consult an electrician for Locking Transmitter Controls replacement of the obsolete outlet. 10. PROTECT the power cord from being walked on or Setting Initial State From...
  • Page 3 Shure Publications | User Guides | ULXD6 ULXD8 9/20/17, 11)49 AM 15. DO NOT expose the apparatus to dripping and splashing. DO NOT put objects filled with liquids, such as vases, on the apparatus. 16. The MAINS plug or an appliance coupler shall remain readily operable.

  • Page 4: Quick Start Instructions

    Shure Publications | User Guides | ULXD6 ULXD8 9/20/17, 11)49 AM Quick Start Instructions General Description ULX-D series boundary and gooseneck base transmitters add new designs to Shure's breakthrough ULX-D wireless line. Boundary and gooseneck base transmitters offer cable-free flexibility for corporate conference rooms, government facilities, educational institutions, A/V conferencing, and live sound reinforcement.

  • Page 5: Included Components

    Shure Publications | User Guides | ULXD6 ULXD8 9/20/17, 11)49 AM Wireless Workbench software and networked charging ® stations to simplify transmitter configuration and monitor charging status. Both transmitters run on rechargeable or AA batteries and can be monitored using external control systems, such as AMX or Crestron.
  • Page 6 Shure Publications | User Guides | ULXD6 ULXD8 9/20/17, 11)49 AM Power Press to power on; press and hold to Button power off. Four settings are available for the Mute/Active mute/active button: Button Toggle: Press to switch between active and mute states...

  • Page 7: Connecting Gooseneck

    Shure Publications | User Guides | ULXD6 ULXD8 9/20/17, 11)49 AM Flashing *MX400R series gooseneck microphones (red LED) do not offer this setting. Low- Off = More than 30 minutes of Battery LED battery life remain On (red) = Less than 30 minutes of...

  • Page 8: Boundary Microphone

    Shure Publications | User Guides | ULXD6 ULXD8 9/20/17, 11)49 AM Boundary Microphone Placement The boundary transmitter sits on a table or desk to transmit speech while discreetly blending into any conference environment. Cardioid and omnidirectional versions are available. For best low-frequency response and rejection of background noise, place the microphone on a large, flat surface, such as a floor, table, or lectern.
  • Page 9 BATTERY Installation 1. Open the battery door. 2. Insert one Shure battery or two AA batteries. Align +/- terminals on batteries as shown. For AA batteries, rotate the rubber piece to hold batteries in place. 3. Close the battery door until it latches.
  • Page 10 Shure Publications | User Guides | ULXD6 ULXD8 9/20/17, 11)49 AM the battery. 3. Close the battery door. 4. Insert and tighten the screw using a screwdriver. http://pubs.shure.com/guide/ULXD6-ULXD8/en-US Page 10 of 31...
  • Page 11 Shure Publications | User Guides | ULXD6 ULXD8 9/20/17, 11)49 AM Shure Rechargeable Batteries The receiver home screen displays the number of hours and minutes remaining for rechargeable batteries. If using a networked charging station, Wireless Workbench displays battery information for all transmitters docked on the charger.
  • Page 12 Shure Publications | User Guides | ULXD6 ULXD8 9/20/17, 11)49 AM To provide power during operation, connect to an optional Shure USB Charger (SBC10-USBA). Battery Runtime Charts For AA batteries, the battery icon on the receiver front panel indicates battery charge.

  • Page 13: Changing Transmitter

    Shure Publications | User Guides | ULXD6 ULXD8 9/20/17, 11)49 AM NiMH Battery Life 10 mW 10:00 to 7:15 7:15 to 4:30 4:30 to 1:45 1:45 to 0:45 0:45 to 0:15 0:15 to 0:00 Li-primary Battery Life 10 mW 15:00 to 10:35...
  • Page 14 Shure Publications | User Guides | ULXD6 ULXD8 9/20/17, 11)49 AM Initial state from charger Battery type Device name Channel name Frequency Normal or High-Density mode Boundary and gooseneck offset There are three ways to change transmitter settings: Wireless Workbench and Networked...
  • Page 15 Shure Publications | User Guides | ULXD6 ULXD8 9/20/17, 11)49 AM Wireless Workbench and IR Sync Required equipment: Computer with Wireless Workbench installed, receiver, and transmitter 1. Ensure that receiver is connected to network and to Wireless Workbench. 2. Open the Item Properties for the receiver in Wireless http://pubs.shure.com/guide/ULXD6-ULXD8/en-US...
  • Page 16 Shure Publications | User Guides | ULXD6 ULXD8 9/20/17, 11)49 AM Workbench. 3. Make changes to transmitter settings and click Apply. The transmitter settings will be sent to the receiver. 4. Press sync on the receiver. 5. Align the receiver and transmitter IR windows until the receiver IR window illuminates red.

  • Page 17: Mute/Active Button

    Shure Publications | User Guides | ULXD6 ULXD8 9/20/17, 11)49 AM the receiver IR window illuminates red. 5. When complete, SYNC SUCCESS! appears. Note: If using a QLX-D receiver, you must use Wireless Workbench to make changes to transmitter settings. Mute/Active Button The button is configured to toggle between Mute and Active.

  • Page 18: High-Pass Filter

    Shure Publications | User Guides | ULXD6 ULXD8 9/20/17, 11)49 AM Menu path: IR PRESETS > GOOSENECK / BOUNDARY > MUTE BUTTON BEHAVIOR Note: When the mute/active button is set to Disabled, the transmitter will still send TPCI data if the button is pressed. High-Pass Filter Each transmitter contains a high-pass filter.
  • Page 19 Shure Publications | User Guides | ULXD6 ULXD8 9/20/17, 11)49 AM runtime and reduces the number of compatible systems. Locking Transmitter Controls Boundary and gooseneck base transmitters have a power lock to prevent accidental or unauthorized changes to the transmitter. When the power lock is on, the transmitter's power switch is disabled.
  • Page 20 Shure Publications | User Guides | ULXD6 ULXD8 9/20/17, 11)49 AM Off: Power is off Menu path: IR PRESETS > GOOSENECK / BOUNDARY > INITIAL STATE FROM CHARGER Note: If Mute Button Behavior is set to Push-to-Talk and Initial  State From Charger is set to Active, the transmitter will only pass audio when you push the mute button.
  • Page 21 Shure Publications | User Guides | ULXD6 ULXD8 9/20/17, 11)49 AM 3. IR Sync the transmitter and receiver to clear the encryption key. Note: If multiple transmitters are encrypted to a single receiver, each transmitter must be IR synced to clear the encryption key.
  • Page 22 Shure Publications | User Guides | ULXD6 ULXD8 9/20/17, 11)49 AM Band Frequency Range Power ( mW )* ( MHz ) 470 to 534 1/10/20 470 to 534 1/10/20 479 to 534 1/10 534 to 598 1/10/20 534 to 598...
  • Page 23 Shure Publications | User Guides | ULXD6 ULXD8 9/20/17, 11)49 AM 915 to 928 0.25/10/20 *Output power delivered to the antenna port of the transmitter. Model Variations ULXD Cardioid Boundary Microphone ULXD6/C ULXD Omnidirectional Boundary ULXD6/O Microphone ULXD Gooseneck Base Transmitter ULXD8 5"...

  • Page 24: Specifications

    Shure Publications | User Guides | ULXD6 ULXD8 9/20/17, 11)49 AM Microphone with Red Top LED 10" Supercardioid Dualflex Gooseneck MX410RLPDF/S Microphone with Red Top LED 15" Cardioid Gooseneck Microphone MX415LP/C 15" Supercardioid Gooseneck MX415LP/S Microphone 15" Gooseneck with Red Top LED (no...
  • Page 25 Shure Publications | User Guides | ULXD6 ULXD8 9/20/17, 11)49 AM Battery Runtime @ 10 mW Shure SB900A Up to 9 hours 20 minutes AA batteries Up to 8 hours 40 minutes See Battery Runtime Chart Dimensions 113.94 mm x 61.83 mm x 34.28 mm (4.48 in. x 2.43 in. x 1.35 in.) H x W x D...

  • Page 26: Battery Type

    Shure Publications | User Guides | ULXD6 ULXD8 9/20/17, 11)49 AM 1 mW, 10 mW, 20 mW See Frequency Range and Output Power table, varies by region Cardioid ULXD8 Gain Adjustment Range 0 to 21 dB (in 3 dB steps)
  • Page 27 Shure Publications | User Guides | ULXD6 ULXD8 9/20/17, 11)49 AM 293 g with AA batteries Operating Temperature Range 0°C (32°F) to 45°C (113°F) Housing Molded Plastic Audio Input Microphone Connector 6-pin connector for Shure MX405/10/15 Configuration Unbalanced Impedance >20 kΩ...
  • Page 28 Shure Publications | User Guides | ULXD6 ULXD8 9/20/17, 11)49 AM Certifications This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2)
  • Page 29 Shure Publications | User Guides | ULXD6 ULXD8 9/20/17, 11)49 AM est susceptible d'en compromettre le fonctionnement. Note: EMC conformance testing is based on the use of supplied and recommended cable types. The use of other cable types may degrade EMC performance.
  • Page 30 Shure Publications | User Guides | ULXD6 ULXD8 9/20/17, 11)49 AM measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and the receiver. Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
  • Page 31 Never put batteries in mouth. If swallowed, contact your physician or local poison control center Do not short circuit; may cause burns or catch fire Do not charge or use battery packs other than Shure rechargeable batteries Dispose of battery packs properly. Check with local vendor for proper disposal of used battery packs.
