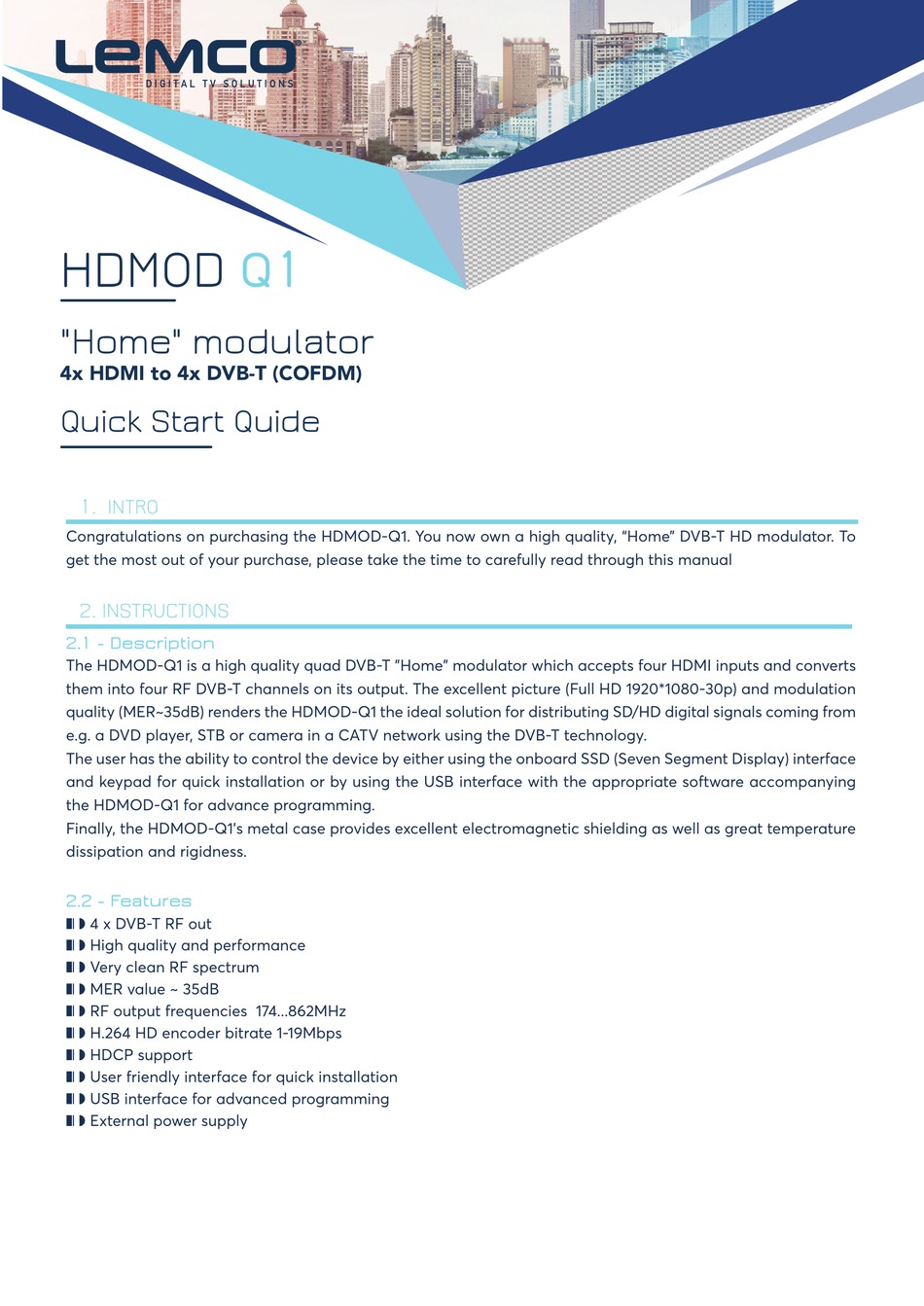

Lemco HDMOD Q1 Quick Start Manual

HDMOD
"Home" modulator
4x HDMI to 4x DVB-T (COFDM)
Quick Start Quide

1. INTRO

Congratulations on purchasing the HDMOD-Q1. You now own a high quality, "Home" DVB-T HD modulator. To
get the most out of your purchase, please take the time to carefully read through this manual

2. INSTRUCTIONS

2.1 - Description

The HDMOD-Q1 is a high quality quad DVB-T "Home" modulator which accepts four HDMI inputs and converts
them into four RF DVB-T channels on its output. The excellent picture (Full HD 1920*1080-30p) and modulation
quality (MER~35dB) renders the HDMOD-Q1 the ideal solution for distributing SD/HD digital signals coming from
e.g. a DVD player, STB or camera in a CATV network using the DVB-T technology.
The user has the ability to control the device by either using the onboard SSD (Seven Segment Display) interface
and keypad for quick installation or by using the USB interface with the appropriate software accompanying
the HDMOD-Q1 for advance programming.
Finally, the HDMOD-Q1's metal case provides excellent electromagnetic shielding as well as great temperature
dissipation and rigidness.

2.2 - Features

zx w 4 x DVB-T RF out
zx w High quality and performance
zx w Very clean RF spectrum
zx w MER value ~ 35dB
zx w RF output frequencies 174...862MHz
zx w H.264 HD encoder bitrate 1-19Mbps
zx w HDCP support
zx w User friendly interface for quick installation
zx w USB interface for advanced programming
zx w External power supply
Q1
