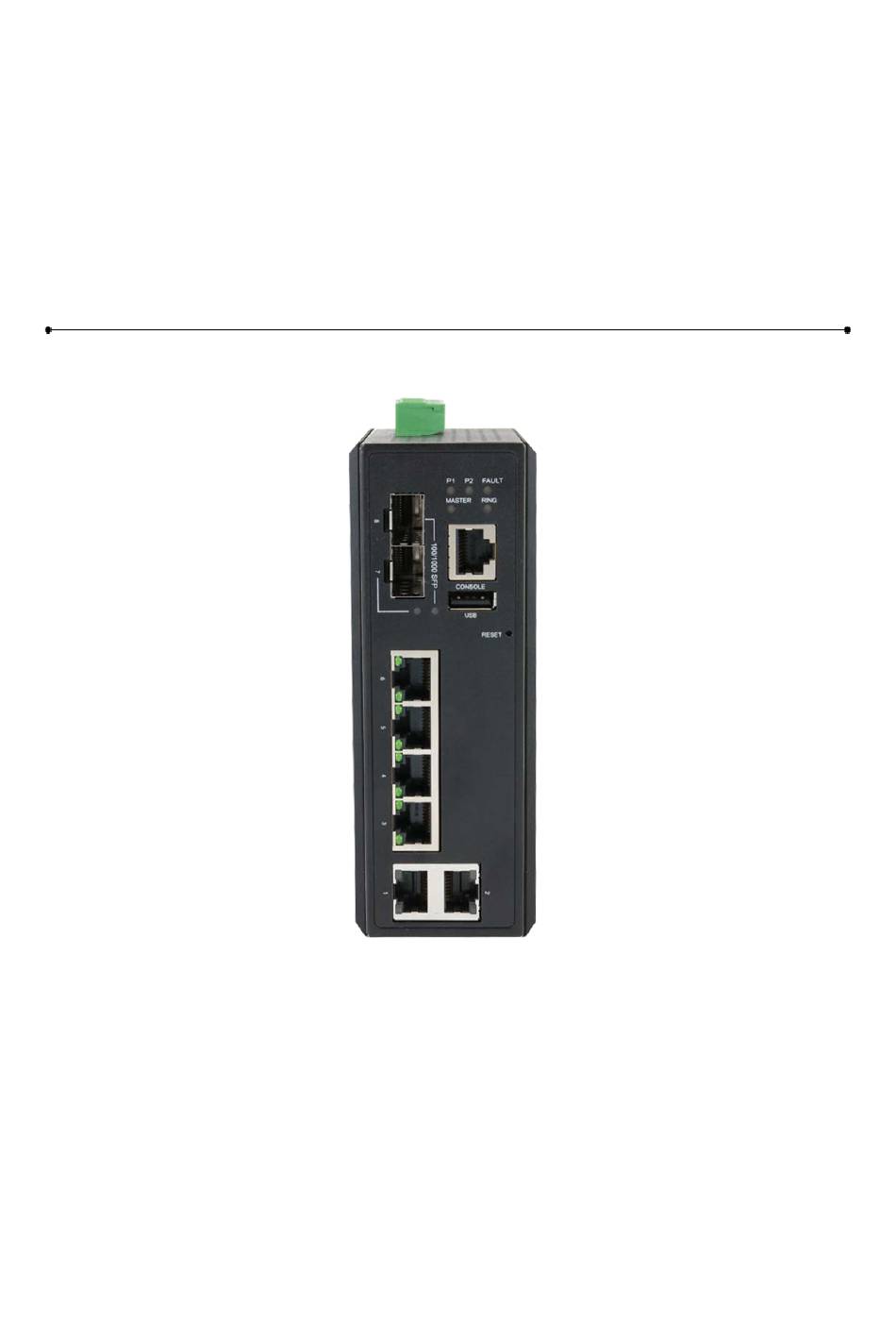

- Page 1 LEONTON EG5-0802-SFP Series (EG5-0802-SFP / EG5-0802-SFP -T) User Manual...
- Page 2 Disclaimer LEONTON Technologies, Co. Ltd. provides this manual without warranty of any kind, expressed or implied, including but not limited to the implied warranties of merchantability and fitness for a particular purpose.
- Page 3 This is a Class-A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. This document is the current official release manual. Please check our website (www.leonton.com) for any updated manual or contact us by e-mail (sales@leonton.com).
-
Page 4: Table Of Contents
Contents Overview ........................1 Software Features ....................1 Hardware Features ....................1 Package Contents ....................2 Safety Precaution ....................2 Hardware Description ....................4 Physical Dimensions ....................4 Front Panel ......................5 Top View........................ 5 LED Indicators......................5 Ethernet Ports ....................... 7 Cabling ........................ -
Page 5: Overview
Overview This series is rated IP30 and installation by DIN Rail. Each unit of this industrial gigabit managed Ethernet switch series has 6* 10/100/1000TX Gigabit Ethernet ports and 2 dual-rate (100/1000) SFP slots, suitable for applications that require high bandwidth and long distance communication. In order to prevent unregulated voltage, this series provides high EFT and ESD protection. -
Page 6: Package Contents
8K MAC Address Table • • Supports 9.6Kbytes Jumbo Frame 4Mbits memory buffer • Power Input • Redundant power DC 12~48V with connective 1*6-pin removable terminal block Max. current 3.5A • • Relay Contact: 24 VDC, 1A resistive • The power input specification is complied with the requirements of SELV (Safety Extra Low Voltage), and the power supply should be complied with UL 61010-1 &... - Page 7 Figure 1.1: Caution Label This warning label is on the device, and means that the surface of the device is hot. (Shown in Figure 1.2) Figure 1.2: Hot Surface Warning Label...
-
Page 8: Hardware Description
Hardware Description Physical Dimensions Figure 2.1, below, shows the physical dimensions of EG5-0802-SFP series: 8-port industrial gigabit managed Ethernet switch with 6*10/100/1000Tx, and 2*100/1000SFP slots. (W x D x H) is 54mm x 99mm x 142mm Figure 2.1: EG5-0802-SFP Series Physical Dimensions... -
Page 9: Front Panel

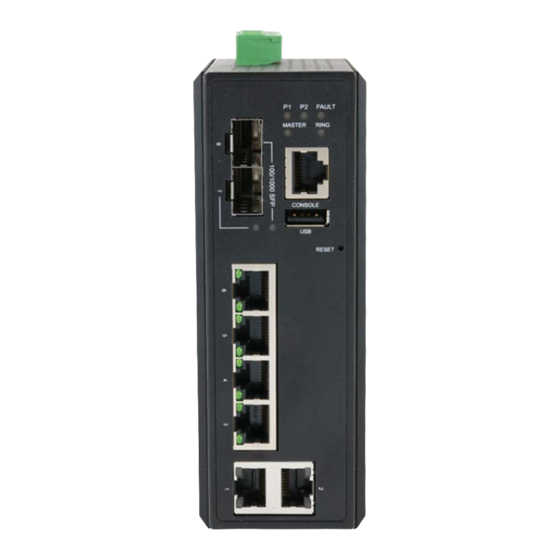

Figure 2.2: The Front Panel of EG5-0802-SFP Series Top View Figure 2.3, below, shows the top panel of the EG5-0802-SFP series switch that is equipped with one 6-pin removal terminal block connector for dual DC power inputs (12~48VDC). Figure 2.3: Top Panel View of EG5-0802-SFP Series... - Page 10 Green Connected to network, 10/100Mbps 10/100 Flashing Networking is active (LAN Port 1-6) Not connected to network Table 2.4: LED Indictors for EG5-0802-SFP Series Caution: "P" is the abbreviation for "Power", "L" is for "Link", and "A" is for "Activity".
-
Page 11: Ethernet Ports
Ethernet Ports RJ-45 Ports(Auto MDI/MDIX) The RJ-45 ports are auto-sensing for 10Base-T, 100Base-TX or 1000Base-T devices connections. Auto MDI/MDIX means that the switch can connect to another switch or workstation without changing the straight-through or crossover cabling. See the figures as below for straight-through and crossover cabling schematics. -
Page 12: Cabling
Cabling Use the four twisted-pair, category 5e, or the above cabling for RJ-45 port connections. The cable between the switch and the link partner (switch, hub, workstation, etc.) must be less than 100 meters (328 ft.) long. The small form-factor pluggable (SFP) is a compact optical transceiver used in optical communications for both telecommunication and data communication applications. - Page 13 Step 2 Insert the fiber cable of the LC connector into the transceiver as shown below in Figure 2.99 Figure 2.9: LC Connector to the Transceiver To remove the LC connector from the transceiver, please follow the steps shown below: Step 1 Press the upper side of the LC connector from the transceiver and pull it out to release as shown below in Figure 2.
-
Page 14: Wiring The Power Inputs
Step 2 Push down the metal clasp and pull the transceiver out by the plastic part as shown below in Figure 2.11 Figure 2.11: Pull Out from the SFP Module Wiring the Power Inputs Caution: Please follow the below steps to insert the power wire. Step 1 Insert the positive and negative wires into the PWR1 (V1+, V1-) and PWR2 (V2+, V2-) contacts on the terminal block connector as shown below in Figure 2.12. -
Page 15: Grounding Note
Caution: Only use copper conductors, 100°C, tighten to 5 in-lbs. The wire gauge for the terminal block should range between 18~20 AWG. Grounding Note Grounding and wire routing help limit the effects of noise due to electromagnetic interference (EMI). Run the ground connection from the ground screw to the grounding surface prior to connecting devices. -
Page 16: Wiring The Fault Alarm Contact
Wiring the Fault Alarm Contact The fault alarm contact is in the middle of the terminal block connector as the picture shows below in Figure 2.5. By inserting the wires, it will detect the fault status including power failure or port link failure (managed industrial switch only) and form a normally open circuit. An application example for the fault alarm contact is shown below in Figure 2.5. -
Page 17: Mounting Installation
Mounting Installation DIN-Rail Mounting The DIN-Rail is pre-installed on the industrial Ethernet switch from the factory. If the DIN-Rail is not on the industrial Ethernet switch, please see Figure 3.1 to learn how to install the DIN-Rail on the switch. Figure 3.1: The Rear Side of the Switch and DIN-Rail Bracket Follow the steps below to learn how to hang the industrial Ethernet switch. - Page 18 Figure 3.2: Insert the Switch on the DIN-Rail Step 4 Lightly pull down the bracket on to the rail as shown below in Figure 3.3. Figure 3.3: Stable the Switch on DIN-Rail Step 5 Check if the bracket is mounted tightly on the rail. Step 6 To remove the industrial Ethernet switch from the rail, do the opposite from the above steps.
-
Page 19: Wall Mounting
Wall Mounting Follow the steps below to mount the industrial Ethernet switch using the wall mounting bracket as shown below in Figure 3.4. Caution: “Wall” means industrial control panel wall. Step 1 Remove the DIN-Rail bracket from the industrial Ethernet switch by loosening the screws. - Page 20 Below, in Figure 3.5 are the dimensions of the wall mounting bracket. Figure 3.5: Wall Mounting Bracket Dimensions...
-
Page 21: Hardware Installation
Hardware Installation Installation Steps This section will explain how to install EG5-0802-SFP series: 8-port industrial gigabit managed Ethernet switch, with 6*10/100/1000Tx Gigabit Ethernet, and 2*100/1000 SFP slots. Caution: This device is intended for use indoor and at altitudes up to 2000 meters. -
Page 22: Maintenance And Service
Maintenance and Service If the device requires servicing of any kind, the user is required to disconnect and remove it • from its mounting. The initial installation should be done in a way that makes this as convenient as possible. Voltage/Power lines should be properly insulated as well as other cables. -
Page 23: Trouble Shooting
If the power indicator LED does not turn on when the power cord is plugged in, the user may have a problem with the power cord. Check for loose power connections, power losses or surges at the power outlet. Please contact LEONTON for technical support service, if the problem still cannot be resolved. •...
