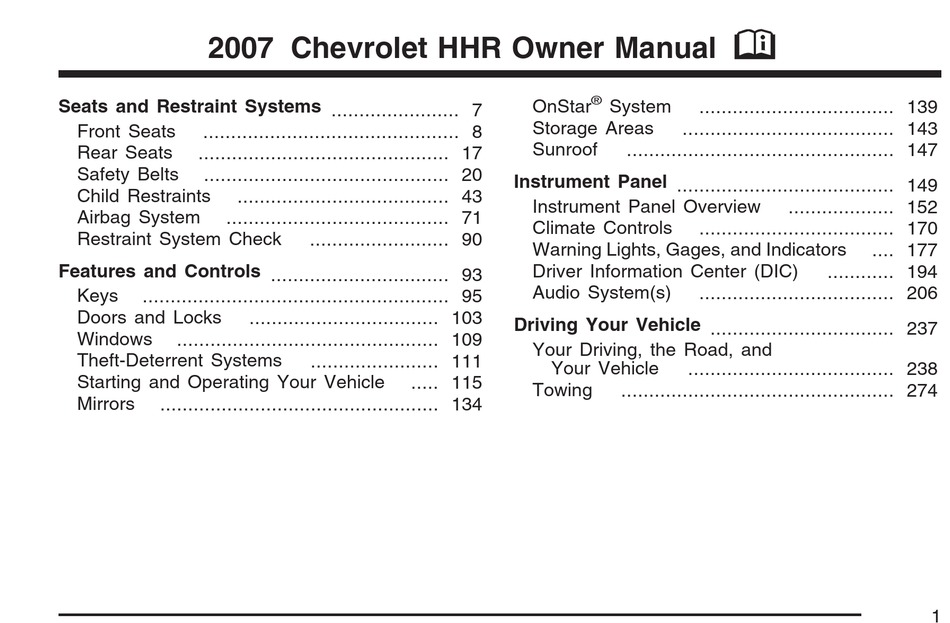

Page 1 2007 Chevrolet HHR Owner Manual Seats and Restraint Systems ... 7 Front Seats ... 8 Rear Seats ... 17 Safety Belts ... 20 Child Restraints ... 43 Airbag System ... 71 Restraint System Check Features and Controls ... 93 Keys ...
Page 2 Service and Appearance Care ... 287 Service ... 289 Fuel ... 291 Checking Things Under the Hood Headlamp Aiming ... 327 Bulb Replacement ... 330 Windshield Wiper Blade Replacement Tires ... 336 Appearance Care ... 370 Vehicle Identiﬁcation ... 379 Electrical System Capacities and Speciﬁcations Maintenance Schedule ...
Page 3: Canadian Owners
For vehicles ﬁrst sold in Canada, substitute the name “General Motors of Canada Limited” for Chevrolet Motor Division whenever it appears in this manual. Litho in U.S.A. Part No. 15865148 A First Printing...
Page 4: How To Use This Manual
How to Use This Manual Many people read the owner manual from beginning to end when they ﬁrst receive their new vehicle. If this is done, it can help you learn about the features and controls for the vehicle. Pictures and words work together in the owner manual to explain things.
Page 5: Vehicle Symbols
Vehicle Damage Warnings Also, in this manual you will ﬁnd these notices: Notice: These mean there is something that could damage your vehicle. A notice tells about something that can damage the vehicle. Many times, this damage would not be covered by your vehicle’s warranty, and it could be costly.
Page 6 These are some examples of symbols that may be found on the vehicle:...
Page 7: Table Of Contents
Section 1 Front Seats ... 8 Manual Seats ... 8 Driver Seat Height Adjuster ... 9 Power Seat ... 9 Power Lumbar ... 10 Heated Seats ... 10 Reclining Seatbacks ... 11 Head Restraints ... 13 Passenger Folding Seatback ... 14 Rear Seats ...
Page 8: Front Seats
Front Seats Manual Seats CAUTION: You can lose control of the vehicle if you try to adjust a manual driver’s seat while the vehicle is moving. The sudden movement could startle and confuse you, or make you push a pedal when you do not want to.
Page 9: Driver Seat Height Adjuster
Driver Seat Height Adjuster If your vehicle has this feature, the driver’s seat height adjuster is located on the outboard side of the seat. To raise the seat, move the lever upward repeatedly until the seat is at the desired height. To lower the seat, move the lever downward repeatedly until the seat is at the desired height.
Page 10: Power Lumbar
Power Lumbar If your vehicle has this feature, the control is located on the outboard side of the driver’s seat cushion. To increase support, press and hold the front of the control. To decrease support, press and hold the rear of the control. Keep in mind that as your seating position changes, as it may during long trips, so should the position of your lumbar support.
Page 11: Reclining Seatbacks
Reclining Seatbacks CAUTION: You can lose control of the vehicle if you try to adjust a manual driver’s seat while the vehicle is moving. The sudden movement could startle and confuse you, or make you push a pedal when you do not want to.
Page 12 CAUTION: Sitting in a reclined position when your vehicle is in motion can be dangerous. Even if you buckle up, your safety belts cannot do their job when you are reclined like this. The shoulder belt cannot do its job because it will not be against your body.
Page 13: Head Restraints
Head Restraints Adjust the head restraint so that the top of the restraint is at the same height as the occupant’s head. This position reduces the chance of a neck injury in a crash. Pull the head restraint up to raise it. To lower the head restraint, press the button, located on the top of the seatback, and...
Page 14: Passenger Folding Seatback
Passenger Folding Seatback Your vehicle has a front passenger seat that folds ﬂat. CAUTION: If you fold the seatback forward to carry longer objects, such as skis, be sure any such cargo is not near an airbag. In a crash, an inﬂating airbag might force that object toward a person.
Page 15 3. Use one of two levers to fold the seat ﬂat. The levers are located on the rear of the seat near the bottom of either side of the seat. Pull up on either lever and fold the seat forward until the seatback disengages. This can most easily be down from the rear seats.
Page 16 To raise the seatback to an upright position, do the following: 1. Pull up on one of the two levers located on the rear of the seat near the bottom of either side of the seat. 2. Push the seatback up until it is in a locked position.
Page 17: Rear Seats
Rear Seats Split Folding Rear Seat The seatbacks can be folded ﬂat so that they are at the same level as the rear cargo area. This allows more cargo space. To lower the rear seatback(s), do the following: 1. Move the front seat forward and/or put the front seatback in an upright position so it does not interfere with folding the rear seatback forward.
Page 18 5. Pull up on the knob located on the top of the seatback on the outboard side to release the seatback. With your other hand, pull the seatback forward. 6. Keep folding the seatback forward until it lies ﬂat.
Page 19 To raise the rear seatback(s), do the following: CAUTION: A safety belt that is improperly routed, not properly attached, or twisted will not provide the protection needed in a crash. The person wearing the belt could be seriously injured. After raising the rear seatback, always check to be sure that the safety belts are properly routed and attached, and are not twisted.
Page 20: Safety Belts
Safety Belts Safety Belts: They Are for Everyone This part of the manual tells you how to use safety belts properly. It also tells you some things you should not do with safety belts. CAUTION: Do not let anyone ride where he or she cannot wear a safety belt properly.
Page 21 In most states and in all Canadian provinces, the law says to wear safety belts. Here is why: They work. You never know if you will be in a crash. If you do have a crash, you do not know if it will be a bad one.
Page 22 Put someone on it. Get it up to speed. Then stop the vehicle. The rider does not stop.
Page 23 The person keeps going until stopped by or the instrument panel... something. In a real vehicle, it could be the windshield...
Page 24: Questions And Answers About Safety Belts
or the safety belts! With safety belts, you slow down as the vehicle does. You get more time to stop. You stop over more distance, and your strongest bones take the forces. That is why safety belts make such good sense. Questions and Answers About Safety Belts Will I be trapped in the vehicle after an...
Page 25: How To Wear Safety Belts Properly
If I am a good driver, and I never drive far from home, why should I wear safety belts? You may be an excellent driver, but if you are in an accident — even one that is not your fault — you and your passengers can be hurt. Being a good driver does not protect you from things beyond your control, such as bad drivers.
Page 26: Driver Position
Driver Position Lap-Shoulder Belt The driver has a lap-shoulder belt. Here is how to wear it properly. 1. Close and lock the door. 2. Adjust the seat so you can sit up straight. To see how, see “Seats” in the Index. 3.
Page 27 4. Push the latch plate into the buckle until it clicks. Pull up on the latch plate to make sure it is secure. If the belt is not long enough, see Safety Belt Extender on page 42. Make sure the release button on the buckle is positioned so you would be able to unbuckle the safety belt quickly if you ever had to.
Page 28 The lap part of the belt should be worn low and snug on the hips, just touching the thighs. In a crash, this applies force to the strong pelvic bones. And you would be less likely to slide under the lap belt. If you slid under it, the belt would apply force at your abdomen.
Page 29 What is wrong with this? The shoulder belt is too loose. It will not give nearly as much protection this way. CAUTION: You can be seriously hurt if your shoulder belt is too loose. In a crash, you would move forward too much, which could increase injury.
Page 30 What is wrong with this? The lap belt is too loose. It will not give nearly as much protection this way. CAUTION: You can be seriously hurt if your lap belt is too loose. In a crash, you could slide under the lap belt and apply force at your abdomen.
Page 31 What is wrong with this? The belt is buckled in the wrong place. CAUTION: You can be seriously injured if your belt is buckled in the wrong place like this. In a crash, the belt would go up over your abdomen.
Page 32 What is wrong with this? The shoulder belt is worn under the arm. It should be worn over the shoulder at all times. CAUTION: You can be seriously injured if you wear the shoulder belt under your arm. In a crash, your body would move too far forward, which would increase the chance of head and neck injury.
Page 33 What is wrong with this? The belt is twisted across the body. CAUTION: You can be seriously injured by a twisted belt. In a crash, you would not have the full width of the belt to spread impact forces. If a belt is twisted, make it straight so it can work properly, or ask your dealer to ﬁx it.
Page 34: Shoulder Belt Height Adjustment
To unlatch the belt, push the button on the buckle. The belt should go back out of the way. Before you close the door, be sure the belt is out of the way. If you slam the door on it, you can damage both the belt and your vehicle.
Page 35: Safety Belt Use During Pregnancy
Safety Belt Use During Pregnancy Safety belts work for everyone, including pregnant women. Like all occupants, they are more likely to be seriously injured if they do not wear safety belts. A pregnant woman should wear a lap-shoulder belt, and the lap portion should be worn as low as possible, below the rounding, throughout the pregnancy.
Page 36: Rear Seat Passengers
Rear Seat Passengers It is very important for rear seat passengers to buckle up! Accident statistics show that unbelted people in the rear seat are hurt more often in crashes than those who are wearing safety belts. Rear passengers who are not safety belted can be thrown out of the vehicle in a crash.
Page 37 2. Push the latch plate into the buckle until it clicks. Pull up on the latch plate to make sure it is secure. When the shoulder belt is pulled out all the way, it will lock. If it does, let it go back all the way and start again.
Page 38 The lap part of the belt should be worn low and snug on the hips, just touching the thighs. In a crash, this applies force to the strong pelvic bones. And you would be less likely to slide under the lap belt. If you slid under it, the belt would apply force at your abdomen.
Page 39: Rear Safety Belt Comfort Guides
To unlatch the belt, push the button on the buckle. Rear Safety Belt Comfort Guides Rear shoulder belt comfort guides may provide added safety belt comfort for older children who have outgrown booster seats and for some adults. When installed on a shoulder belt, the comfort guide positions the belt away from the neck and head.
Page 40 2. Slide the guide under and past the belt. The elastic cord must be under the belt. Then, place the guide over the belt, and insert the two edges of the belt into the slots of the guide. 3. Be sure that the belt is not twisted and it lies ﬂat.
Page 41 CAUTION: A safety belt that is not properly worn may not provide the protection needed in a crash. The person wearing the belt could be seriously injured. The shoulder belt should go over the shoulder and across the chest. These parts of the body are best able to take belt restraining forces.
Page 42: Safety Belt Pretensioners
Safety Belt Pretensioners Your vehicle has safety belt pretensioners for the driver and right front passenger. Although you cannot see them, they are part of the safety belt assembly. They help tighten the safety belts during the early stages of a moderate to severe frontal and near frontal crash if the threshold conditions for pretensioner activation are met.
Page 43: Child Restraints
Child Restraints Older Children Older children who have outgrown booster seats should wear the vehicle’s safety belts. What is the proper way to wear safety belts? An older child should wear a lap-shoulder belt and get the additional restraint a shoulder belt can provide.
Page 44 CAUTION: Never do this. Here two children are wearing the same belt. The belt can not properly spread the impact forces. In a crash, the two children can be crushed together and seriously injured. A belt must be used by only one person at a time.
Page 45 CAUTION: Never do this. Here a child is sitting in a seat that has a lap-shoulder belt, but the shoulder part is behind the child. If the child wears the belt in this way, in a crash the child might slide under the belt.
Page 46: Infants And Young Children
Infants and Young Children Everyone in a vehicle needs protection! This includes infants and all other children. Neither the distance traveled nor the age and size of the traveler changes the need, for everyone, to use safety restraints. In fact, the law in every state in the United States and in every Canadian province says children up to some age must be restrained while in a vehicle.
Page 47 CAUTION: Children who are up against, or very close to, any airbag when it inﬂates can be seriously injured or killed. Airbags plus lap-shoulder belts offer protection for adults and older children, but not for CAUTION: (Continued) CAUTION: (Continued) young children and infants. Neither the vehicle’s safety belt system nor its airbag system is designed for them.
Page 48 What are the different types of add-on child restraints? Add-on child restraints, which are purchased by the vehicle’s owner, are available in four basic types. Selection of a particular restraint should take into consideration not only the child’s weight, height, and age but also whether or not the restraint will be compatible with the motor vehicle in which it will be used.
Page 49: Child Restraint Systems
CAUTION: The body structure of a young child is quite unlike that of an adult or older child, for whom the safety belts are designed. A young child’s hip bones are still so small that the vehicle’s regular safety belt may not remain low on the hip bones, as it should.
Page 50 A rear-facing infant seat (B) provides restraint with the seating surface against the back of the infant. The harness system holds the infant in place and, in a crash, acts to keep the infant positioned in the restraint. A forward-facing child seat (C-E) provides restraint for the child’s body with the harness and also sometimes with surfaces such as T-shaped or shelf-like shields.
Page 51 A booster seat (F-G) is a child restraint designed to improve the ﬁt of the vehicle’s safety belt system. Some booster seats have a shoulder belt positioner, and some high-back booster seats have a ﬁve-point harness. A booster seat can also help a child to see out the window.
Page 52 Securing an Add-on Child Restraint in the Vehicle CAUTION: A child can be seriously injured or killed in a crash if the child restraint is not properly secured in the vehicle. Make sure the child restraint is properly installed in the vehicle using the vehicle’s safety belt or LATCH system, following the instructions that came with that restraint,...
Page 53: Where To Put The Restraint
Securing the Child Within the Child Restraint There are several systems for securing the child within the child restraint. One system, the three-point harness, has straps that come down over each of the infant’s shoulders and buckle together at the crotch. The ﬁve-point harness system has two shoulder straps, two hip straps, and a crotch strap.
Page 54 If your vehicle has a rear seat that will accommodate a rear-facing child restraint, a label on your sun visor says, “Never put a rear-facing child seat in the front.” This is because the risk to the rear-facing child is so great, if the airbag deploys.
Page 55 If your vehicle does not have a rear seat that will accommodate a rear-facing child restraint, never put a child in a rear-facing child restraint in the right front passenger seat unless the passenger airbag status indicator shows off and the airbag is off.
Page 56: Lower Anchors And Tethers For Children (Latch)
Lower Anchors and Tethers for Children (LATCH) The LATCH system holds a child restraint during driving or in a crash. This system is designed to make installation of a child restraint easier. The LATCH system uses anchors in the vehicle and attachments on the child restraint that are made for use with the LATCH system.
Page 57 Top Tether Anchor A top tether (A, C) anchors the top of the child restraint to the vehicle. A top tether anchor is built into the vehicle. The top tether attachment (B) on the child restraint connects to the top tether anchor in the vehicle in order to reduce the forward movement and rotation of the child restraint during driving or in a crash.
Page 58 Lower Anchor and Top Tether Anchor Locations (Lower Anchor): Seating positions with two lower anchors. Seating positions with top tether anchors. Rear Seat (Lower Anchor): Seating positions with two lower anchors. Seating positions with top tether anchors. Front Passenger Seat with Rear Seat Delete Only (Top Tether Anchor):...
Page 59 Vehicles with Rear Seats The top tether anchors are located in a storage compartment behind the rear seats. Lift the lid of the storage compartment to access the anchors. You may have to fold back the cargo mat to access the storage compartment and the top tether anchors.
Page 60 Do not secure a child restraint in the right front passenger’s position if your vehicle has rear seats, if a national or local law requires that the top tether be attached, or if the instructions that come with the child restraint say that the top tether must be attached.
Page 61 CAUTION: Children can be seriously injured or strangled if a shoulder belt is wrapped around their neck and the safety belt continues to tighten. Secure any unused safety belts behind the child restraint so children cannot reach them. Pull the shoulder belt all the way out of the retractor to set the lock, if your vehicle has one, after the child restraint has been...
Page 62 2. If the child restraint manufacturer recommends that the top tether be attached, attach and tighten the top tether to the top tether anchor, if equipped. Refer to the child restraint instructions and the following steps: 2.1. For vehicles with rear seats, ﬁnd the storage compartments behind the rear seats.
Page 63: Securing A Child Restraint In A Rear Seat Position
If the position you are using has a ﬁxed or adjustable head restraint and you are using a single tether, route the tether under the head restraint and in between the head restraint posts. If the position you are using has a ﬁxed or adjustable head restraint and you are using a dual tether, route...
Page 64 3. Buckle the belt. Make sure the release button 4. Pull the rest of the shoulder belt all the way is positioned so you would be able to unbuckle out of the retractor to set the lock. the safety belt quickly if you ever had to.
Page 65 5. To tighten the belt, push down on the child restraint, pull the shoulder portion of the belt to tighten the lap portion of the belt, and feed the shoulder belt back into the retractor. If you are using a forward-facing child restraint, you may ﬁnd it helpful to use your knee to push down on the child restraint as you tighten the belt.
Page 66: Securing A Child Restraint In The Right Front Seat Position
Securing a Child Restraint in the Right Front Seat Position Your vehicle has a right front passenger’s airbag. A rear seat is a safer place to secure a forward-facing child restraint. See Where to Put the Restraint on page 53. In addition, your vehicle has a passenger sensing system.
Page 67 CAUTION: (Continued) If you need to secure a forward-facing child restraint in the right front seat, always move the front passenger seat as far back as it will go. It is better to secure the child restraint in a rear seat. If your vehicle does not have a rear seat that will accommodate a rear-facing child restraint, never put a child in a rear-facing child restraint in...
Page 68 If you need to secure a forward-facing child restraint in the right front seat position, move the seat as far back as it will go before securing the forward-facing child restraint. See Manual Seats on page 8. If your child restraint has the LATCH system, see Lower Anchors and Tethers for Children (LATCH) on page 56.
Page 69 3. Pick up the latch plate, and run the lap and shoulder portions of the vehicle’s safety belt through or around the restraint. The child restraint instructions will show you how. 4. Buckle the belt. Make sure the release button is positioned so you would be able to unbuckle the safety belt quickly if you ever had to.
Page 70 6. To tighten the belt, push down on the child restraint, pull the shoulder portion of the belt to tighten the lap portion of the belt, and feed the shoulder belt back into the retractor. If you are using a forward-facing child restraint, you may ﬁnd it helpful to use your knee to push down on the child restraint as you tighten the belt.
Page 71: Airbag System
If, after reinstalling the child restraint and restarting the vehicle, the on indicator is still lit, check to make sure that the vehicle’s seatback is not pressing the child restraint into the seat cushion. If this happens, slightly recline the vehicle’s seatback and adjust the seat cushion if possible.
Page 72 Here are the most important things to know about the airbag system: CAUTION: You can be severely injured or killed in a crash if you are not wearing your safety belt — even if you have airbags. Wearing your safety belt during a crash helps reduce your chance of hitting things inside the vehicle or being ejected from it.
Page 73 CAUTION: Both frontal and side impact airbags inﬂate with great force, faster than the blink of an eye. If you are too close to an inﬂating airbag, as you would be if you were leaning forward, it could seriously injure you. Safety belts help keep you in position for airbag inﬂation before and during a crash.
Page 74: Where Are The Airbags
There is an airbag readiness light on the instrument panel cluster, which shows the airbag symbol. The system checks the airbag electrical system for malfunctions. The light tells you if there is an electrical problem. See Airbag Readiness Light on page 181 for more information.
Page 75 The right front passenger’s frontal airbag is in the instrument panel on the passenger’s side. If your vehicle has a roof-mounted side impact airbag for the driver and the person seated directly behind the driver, it is located in the ceiling above the side windows.
Page 76 If your vehicle has a roof-mounted side impact airbag for the right front passenger and the person directly behind that passenger, it is located in the ceiling above the side windows. CAUTION: If something is between an occupant and an airbag, the bag might not inﬂate properly or it might force the object into that person causing severe injury or even death.
Page 77: When Should An Airbag Inﬂate
When Should an Airbag Inﬂate? The driver’s and right front passenger’s frontal airbags are designed to inﬂate in moderate to severe frontal or near-frontal crashes. But they are designed to inﬂate only if the impact exceeds a predetermined deployment threshold. Deployment thresholds take into account a variety of desired deployment and non-deployment events and are used to predict how severe a crash is likely to be in...
Page 78 Frontal airbags may inﬂate at different crash speeds. For example: • If the vehicle hits a stationary object, the airbags could inﬂate at a different crash speed than if the vehicle hits a moving object. • If the vehicle hits an object that deforms, the airbags could inﬂate at a different crash speed than if the vehicle hits an object that does not deform.
Page 79: What Makes An Airbag Inﬂate
What Makes an Airbag Inﬂate? In an impact of sufficient severity, the airbag sensing system detects that the vehicle is in a crash. The sensing system triggers a release of gas from the inﬂator, which inﬂates the airbag. The inﬂator, airbag, and related hardware are all part of the airbag modules inside the steering wheel and in the instrument panel in front of the right front passenger.
Page 80: What Will You See After An Airbag Inﬂates
What Will You See After an Airbag Inﬂates? After a frontal airbag inﬂates, it quickly deﬂates, so quickly that some people may not even realize the airbag inﬂated. Roof-mounted side impact airbags may still be at least partially inﬂated minutes after the vehicle comes to rest. Some components of the airbag module —...
Page 81 Your vehicle has a feature that may automatically unlock the doors, turn the interior lamps on, and turn on the hazard warning ﬂashers when the airbags inﬂate. You can lock the doors again, turn the interior lamps off, and turn the hazard warning ﬂashers off by using the controls for those features.
Page 82: Passenger Sensing System
Passenger Sensing System Your vehicle has a passenger sensing system for the right front passenger’s position. A passenger airbag status indicator on the instrument panel will be visible when you turn your ignition key to START or RUN. United States The words ON and OFF or the symbol for on and off, will be visible during the system check.
Page 83 If your vehicle has a rear seat that will accommodate a rear-facing child restraint, a label on your sun visor says, “Never put a rear-facing child seat in the front.” This is because the risk to the rear-facing child is so great, if the airbag deploys.
Page 84 If your vehicle does not have a rear seat that will accommodate a rear-facing child restraint, never put a child in a rear-facing child restraint in the right front passenger seat unless the passenger airbag status indicator shows off and the airbag is off.
Page 85 The passenger sensing system is designed to turn off the right front passenger’s frontal airbag if: • The right front passenger seat is unoccupied. • The system determines that an infant is present in a rear-facing infant seat. • The system determines that a small child is present in a forward-facing child restraint.
Page 86 The passenger sensing system is designed to enable (may inﬂate) the right front passenger’s frontal airbag anytime the system senses that a person of adult size is sitting properly in the right front passenger’s seat. When the passenger sensing system has allowed the airbag to be enabled, the on indicator will light and stay lit to remind you that the airbag is active.
Page 87 CAUTION: If the airbag readiness light in the instrument panel cluster ever comes on and stays on, it means that something may be wrong with the airbag system. If this ever happens, have the vehicle serviced promptly, because an adult-size person sitting in the right front passenger’s seat may not have the protection of the frontal airbag.
Page 88: Servicing Your Airbag-Equipped Vehicle
Servicing Your Airbag-Equipped Vehicle Airbags affect how your vehicle should be serviced. There are parts of the airbag system in several places around your vehicle. You do not want the system to inﬂate while someone is working on your vehicle. Your dealer and the service manual have information about servicing your vehicle and the airbag system.
Page 89: Adding Equipment To Your Airbag-Equipped Vehicle
Adding Equipment to Your Airbag-Equipped Vehicle Is there anything I might add to the front or sides of the vehicle that could keep the airbags from working properly? Yes. If you add things that change your vehicle’s frame, bumper system, height, front end or side sheet metal, they may keep the airbag system from working properly.
Page 90: Restraint System Check
Restraint System Check Checking the Restraint Systems Now and then, make sure the safety belt reminder light and all your belts, buckles, latch plates, retractors and anchorages are working properly. Look for any other loose or damaged safety belt system parts. If you see anything that might keep a safety belt system from doing its job, have it repaired.
Page 91: Replacing Restraint System Parts After A Crash
Replacing Restraint System Parts After a Crash CAUTION: A crash can damage the restraint systems in your vehicle. A damaged restraint system may not properly protect the person using it, resulting in serious injury or even death in a crash. To help make sure your restraint systems are working properly after a crash, have them inspected and any necessary...
Page 92 NOTES...
Page 93: Features And Controls
Section 2 Keys ... 95 Remote Keyless Entry (RKE) System ... 97 Remote Keyless Entry (RKE) System Operation ... 98 Doors and Locks ... 103 Door Locks ... 103 Power Door Locks ... 104 Delayed Locking ... 104 Automatic Door Lock ... 105 Programmable Automatic Door Unlock ...
Page 94 Section 2 Mirrors ... 134 Manual Rearview Mirror ... 134 Automatic Dimming Rearview Mirror ® with OnStar and Compass ... 134 Automatic Dimming Rearview Mirror with Compass ... 136 Outside Power Mirrors ... 138 Outside Convex Mirror ... 138 ® OnStar System ...
Page 95: Keys
Keys CAUTION: Leaving children in a vehicle with the ignition key is dangerous for many reasons. They could operate the power windows or other controls or even make the vehicle move. The children or others could be badly injured or even killed. Do not leave the keys in a vehicle with children.
Page 96 One key is used for the ignition and the driver’s door lock. The key has a transponder in the key head that matches a decoder in the vehicle’s steering column. If a replacement key or any additional keys are needed, you must purchase it from your dealer.
Page 97: Remote Keyless Entry (Rke) System
Remote Keyless Entry (RKE) System Your Remote Keyless Entry (RKE) system operates on a radio frequency subject to Federal Communications Commission (FCC) Rules and with Industry Canada. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1.
Page 98: System Operation
Remote Keyless Entry (RKE) System Operation The vehicle’s doors can be locked and unlocked from about 3 feet (1 m) up to 60 feet (18 m) away with the remote keyless entry transmitter. Remote Keyless Entry Remote Keyless Entry with Remote Start without Remote Start The following functions may be available if your vehicle has the remote keyless entry system:...
Page 99 " (Unlock): Press the unlock button to unlock the driver’s door. If the button is pressed again within ﬁve seconds, all remaining doors and the liftgate will unlock. The interior lamps will come on and stay on for 20 seconds or until the ignition is turned on.
Page 100 Battery Replacement Under normal use, the battery in your remote keyless entry transmitter should last about four years. You can tell the battery is weak if the transmitter will not work at the normal range in any location. If you have to get close to your vehicle before the transmitter works, it is probably time to change the battery.
Page 101 Remote Vehicle Start Your vehicle may have a remote start feature. This feature allows you to start the engine from outside the vehicle. It may also start the vehicle’s heating or air conditioning systems. See Climate Control System on page 170 for additional information.
Page 102 After two remote starts have been provided, the vehicle’s ignition switch must be turned to RUN and then back to LOCK using the key, before the remote start procedure can be used again. If you enter the vehicle after a remote start, and the engine is running, insert the key into the ignition switch and turn it to the RUN position to drive the vehicle.
Page 103: Doors And Locks
Doors and Locks Door Locks CAUTION: Unlocked doors can be dangerous. • Passengers, especially children, can easily open the doors and fall out of a moving vehicle. When a door is locked, the handle will not open it. You increase the chance of being thrown out of the vehicle in a crash if the doors are not locked.
Page 104: Power Door Locks
Power Door Locks The power door lock switches are located on the driver’s and front passenger’s door next to the door handle. Driver’s side shown, Passenger’s side similar Press the top of the switch to unlock the doors. Press the bottom of the switch to lock the doors. Delayed Locking This feature will delay the actual locking of the doors and liftgate when the power door lock switch...
Page 105: Automatic Door Lock
Automatic Door Lock If your vehicle has power door locks, the doors will automatically lock when the shift lever is moved out of PARK (P) for a vehicle with an automatic transaxle. For a vehicle with a manual transaxle, the speed must be greater than 5 mph (8 km/h). The automatic door locking feature cannot be disabled.
Page 106: Lockout Protection
To open a rear door while the security lock is on, do the following: 1. Unlock the door using the remote keyless entry transmitter, the power door lock switch, or by lifting the rear door manual lock. 2. Open the door from the outside. To cancel the rear door security lock, do the following: 1.
Page 107 CAUTION: It can be dangerous to drive with the liftgate open because carbon monoxide (CO) gas can come into your vehicle. You cannot see or smell CO. It can cause unconsciousness and even death. If you must drive with the liftgate open or if electrical wiring or other cable connections must pass through the seal between the body and the liftgate:...
Page 108 2. Locate the release The lever is located about three inches (7.62 cm) behind the trim in the access hole. 3. Insert a tool into the access hole. lever on the latch. 4. The liftgate will unlatch when the lever is pushed rearward.
Page 109: Windows
Windows CAUTION: Leaving children, helpless adults, or pets in a vehicle with the windows closed is dangerous. They can be overcome by the extreme heat and suffer permanent injuries or even death from heat stroke. Never leave a child, a helpless adult, or a pet alone in a vehicle, especially with the windows closed in warm or hot weather.
Page 110: Power Windows
Power Windows The window switches for all doors are located on the center console. A window switch for each rear window is located on each rear door. To open a window, press the bottom of the switch. To close a window, press the top of the switch. The power windows operate when the ignition is RUN or ACC (Accessory), or while in Retained Accessory Power (RAP).
Page 111: Sun Visors
Sun Visors To block out glare, swing down the visor(s). The sun visors can also be detached from the center mount and swung out to cover the side windows. They can also be slid along the rod to cover different areas of the front window. Visor Vanity Mirrors Your vehicle has visor vanity mirrors.
Page 112 The security light will turn on to indicate that arming has been initiated. Once the system is armed, the security light will ﬂash once every three seconds. If the security light is ﬂashing twice per second, this means that a door is open. If you do not want to arm the system, you may lock the car with the manual lock knobs on the doors.
Page 113: Pass-Key
How to Detect a Tamper Condition If you hear three chirps when you press the unlock or lock buttons on the remote keyless transmitter, it means that the content theft security system alarm was previously activated. ® PASS-Key III+ ® The PASS-Key III+ system operates on a radio frequency subject to Federal Communications...
Page 114: Pass-Key Iii+ Operation
® PASS-Key III+ Operation ® Your vehicle has PASS-Key Automotive Security System) theft-deterrent ® system. PASS-Key III+ is a passive theft-deterrent system. This means you do not have to do anything special to arm or disarm the system. It works when you insert or remove the key from the ignition.
Page 115: Starting And Operating Your Vehicle
To program the new key do the following: 1. Verify that the new key has a 2. Insert the already programmed key in the ignition and start the engine. If the engine will not start, see your dealer for service. 3.
Page 116: Ignition Positions
Ignition Positions With the key in the ignition switch, you can turn it to four different positions. Notice: Using a tool to force the key from the ignition switch could cause damage or break the key. Use the correct key and turn the key only with your hand.
Page 117 (RUN): This is the position the switch returns to after you start your engine and release the switch. The switch stays in the RUN position when the engine is running. But even when the ignition is not running, you can use RUN to operate your electrical accessories and to display some warning and indicator lights.
Page 118 Column Lock Release For vehicles with an automatic transaxle, the following procedure allows the ignition to be turned to LOCK and ignition key removal in case of a dead battery or low voltage battery. 1. Make sure the shift lever is in PARK (P). 2.
Page 119: Retained Accessory Power (Rap)
Retained Accessory Power (RAP) Your vehicle has a Retained Accessory Power (RAP) feature which allow’s the radio, power windows, and sunroof to continue to work up to 10 minutes after the ignition is turned off. Your vehicle’s radio will work when the ignition key is in RUN or ACC.
Page 120 Starting Procedure 1. With your foot off the accelerator pedal, turn the ignition key to START. When the engine starts, let go of the key. The idle speed will go down as your engine gets warm. Do not race the engine immediately after starting it. Operate the engine and transaxle gently to allow the oil to warm up and lubricate all moving parts.
Page 121: Engine Coolant Heater
Notice: Your engine is designed to work with the electronics in your vehicle. If you add electrical parts or accessories, you could change the way the engine operates. Before adding electrical equipment, check with your dealer. If you do not, your engine might not perform properly.
Page 122: Automatic Transaxle Operation
4. Before starting the engine, be sure to unplug and store the cord as it was before to keep it away from moving engine parts. If you do not, it could be damaged. How long should you keep the coolant heater plugged in? The answer depends on the outside temperature, the kind of oil you have, and some other things.
Page 123 CAUTION: It is dangerous to get out of your vehicle if the shift lever is not fully in PARK (P) with the parking brake ﬁrmly set. Your vehicle can roll. Do not leave your vehicle when the engine is running unless you have to. If you have left the engine running, the vehicle can move suddenly.
Page 124 NEUTRAL (N): In this position, your engine does not connect with the wheels. To restart when you are already moving, use NEUTRAL (N) only. Also, use NEUTRAL (N) when your vehicle is being towed. CAUTION: Shifting into a drive gear while your engine is running at high speed is dangerous.
Page 125: Manual Transaxle Operation
INTERMEDIATE (I): This position is also used for normal driving. However, it reduces vehicle speed without using your brakes for slight downgrades where the vehicle would otherwise accelerate due to steepness of grade. If constant upshifting or downshifting occurs while driving up steep hills, this position can be used to prevent repetitive types of shifts.
Page 126 SECOND (2): Press the clutch pedal as you let up on the accelerator pedal and shift into SECOND (2). Then, slowly let up on the clutch pedal as you press the accelerator pedal. THIRD (3), FOURTH (4) and FIFTH (5): Shift into THIRD (3), FOURTH (4) and FIFTH (5) the same way you do for SECOND (2).
Page 127: Parking Brake
Parking Brake The parking brake lever is located between the front seats. CAUTION: If the front passenger seat back is folded down, the armrest may make it awkward to grab and pull up the parking brake lever. If the lever is not pulled up far enough, your vehicle may roll and you or others could be injured.
Page 128: Shifting Into Park (P)
To release the parking brake, hold the brake pedal down. Pull the parking brake lever up until you can press the release button. Hold the release button in as you move the brake lever all the way down. If you forget to release your parking brake, a chime will sound and a warning message will be displayed when the parking brake is applied and the vehicle is moving faster than 5 mph (8 kph).
Page 129 3. Turn the ignition key to LOCK. 4. Remove the key and take it with you. If you can leave your vehicle with the ignition key in your hand, your vehicle is in PARK (P). Leaving Your Vehicle With the Engine Running CAUTION: It can be dangerous to leave your vehicle...
Page 130: Shifting Out Of Park (P)
Shifting Out of Park (P) (Automatic Transaxle) This vehicle is equipped with an electronic shift lock release system. The shift lock release is designed to: • Prevent ignition key removal unless the shift lever is in PARK (P) with the shift lever button fully released, and •...
Page 131: Parking Over Things That Burn
Parking Over Things That Burn CAUTION: Things that can burn could touch hot exhaust parts under your vehicle and ignite. Do not park over papers, leaves, dry grass, or other things that can burn.
Page 132: Engine Exhaust
Engine Exhaust CAUTION: Engine exhaust can kill. It contains the gas carbon monoxide (CO), which you cannot see or smell. It can cause unconsciousness and death. You might have exhaust coming in if: • Your exhaust system sounds strange or different. •...
Page 133: Running The Engine While Parked
Running the Engine While Parked It is better not to park with the engine running. But if you ever have to, here are some things to know. CAUTION: Idling the engine with the climate control system off could allow dangerous exhaust into your vehicle.
Page 134: Mirrors
Mirrors Manual Rearview Mirror To reduce glare from lamps behind you, move the lever toward you to the night position. Your vehicle may also have reading lamps. Press the buttons, located under the mirror, up to turn the lamps on or off. Automatic Dimming Rearview Mirror ®...
Page 135 To calibrate the compass, do the following: 1. Make sure CAL is displayed. If CAL is not displayed, press and hold the on/off button until CAL is displayed. 2. While CAL is displayed, drive the vehicle in circles at 5 mph (8 km/h) or less until the display reads a direction.
Page 136: With Compass
Cleaning the Mirror When cleaning the mirror, use a paper towel or similar material dampened with glass cleaner. Do not spray glass cleaner directly on the mirror as that may cause the liquid cleaner to enter the mirror housing. Automatic Dimming Rearview Mirror with Compass Your vehicle may have an automatic dimming rearview mirror with a compass and reading lamps.
Page 137 To calibrate the compass, do the following: 1. Make sure CAL is displayed. If CAL is not displayed, press and hold the on/off button until CAL is displayed. 2. While CAL is displayed drive the vehicle in circles at 5 mph (8 km/h) or less until the display reads a direction.
Page 138: Outside Power Mirrors
Outside Power Mirrors The controls for the outside power mirrors are located on the driver’s door armrest. Press the left or right side of the selector switch located beneath the control pad to choose the left or right mirror. Keep the selector switch in the center position when not adjusting either outside mirror.
Page 139: Onstar System
® OnStar System ® OnStar uses several innovative technologies and live advisors to provide you with a wide range of safety, security, information, and convenience services. If your airbags deploy, the system is designed to make an automatic call to OnStar Emergency advisors who can request emergency services be sent to your location.
Page 140 ® OnStar Services ® For new vehicles with OnStar Plan, or the Directions & Connections included for one year from the date of purchase. You can extend this plan beyond the ﬁrst year, or upgrade to the Directions & Connections For more information, press the OnStar to speak with an advisor.
Page 141 ® OnStar Hands-Free Calling ® OnStar Hands-Free Calling allows eligible ® OnStar subscribers to make and receive calls using voice commands. Hands-Free Calling is fully integrated into the vehicle, and can be used ® with OnStar Pre-Paid Minute Packages. Hands-Free Calling may also be linked to a Verizon Wireless service plan in the U.S.
Page 142 ® How OnStar Service Works In order to provide you with OnStar ® your vehicle’s OnStar system has the capability of recording and transmitting vehicle information. This information is automatically sent to an ® OnStar Call Center at the time of an OnStar button press, Emergency button press or if your airbags or AACN system deploys.
Page 143: Storage Areas
Your Responsibility You may need to increase the volume of your ® radio to hear the OnStar advisor. If the light next ® to the OnStar buttons is red, this means that your system is not functioning properly and should be checked by a dealer.
Page 144: Rear Compartment Storage Panel/Cover
Rear Compartment Storage Panel/Cover Your vehicle may have an adjustable panel/cargo cover feature. The panel/cargo cover can be adjusted into four positions. To use the panel in the ﬁrst position, do the following: 1. Insert the front corners of the panel into the lower guides.
Page 145 To use the panel in the second position, do the following: 1. Insert the front corners of the panel into the top guides. 2. Slide the panel forward. 3. Press down on the back of the panel to lock it in place.
Page 146: Roof Rack System
Roof Rack System Your vehicle may be equipped with a roof rack system. CAUTION: If you try to carry something on top of your vehicle that is longer or wider than the luggage carrier — like paneling, plywood, a mattress and so forth — the wind can catch it as you drive along.This can cause you to lose control.
Page 147: Convenience Net
Convenience Net Your vehicle may have a convenience net located on the back wall of the cargo area. There are six metal rings in the cargo area that the net can be attached to. Two are on the ﬂoor behind the rear seat, two are on the ﬂoor near the liftgate and the last two are near the liftgate glass.
Page 148 Express Open: The express open feature will operate from the closed or partially open position. To express open the power sunroof, fully press the driver’s side switch rearward once. To stop the sunroof glass in a desired position other than to the express-open position, press the switch again, in either direction, to stop the movement.
Page 149 Section 3 Instrument Panel Overview ... 152 Hazard Warning Flashers ... 154 Other Warning Devices ... 154 Horn ... 154 Tilt Wheel ... 155 Turn Signal/Multifunction Lever ... 155 Turn and Lane-Change Signals ... 156 Headlamp High/Low-Beam Changer ... 156 Flash-to-Pass ...
Page 150 Section 3 Brake System Warning Light ... 185 Anti-Lock Brake System Warning Light ... 186 Enhanced Traction System Warning Light ... 187 Engine Coolant Temperature Warning Light ... 187 Engine Coolant Temperature Gage ... 188 Malfunction Indicator Lamp ... 188 Oil Pressure Light ...
Page 151 NOTES...
Page 152: Instrument Panel Overview
Instrument Panel Overview...
Page 153 The main components of your instrument panel are the following: A. Air Outlets. See Outlet Adjustment on page 174. B. Cruise Control Buttons (If Equipped). See Cruise Control on page 160. C. Turn Signal/Multifunction Lever. See Turn Signal/Multifunction Lever on page 155. D.
Page 154: Hazard Warning Flashers
Hazard Warning Flashers Your hazard warning ﬂashers let you warn others. They also let police know you have a problem. Your front and rear turn signal lamps will ﬂash on and off. The hazard warning ﬂasher button is located in the center of the instrument panel.
Page 155: Tilt Wheel
Tilt Wheel A tilt wheel allows you to adjust the steering wheel before you drive. You can raise it to the highest level to give your legs more room when you exit and enter the vehicle. The lever that allows you to tilt the steering wheel is located on the left side of the steering column.
Page 156: Turn And Lane-Change Signals
Turn and Lane-Change Signals The turn signal has two upward (for right) and two downward (for left) positions. These positions allow you to signal a turn or a lane change. To signal a turn, move the lever all the way up or down.
Page 157: Windshield Wipers
Windshield Wipers Be sure to clear ice and snow from the wiper blades before using them. If the wiper blades are frozen to the windshield, gently loosen or thaw them. If the blades do become damaged, install new blades or blade inserts. See Windshield Wiper Blade Replacement on page 335.
Page 158: Windshield Washer
(Delay/Intermittent Speed Sensitive): When the lever is in the delay position, move the intermittent adjust band to set for shorter or longer delay cycles. To the left of the adjust band are bars that indicate the frequency of the wipes. Smaller bars mean the wiper movement is less frequent.
Page 159: Rear Window Wiper/Washer
Rear Window Wiper/Washer The rear window washer/wiper button is located on the instrument panel below the climate controls. CAUTION: In freezing weather, do not use your washer until the windshield is warmed. Otherwise the washer ﬂuid can form ice on the windshield, blocking your vision. (Delay): Press this side of the button to turn on the intermittent wiping setting that has a longer delay.
Page 160: Cruise Control
Cruise Control With cruise control, you can maintain a speed of about 25 mph (40 km/h) or more without keeping your foot on the accelerator. This can really help on long trips. Cruise control does not work at speeds below 25 mph (40 km/h). CAUTION: Cruise control can be dangerous where you cannot drive safely at a steady speed.
Page 161 (On/Off): Press this button to turn the cruise control system on and off. The indicator light on the button will be on when the cruise control is on and go off when the cruise control is turned off. RES+ (Resume): Press this button to resume a set speed and to accelerate the speed.
Page 162 Increasing Speed While Using Cruise Control There are two ways to go to a higher speed. 1. Disengage the cruise control by applying the brake pedal but do not turn it off. Accelerate to a higher speed and reset the cruise control. 2.
Page 163: Headlamps
Erasing Speed Memory When you turn off the cruise control or the ignition, your cruise control set speed memory is erased. Headlamps The lever on the left side of the steering column operates the exterior lamps. The exterior lamp switch has the following four positions: (Headlamps): This position turns on the headlamps, parking lamps, and taillamps.
Page 164: Wiper Activated Headlamps
Wiper Activated Headlamps This feature activates the headlamps and parking lamps after the windshield wipers are turned on. For this feature to work, automatic lighting must be enabled. See Headlamps on page 163 for additional information. When the ignition is turned off, the wiper-activated headlamps will immediately turn off.
Page 165: Automatic Headlamp System
Automatic Headlamp System When it is dark enough outside, your automatic system will turn on your headlamps at the normal brightness along with other lamps such as the taillamps, sidemarker, parking lamps, instrument panel lights, and interior switch backlighting. Your vehicle has a light sensor on top of the instrument panel.
Page 166: Fog Lamps
Fog Lamps If your vehicle is equipped with a fog lamp button, it is located to the right of the steering wheel and above the radio. The ignition must be on to turn your fog lamps on. Push the button to turn the fog lamps on. An indicator light on the cluster will come on when the fog lamps are on.
Page 167: Dome Lamp
Dome Lamp (Off): Move the lever to this position to turn the lamp off, even when a door is opened. (Door): Move the lever to this position to turn the lamp on whenever a door is opened. The dome lamp and mirror reading lamps will turn on if the lever is in the door position and the instrument panel brightness control is turned to the brightest setting.
Page 168: Mirror Reading Lamps
Mirror Reading Lamps Your vehicle may have reading lamps on the rearview mirror. Push the button to turn the reading lamps on and off. The reading lamps will automatically come on when a door is open. Rear Reading Lamps Push the lens to turn the reading lamps on and off.
Page 169: Accessory Power Outlet(S)
Accessory Power Outlet(s) Accessory power outlets can be used to connect electrical equipment such as a cellular phone or CB radio. The accessory power outlet is located on the instrument panel below the climate controls and at the rear of the center console. To use the outlet, remove the cover.
Page 170: Ashtray(S) And Cigarette Lighter
Ashtray(s) and Cigarette Lighter Your vehicle may have an ashtray and cigarette lighter. To use the lighter, located on the instrument panel below the climate controls, push it in all the way and let go. When it is ready, it will pop back out by itself.
Page 171 Operation To change the current mode, select one of the following: (Vent): This mode directs air to the instrument panel outlets. (Bi-Level): This mode directs approximately half of the air to the instrument panel outlets, and then directs the remaining air to the ﬂoor outlets. Cooler air is directed to the upper outlets and warmer air to the ﬂoor outlets.
Page 172 (Recirculate): Press this button to prevent outside air and odors from entering your vehicle or to help heat or cool the air inside your vehicle more quickly. An indicator light above the symbol will come on in this mode. The air conditioning compressor also comes on.
Page 173 The air conditioning system removes moisture from the air, so you may sometimes notice a small amount of water dripping underneath your vehicle while idling or after turning off the engine. This is normal. The air conditioning compressor cannot be turned on when the fan is off.
Page 174: Outlet Adjustment
Rear Window Defogger The rear window defogger uses a warming grid to remove fog from the rear window. The rear window defogger will only work when the ignition is in RUN. < (Rear): Press the button to turn the rear window defogger on or off.
Page 175: Passenger Compartment Air Filter
Passenger Compartment Air Filter Passenger compartment air, both outside air and recirculated air, is routed through a passenger compartment ﬁlter. The ﬁlter removes certain particles from the air, including pollen and dust particles. Reductions in airﬂow, which may occur more quickly in dusty areas, indicate that the ﬁlter needs to be replaced early.
Page 176 3. Pull each of the three tabs of the ﬁlter access door down and open the access door downward. 4. Pull the ﬁlter out, keeping it face up so as not to drop any dust into the passenger compartment upon removal. When installing a new air ﬁlter make sure the AIR FLOW arrow is pointing downward.
Page 177: Warning Lights, Gages, And Indicators
Warning Lights, Gages, and Indicators This part describes the warning lights and gages that may be on your vehicle. The pictures will help you locate them. Warning lights and gages can signal that something is wrong before it becomes serious enough to cause an expensive repair or replacement.
Page 178: Instrument Panel Cluster
Instrument Panel Cluster Your instrument panel cluster is designed to let you know at a glance how your vehicle is running. You will know how fast you are going, about how much fuel is left in the tank, and many other things you will need to drive safely and economically.
Page 179: Speedometer And Odometer
Speedometer and Odometer Your speedometer lets you see your speed in both miles per hour (mph) and kilometers per hour (km/h). Your vehicle’s odometer works together with the driver information center. You can set a Trip A and Trip B odometer. See “Trip Information” under DIC Operation and Displays on page 195.
Page 180: Safety Belt Reminder Light
Safety Belt Reminder Light When the key is turned to RUN or START, a chime will come on for several seconds to remind people to fasten their safety belts, unless the driver’s safety belt is already buckled. The safety belt light will also come on and stay on for several seconds, then it will...
Page 181: Airbag Readiness Light
Airbag Readiness Light There is an airbag readiness light on the instrument panel, which shows the airbag symbol. The system checks the airbag’s electrical system for malfunctions. The light tells you if there is an electrical problem. The system check includes the airbag sensor, the airbag modules, the wiring and the crash sensing and diagnostic module.
Page 182: Passenger Airbag Status Indicator
Passenger Airbag Status Indicator Your vehicle has the passenger sensing system. Your instrument panel has a passenger airbag status indicator. United States When the ignition key is turned to RUN or START, the passenger airbag status indicator will light ON and OFF, or the symbol for on and off, for several seconds as a system check.
Page 183 If your vehicle has a rear seat that will accommodate a rear-facing child restraint, a label on your sun visor says, “Never put a rear-facing child seat in the front.” This is because the risk to the rear-facing child is so great, if the airbag deploys.
Page 184: Charging System Light
If the word OFF or the off symbol is lit on the airbag status indicator, it means that the passenger sensing system has turned off the right front passenger’s frontal airbag. See Passenger Sensing System on page 82 for more on this, including important safety information.
Page 185: Brake System Warning Light
Brake System Warning Light Your vehicle’s hydraulic brake system is divided into two parts. If one part is not working, the other part can still work and stop you. For good braking, though, you need both parts working well. If the warning light comes on, there is a brake problem.
Page 186: Anti-Lock Brake System Warning Light
Anti-Lock Brake System Warning Light Your vehicle may have the Anti-Lock Brake System (ABS). This light will come on when your engine is started and may stay on for several seconds. That is normal. If the light stays on, turn the ignition off. If the light comes on when you are driving, stop as soon as possible and turn the ignition off.
Page 187: Enhanced Traction System Warning Light
Enhanced Traction System Warning Light If your vehicle is equipped with the Enhanced Traction System (ETS), this warning light should come on brieﬂy as you start the engine. If the warning light does not come on, then have it ﬁxed so it will be ready to warn you if there is a problem.
Page 188: Engine Coolant Temperature Gage
Engine Coolant Temperature Gage Your vehicle has an engine coolant temperature gage. With the ignition turned to RUN, this gage shows the engine coolant temperature. If the gage pointer moves into the red area, your engine is too hot. It means that your engine coolant has overheated.
Page 189 Notice: If you keep driving your vehicle with this light on, after awhile, your emission controls may not work as well, your fuel economy may not be as good, and your engine may not run as smoothly. This could lead to costly repairs that may not be covered by your warranty.
Page 190 If the Light is Flashing The following may prevent more serious damage to your vehicle: • Reducing vehicle speed • Avoiding hard accelerations • Avoiding steep uphill grades • If you are towing a trailer, reduce the amount of cargo being hauled as soon as it is possible If the light stops ﬂashing and remains on steady, see “If the Light Is On Steady”...
Page 191 Have you recently changed brands of fuel? If so, be sure to fuel your vehicle with quality fuel. See Gasoline Octane on page 291. Poor fuel quality will cause your engine not to run as efficiently as designed. You may notice this as stalling after start-up, stalling when you put the vehicle into gear, misﬁring, hesitation on acceleration, or stumbling on acceleration.
Page 192: Oil Pressure Light
Oil Pressure Light If you have a low engine oil pressure problem, this light will stay on after you start your engine, or come on when you are driving. This indicates that your engine is not receiving enough oil. The engine could be low on oil, or could have some other oil problem.
Page 193: Security Light
Security Light For more information on this light see Theft-Deterrent Systems on page 111. Fog Lamp Light The fog lamp light will come on when the fog lamps are in use. The light will go out when the fog lamps are turned off.
Page 194: Driver Information Center (Dic)
Here are four things that some owners ask about. None of these show a problem with your fuel gage: • At the service station, the gas pump shuts off before the gage reads full. • It takes a little more or less fuel to ﬁll up than the gage indicated.
Page 195: Dic Operation And Displays
(Reset): Press this button to reset some vehicle information mode displays, select a personalization menu mode setting, or acknowledge a warning message. Press and hold the information and reset buttons at the same time for one second, then release the buttons to enter the personalization menu. See DIC Vehicle Personalization on page 200 for more information.
Page 196 TRIP A or TRIP B Press the information button until TRIP A or TRIP B is displayed. These modes show the current distance traveled since the last reset for each trip odometer in either miles (mi) or kilometers (km). Both odometers can be used at the same time.
Page 197: Dic Warnings And Messages
OIL LIFE Press the information button until OIL LIFE is displayed. The engine oil life system shows an estimate of the oil’s remaining useful life. It will show 100% when the system is reset after an oil change. It will alert you to change your oil on a schedule consistent with your driving conditions.
Page 198 BRAKE FLUID This message displays to inform the driver that the brake ﬂuid level is low while the ignition is on. The brake system warning light on the instrument panel cluster also comes on. See Brake System Warning Light on page 185 for more information. Have the brake system serviced by your dealer as soon as possible.
Page 199 ENG (Engine) PWR (Power) REDUCED This message displays to inform you that the vehicle has reduced engine power to avoid damaging the engine. Reduced engine power can affect the vehicle’s ability to accelerate. If this message is on, but there is no reduction in performance, proceed to your destination.
Page 200: Dic Vehicle Personalization
PARKING BRAKE This message displays if the parking brake is left engaged. See Parking Brake on page 127 for more information. POWER STEERING This message displays if a problem has been detected with the electric power steering. Have your vehicle serviced by your dealer immediately. SERVICE AIR BAG This message displays when there is a problem with the airbag system.
Page 201 Personalization Menu Modes OIL LIFE RESET When this feature is displayed, you can reset the engine oil life system. To reset the system, see Engine Oil Life System on page 302. See “OIL LIFE” under DIC Operation and Displays on page 195 for more information.
Page 202 LOCK HORN If your vehicle has Remote Keyless Entry (RKE), this feature, which allows the vehicle’s horn to chirp every time the lock button on the RKE transmitter is pressed, can be enabled or disabled. When LOCK HORN appears on the display, press and hold the reset button for at least one second to scroll through the available settings: OFF (default): The horn will not chirp on the ﬁrst...
Page 203 LIGHT FLASH If your vehicle has Remote Keyless Entry (RKE), this feature, which allows the vehicle’s exterior hazard/turn signal lighting to ﬂash every time the lock or unlock button on the RKE transmitter is pressed, can be enabled or disabled. When LIGHT FLASH appears on the display, press and hold the reset button for at least one second to scroll through the available settings:...
Page 204 AUTO UNLK (Unlock) This feature, which allows the vehicle to automatically unlock certain doors, can be enabled or disabled. When AUTO UNLK appears on the display, press and hold the reset button for at least one second to scroll through the available settings: ALL (default): All of the doors will automatically unlock.
Page 205 EXT (Exterior) LIGHTS If your vehicle has Remote Keyless Entry (RKE), this feature, which allows the vehicle’s exterior perimeter lighting to turn on each time the unlock button on the RKE transmitter is pressed, can be enabled or disabled. When EXT LIGHTS appears on the display, press and hold the reset button for at least one second to scroll through the available settings:...
Page 206: Audio System(S)
Exiting Personalization Menu The personalization menu will be exited when any of the following conditions occur: • A ten second time period has elapsed. • The ignition is turned off. • The end of the personalization menu list is reached. Audio System(s) Determine which radio your vehicle has and then read the pages following to familiarize yourself...
Page 207: Setting The Time (Without Date Display)
• Set up your audio system by presetting your favorite radio stations, setting the tone, and adjusting the speakers. Then, when driving conditions permit, you can tune to your favorite radio stations using the presets and steering wheel controls if the vehicle has them. Notice: Before adding any sound equipment to your vehicle, such as an audio system, CD player, CB radio, mobile telephone, or two-way...
Page 208: Setting The Time (With Date Display)
To change the time default setting from 12 hour to 24 hour, press the clock button and then the pushbutton located under the forward arrow label. Once the time 12H and 24H are displayed, press the pushbutton located under the desired option to select the default.
Page 209 To set the time and date, follow these instructions: 1. Turn the ignition key to ACC (accessory) or RUN. Press the power knob, located in the center of the radio, to turn the radio on. 2. Press the MENU button. Once the clock option is displayed.
Page 210: Radio With Cd (Base)
Radio with CD (Base) Playing the Radio (Power/Volume): Press this knob to turn the system on and off. Turn this knob clockwise or counterclockwise to increase or decrease the volume. The radio goes to the previous volume setting whenever the radio is turned on. The volume can still be adjusted by using the volume knob.
Page 211 Setting Preset Stations Up to 18 stations (six FM1, six FM2, and six AM), can be programmed on the six numbered pushbuttons, by performing the following steps: 1. Turn the radio on. 2. Press BAND to select FM1, FM2, or AM. 3.
Page 212 If the ignition or radio is turned off with a CD in the player, it stays in the player. When the ignition or radio is turned on, the CD starts playing where it stopped, if it was the last selected audio source.
Page 213 © ¨ SEEK : Press the left SEEK arrow to go to the start of the current track, if more than ten seconds have played. Press the right SEEK arrow to go to the next track. If either SEEK arrow is held or pressed multiple times, the player continues moving backward or forward through the CD.
Page 214 CD Messages CHECK DISC: If an error message displays and/or the CD comes out, it could be for one of the following reasons: • It is very hot. When the temperature returns to normal, the CD should play. • You are driving on a very rough road. When the road becomes smoother, the CD should play.
Page 215: Radio With Cd (Mp3)
Radio with CD (MP3) (Power/Volume): Turn this knob clockwise or counterclockwise to increase or decrease the volume of the portable player. You might need to make additional volume adjustments from the portable device. BAND: Press this button to listen to the radio while a portable audio device is playing.
Page 216 Radio Data System (RDS) The audio system has a Radio Data System (RDS). The RDS feature is available for use only on FM stations that broadcast RDS information. This system relies upon receiving speciﬁc information from these stations and only works when the information is available.
Page 217 Finding a Station BAND: Press this button to switch between AM, FM, or XM™ (if equipped). The selection displays. (Tune): Turn this knob to select radio stations. © ¨ SEEK : Press the right or left SEEK arrow to go to the next or to the previous station and stay there.
Page 218 FAV (Favorites): A maximum of 36 stations can be programmed as favorites using the six pushbuttons positioned below the radio station frequency labels and by using the radio favorites page button (FAV button). Press the FAV button to go through up to six pages of favorites, each having six favorite stations available per page.
Page 219 Setting the Tone (Bass/Midrange/Treble) BASS/MID/TREB (Bass, Midrange, or Treble): To adjust bass, midrange, or treble, press the tune knob until the tone control labels display. Continue pressing to highlight the desired label, or press the pushbutton positioned under the desired label. Turn the tune knob clockwise or counterclockwise to adjust the highlighted setting.
Page 220 Finding a Category (CAT) Station CAT (Category): The CAT button is used to ﬁnd XM™ stations while the radio is in the XM™ mode. To ﬁnd XM™ channels within a desired category, perform the following: 1. Press the BAND button until the XM™ frequency is displayed.
Page 221 Radio Messages Calibration Error: The audio system has been calibrated for your vehicle from the factory. If Calibration Error displays, it means that the radio has not been conﬁgured properly for your vehicle and it must be returned to your dealer for service.
Page 222 When a CD is inserted, the CD symbol displays on the CD. As each new track starts to play, the track number displays. The CD player can play the smaller 3 inch (8 cm) single CDs with an adapter ring. Full-size CDs and the smaller CDs are loaded in the same manner.
Page 223 (Tune): Turn this knob to select tracks on the CD currently playing. © ¨ SEEK : Press the left SEEK arrow to go to the start of the current track, if more than ten seconds have played. Press the right SEEK arrow to go to the next track.
Page 224 BAND: Press this button to listen to the radio while a CD is playing. The CD remains inside the radio for future listening. CD/AUX (CD/Auxiliary): Press this button to play a CD while listening to the radio. The CD icon and a message showing disc and/or track number displays when a CD is in the player.
Page 225 Using the Auxiliary Input Jack Your radio system has an auxiliary input jack located on the lower right side of the faceplate. This is not an audio output; do not plug the headphone set into the front auxiliary input jack. You can however, connect an external audio device such as an iPod, laptop computer, MP3 player, CD changer, or cassette tape player, etc.
Page 226: Using An Mp3
Using an MP3 MP3 CD-R or CD-RW Disc The radio plays MP3 ﬁles that were recorded on a CD-R or CD-RW disc. The ﬁles can be recorded with the following ﬁxed bit rates: 32 kbps, 40 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 160 kbps, 192 kbps, 224 kbps, 256 kbps, and 320 kbps or a variable bit rate.
Page 227 • Make sure playlists have a .mp3 or .wpl extension (other ﬁle extensions may not work). • Minimize the length of the ﬁle, folder, or playlist names. Long ﬁle, folder, or playlist names, or a combination of a large number of ﬁles and folders, or playlists can cause the player to be unable to play up to the maximum number of ﬁles, folders, playlists, or sessions.
Page 228 When the CD-R contains only playlists and compressed audio ﬁles, but no folders, all ﬁles are located under the root folder. The folder down and the folder up buttons search playlists (Px) ﬁrst and then goes to the root folder. When the radio displays the name of the folder, the radio displays ROOT.
Page 229 If the ignition or radio is turned off with a CD-R in the player, it stays in the player. When the ignition or radio is turned on, the CD-R starts to play where it stopped, if it was the last selected audio source.
Page 230 (Tune): Turn this knob to select MP3 ﬁles on the CD-R currently playing. © ¨ SEEK : Press the left SEEK arrow to go to the start of the current MP3 ﬁle, if more than ten seconds have played. Press the right SEEK arrow to go to the next MP3 ﬁle.
Page 231 (Music Navigator): Use the music navigator feature to play MP3 ﬁles on the CD-R in order by artist or album. Press the pushbutton located below the music navigator label. The player scans the disc to sort the ﬁles by artist and album ID3 tag information.
Page 232: Xm Radio Messages
XM Radio Messages Radio Display Message XL (Explicit Language XL on the radio display, Channels) after the channel name, indicates content with explicit language. XM Updating Updating encryption code The encryption code in the receiver is being updated, and No XM Signal Loss of signal Loading XM Acquiring channel audio...
Page 233: Theft-Deterrent Feature
Radio Display Message CAT Not Found No channel available for the chosen category XM Theft Locked Theftlock XM Radio ID Radio ID label (channel 0) If tuned to channel 0, this message alternates with the Unknown Radio ID not known (should only be if hardware failure) Check XM Receivr...
Page 234: Audio Steering Wheel Controls
Audio Steering Wheel Controls Radio controls are located on the right side of the steering wheel. If your vehicle has this feature, some audio controls can be adjusted at this location. They include the following: : Press the up or the down arrow to go to the next or to the previous stored radio station and stay there.
Page 235: Care Of Your Cds
The range for most AM stations is greater than for FM, especially at night. The longer range can cause station frequencies to interfere with each other. For better radio reception, most AM radio stations will boost the power levels during the day, and then reduce these levels during the night.
Page 236: Fixed Mast Antenna
Fixed Mast Antenna This type of antenna is called a ﬁxed mast antenna. It is mounted at the center of the roof, just behind the windshield. The mast antenna can withstand most car washes without being damaged. If the mast should ever become slightly bent, straighten it out by hand.
Page 237: Driving Your Vehicle
Section 4 Your Driving, the Road, and Your Vehicle ... 238 Defensive Driving ... 238 Drunken Driving ... 239 Control of a Vehicle ... 242 Braking ... 242 Anti-Lock Brake System (ABS) ... 243 Braking in Emergencies ... 245 Enhanced Traction System (ETS) ... 246 Steering ...
Page 238: Your Driving, The Road, And Your Vehicle
Your Driving, the Road, and Your Vehicle Defensive Driving The best advice anyone can give about driving is: Drive defensively. Please start with a very important safety device in your vehicle: Buckle up. See Safety Belts: They Are for Everyone on page 20. CAUTION: Defensive driving really means “Be ready for anything.”...
Page 239: Drunken Driving
Drunken Driving Death and injury associated with drinking and driving is a national tragedy. It is the number one contributor to the highway death toll, claiming thousands of victims every year. Alcohol affects four things that anyone needs to drive a vehicle: •...
Page 240 According to the American Medical Association, a 180 lb (82 kg) person who drinks three 12 ounce (355 ml) bottles of beer in an hour will end up with a BAC of about 0.06 percent. The person would reach the same BAC by drinking three 4 ounce (120 ml) glasses of wine or three mixed drinks if each had 1-1/2 ounces (45 ml) of liquors like whiskey, gin, or vodka.
Page 241 But the ability to drive is affected well below a BAC of 0.10 percent. Research shows that the driving skills of many people are impaired at a BAC approaching 0.05 percent, and that the effects are worse at night. All drivers are impaired at BAC levels above 0.05 percent.
Page 242: Control Of A Vehicle
Control of a Vehicle You have three systems that make your vehicle go where you want it to go. They are the brakes, the steering, and the accelerator. All three systems have to do their work at the places where the tires meet the road.
Page 243: Anti-Lock Brake System (Abs)
Avoid needless heavy braking. Some people drive in spurts — heavy acceleration followed by heavy braking — rather than keeping pace with traffic. This is a mistake. The brakes may not have time to cool between hard stops. The brakes will wear out much faster if you do a lot of heavy braking.
Page 244 Let us say the road is wet and you are driving safely. Suddenly, an animal jumps out in front of you. You slam on the brakes and continue braking. Here is what happens with ABS: A computer senses that wheels are slowing down. If one of the wheels is about to stop rolling, the computer will separately work the brakes at each wheel.
Page 245: Braking In Emergencies
Remember: ABS does not change the time you need to get your foot up to the brake pedal or always decrease stopping distance. If you get too close to the vehicle in front of you, you will not have time to apply your brakes if that vehicle suddenly slows or stops.
Page 246: Enhanced Traction System (Ets)
Enhanced Traction System (ETS) Your vehicle may have an Enhanced Traction System (ETS) that limits wheel spin. This is especially useful in slippery road conditions. The system operates only if it senses that one or both of the front wheels are spinning or beginning to lose traction.
Page 247 If the warning light stays on, or comes on when you’re driving, there may be a problem with your Enhanced Traction System and your vehicle may need service. When this warning light is on, the system will not limit wheel spin. Adjust your driving accordingly.
Page 248: Steering
Steering Electric Power Steering If the engine stalls while you are driving, the power steering assist system will continue to operate until you are able to stop your vehicle. If you lose power steering assist because the electric power steering system is not functioning, you can steer, but it will take more effort.
Page 249 Suppose you are steering through a sharp curve. Then you suddenly apply the brakes. Both control systems — steering and braking — have to do their work where the tires meet the road. Unless you have four-wheel anti-lock brakes, adding the hard braking can demand too much of those places.
Page 250 Steering in Emergencies There are times when steering can be more effective than braking. For example, you come over a hill and ﬁnd a truck stopped in your lane, or a car suddenly pulls out from nowhere, or a child darts out from between parked cars and stops right in front of you.
Page 251: Off-Road Recovery
Off-Road Recovery You may ﬁnd that your right wheels have dropped off the edge of a road onto the shoulder while you are driving. If the level of the shoulder is only slightly below the pavement, recovery should be fairly easy. Ease off the accelerator and then, if there is nothing in the way, steer so that your vehicle straddles the edge of the pavement.
Page 252 • Watch for traffic signs, pavement markings, and lines. If you can see a sign up ahead that might indicate a turn or an intersection, delay your pass. A broken center line usually indicates it is all right to pass, providing the road ahead is clear.
Page 253: Loss Of Control
Loss of Control Let us review what driving experts say about what happens when the three control systems — brakes, steering, and acceleration — do not have enough friction where the tires meet the road to do what the driver has asked. In any emergency, do not give up.
Page 254: Driving At Night
While driving on a surface with reduced traction, try your best to avoid sudden steering, acceleration, or braking, including reducing vehicle speed by shifting to a lower gear. Any sudden changes could cause the tires to slide. You may not realize the surface is slippery until your vehicle is skidding.
Page 255 No one can see as well at night as in the daytime. But as we get older these differences increase. A 50-year-old driver may require at least twice as much light to see the same thing at night as a 20-year-old.
Page 256: Driving In Rain And On Wet Roads
Driving in Rain and on Wet Roads Rain and wet roads can mean driving trouble. On a wet road, you cannot stop, accelerate, or turn as well because your tire-to-road traction is not as good as on dry roads. And, if your tires do not have much tread left, you will get even less traction.
Page 257 Hydroplaning Hydroplaning is dangerous. So much water can build up under the tires that they can actually ride on the water. This can happen if the road is wet enough and you are going fast enough. When your vehicle is hydroplaning, it has little or no contact with the road.
Page 258: City Driving
Some Other Rainy Weather Tips • Besides slowing down, allow some extra following distance. And be especially careful when you pass another vehicle. Allow yourself more clear room ahead, and be prepared to have your view restricted by road spray. •...
Page 259: Freeway Driving
Here are ways to increase your safety in city driving: • Know the best way to get to where you are going. Get a city map and plan your trip into an unknown part of the city just as you would for a cross-country trip.
Page 260: Before Leaving On A Long Trip
The most important advice on freeway driving is: Keep up with traffic and keep to the right. Drive at the same speed most of the other drivers are driving. Too-fast or too-slow driving breaks a smooth traffic ﬂow. Treat the left lane on a freeway as a passing lane.
Page 261: Highway Hypnosis
Is your vehicle ready for a long trip? If you keep it serviced and maintained, it is ready to go. If it needs service, have it done before starting out. Of course, you will ﬁnd experienced and able service experts in GM dealerships all across North America.
Page 262: Hill And Mountain Roads
Hill and Mountain Roads Driving on steep hills or mountains is different from driving in ﬂat or rolling terrain. If you drive regularly in steep country, or if you are planning to visit there, here are some tips that can make your trips safer and more enjoyable. •...
Page 263 CAUTION: Coasting downhill in NEUTRAL (N) or with the ignition off is dangerous. Your brakes will have to do all the work of slowing down. They could get so hot that they would not work well. You would then have poor braking or even none going down a hill.
Page 264: Winter Driving
Winter Driving Here are some tips for winter driving: • Have your vehicle in good shape for winter. • You may want to put winter emergency supplies in your vehicle. Also see Tires on page 336. Include an ice scraper, a small brush or broom, a supply of windshield washer ﬂuid, a rag, some winter outer clothing, a small shovel, a ﬂashlight, a red cloth, and a couple of reﬂective warning...
Page 265 What is the worst time for this? Wet ice. Very cold snow or ice can be slick and hard to drive on. But wet ice can be even more trouble because it may offer the least traction of all. You can get wet ice when it is about freezing, 32°F (0°C), and freezing rain begins to fall.
Page 266 Remember, unless your vehicle has ABS, if you brake so hard that your wheels stop rolling, you will just slide. Brake so the wheels always keep rolling and you can still steer. • Whatever your vehicle’s braking system, allow greater following distance on any slippery road. •...
Page 267 You can run the engine to keep warm, but be careful. CAUTION: Snow can trap exhaust gases under your vehicle. This can cause deadly CO (carbon monoxide) gas to get inside. CO could overcome you and kill you. You cannot see it or smell it, so you might not know it is in your vehicle.
Page 268: If Your Vehicle Is Stuck In Sand, Mud, Ice, Or Snow
You will need a well-charged battery to restart the vehicle, and possibly for signaling later on with the headlamps. Let the heater run for a while. Then, shut the engine off and close the window almost all the way to preserve the heat. Start the engine again and repeat this only when you feel really uncomfortable from the cold.
Page 269: Rocking Your Vehicle To Get It Out
Rocking Your Vehicle to Get It Out First, turn the steering wheel left and right. That will clear the area around the front wheels. If your vehicle has the Enhanced Traction System (ETS), turn the ETS off. See Enhanced Traction System (ETS) on page 246.
Page 270 Tire and Loading Information Label Label Example A vehicle speciﬁc Tire and Loading Information label is attached to the vehicle’s center pillar (B-pillar). With the driver’s door open, you will ﬁnd the label attached below the door lock post (striker). The tire and loading information label lists the number of occupant seating positions (A), and the maximum vehicle capacity weight (B) in kilograms and pounds.
Page 271 4. The resulting ﬁgure equals the available amount of cargo and luggage load capacity. For example, if the “XXX” amount equals 1400 lbs and there will be ﬁve 150 lb passengers in your vehicle, the amount of available cargo and luggage load capacity is 650 lbs (1400 750 (5 x 150) = 650 lbs).
Page 272 Example 2 Item Description Maximum Vehicle Capacity Weight for Example 2 Subtract Occupant Weight 150 lbs (68 kg) Available Cargo Weight Total Item 1,000 lbs (453 kg) 750 lbs (340 kg) 250 lbs (113 kg) Refer to your vehicle’s tire and loading information label for speciﬁc information about your vehicle’s maximum vehicle capacity weight and seating positions.
Page 273 Certiﬁcation Label A vehicle speciﬁc Certiﬁcation/Tire label is found on the rear edge of the driver’s door. The label shows the size of your original tires and the inﬂation pressures needed to obtain the gross weight capacity of your vehicle. This is called the Gross Vehicle Weight Rating (GVWR).
Page 274: Towing
If you put things inside your vehicle — like suitcases, tools, packages, or anything else — they will go as fast as the vehicle goes. If you have to stop or turn quickly, or if there is a crash, they will keep going. CAUTION: Things you put inside your vehicle can strike and injure people in a sudden stop...
Page 275 With the proper preparation and equipment, many vehicles can be towed in these ways. See “Dinghy Towing” and “Dolly Towing,” following. Here are some important things to consider before you do recreational vehicle towing: • What is the towing capacity of the towing vehicle? Be sure you read the tow vehicle manufacturer’s recommendations.
Page 276: Towing A Trailer (Manual Transaxle)
To prevent the battery from draining while the vehicle is being towed, remove the following fuse from the ﬂoor console fuse block: 8 (Ignition ® Switch, PASS-Key III+). See Floor Console Fuse Block on page 381 for more information. Remember to reinstall the fuse once you have reached your destination.
Page 277: Towing A Trailer (Automatic Transaxle)
Towing a Trailer (Automatic Transaxle) CAUTION: If you do not use the correct equipment and drive properly, you can lose control when you pull a trailer. For example, if the trailer is too heavy, the brakes may not work well — or even at all. You and your passengers could be seriously injured.
Page 278 If You Do Decide To Pull A Trailer If you do, here are some important points: • There are many different laws, including speed limit restrictions, having to do with trailering. Make sure your rig will be legal, not only where you live but also where you will be driving.
Page 279 Weight of the Trailer How heavy can a trailer safely be? It should never weigh more than 1,000 lbs (450 kg). But even that can be too heavy. It depends on how you plan to use your rig. For example, speed, altitude, road grades, outside temperature and how much your vehicle is used to pull a trailer are all important.
Page 280 If you are using a weight-carrying hitch, the trailer tongue (A) should weigh 10 to 15 percent of the total loaded trailer weight (B). After you have loaded your trailer, weigh the trailer and then the tongue, separately, to see if the weights are proper.
Page 281 total to 3,975 lbs (1 803 kg). This is very close to, but within the limit for RGAWR as well. The vehicle is set to trailer up to 8,500 lbs (3 856 kg). But let’s say your speciﬁc vehicle is equipped with some of the latest options and you have a front seat passenger and two rear seat passengers with some luggage and gear in the vehicle as...
Page 282 Hitches It is important to have the correct hitch equipment. Crosswinds, large trucks going by and rough roads are a few reasons why you will need the right hitch. Here are some rules to follow: • The rear bumper on your vehicle is not intended for hitches.
Page 283 Driving with a Trailer Towing a trailer requires a certain amount of experience. Before setting out for the open road, you will want to get to know your rig. Acquaint yourself with the feel of handling and braking with the added weight of the trailer. And always keep in mind that the vehicle you are driving is now a good deal longer and not nearly as responsive as your vehicle is by itself.
Page 284 Making Turns Notice: Making very sharp turns while trailering could cause the trailer to come in contact with the vehicle. Your vehicle could be damaged. Avoid making very sharp turns while trailering. When you are turning with a trailer, make wider turns than normal.
Page 285 Reduce speed and shift to a lower gear before you start down a long or steep downgrade. If you do not shift down, you might have to use your brakes so much that they would get hot and no longer work well. Pay attention to the engine coolant gage.
Page 286 When You Are Ready to Leave After Parking on a Hill 1. Apply your regular brakes and hold the pedal down while you: • Start your engine. • Shift into a gear. • Release the parking brake. 2. Let up on the brake pedal. 3.
Page 287: Service And Appearance Care
Section 5 Service ... 289 Accessories and Modiﬁcations ... 289 California Proposition 65 Warning ... 290 Doing Your Own Service Work ... 290 Adding Equipment to the Outside of Your Vehicle ... 291 Fuel ... 291 Gasoline Octane ... 291 Gasoline Speciﬁcations ...
Page 288 Section 5 When It Is Time for New Tires ... 347 Buying New Tires ... 347 Different Size Tires and Wheels ... 349 Uniform Tire Quality Grading ... 350 Wheel Alignment and Tire Balance ... 351 Wheel Replacement ... 352 Tire Chains ...
Page 289: Service
Service Your dealer knows your vehicle best and wants you to be happy with it. We hope you will go to your dealer for all your service needs. You will get genuine GM parts and GM-trained and supported service people. We hope you will want to keep your GM vehicle all GM.
Page 290: California Proposition 65 Warning
California Proposition 65 Warning Most motor vehicles, including this one, contain and/or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Engine exhaust, many parts and systems (including some inside the vehicle), many ﬂuids, and some component wear by-products contain and/or emit these chemicals.
Page 291: Adding Equipment To The Outside Of Your Vehicle
Adding Equipment to the Outside of Your Vehicle Things you might add to the outside of your vehicle can affect the airﬂow around it. This may cause wind noise and affect windshield washer performance. Check with your dealer before adding equipment to the outside of your vehicle. Fuel Use of the recommended fuel is an important part of the proper maintenance of your vehicle.
Page 292: Gasoline Speciﬁcations
Gasoline Speciﬁcations At a minimum, gasoline should meet ASTM speciﬁcation D 4814 in the United States or CAN/CGSB-3.5 in Canada. Some gasolines may contain an octane-enhancing additive called methylcyclopentadienyl manganese tricarbonyl (MMT). General Motors recommends against the use of gasolines containing MMT. See Additives on page 292 for additional information.
Page 293: Fuels In Foreign Countries
Gasolines containing oxygenates, such as ethers and ethanol, and reformulated gasolines may be available in your area. General Motors recommends that you use these gasolines if they comply with the speciﬁcations described earlier. However, E85 (85% ethanol) and other fuels containing more than 10% ethanol must not be used in vehicles that were not designed for those fuels.
Page 294: Filling The Tank
Filling the Tank CAUTION: Fuel vapor burns violently and a fuel ﬁre can cause bad injuries. To help avoid injuries to you and others, read and follow all the instructions on the pump island. Turn off your engine when you are refueling.
Page 295 CAUTION: If you spill fuel and then something ignites it, you could be badly burned. Fuel can spray out on you if you open the fuel cap too quickly. This spray can happen if your tank is nearly full, and is more likely in hot weather.
Page 296: Filling A Portable Fuel Container
Filling a Portable Fuel Container CAUTION: Never ﬁll a portable fuel container while it is in your vehicle. Static electricity discharge from the container can ignite the gasoline vapor. You can be badly burned and your vehicle damaged if this occurs. To help avoid injury to you and others: •...
Page 297: Hood Release
Hood Release To open the hood, do the following. 1. Pull the interior hood release lever with this symbol on it. It is located to the left of the instrument panel on the driver’s side of the vehicle. 3. After you have partially lifted the hood, gas struts will automatically take over to lift and hold the hood in the fully open position.
Page 298: Engine Compartment Overview
Engine Compartment Overview When you open the hood on the 2.4L engine (2.2L engine similar), here is what you will see:...
Page 299: Engine Oil
A. Windshield Washer Fluid Reservoir. See “Adding Washer Fluid” under Windshield Washer Fluid on page 316. B. Pressure Cap. See Pressure Cap on page 309. C. Coolant Recovery Tank. See “Checking Coolant” under Engine Coolant on page 306. D. Engine Air Cleaner/Filter. See Engine Air Cleaner/Filter on page 304.
Page 300 When to Add Engine Oil If the oil is below the MIN (minimum) mark, you will need to add at least one quart/liter of oil. But you must use the right kind. This section explains what kind of oil to use. For engine oil crankcase capacity, see Capacities and Speciﬁcations on page 386.
Page 301 What Kind of Engine Oil to Use Look for two things: • GM6094M Your vehicle’s engine requires oil meeting GM Standard GM6094M. You should look for and use only an oil that meets GM Standard GM6094M. • SAE 5W-30 As shown in the viscosity chart, SAE 5W-30 is best for your vehicle.
Page 302: Engine Oil Life System
If you are in an area of extreme cold, where the temperature falls below 20°F ( 29°C), it is recommended that you use either an SAE 5W-30 synthetic oil or an SAE 0W-30 oil. Both will provide easier cold starting and better protection for the engine at extremely low temperatures.
Page 303 How to Reset the Engine Oil Life System The Engine Oil Life System calculates when to change your engine oil and ﬁlter based on vehicle use. Anytime your oil is changed, reset the system so it can calculate when the next oil change is required.
Page 304: Engine Air Cleaner/Filter
Engine Air Cleaner/Filter See Engine Compartment Overview on page 298 for the location of the engine air cleaner/ﬁlter. When to Inspect the Engine Air Cleaner/Filter Inspect the air cleaner/ﬁlter at the Maintenance II intervals and replace it at the ﬁrst oil change after each 50,000 mile (85 000 km) interval.
Page 305: Automatic Transaxle Fluid
CAUTION: Operating the engine with the air cleaner/ﬁlter off can cause you or others to be burned. The air cleaner not only cleans the air; it helps to stop ﬂames if the engine backﬁres. If it is not there and the engine backﬁres, you could be burned.
Page 306: Hydraulic Clutch
Hydraulic Clutch The hydraulic clutch linkage in your vehicle is self-adjusting. This system does not have its own reservoir. It receives ﬂuid from the brake master cylinder reservoir. See Brakes on page 317 for more information. Engine Coolant The cooling system in your vehicle is ﬁlled with ®...
Page 307 What to Use Use a mixture of one-half clean, drinkable water ® and one-half DEX-COOL coolant which will not damage aluminum parts. If you use this coolant mixture, you do not need to add anything else. CAUTION: Adding only plain water to your cooling system can be dangerous.
Page 308 Checking Coolant The coolant recovery tank cap has this symbol on it. The tank is located in the engine compartment toward the front of the engine on the passenger’s side of the vehicle. See Engine Compartment Overview on page 298 for more information on location.
Page 309: Pressure Cap
CAUTION: You can be burned if you spill coolant on hot engine parts. Coolant contains ethylene glycol, and it will burn if the engine parts are hot enough. Do not spill coolant on a hot engine. Pressure Cap Notice: If the pressure cap is not tightly installed, coolant loss and possible engine damage may occur.
Page 310 If Steam Is Coming From Your Engine CAUTION: Steam from an overheated engine can burn you badly, even if you just open the hood. Stay away from the engine if you see or hear steam coming from it. Just turn it off and get everyone away from the vehicle until it cools down.
Page 311 If you get the engine coolant temperature warning with no sign of steam, try this for a minute or so: 1. If you have an air conditioner and it is on, turn it off. 2. In heavy traffic, let the engine idle in NEUTRAL (N) while stopped.
Page 312: Cooling System
Cooling System When you decide it is safe to lift the hood, here is what you will see: A. Pressure Cap B. Coolant Recovery Tank C. Electric Engine Cooling Fan CAUTION: An electric engine cooling fan under the hood can start up even when the engine is not running and can injure you.
Page 313 CAUTION: Heater and radiator hoses, and other engine parts, can be very hot. Do not touch them. If you do, you can be burned. Do not run the engine if there is a leak. If you run the engine, it could lose all coolant.
Page 314 If no coolant is visible in the coolant recovery tank, add coolant at the pressure cap as follows: CAUTION: Steam and scalding liquids from a hot cooling system can blow out and burn you badly. They are under pressure, and if you turn the pressure cap —...
Page 315 Notice: In cold weather, water can freeze and crack the engine, radiator, heater core and other parts. Use the recommended coolant and the proper coolant mixture. CAUTION: You can be burned if you spill coolant on hot engine parts. Coolant contains ethylene glycol and it will burn if the engine parts are hot enough.
Page 316: Windshield Washer Fluid
5. Then ﬁll the coolant recovery tank to the COLD FILL line. 6. Put the cap back on the coolant recovery tank, but leave the pressure cap off. 7. Start the engine and let it run until you can feel the upper radiator hose getting hot. Watch out for the engine cooling fan.
Page 317: Brakes
Notice: • When using concentrated washer ﬂuid, follow the manufacturer’s instructions for adding water. • Do not mix water with ready-to-use washer ﬂuid. Water can cause the solution to freeze and damage your washer ﬂuid tank and other parts of the washer system. Also, water does not clean as well as washer ﬂuid.
Page 318 So, it is not a good idea to top off your brake ﬂuid. Adding brake ﬂuid will not correct a leak. If you add ﬂuid when your linings are worn, then you will have too much ﬂuid when you get new brake linings.
Page 319 Some driving conditions or climates may cause a brake squeal when the brakes are ﬁrst applied or lightly applied. This does not mean something is wrong with your brakes. Properly torqued wheel nuts are necessary to help prevent brake pulsation. When tires are rotated, inspect brake pads for wear and evenly tighten wheel nuts in the proper sequence to GM torque speciﬁcations.
Page 320: Battery
Battery Your vehicle has a maintenance free battery. When it is time for a new battery, get one that has the replacement number shown on the original battery’s label. We recommend an ACDelco replacement battery. Your vehicle’s battery is located in the trunk. You do not need to access the battery to jump start your vehicle.
Page 321 CAUTION: Batteries can hurt you. They can be dangerous because: • They contain acid that can burn you. • They contain gas that can explode or ignite. • They contain enough electricity to burn you. If you do not follow these steps exactly, some or all of these things can hurt you.
Page 322 Notice: If you leave your radio or other accessories on during the jump starting procedure, they could be damaged. The repairs would not be covered by your warranty. Always turn off your radio and other accessories when jump starting your vehicle. 3.
Page 323 CAUTION: An electric fan can start up even when the engine is not running and can injure you. Keep hands, clothing and tools away from any underhood electric fan. CAUTION: Using a match near a battery can cause battery gas to explode. People have been hurt doing this, and some have been blinded.
Page 324 CAUTION: Fans or other moving engine parts can injure you badly. Keep your hands away from moving parts once the engine is running. 5. Check that the jumper cables do not have loose or missing insulation. If they do, you could get a shock.
Page 325 7. Do not let the other end touch metal. Connect it to the positive (+) terminal of the good battery. Use a remote positive (+) terminal if the vehicle has one. 8. Now connect the black negative ( ) cable to the negative ( ) terminal of the good battery.
Page 326 Notice: If the jumper cables are connected or removed in the wrong order, electrical shorting may occur and damage the vehicle. The repairs would not be covered by your warranty. Always connect and remove the jumper cables in the correct order, making sure that the cables do not touch each other or other metal.
Page 327: Headlamp Aiming
Headlamp Aiming The vehicle has a visual optical headlamp aiming system. The aim has been preset at the factory and should need no further adjustment. However, if the vehicle is damaged in an accident, the headlamp aim may be affected and adjustment may be necessary.
Page 328 To adjust the vertical aim, do the following: 1. Open the hood. See Hood Release on page 297 for more information. 2. Find the aim dot on the lens of the low-beam headlamp. 3. Measure the distance from the ground to the aim dot on the low-beam headlamp.
Page 329 6. Turn on the low-beam headlamps and place a piece of cardboard or equivalent in front of the headlamp not being adjusted. Do not place directly on the headlamp. This allows only the beam of light from the headlamp being adjusted to be seen on the ﬂat surface.
Page 330: Bulb Replacement
Bulb Replacement For the proper type of replacement bulbs, see Replacement Bulbs on page 334. For any bulb changing procedure not listed in this section, contact your dealer. Halogen Bulbs CAUTION: Halogen bulbs have pressurized gas inside and can burst if you drop or scratch the bulb.
Page 331: Center High-Mounted Stoplamp (Chmsl)
To replace the headlamp, turn signal, or parking lamp bulb, do the following: 1. Turn the wheel to access the wheel well. 2. Remove the fasteners to access the headlamp and the turn signal/parking lamp bulbs. 3. Reach in behind the wheel well liner and locate the bulb you need to change.
Page 332: Taillamps, Turn Signal, Stoplamps And Back-Up Lamps
3. Locate the bulb assembly. 4. Locate the bulb you wish to change. 5. Turn the bulb socket counterclockwise to remove. 6. Pull the bulb straight out of the socket. 7. Install a new bulb. 8. Reverse the steps to reinstall. Taillamps, Turn Signal, Stoplamps and Back-up Lamps A.
Page 333 To replace one of these bulbs, do the following: 1. Open the liftgate. See Liftgate on page 106 for more information. 2. Remove the cover in the rear cargo area of the vehicle to access the bulbs. 3. Turn the bulb socket counterclockwise and pull it out of the lamp housing.
Page 334: License Plate Lamp
License Plate Lamp To replace one of these bulbs, do the following: 1. Remove the two screws holding each of the license plate lamps to the fascia. 2. Turn and pull the license plate lamp forward through the fascia opening. 3.
Page 335: Windshield Wiper Blade Replacement
Windshield Wiper Blade Replacement Windshield wiper blades should be inspected for wear or cracking. See Scheduled Maintenance on page 393 for more information on wiper blade inspection. Replacement blades come in different types and are removed in different ways. For the proper type and length, see Normal Maintenance Replacement Parts on page 405.
Page 336: Tires
Tires Your new vehicle comes with high-quality tires made by a leading tire manufacturer. If you ever have questions about your tire warranty and where to obtain service, see your GM Warranty booklet for details. For additional information refer to the tire manufacturer’s booklet included with your vehicle.
Page 337: Tire Sidewall Labeling
Tire Sidewall Labeling Useful information about a tire is molded into its sidewall. The examples below show a typical passenger vehicle tire and a compact spare tire sidewall. Passenger (P-Metric) Tire Example (A) Tire Size: The tire size is a combination of letters and numbers used to deﬁne a particular tire’s width, height, aspect ratio, construction type, and service description.
Page 338 (D) Tire Identiﬁcation Number (TIN): The letters and numbers following DOT (Department of Transportation) code is the Tire Identiﬁcation Number (TIN). The TIN shows the manufacturer and plant code, tire size, and date the tire was manufactured. The TIN is molded onto both sides of the tire, although only one side may have the date of manufacture.
Page 339 (B) Tire Ply Material: The type of cord and number of plies in the sidewall and under the tread. (C) Tire Identiﬁcation Number (TIN): The letters and numbers following the DOT (Department of Transportation) code is the Tire Identiﬁcation Number (TIN). The TIN shows the manufacturer and plant code, tire size, and date the tire was manufactured.
Page 340: Tire Terminology And Deﬁnitions
(B) Tire Width: The three-digit number indicates the tire section width in millimeters from sidewall to sidewall. (C) Aspect Ratio: A two-digit number that indicates the tire height-to-width measurements. For example, if the tire size aspect ratio is 60, as shown in item C of the illustration, it would mean that the tire’s sidewall is 60 percent as high as it is wide.
Page 341 Aspect Ratio: The relationship of a tire’s height to its width. Belt: A rubber coated layer of cords that is located between the plies and the tread. Cords may be made from steel or other reinforcing materials. Bead: The tire bead contains steel wires wrapped by steel cords that hold the tire onto the rim.
Page 342 Light Truck (LT-Metric) Tire: A tire used on light duty trucks and some multipurpose passenger vehicles. Load Index: An assigned number ranging from 1 to 279 that corresponds to the load carrying capacity of a tire. Maximum Inﬂation Pressure: The maximum air pressure to which a cold tire may be inﬂated.
Page 343 Radial Ply Tire: A pneumatic tire in which the ply cords that extend to the beads are laid at 90 degrees to the centerline of the tread. Rim: A metal support for a tire and upon which the tire beads are seated. Sidewall: The portion of a tire between the tread and the bead.
Page 344: Inﬂation - Tire Pressure
Inﬂation - Tire Pressure Tires need the correct amount of air pressure to operate effectively. Notice: Do not let anyone tell you that under-inﬂation or over-inﬂation is all right. It is not. If your tires do not have enough air (under-inﬂation), you can get the following: •...
Page 345: Tire Inspection And Rotation
When to Check Check your tires once a month or more. Do not forget to check the compact spare tire, it should be at 60 psi (420 kPa). For additional information regarding the compact spare tire, see Compact Spare Tire on page 369. How to Check Use a good quality pocket-type gage to check tire pressure.
Page 346 The purpose of regular rotation is to achieve more uniform wear for all tires on the vehicle. The ﬁrst rotation is the most important. See Scheduled Maintenance on page 393. When rotating your tires, always use the correct rotation pattern shown here. Do not include the compact spare tire in your tire rotation.
Page 347: When It Is Time For New Tires
When It Is Time for New Tires One way to tell when it is time for new tires is to check the treadwear indicators, which will appear when your tires have only 1/16 inch (1.6 mm) or less of tread remaining. You need a new tire if any of the following statements are true: •...
Page 348 GM’s exclusive TPC Spec system considers over a dozen critical speciﬁcations that impact the overall performance of your vehicle, including brake system performance, ride and handling, traction control, and tire pressure monitoring performance. GM’s TPC Spec number is molded onto the tire’s sidewall by the tire manufacturer. If the tires have an all-season tread design, the TPC spec number will be followed by an MS for mud and snow.
Page 349: Different Size Tires And Wheels
If you must replace your vehicle’s tires with those that do not have a TPC Spec number, make sure they are the same size, load range, speed rating, and construction type (radial and bias-belted tires) as your vehicle’s original tires. Your vehicle’s original equipment tires are listed on the Tire and Loading Information label.
Page 350: Uniform Tire Quality Grading
Uniform Tire Quality Grading Quality grades can be found where applicable on the tire sidewall between tread shoulder and maximum section width. For example: Treadwear 200 Traction AA Temperature A The following information relates to the system developed by the United States National Highway Traffic Safety Administration (NHTSA), which grades tires by treadwear, traction, and temperature performance.
Page 351: Wheel Alignment And Tire Balance
Traction – AA, A, B, C The traction grades, from highest to lowest, are AA, A, B, and C. Those grades represent the tire’s ability to stop on wet pavement as measured under controlled conditions on speciﬁed government test surfaces of asphalt and concrete. A tire marked C may have poor traction performance.
Page 352: Wheel Replacement
Wheel Replacement Replace any wheel that is bent, cracked, or badly rusted or corroded. If wheel nuts keep coming loose, the wheel, wheel bolts, and wheel nuts should be replaced. If the wheel leaks air, replace it (except some aluminum wheels, which can sometimes be repaired).
Page 353: Tire Chains
Used Replacement Wheels CAUTION: Putting a used wheel on your vehicle is dangerous. You cannot know how it has been used or how far it has been driven. It could fail suddenly and cause a crash. If you have to replace a wheel, use a new GM original equipment wheel.
Page 354: If A Tire Goes Flat
If a Tire Goes Flat It is unusual for a tire to blowout while you are driving, especially if you maintain your vehicle’s tires properly. If air goes out of a tire, it is much more likely to leak out slowly. But if you should ever have a blowout, here are a few tips about what to expect and what to do: If a front tire fails, the ﬂat tire will create a drag...
Page 355: Changing A Flat Tire
Changing a Flat Tire If a tire goes ﬂat, avoid further tire and wheel damage by driving slowly to a level place. Turn on your hazard warning ﬂashers. CAUTION: Changing a tire can be dangerous. The vehicle can slip off the jack and roll over or fall on you or other people.
Page 356: Removing The Spare Tire And Tools
When you have a ﬂat tire, use the following example as a guide to assist you in the placement of wheel blocks. The following information will tell you how to use the jack and change a tire. Removing the Spare Tire and Tools The jack, wheel wrench, and spare tire are stowed in the rear of the vehicle, underneath the ﬂoor of the cargo area.
Page 357 3. Turn the retainer counterclockwise to remove the tire cover. 4. Remove the tire cover. 5. Remove the spare tire by placing your hands at the four and eight o’clock positions. Gently pull it up and out of the trunk. See Compact Spare Tire on page 369.
Page 358 The tools you will be using include the jack (A) and wheel wrench (B). You will need to turn the plastic wheel nut counterclockwise to loosen the wheel wrench from the jack.
Page 359: Removing The Flat Tire And Installing The Spare Tire
Press the button and then pull on the end of the wheel wrench to extend the handle. Removing the Flat Tire and Installing the Spare Tire 1. Using the wheel wrench, loosen all the wheel nuts. Do not remove them yet.
Page 360 2. Position the jack and raise the jack lift head to ﬁt over the car ﬂange under the down arrow markings on the rocker panel. CAUTION: Getting under a vehicle when it is jacked up is dangerous. If the vehicle slips off the jack you could be badly injured or killed.
Page 361 CAUTION: Raising your vehicle with the jack improperly positioned can damage the vehicle and even make the vehicle fall. To help avoid personal injury and vehicle damage, be sure to ﬁt the jack lift head into the proper location before raising the vehicle.
Page 362 4. Remove all the 5. Install the spare tire. wheel nuts and take off the ﬂat tire. Rust or dirt on the wheel, or on the parts to which it is fastened, can make the wheel nuts become loose after time. The wheel could come off and cause an accident.
Page 363 6. Remove any rust or dirt from the wheel bolts, mounting surfaces and spare wheel. 7. Place the compact spare tire on the wheel-mounting surface. CAUTION: Never use oil or grease on studs or nuts. If you do, the nuts might come loose. Your wheel could fall off, causing a serious accident.
Page 364 9. Lower the vehicle by turning the jack handle counterclockwise. Lower the jack completely. CAUTION: Incorrect wheel nuts or improperly tightened wheel nuts can cause the wheel to come loose and even come off. This could lead to an accident. Be sure to use the correct wheel nuts.
Page 365: Storing A Flat Or Spare Tire And Tools
Storing a Flat or Spare Tire 10. Tighten the wheel nuts ﬁrmly in a and Tools crisscross sequence as shown. CAUTION: Storing a jack, a tire, or other equipment in the passenger compartment of the vehicle could cause injury. In a sudden stop or collision, loose equipment could strike someone.
Page 366 Storing the Flat Tire and Tools To store the ﬂat tire, do the following: 1. Open the liftgate. See Liftgate on page 106 for more information. 2. Put back all tools as they were stored in the rear storage compartment and put the compartment cover back on.
Page 367 5. Attach the strap to the cargo tie-downs in the rear of the vehicle. 6. Tighten the tie-down strap. Steel Wheel 4. Route the tie-down strap through the tire as shown in the graphic...
Page 368 Storing the Compact Spare Tire and Tools Use the following diagram as a guide for storing the compact spare tire once you are done using it. A. Retainer E. Jack and Wheel B. Cover C. Spare Tire F. Strap D. Wing Nut G.
Page 369: Compact Spare Tire
Compact Spare Tire Although the compact spare tire was fully inﬂated when the vehicle was new, it can lose air after a time. Check the inﬂation pressure regularly. It should be 60 psi (420 kPa). After installing the compact spare on the vehicle, stop as soon as possible and make sure the spare tire is correctly inﬂated.
Page 370: Appearance Care
Appearance Care Cleaning the Inside of Your Vehicle Your vehicle’s interior will continue to look its best if it is cleaned often. Although not always visible, dust and dirt can accumulate on your upholstery. Dirt can damage carpet, fabric, leather, and plastic surfaces.
Page 371: Fabric/Carpet
Do not clean your vehicle using the following cleaners or techniques: • Never use a knife or any other sharp object to remove a soil from any interior surface. • Never use a stiff brush. It can cause damage to your vehicle’s interior surfaces. •...
Page 372: Instrument Panel, Vinyl, And Other Plastic Surfaces
4. Continue to gently rub the soiled area until the cleaning cloth remains clean. 5. If the soil is not completely removed, use a mild soap solution and repeat the cleaning process that was used with plain water. If any of the soil remains, a commercial fabric cleaner or spot lifter may be necessary.
Page 373: Care Of Safety Belts
Care of Safety Belts Keep belts clean and dry. CAUTION: Do not bleach or dye safety belts. If you do, it may severely weaken them. In a crash, they might not be able to provide adequate protection. Clean safety belts only with mild soap and lukewarm water.
Page 374: Cleaning Exterior Lamps/Lenses
Cleaning Exterior Lamps/Lenses Use only lukewarm or cold water, a soft cloth and a car washing soap to clean exterior lamps and lenses. Follow instructions under Washing Your Vehicle on page 373. Finish Care Occasional waxing or mild polishing of the vehicle by hand may be necessary to remove residue from the paint ﬁnish.
Page 375: Windshield And Wiper Blades
Windshield and Wiper Blades If the windshield is not clear after using the windshield washer, or if the wiper blade chatters when running, wax, sap, or other material may be on the blade or windshield. Clean the outside of the windshield with a glass cleaning liquid or powder and water solution.
Page 376: Tires
Notice: Using chrome polish on aluminum wheels could damage the wheels. The repairs would not be covered by your warranty. Use chrome polish on chrome wheels only. Use chrome polish only on chrome-plated wheels, but avoid any painted surface of the wheel, and buff off immediately after application.
Page 377: Finish Damage
Finish Damage Any stone chips, fractures or deep scratches in the ﬁnish should be repaired right away. Bare metal will corrode quickly and may develop into major repair expense. Minor chips and scratches can be repaired with touch-up materials available from your dealer. Larger areas of ﬁnish damage can be corrected in your dealer’s body and paint shop.
Page 378: Vehicle Care/Appearance Materials
Vehicle Care/Appearance Materials Description Polishing Cloth Interior and exterior Wax-Treated polishing cloth. Tar and Road Removes tar, road oil Oil Remover and asphalt. Chrome Cleaner Use on chrome or and Polish stainless steel. White Sidewall Removes soil and black Tire Cleaner marks from whitewalls.
Page 379: Vehicle Identiﬁcation
Vehicle Identiﬁcation Vehicle Identiﬁcation Number (VIN) This is the legal identiﬁer for your vehicle. It appears on a plate in the front corner of the instrument panel, on the driver’s side. You can see it if you look through the windshield from outside your vehicle.
Page 380: Electrical System
Electrical System Add-On Electrical Equipment Notice: Do not add anything electrical to your vehicle unless you check with your dealer ﬁrst. Some electrical equipment can damage your vehicle and the damage would not be covered by your warranty. Some add-on electrical equipment can keep other components from working as they should.
Page 381: Fuses And Circuit Breakers
Fuses and Circuit Breakers The wiring circuits in your vehicle are protected from short circuits by a combination of fuses, circuit breakers and fusible thermal links. This greatly reduces the chance of damage caused by electrical problems. Look at the silver-colored band inside the fuse. If the band is broken or melted, replace the fuse.
Page 382 Fuses Fuse Puller Empty Empty Empty Empty Usage Fuses Usage Ampliﬁer Cluster Ignition Switch, PASS-Key Stoplamp Heating, Ventilation, Air Conditioning, PASS-Key Empty Spare Airbag Spare Windshield Wiper Climate Control System, Ignition Empty Empty Electric Power Steering, Steering Wheel Control Sunroof Spare Empty ®...
Page 383: Engine Compartment Fuse Block
Fuses Usage Audio System Sensing and Diagnostic Module (Airbag) Engine Control Module, Transaxle Control Module Door Locks Interior Lights Steering Wheel Control Illumination Power Windows Relays Usage Climate Control System Empty Retained Accessory Power (RAP) Engine Compartment Fuse Block The underhood fuse block is located on the driver’s side of the engine compartment.
Page 384 Fuses Body Control Module 3 Starting System Body Control Module 2 Empty Empty Air Conditioning Clutch Diode Liftgate, Sunroof Empty Empty Fuel Pump Rear Wiper Mirror Air Conditioning Heated Seats (Option) Fuse Puller Empty Cigarette Lighter Usage Fuses Usage Power Outlet Daytime Running Lamps Empty Emissions...
Page 385 Fuses Usage Windshield Wiper Diode Windshield Wiper Horn Anti-lock Brake System (Option) Instrument Panel, Ignition Driver’s Side High-Beam Canister Vent Driver’s Side Low-Beam Passenger’s Side Low-Beam Passenger’s Side High-Beam Parking Lamps Relays Usage Rear Defogger Relay Air Conditioning Clutch Empty Rear Wiper Liftgate Release Relays...
Page 386: Capacities And Speciﬁcations
Capacities and Speciﬁcations The following approximate capacities are given in English and metric conversions. Please refer to Normal Maintenance Replacement Parts on page 405 for more information. Application Air Conditioning Refrigerant R134a Cooling System 2.2L Engine 2.4L Engine Manual 2.4L Engine Automatic Engine Oil with Filter Fuel Tank Capacities...
Page 387 Application Transaxle, Automatic (Complete Drain and Reﬁll) Transaxle, Manual (Complete Drain and Reﬁll) Wheel Nut Torque All capacities are approximate. When adding, be sure to ﬁll to the appropriate level, as recommended in this manual. Engine 2.2L L4 2.4L L4 Engine Speciﬁcations VIN Code Transaxle...
Page 388 NOTES...
Page 389: Maintenance Schedule
Section 6 Maintenance Schedule ... 390 Introduction ... 390 Maintenance Requirements ... 390 Your Vehicle and the Environment ... 391 Using the Maintenance Schedule ... 391 Scheduled Maintenance ... 393 Additional Required Services ... 396 Maintenance Footnotes ... 397 Maintenance Schedule Owner Checks and Services ...
Page 390: Maintenance Schedule
Maintenance Schedule Introduction Important: Keep engine oil at the proper level and change as recommended. Have you purchased the GM Protection Plan? The Plan supplements your new vehicle warranties. See your Warranty and Owner Assistance booklet or your dealer for details. Maintenance Requirements Notice: Maintenance intervals, checks, inspections, replacement parts, and...
Page 391: Your Vehicle And The Environment
Your Vehicle and the Environment Proper vehicle maintenance not only helps to keep your vehicle in good working condition, but also helps the environment. All recommended maintenance is important. Improper vehicle maintenance can even affect the quality of the air we breathe.
Page 392 This schedule is for vehicles that: • carry passengers and cargo within recommended limits. You will ﬁnd these limits on the Tire and Loading Information label. See Loading Your Vehicle on page 269. • are driven on reasonable road surfaces within legal driving limits.
Page 393: Scheduled Maintenance
If you want to purchase service information, see Service Publications Ordering Information on page 430. Owner Checks and Services on page 398 tells you what should be checked, when to check it, and what you can easily do to help keep your vehicle in good condition.
Page 394 If the engine oil life system is ever reset accidentally, you must service your vehicle within 3,000 miles (5 000 km) since your last service. Remember to reset the oil life system whenever the oil is changed. See Engine Oil Life System on page 302 for information on the Engine Oil Life System and resetting the system.
Page 395 Scheduled Maintenance Service Maintenance I Maintenance II Change engine oil and ﬁlter. See Engine Oil on page 299. Reset oil life system. See Engine Oil Life System on page 302. An Emission Control Service. Visually check for any leaks or damage. See footnote (j). Inspect engine air cleaner ﬁlter.
Page 396: Additional Required Services
Additional Required Services The following services should be performed at the ﬁrst maintenance service (I or II) after the indicated miles (kilometers) shown for each item. Service and Miles (Kilometers) Inspect fuel system for damage or leaks. Inspect exhaust system for loose or damaged components.
Page 397: Maintenance Footnotes
Maintenance Footnotes (a) Visually inspect brake lines and hoses for proper hook-up, binding, leaks, cracks, chaﬁng, etc. Inspect disc brake pads for wear and rotors for surface condition. Inspect drum brake linings/shoes for wear or cracks. Inspect other brake parts, including drums, wheel cylinders, calipers, parking brake, etc.
Page 398: Owner Checks And Services
(h) Change automatic transaxle ﬂuid and ﬁlter if the vehicle is mainly driven under one or more of these conditions: − In heavy city traffic where the outside temperature regularly reaches 90°F (32°C) or higher. − In hilly or mountainous terrain. −...
Page 399: At Each Fuel Fill
At Each Fuel Fill It is important to perform these underhood checks at each fuel ﬁll. Engine Oil Level Check Check the engine oil level and add the proper oil if necessary. See Engine Oil on page 299 for further details. Notice: It is important to check your oil regularly and keep it at the proper level.
Page 400: At Least Once A Year
At Least Once a Year Starter Switch Check CAUTION: When you are doing this inspection, the vehicle could move suddenly. If the vehicle moves, you or others could be injured. 1. Before you start, be sure you have enough room around the vehicle. 2.
Page 401 Automatic Transaxle Shift Lock Control System Check CAUTION: When you are doing this inspection, the vehicle could move suddenly. If the vehicle moves, you or others could be injured. 1. Before you start, be sure you have enough room around the vehicle. It should be parked on a level surface.
Page 402 Parking Brake and Automatic Transaxle Park (P) Mechanism Check CAUTION: When you are doing this check, your vehicle could begin to move. You or others could be injured and property could be damaged. Make sure there is room in front of your vehicle in case it begins to roll.
Page 403: Recommended Fluids And Lubricants
Recommended Fluids and Lubricants Fluids and lubricants identiﬁed below by name, part number, or speciﬁcation may be obtained from your dealer. Usage Fluid/Lubricant Engine oil which meets GM Standard GM6094M and displays the American Petroleum Institute Certiﬁed for Gasoline Engines Engine Oil starburst symbol.
Page 404 Usage Fluid/Lubricant Multi-Purpose Lubricant, Superlube Key Lock (GM Part No. U.S. 12346241, Cylinders in Canada 10953474). Chassis Lubricant Manual (GM Part No. U.S. 12377985, Transaxle Shift in Canada 88901242) or lubricant Linkage meeting requirements of NLGI #2, Category LB or GC-LB. Chassis Lubricant (GM Part No.
Page 405: Normal Maintenance Replacement Parts
Normal Maintenance Replacement Parts Replacement parts identiﬁed below by name, part number, or speciﬁcation can be obtained from your GM dealer. Normal Maintenance Replacement Parts Part Engine Air Cleaner/Filter Engine Oil Filter Passenger Compartment Air Filter Spark Plugs 2.2L and 2.4L Engines Windshield Wiper Blade Driver’s Side –...
Page 406: Engine Drive Belt Routing
Engine Drive Belt Routing 2.2L L4 and 2.4L L4 Engines...
Page 407: Maintenance Record
Maintenance Record After the scheduled services are performed, record the date, odometer reading, who performed the service, and the type of services performed in the boxes provided. See Maintenance Requirements on page 390. Any additional information from Owner Checks and Services on page 398 can be added on the following record pages.
Page 408 Maintenance Record (cont’d) Odometer Maintenance I or Date Serviced By Services Performed Reading Maintenance II...
Page 409 Maintenance Record (cont’d) Odometer Maintenance I or Date Serviced By Services Performed Reading Maintenance II...
Page 410 Maintenance Record (cont’d) Odometer Maintenance I or Date Serviced By Services Performed Reading Maintenance II...
Page 411: Customer Assistance Information
Section 7 Customer Assistance and Information ... 412 Customer Satisfaction Procedure ... 412 Online Owner Center ... 415 Customer Assistance for Text Telephone (TTY) Users ... 416 Customer Assistance Offices ... 416 GM Mobility Reimbursement Program ... 417 Roadside Assistance Program ... 418 Courtesy Transportation ...
Page 412: Customer Assistance And Information
Information Customer Satisfaction Procedure Your satisfaction and goodwill are important to your dealer and to Chevrolet. Normally, any concerns with the sales transaction or the operation of your vehicle will be resolved by your dealer’s sales or service departments. Sometimes, however, despite the best intentions of all concerned, misunderstandings can occur.
Page 413 STEP THREE — U.S. Owners: Both General Motors and your dealer are committed to making sure you are completely satisﬁed with your new vehicle. However, if you continue to remain unsatisﬁed after following the procedure outlined in Steps 1 and 2, you should ﬁle with the Better Business Bureau (BBB) Auto Line Program to enforce your rights.
Page 414 STEP THREE — Canadian Owners: In the event that you do not feel your concerns have been addressed after following the procedure outlined in Steps 1 and 2, General Motors of Canada Limited wants you to be aware of its participation in a no-charge Mediation/Arbitration Program.
Page 415: Online Owner Center
Online Owner Center Online Owner Center (United States only) The Owner Center is a resource for your GM ownership needs. Speciﬁc vehicle information can be found in one place. The Online Owner Center allows you to: • Get e-mail service reminders. •...
Page 416: Customer Assistance For Text Telephone (Tty) Users
(TTY users in Canada can dial 1-800-263-3830.) Customer Assistance Offices Chevrolet encourages customers to call the toll-free number for assistance. However, if a customer wishes to write or e-mail Chevrolet, the letter should be addressed to: United States — Customer Assistance Chevrolet Motor Division Chevrolet Customer Assistance Center P.O.
Page 417: Gm Mobility Reimbursement Program
Overseas — Customer Assistance Please contact the local General Motors Business Unit. Mexico, Central America and Caribbean Islands/Countries (Except Puerto Rico and U.S. Virgin Islands) — Customer Assistance General Motors de Mexico, S. de R.L. de C.V. Customer Assistance Center Paseo de la Reforma # 2740 Col.
Page 418: Roadside Assistance Program
(1-800-243-8872) In Canada, call 1-800-268-6800 Service available 24 hours a day, 365 days a year. As the owner of a new Chevrolet vehicle, you are automatically enrolled in the Chevrolet Roadside Assistance program. This value-added service is intended to provide you with peace of mind as you drive in the city or travel the open road.
Page 419 • Emergency Tow From a Public Roadway or Highway: Tow to the nearest dealership for warranty service or in the event of a vehicle-disabling accident. Winch-out assistance when the vehicle is mired in sand, mud, or snow. • Flat Tire Change: If your vehicle has a spare tire, installation of the tire in good condition will be covered at no charge.
Page 420 (1-800-243-8872), text telephone (TTY) users, call 1-888-889-2438, Canadian customers call 1-800-268-6800. Chevrolet and General Motors of Canada Limited reserve the right to limit services or reimbursement to an owner or driver when, in their sole discretion, the claims become excessive in frequency or type of occurrence.
Page 421: Courtesy Transportation
Towing and Road Service Exclusions Speciﬁcally excluded from Roadside Assistance coverage are towing or services for vehicles operated on a non-public roadway or highway, ﬁnes, impound towing caused by a violation of local, Municipal, State, Provincial, or Federal law, and mounting, dismounting or changing of snow tires, chains, or other traction devices.
Page 422 Transportation Options Warranty service can generally be completed while you wait. However, if you are unable to wait, GM helps to minimize your inconvenience by providing several transportation options. Depending on the circumstances, your dealer can offer you one of the following: Shuttle Service Shuttle service is the preferred means of offering...
Page 423: Vehicle Data Collection And Event Data Recorders
Additional Program Information All program options, such as shuttle service, may not be available at every dealer. Please contact your dealer for speciﬁc information about availability. All Courtesy Transportation arrangements will be administered by appropriate dealer personnel. General Motors reserves the right to unilaterally modify, change or discontinue Courtesy Transportation at any time and to resolve all questions of claim eligibility pursuant to the terms...
Page 424: Collision Damage Repair
To read this information, special equipment is needed and access to the vehicle or the device that stores the data is required. GM will not access information about a crash event or share it with others other than: • with the consent of the vehicle owner or, if the vehicle is leased, with the consent of the lessee, •...
Page 425 Collision Parts Genuine GM Collision parts are new parts made with the same materials and construction methods as the parts with which your vehicle was originally built. Genuine GM Collision parts are your best choice to assure that your vehicle’s designed appearance, durability, and safety are preserved.
Page 426 Insuring Your Vehicle Protect your investment in your GM vehicle with comprehensive and collision insurance coverage. There are signiﬁcant differences in the quality of coverage afforded by various insurance policy terms. Many insurance policies provide reduced protection to your GM vehicle by limiting compensation for damage repairs by using aftermarket collision parts.
Page 427 • If you need roadside assistance, call GM Roadside Assistance. See Roadside Assistance Program on page 418 for more information. • If your vehicle cannot be driven, know where the towing service will be taking it. Get a card from the tow truck operator or write down the driver’s name, the service’s name, and the phone number.
Page 428: Reporting Safety Defects
Managing the Vehicle Damage Repair Process In the event that your vehicle requires damage repairs, GM recommends that you take an active role in its repair. If you have a pre-determined repair facility of choice, take your vehicle there, or have it towed there.
Page 429: Reporting Safety Defects To The Canadian Government
General Motors In addition to notifying NHTSA (or Transport Canada) in a situation like this, we certainly hope you will notify General Motors. Please call the Chevrolet Customer Assistance Center at 1-800-222-1020, or write: Chevrolet Motor Division Chevrolet Customer Assistance Center P.O.
Page 430: Service Publications Ordering Information
Service Publications Ordering Information Service Manuals Service Manuals have the diagnosis and repair information on engines, transmission, axle suspension, brakes, electrical, steering, body, etc. Transmission, Transaxle, Transfer Case Unit Repair Manual This manual provides information on unit repair service procedures, adjustments, and speciﬁcations for GM transmissions, transaxles, and transfer cases.
Page 431 Owner Information Owner publications are written speciﬁcally for owners and intended to provide basic operational information about the vehicle. The owner manual will include the Maintenance Schedule for all models. In-Portfolio: Includes a Portfolio, Owner Manual, and Warranty Booklet. RETAIL SELL PRICE: $35.00 US + Processing Fee Without Portfolio: Owner’s Manual only.
Page 432 NOTES...
Page 433 Accessories and Modiﬁcations ... 289 Accessory Power Outlet(s) ... 169 Adding Equipment to Your Airbag-Equipped Vehicle ... 89 Additives, Fuel ... 292 Add-On Electrical Equipment ... 380 Air Cleaner/Filter, Engine ... 304 Air Conditioning ... 170 Airbag Passenger Status Indicator ... 182 Readiness Light ...
Page 434 Audio System(s) (cont.) Fixed Mast Antenna ... 236 Radio with CD ... 210, 215 Setting the Time ... 207, 208 Theft-Deterrent Feature ... 233 Understanding Radio Reception ... 234 XM™ Satellite Radio Antenna System ... 236 Automatic Door Lock ... 105 Automatic Headlamp System ...
Page 435 Center High-Mounted Stoplamp (CHMSL) ... 331 Chains, Tire ... 353 Charging System Light ... 184 Check Engine Light ... 188 Checking Things Under the Hood ... 296 Chemical Paint Spotting ... 377 Child Restraints Child Restraint Systems ... 49 Infants and Young Children ... 46 Lower Anchors and Tethers for Children ...
Page 436 Customer Assistance Information Courtesy Transportation ... 421 Customer Assistance for Text Telephone (TTY) Users ... 416 Customer Assistance Offices ... 416 Customer Satisfaction Procedure ... 412 GM Mobility Reimbursement Program ... 417 Reporting Safety Defects to General Motors ... 429 Reporting Safety Defects to the Canadian Government ...
Page 437 Electric Power Management ... 168 Electrical System Add-On Equipment ... 380 Engine Compartment Fuse Block ... 383 Floor Console Fuse Block ... 381 Fuses and Circuit Breakers ... 381 Headlamp Wiring ... 380 Power Windows and Other Power Options ... 380 Windshield Wiper Fuses ...
Page 438 Fuel ... 291 Additives ... 292 California Fuel ... 292 Filling a Portable Fuel Container ... 296 Filling Your Tank ... 294 Fuels in Foreign Countries ... 293 Gage ... 193 Gasoline Octane ... 291 Gasoline Speciﬁcations ... 292 Fuses Engine Compartment Fuse Block ...
Page 439 Horn ... 154 How to Use This Manual ... 4 How to Wear Safety Belts Properly ... 25 Hydraulic Clutch ... 306 Ignition Positions ... 116 Infants and Young Children, Restraints ... 46 Inﬂation - Tire Pressure ... 344 Instrument Panel Overview ...
Page 440 Light (cont.) Passenger Airbag Status Indicator ... 182 Passenger Safety Belt Reminder ... 180 Safety Belt Reminder ... 180 Security ... 193 Lighting Entry/Exit ... 167 Loading Your Vehicle ... 269 Lockout Protection ... 106 Locks Automatic Door Lock ... 105 Delayed Locking ...
Page 441 MP3 ... 226 MyGMLink.com ... 415 New Vehicle Break-In ... 115 Normal Maintenance Replacement Parts ... 405 Odometer ... 179 Off-Road Recovery ... 251 Engine ... 299 Pressure Light ... 192 Oil, Engine Oil Life System ... 302 Older Children, Restraints ... 43 Online Owner Center ...
Page 442 Questions and Answers About Safety Belts ... 24 Radios ... 206 Care of Your CD Player ... 235 Care of Your CDs ... 235 Radio with CD ... 210, 215 Setting the Time ... 207, 208 Theft-Deterrent ... 233 Understanding Reception ... 234 Rear Compartment Storage Panel/Cover ...
Page 443 Safety Belt Passenger Reminder Light ... 180 Pretensioners ... 42 Reminder Light ... 180 Safety Belts Care of ... 373 Driver Position ... 26 How to Wear Safety Belts Properly ... 25 Questions and Answers About Safety Belts ... 24 Rear Safety Belt Comfort Guides ...
Page 444 Spare Tire Compact ... 369 Installing ... 359 Removing ... 356 Storing ... 365 Speciﬁcations, Capacities ... 386 Speedometer ... 179 Split Folding Rear Seat ... 17 Starting Your Engine ... 119 Steering ... 248 Steering Wheel Controls, Audio ... 234 Steering Wheel, Tilt Wheel ...
Page 445 Tires (cont.) Removing the Spare Tire and Tools ... 356 Storing a Flat or Spare Tire and Tools ... 365 Tire Sidewall Labeling ... 337 Tire Terminology and Deﬁnitions ... 340 Uniform Tire Quality Grading ... 350 Wheel Alignment and Tire Balance ... 351 Wheel Replacement ...
Page 446 Warning Lights, Gages and Indicators ... 177 Warnings DIC Warnings and Messages ... 197 Hazard Warning Flashers ... 154 Other Warning Devices ... 154 Safety and Symbols ... 4 Vehicle Damage ... 5 Wheels Alignment and Tire Balance ... 351 Different Size ...
