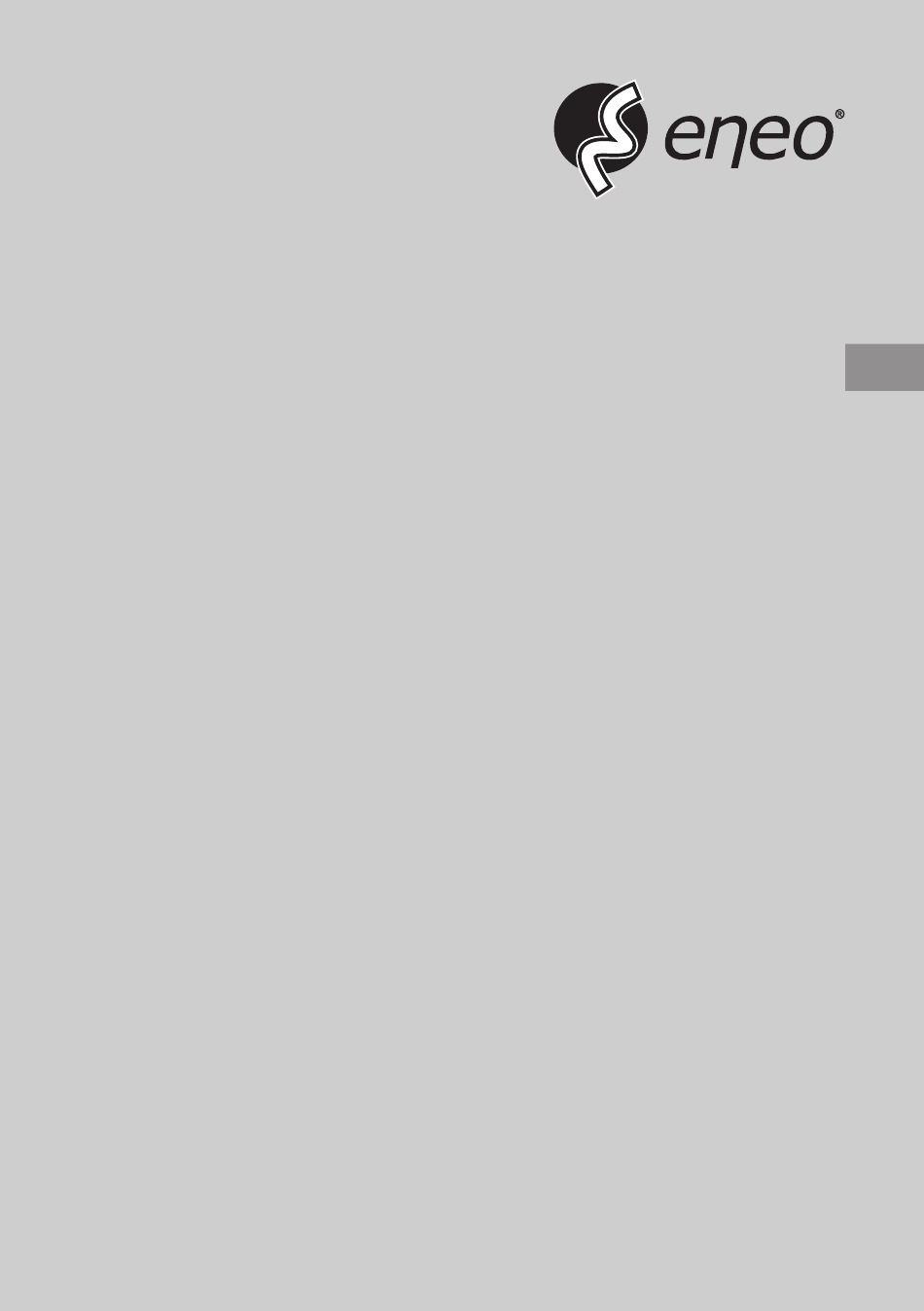

- Page 1 User Manual Converter, HD-CVI, HD-TVI, AHD, Composite to HDMI, VGA, Com- posite, Indoor MAM-5MM1001M0A...
-
Page 2: Table Of Contents
Table of content Parts supplied .......................4 Panel View ........................5 LED Indication ...................................5 Switch and Button Functions ..................6 DIP Switch Settings and Button Functions Quick Reference: ...............6 DIP Switch Settings and Button Function Detail .....................6 DIP Switch 2 : INPUT/OUTPUT Mode Selection ....................7 DIP Switch 3: PIP Mode ............................8 DIP Switch 4: PIP Dimension Setting ........................9 Restore Factory Default ..............................9... - Page 3 Safety instructions General safety instructions • Before switching on and operating the system, first read this safety advice and the operating instructions. • Keep the operating instructions in a safe place for later use. • Installation, commissioning and maintenance of the system may only be carried out by authorised individuals and in accordance with the installation instructions - ensuring that all applicable standards and guidelines are followed.
-
Page 4: Parts Supplied
Graphical symbols Please pay attention to the safety instructions, and carefully read through this instruction guide before initial operation. Important points of warning are marked with a caution symbol. Important points of advice are marked with a notice symbol. Parts supplied •... -
Page 5: Panel View

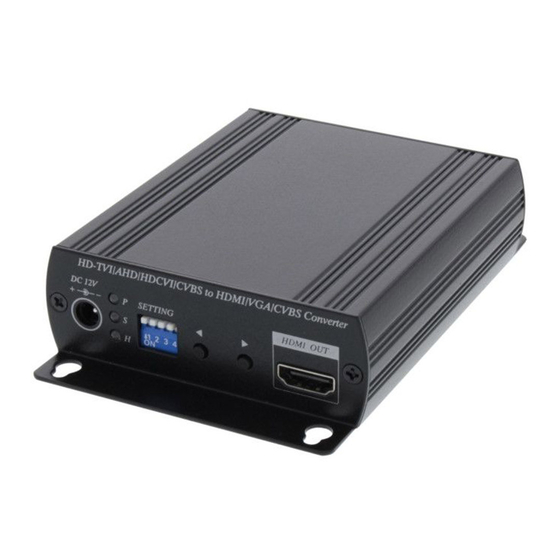

Panel View DC 12 V DC 12V power terminal HDMI OUT HDMI output interface VGA OUT VGA output interface ➀ IN First source input interface ② IN/OUT Multiple function source input/output interface LED Indication DC Jack LED: Green P Power ON Blue S Input 1 signal received Red H... -
Page 6: Switch And Button Functions
Switch and Button Functions DIP Switch Settings and Button Functions Quick Reference: DIP Switch Button Function Output Mode Left Right Left and Right Loop Output Decrease output resolution Increase output resolution Switch CVBS output CVBS Output Decrease CVBS underscan Increase CVBS underscan 4:3/16:9 Switch 4:3/16:9 (CVBS Dual Input... -
Page 7: Dip Switch 2 : Input/Output Mode Selection
DIP Switch 1 ⇓ (CVBS OUT) ② IN/OUT connector setting as CVBS mode Input1 1080p@30 IN / OUT CVBS NTSC Underscan 20% HDMI / VGA OUT Output 1080p@60 Button for underscan adjustment, press ◄ decrease CVBS OUT underscan, press ► en- large CVBS OUT underscan CVBS underscan adjustment is to avoid overscan situation on CRT screen (Overscan is the situation in which not all of a televised image is present on a viewing screen) which cause... -
Page 8: Dip Switch 3: Pip Mode
Button as input selection, press ◄ to display Input 1 picture, press ► to display input 2 picture, the current input display will be add * symbol marked. To press the ◄► two buttons together could switch the aspect ratio when the source is NTSC or PAL;... -
Page 9: Dip Switch 4: Pip Dimension Setting
DIP Switch 4: PIP Dimension Setting DIP Switch 4 ⇓ (Adjust PIP Dimension) This function can only be activated on DIP Switch 2 and DIP Switch 3 both at ⇓ position. Button as PIP sub-screen dimension setting, press ◄ to decrease PIP sub-screen dimen- sion, press ►... -
Page 10: Installation
Installation Loopout Mode 3 outputs: HDMI, VGA, loop output as a distributor. CVBS Output Mode 3 outputs: HDMI, VGA, CVBS could be display simultaneously. -
Page 11: Hd-Tvi/Ahd/Hdcvi/Ntsc/Pal/960H Input Mode
HD-TVI/AHD/HDCVI/NTSC/PAL/960H Input Mode: Allow two camera inputs with 2 outputs: HDMI, VGA as a switcher. This converter supports video format manual select function as below: Step 1. Connect video source to the converter and wait OSD show up. Step 2. Remove video source to enter format selection mode (all DIP-SW off ) Step 3. - Page 12 VIDEOR E. Hartig GmbH Exclusive distribution through specialised trade channels only. VIDEOR E. Hartig GmbH Carl-Zeiss-Straße 8 63322 Rödermark/Germany Tel. +49 (0) 6074 / 888-0 Technical changes reserved Fax +49 (0) 6074 / 888-100 www.videor.com...
