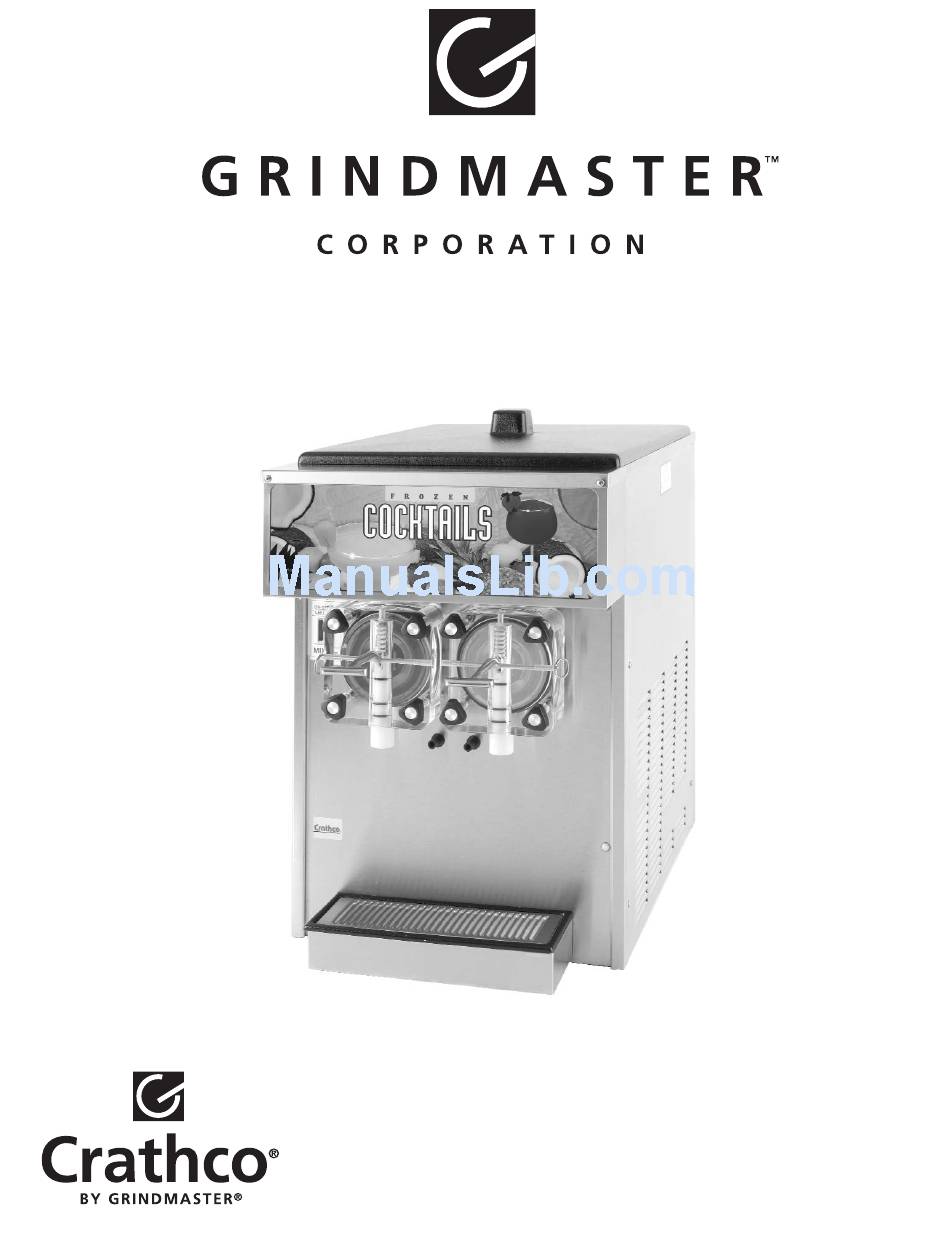

Wiring Diagrams ... 22 - 27 Refrigeration Diagrams ... 29 - 30 Information contained within this manual is subject to change without notice. Contact Grindmaster Corporation’s Customer/Technical Service Department at 1-800-695-4500 with any questions or for clarification. Model 3312 Table of Contents...
When properly operated and cared for, the Model 3312 will provide many years of service. Proper care includes regular cleaning and maintenance. To minimize the amount of maintenance necessary, follow the operating procedures outlined in this manual.
Contact your local health department regarding its regulations for proper mix handling and storage. Carburetor Assembly Your new freezer uses a metering device, known as a carburetor, to feed the proper ratio of mix and air into the freez- ing cylinder (and to prevent frozen product from rinsing out of the freezing cylinder).
(Leg Kit Part # W0890220 (4) 4” Legs) 2. Make sure freezer is to be placed in a location that is within 6’ of a properly grounded circuit and allows adequate space at each side and above for proper air circulation.
Page 7
Seal Installation Instructions * Optional items specified when the unit is ordered. 7. Fill out Warranty Registration Card with the requested information and mail to Grindmaster Corporation. 8. Replace side panels. 9. Assemble the dispense valve following the instructions on page 8. The valve plunger, spring and retaining pin come in the small parts bag.
(transparency) between the clear and opaque plates (plastic lens). Put these in place under the lip of the machine top. Slip the electrical box cover back on to the machine and reinsert the screws. (See Figure I) Grindmaster offers a variety of drink headers including: frozen beverage, frozen lemonade, cappuccino, margarita, pina colada, frozen cocktail, frozen daiquiri and smoothie.
Cleaning and sanitizing frequency must be followed according to state and local health department regulations. NOTE: Each time the freezer is fully disassembled, all foodzone freezer components must be thoroughly washed and sanitized using procedures recommended by the local health department. In lieu of local health department recommendations, use a three compartment sink;...
Page 10
4. Remove stationary half of the shaft seal assembly from the back end of the freezer cylinder. This is accomplished by reaching into the cylinder and pulling seal out with your index finger. (See Figure R) 5. Slide the rotary half of the seal off the dasher shaft. Inspect both seal components carefully for nicks or cracks.
Page 11
(Figure T) 13. The exterior of the freezer should be cleaned as needed with a cloth towel. Coarse rags, abrasive cleaners and excessive force can damage and/or scratch the surfaces of the freezer. Reassembly NOTE: Allow all parts to dry completely before reassembly.
Page 12
19. Fill mix storage hopper with fresh product. Cover hopper with hopper lid. 20. Turn one front panel switch to “ON”. Allow approximately 20 minutes for the freezer to reach proper consistency, then turn the other front panel switch “ON” to freeze down other side.
Suggested Daily Maintenance 1. Clean, lubricate and sanitize the freezer following guidelines. 2. Clean the exterior of the freezer using a soft wet cloth. (Wipe down spinner if attached) 3. Empty drip tray. Parts Replacement Schedule...
Page 14
• Check V-belt tension (should be 1/2” - 5/8”) and verify all set screws are tightened - adjust if out of range. Replace belt once per year minimum. • Verify compressor operation and freezer controller operation. • Check electrical connections (outlet should be properly grounded with amperage capacity equal to or over the amperage specified on the serial tag).
Page 15
2. Lower the metal enclosure that frames the merchandiser insert. 3. Pull merchandiser enclosure down and out. 4. Replace bulb inside. 5. Reassemble. For ease of assembly, put merchandiser in light box before placing metal enclosure back on. Model 3312 CAUTION Figure FF Page 13...
6pm EST) or an authorized service center in your area. Please have the model and serial number ready so that accurate information may be given. Prior authorization must be obtained from Grindmaster’s Technical Services Department for all warranty claims. Page 14...
Page 20
Model 3312 Base Assembly 115V Air-Cooled Model Item Part No. Description W0210075 Base Pan Assembly, 3312 W0211210 Frame Assembly W0200135 Compressor W0200807 Condenser Assembly W0321029 Fan Assembly, 115V see below Motor, 1/4HP W0611410 Rivet, Magna-Lok W0611410 1/4 Int. Tooth Lk Washer...
Page 21
Model 3312 Base Assembly 220V Air-Cooled Model Item Part No. Description W0210075 Base Pan Assy 3312 W0211210 Frame Assy W0200132 Compressor, 240/220V, 50Hz W0200807 Condenser Assy, 3312 W0321040 Fan Assy, 115V W0321023 Motor Assy, 1/4 HP W0611410 Rivet, Magna Lok W0611247 1/4”...
