Installation & User Instructions - Please keep for future reference
Impor tant – Please read these instr
These instructions contain important information which will help you get the best from your
appliance
and
If you need help or have damaged or missing parts, call the Customer Helpline: 0345 257
7271

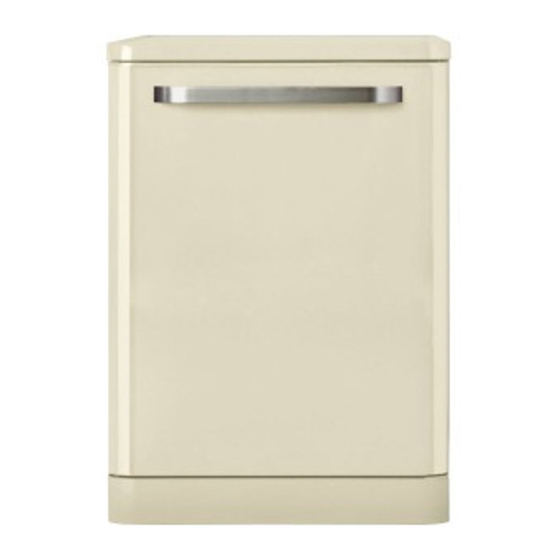

RETRO DISHWASHER
uctions fully bef o re installing or using
ensure
safe
and
correct
installation,
DWFS124C
DWFS124B
DWFS124R
use
and
maintenance.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Bush DWFS124C
Summary of Contents for Bush DWFS124C
- Page 1 RETRO DISHWASHER Installation & User Instructions - Please keep for future reference DWFS124C DWFS124B DWFS124R Impor tant – Please read these instr uctions fully bef o re installing or using These instructions contain important information which will help you get the best from your...
-
Page 2: Table Of Contents
Customer Helpline: 0345 257 7271 CONTENTS ……………………………………………………………..Technical speci cations Conformity with the standards and Test data … • ……………………………………... Safety information and Recommendations………………………........ Recycling ..………………………... • ................Safety information ………………………………………………………………………. • Recommendations …...…………………………………………………………………. • Items not suitable for dishwashing ……………………………………………………. •... - Page 3 Customer Helpline: 0345 257 7271 Loading your dishwasher .…………………………………………………………………….. 21 Top basket…..……………………………………………………………………………….. 21 • Alternative basket loads …………………………………………………......24 • Programme descriptions .…………………………………………………………………….. Programme items ………………………………………………………………………….. • Getting familiar with your machine …………………………………....………… Switching on the machine and selecting a programme……………....... 28 Switching on the machine…………………………………………………………………..
- Page 4 This system provides Active Drying Unit: better drying performance for your dishes. Customer Helpline: 0345 257 7271...
-
Page 5: Technical Speci Cations
Technical specifications Customer Help line 0345 257 7271 Capacity 12 place settings Height 845 mm Height (without worktop) 815 mm Width 596 mm Depth 598 mm Net Weight 46 kg Electricity input 220-240 V, 50 Hz Total Power 2200 W Heating Power 2000 W Pump Power... -
Page 6: Safety Information And Recommendations
Customer Helpline: 0345 257 7271 SAFETY INFORMATION AND RECOMMENDATIONS Recycling • Certain components and the packaging of your machine have been produced from recyclable materials. • Plastic parts are marked with international abbreviations: (>PE< , >PS< , >POM<, >PP<, ) •... - Page 7 Customer Helpline: 0345 257 7271 • Check whether the indoor electrical fuse system is connected according to the regulations. • All electrical connections must match the values indicated on the rating plate. • Pay special attention and be sure that the machine does not stand on the electricity supply cable.
- Page 8 Customer Helpline: 0345 257 7271 Children should not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. • Do not put into your machine those items which are not suitable for dishwashing. Also, do not fill any basket above its capacity.Our company will not be responsible for any scratch or rust to form on the inner frame of your machine due to basket movements otherwise.
-
Page 9: Recommendations
Customer Helpline: 0345 257 7271 For your children’s safety • After removing the machine’s packaging, make sure that the packaging material is out of reach of children. • Do not allow children to play with or start the machine. • Keep your children away from detergents and rinse aids. •... -
Page 10: Items Not Suitable For Dishwashing
Customer Helpline: 0345 257 7271 Customer Helpline: 0345 257 7271 Items not suitable for dishwashing: • Cigarette ashes, candle wax, polish, paint, chemical substances, iron-alloy materials; • Forks, spoons and knives with wooden or bone, or ivory or nacre-coated handles; glued items,items soiled with abrasive, acidic or base chemicals. -
Page 11: Water Connections
Customer Helpline: 0345 257 7271 Customer Helpline: 0345 257 7271 Position the machine close to a water tap or drain. You need to place your machine, so that its connections will not be altered once they are made. Do not grip the machine by its door or panel in order to move Take care to leave a certain clearance from all sides of the machine so that you can comfortably move it back and forth during cleaning. - Page 12 Customer Helpline: 0345 257 7271 Water inlet hose Do not use the water inlet hose of your old machine,if any. Use the new water inlet hose supplied with your machine instead. If you are going to connect a new or long - unused water inlet hose to your machine ,run water through it for a while before making the connection.
- Page 13 Customer Helpline: 0345 257 7271 Water outlet hose The water drain hose can be connected either directly to the water drain hole or to the sink outlet spigot. Using a special bent pipe (if available), the water can be drained directly into the sink via hooking the bent pipe over the edge of the sink.
-
Page 14: Electrical Connection
Customer Helpline: 0345 257 7271 Electrical connection The earthed plug of your machine should be connected to an earthed outlet supplied by suitable voltage and current. If there is no earthing installation, have a competent electrician carry out an earthing installation. In case of usage without earthing installed, our company will not be responsible for any loss of usage that might occur. - Page 15 Customer Helpline: 0345 257 7271 under counter If you wish to fit your machine under a counter, check whether you have sufficient space under your countertop and whether the wiring-plumbing is suitable to do so.1 If you decide that the space under the countertop is suitable for fitting your machine, remove the worktop as shown in the illustration.
- Page 16 Customer Helpline: 0345 257 7271 Adjust the machine feet according to the slope of the floor.3 Fit your machine by pushing it under the counter without letting the hoses get crushed or bent.4 Warning: After removal of worktop, the machine should be placed in such a closed place of which dimensions are shown at fig.
-
Page 17: Prior To Using The Machine
Customer Helpline: 0345 257 7271 Prior to using the machine for the first time Check whether the electricity and supply water specifications match the values indicated by the • installation instructions for the machine. Remove all packaging materials inside the machine. •... -
Page 18: Testing Strip
Customer Helpline: 0345 257 7271 Testing strip The washing effectiveness of your machine depends on the softness of the tap water. For this reason, your machine is equipped with a system that reduces the hardness in mains water supply. The washing effectiveness will increase when the system is correctly set. - Page 19 Customer Helpline: 0345 257 7271 Adjusting salt consumption Adjust the water softener according to how hard your tap water is. After resetting your machine, press the program selector button and keep it pressed down. Meanwhile, turn on the machine by pressing the Power On/Off button. Keep the program selection button pressed until the LEDs”...
-
Page 20: Detergent Usage
Customer Helpline: 0345 257 7271 Detergent usage Use a detergent specifically designed for use in domestic dishwashers. You can find powder,gel,and tablet detergents in the market that have been designed for household dishwashers. Detergent should be put into the compartment prior to starting the machine. Keep your detergents in cool, dry places out of reach of children. -
Page 21: Filling With Rinse Aid And Making The Setting
Customer Helpline: 0345 257 7271 They produce good results for certain types of usage only. If you are using this type of • detergent, you need to contact the manufacturers and find out about the suitable conditions of use. When the conditions of use of such products and the machine settings are appropriate, •... -
Page 22: Loading Your Dishwasher
Customer Helpline: 0345 257 7271 Warning: Use only those rinse aid materials which are allowed for use in the machine. As rinse aid residues left as a result of overflowing will create extremely high amounts of foam and thus reduce the washing performance, remove the excess amount of rinse aid by wiping it with a rag. LOADING YOUR DISHWASHER If you properly place your dishes into the machine, you will be using it in the best way in terms of energy consumption, washing and drying performance. - Page 23 Customer Helpline: 0345 257 7271 Top basket height adjustment while it is full Basket height adjustment mechanism on the top basket of your machine is designed to let you adjust the height of your top basket upwards or downwards, without removing it from your machine when it is full, and create large spaces at the top or bottom area of your machine as needed.
- Page 24 Customer Helpline: 0345 257 7271 The movable cutlery basket, thanks to its special design, can be slid between the front and rear wires of the bottom basket. Thanks to this feature of the movable cutlery basket and depending on the position of the bottom basket, the cutlery basket can be placed at the desired location.
-
Page 25: Alternative Basket Loads
Customer Helpline: 0345 257 7271 Alternative basket loads Lower Basket Top basket... - Page 26 Customer Helpline: 0345 257 7271 Faulty loads Important Note for Test Laboratories For detailed information on performance tests, please contact following address: "dishwasher@standardtest.info” . In your email, please provide the model name and serial number (20 digits) which you can find on the appliance door.
-
Page 27: Programme Descriptions
Customer Helpline: 0345 257 7271 PROGRAMME DESCRIPTIONS Programme items Programme No Reference Programme Intensive ( P1 ) Normal 50 min. Eco ( P3 ) Prewash ( P4 ) names and 65°C No Heat ( P2 ) 65°C 50°C temperatures Type of food soups, sauces, coffee, milk, tea, coffee, milk, tea,... -
Page 28: Getting Familiar With Your Machine
Customer Helpline: 0345 257 7271 GETTING FAMILIAR WITH YOUR MACHINE 1.) Power On/Off Button When the Power On/Off button is pressed, end of program indicator starts lighting. 2.) Programme selector button With the program selector button, you can select a suitable program for your dishes. -
Page 29: Switching On The Machine And Selecting A Programme
Customer Helpline: 0345 257 7271 SWITCHING ON THE MACHINE AND SELECTING A PROGRAMME When you select a program with the program selection button, the light of the selected program turns on and the end of program indicator turns off. Switching on the machine Once the power on/off key is pressed, the end of program indicator turns on. -
Page 30: Changing A Programme With Resetting
Customer Helpline: 0345 257 7271 Changing a programme by resetting Open the door of your machine. The light of the last selected program will turn on. Keep the program selection button pressed for 3 seconds. (End of program indicator flashes and program light turns off) The discharge process starts after closing the door of the machine.The machine discharges the water in it for about 30... -
Page 31: Maintenance And Cleaning
Customer Helpline: 0345 257 7271 MAINTENANCE AND CLEANING Cleaning the machine in regular intervals prolongs the machine’s service life. Oil and lime may accumulate in the machine’s washing section. In case of such accumulation; -Fill the detergent compartment without loading any dishes into the machine, select a programme that runs at high temperature, and start the machine. -
Page 32: Spray Arms
Customer Helpline: 0345 257 7271 Spray arms Check whether or not the holes for the upper and lower spray arms are clogged. If there is any clogging, remove the spray arms and clean them under water. You can remove the lower spray arm by pulling it upwards, while the upper spray arm nut can be removed by turning the nut to the left. -
Page 33: Failure Codes And What To Do In Case Of Failure
Customer Helpline: 0345 257 7271 FAILURE CODES AND WHAT TO DO IN CASE OF FAILURE ERROR CODE ERROR DESCRIPTION CONTROL Make sure the water input tap is totally open and that there is no water cut. Inadequate water supply ... - Page 34 Customer Helpline: 0345 257 7271 If there are partial food wastes left on the dishes Dishes placed incorrectly into the machine, sprayed water did not reach related places. • Basket overloaded. • Dishes leaning against one another. • Very small amount of detergent added. •...
-
Page 35: Practical And Useful Information
Customer Helpline: 0345 257 7271 PRACTICAL AND USEFUL INFORMATION Whenever you will not be operating your machine Unplug the machine and then turn the water off. • Leave the door slightly ajar in order to prevent the formation of unpleasant smells. •... - Page 36 Customer Helpline: 0345 257 7271 THE PRODUCT FICHE (Spect) Supplier's trade mark BUSH Supplier's model DWFS124C/B/R Capacity of dishwasher 12 The energy efficiency class A+ Annual energy consumption in kWh per year (AE ) ( 280 Cycle )* 285 Energy consumption (E ) (kWh per cycle) 1,00 Offmode power consumption (W) (P ) 0,05 Lefton mode power consumption (W) (P ) 1,00 Annual water consumption in litres per year (AW ) ( 280 Cycle ) ** 3360 Drying efficiency class *** A Standard programme name **** Eco 50 ˚C Programme time for standard cycle ( min) Noise dB(A) 52 * Energy consumption kwh per year, based on 280 standard cleaning cycles using cold water fill and the consumption of low power modes.
- Page 37 52073129 R12-2...
