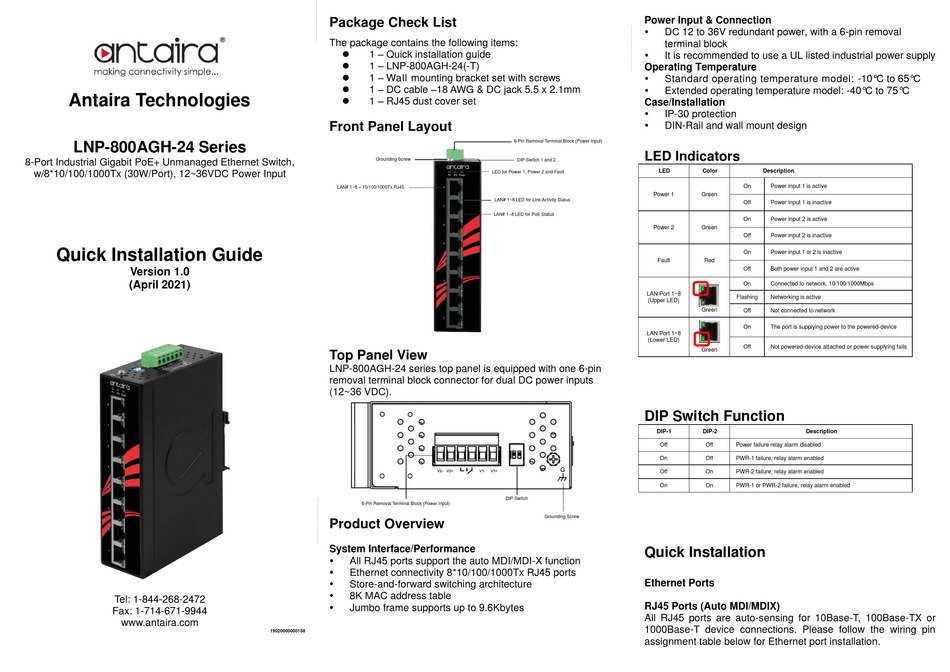

Antaira Technologies

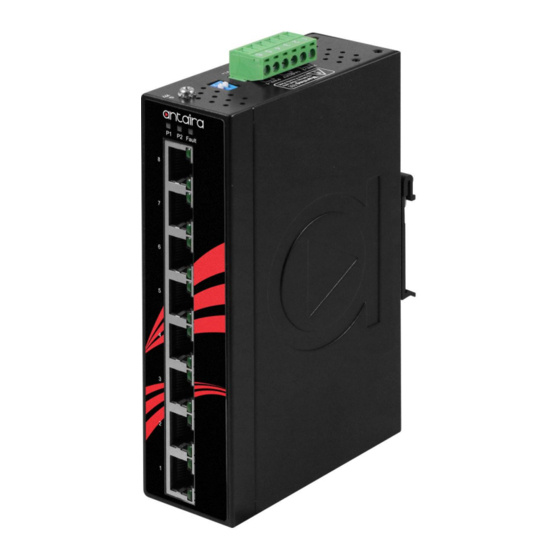

LNP-800AGH-24 Series
8-Port Industrial Gigabit PoE+ Unmanaged Ethernet Switch,
w/8*10/100/1000Tx (30W/Port), 12~36VDC Power Input
Quick Installation Guide
Version 1.0
(April 2021)
Tel: 1-844-268-2472
Fax: 1-714-671-9944
www.antaira.com

Package Check List

The package contains the following items:
1 – Quick installation guide
1 – LNP-800AGH-24(-T)
1 – Wall mounting bracket set with screws
1 – DC cable –18 AWG & DC jack 5.5 x 2.1mm
1 – RJ45 dust cover set

Front Panel Layout

Grounding Screw

LAN# 1~8 – 10/100/1000Tx RJ45
Top Panel View
LNP-800AGH-24 series top panel is equipped with one 6-pin
removal terminal block connector for dual DC power inputs
(12~36 VDC).
6-Pin Removal Terminal Block (Power Input)

Product Overview

System Interface/Performance

All RJ45 ports support the auto MDI/MDI-X function
Ethernet connectivity 8*10/100/1000Tx RJ45 ports
Store-and-forward switching architecture
8K MAC address table
Jumbo frame supports up to 9.6Kbytes
19020000000158
Power Input & Connection
DC 12 to 36V redundant power, with a 6-pin removal
terminal block
It is recommended to use a UL listed industrial power supply

Operating Temperature

Standard operating temperature model: -10°C to 65°C
Extended operating temperature model: -40°C to 75°C

Case/Installation

IP-30 protection
DIN-Rail and wall mount design
6-Pin Removal Terminal Block (Power Input)

LED Indicators

DIP-Switch 1 and 2
LED
LED for Power 1, Power 2 and Fault
Power 1
LAN# 1~8 LED for Link/Activity Status
LAN# 1~8 LED for PoE Status
Power 2
Fault
LAN Port 1~8
(Upper LED)
LAN Port 1~8
(Lower LED)

DIP Switch Function

DIP-1
Off
On
Off
On
DIP-Switch
Grounding Screw
Quick Installation

Ethernet Ports

RJ45 Ports (Auto MDI/MDIX)

All RJ45 ports are auto-sensing for 10Base-T, 100Base-TX or
1000Base-T device connections. Please follow the wiring pin
assignment table below for Ethernet port installation.
Color
Description
On
Power input 1 is active
Green
Off
Power input 1 is inactive
On
Power input 2 is active
Green
Off
Power input 2 is inactive
On
Power input 1 or 2 is inactive
Red
Off
Both power input 1 and 2 are active
On
Connected to network, 10/100/1000Mbps
Flashing
Networking is active
Green
Off
Not connected to network
On
The port is supplying power to the powered-device
Off
Not powered-device attached or power supplying fails
Green
DIP-2
Description
Off
Power failure relay alarm disabled
Off
PWR-1 failure, relay alarm enabled
On
PWR-2 failure, relay alarm enabled
On
PWR-1 or PWR-2 failure, relay alarm enabled
