Modern Forms Aviator 5 Installation Instructions Manual page 18

12
Installing the Luminaire Module (Optional Accessory)
15

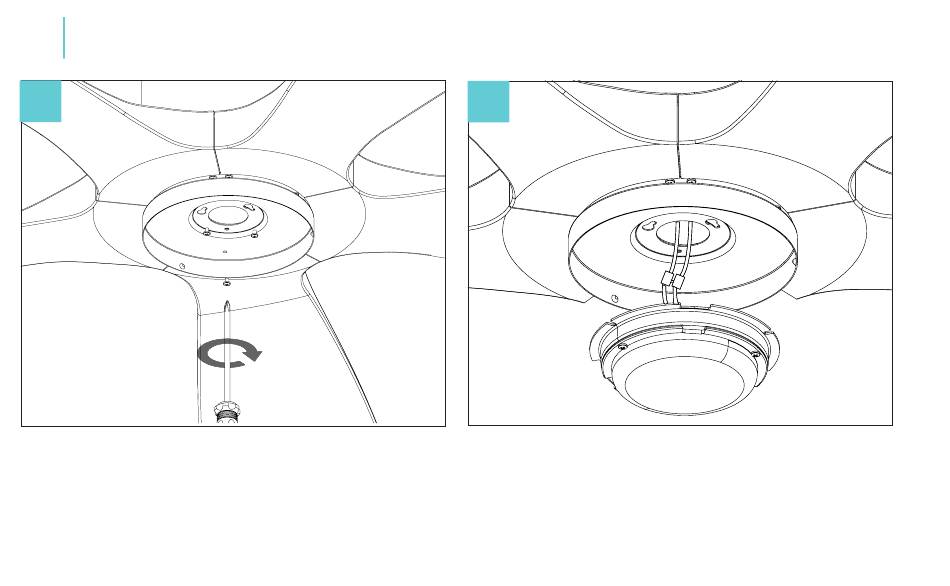

1. To install luminaire module, remove decorative lower cap.
2. Remove 1 of 3 screws and loosen the others (do not remove).
3. Using the screw from the previous step, install the adapter plate.
18
16
NOTE: If you are not installing the luminaire module skip to step 18.
1. Attach LED wires from motor assembly to luminaire module.
2. Install glass shade without over-tightening.
F R -W 181 1
