Attaching The Fan Blades - Modern Forms Aviator 5 Installation Instructions Manual

3

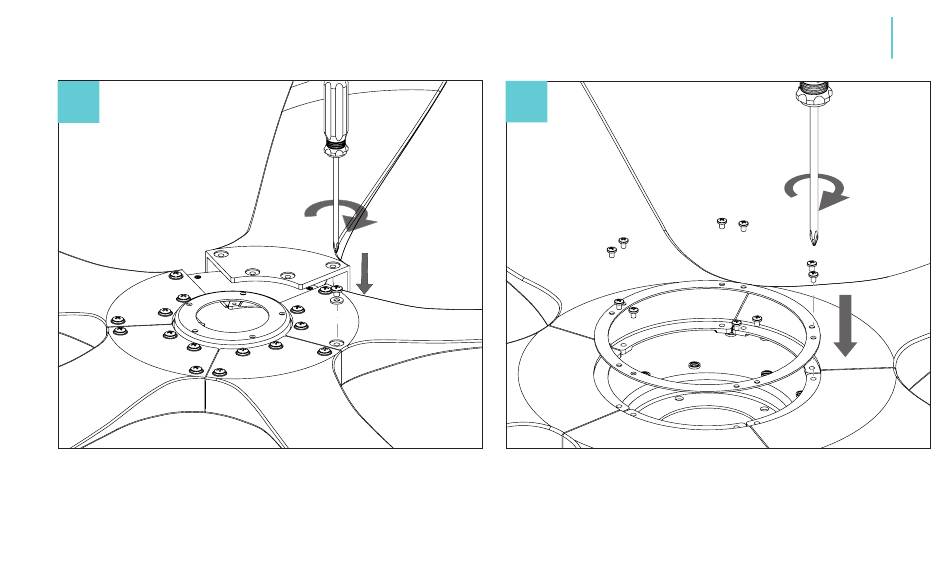

1. Place blade on motor and secure with the blade attachment,
screws and washers.
2. Insert blades in slots, aligning with motor assembly holes.
3. Secure blades with blade attachment screws & washers.
F R- W1 8 1 1

Attaching the Fan Blades

4
4. Remove set screws from motor housing, install blade collector
ring (when applicable), and re-install screws.
