Modern Forms Aviator Installation Instructions Manual page 15

3
3A
can be RED from Switch leg
Black(Line in H)
GREY(to Motor)
YELLOW(to Motor)
RED(to Motor)
YELLOW(to Motor)
GREY(to Motor)

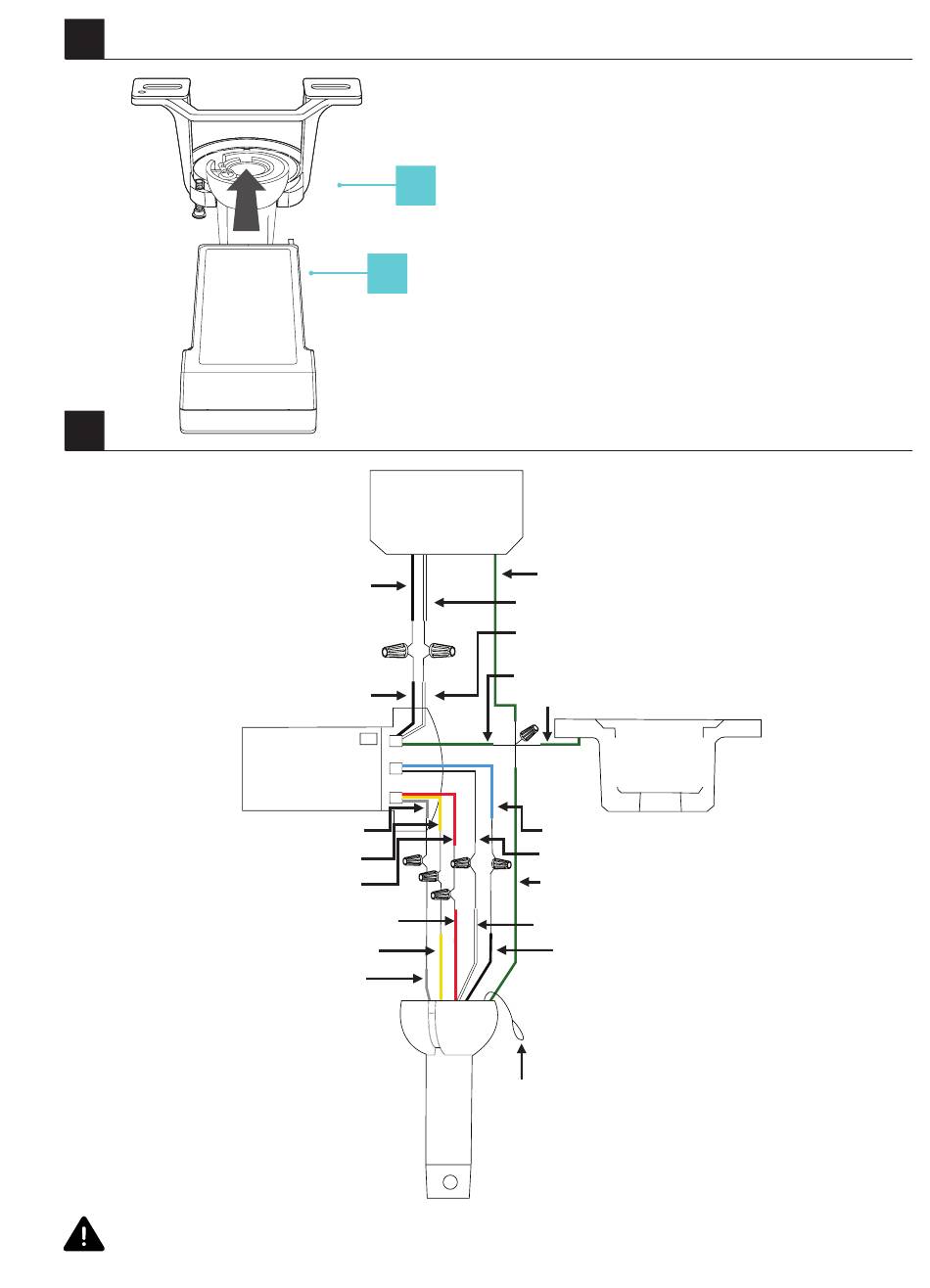

Follow the steps below to connect the fan to your household wiring. Use the plastic wire nuts with your fan.
Secure the plastic wire nuts with electrical tape. Make sure there are no loose strands or connections.
FR- W 1 81 1
1
2
Outlet
Black(Hot)
Receiver
RED(to Motor)
Box
GREEN(Ground)
WHITE(Neutral)
WHITE(Line in N)
GREEN(GND Must Use)
GREEN(Hanger Bracket Ground)
BLUE (to Light)
WHITE(to Light)
GREEN(Hanger Bracket Ground)
WHITE(Neutral)
BLACK (for Light)
Safety Cable
Hanger Ball & Downrod
1. Mounting Bracket
2. Receiver
Hanger
Bracket
Aviator Instructions 15
