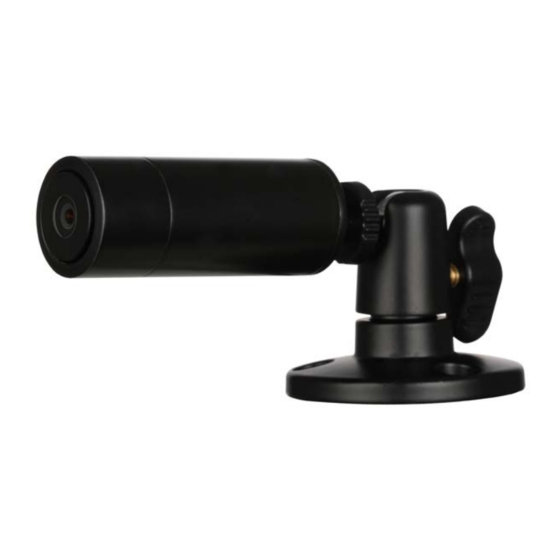

- Page 1 2 MP HDCVI Mini Bullet Camera DH-HAC-HUM1220GN-B Quick Start Guide Version 1.0.1 Dahua Technology USA Inc.
-
Page 2: Table Of Contents
Table of Contents Welcome........................1 Important Safeguards and Warnings..............1 Electrical safety ....................1 Environmental Precautions ................2 Operation and Daily Maintenance ..............3 Warnings ......................3 FCC Information ....................4 FCC compliance： .................... 4 Legal Notices ....................4 Copyright ......................4 Trademarks ....................... -
Page 3: Welcome
1 Welcome This manual offers reference material and general information about the basic operation, maintenance, and troubleshooting of this camera. Read, follow, and retain the following safety instructions. Heed all warning on the unit and in the operating instructions before operating the unit. Keep this guide for future reference. -
Page 4: Environmental Precautions
• If the unit is damaged and requires service, unplug the unit from the main AC power supply and from the PoE supply and refer to qualified service personnel. Damage may include, but is not limited to: • The power supply cord or plug is damaged. •... -
Page 5: Operation And Daily Maintenance
Operation and Daily Maintenance • Do not touch the heat dissipation component of the unit. This part of the unit is hot and may cause a burn. • Do not open or dismantle the device; there are no components that a user can fix or replace. Opening the unit may cause water leakage or expose components to direct light. -
Page 6: Fcc Information
1.3 Legal Notices Copyright This user guide is ©2018, Dahua Technology Company, LTD. This user guide is the intellectual property of Dahua Technology Company, LTD and is protected by copyright. All rights reserved. Trademarks All hardware and software product names used in this document are likely to be registered... -
Page 7: Disclaimer
1.4 Disclaimer • This user guide has been compiled with great care and the information it contains has been thoroughly reviewed and verified. The text was complete and correct at the time of printing. This guide may be periodically updated to reflect changes to the product or to correct previous information and the content of this guide can change without notice. -
Page 8: Unpacking
2 Unpacking This equipment should be unpacked and handled with care. If an item appears to have sustained damage during shipping, notify the shipper immediately. Verify that all the parts listed below are included. If an item is missing, contact customer support or your local representative. -
Page 9: Installation And Configuration
3 Installation and Configuration 3.1 Camera Configuration and Cables The following figure depicts the type and location of camera controls and cables coming from the device. This image is intended as a reference only. Figure 3-1 Camera Components Description Mounting Screws Camera Module Camera Base Expansion Bolts... -
Page 10: Framework And Dimensions
3.2 Framework and Dimensions The following figures show the dimensions of the device in mm (in.). These images are intended as a reference only. Figure 3-2... -
Page 11: Device Installation
4 Device Installation This section details installing the camera to a wall or to a ceiling. Note that the wall or ceiling must be capable of supporting a minimum of three (3) times the weight of the camera and a bracket (if used). Warning: DO NOT connect the camera to the power supply during installation. -
Page 12: Setting Camera Parameters
5 Setting Camera Parameters HDCVI technology allows you to set parameters for the camera and to control the camera from a Dahua HDCVI DVR. 1. Connect the camera to a Dahua HDCVI DVR. 2. From the DVR, select the Main Menu and choose Setting. Then, select the System tab and select the PTZ link, on the left-side menu. - Page 13 10. Click the Camera icon to access the Operation Menu. Figure 5-3 11. Use the following table to access the camera’s menu: Button Function Access the camera’s settings menu. Select a menu item. Select a setting value. Adjust lens zoom and auto trigger function. Adjust lens focus.
- Page 14 Dahua Technology USA Inc. 23 Hubble, Irvine, CA 92618 Tel: (949) 679-7777 Fax: (949) 679-5760 Email: sales.usa@global.dahuatech.com Rev 001.001 © 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice.
