American Control Electronics PAT440 Quick Start Manual

An ISO 9001:2008 Certified Company

Specifications

Line Armature
Voltage Voltage Range
Model (VAC) (VDC)
115 0 - 90
PAT440-10
230 0 - 180
AC Line Voltage ......................................................115/230 VAC ± 10%, 50/60 Hz, single phase
Form Factor ...................................................................................................1.37 at base speed
Field Voltage with 115 VAC line voltage ..............................................................50 or 100 VDC
with 230 VAC line voltage
............................................................100 or 200 VDC
Maximum Field Current ...................................................................................................1 Amp
Acceleration Time Range .....................................................................................1 - 15 seconds
Deceleration Time Range ..................................................................coast to stop - 15 seconds
Analog Input Range (Signal must be isolated; S1 to S2)
with 115 VAC line voltage
..................................................................0 - 1.4 VDC
with 230 VAC line voltage ..................................................................0 - 2.8 VDC
Input Impedance (S1 to S2) .........................................................................................3M ohms
Load Regulation ...................................................................................1% base speed or better
Speed Range ........................................................................................................................60:1
Vibration (0 - 50 Hz) ...............................................................................................1G maximum
Ambient Temperature Range
...................................................................................10°C - 40°C
Weight ..............................................................................................................................3.1 lbs
Safety Certifications.................................................. UL/cUL Listed Equipment, file # E132235

Installation

Mounting

NEMA 4X cased drives come with two 0.73 inch (18.5 mm) conduit holes at the bottom of the case.
The drives may be vertically wall mounted using the four 0.19 inch (5 mm) slotted holes on the
attached heat sink. For loads less than 5 amps, the drive may be bench mounted horizontally or
operated without mounting.
1. Install the mounting screws.
2. For access to the terminal strip, remove the six phillips screws on the front cover.
3. Remove the five phillips screws on the bottom plate. Do not remove the three screws securing the
3. bottom plate to the heat sink.
4. Set the POWER switch to the off position before applying applying AC line voltage.
5. Install conduit hardware through the 0.73 inch (18.5 mm) knockout holes. Connect external wiring
3. to the terminal block.
6. Place the front cover back into place. Avoid pinching any wires between the front cover and the
3. heat sink.
7. Reinstall the 6 screws on the front cover. The two shorter screws are for the two lower holes of the
3. front cover. Reinstall the 5 screws on the bottom plate.

Wiring

Use 14 - 16 AWG wire for AC line and motor.

Shielding Guidelines

As a general rule, ACE recommends shielding of all conductors. If it is not practical to shield power
conductors, ACE recommends shielding all logic-level leads. If shielding of logic-level leads is not
practical, the user should twist all logic leads with themselves to minimize induced noise. It may be
necessary to earth ground the shielded cable. If noise is produced by devices other than the drive,
ground the shield at the drive end. If noise is generated by the drive, ground the shield at the end
away from the drive. Do not ground both ends of the shield.

Fusing

PAT440 series drives provide on board fusing for the AC line (L1, L2 (230)). Fuses are fast acting fuses
rated for 15A at 250 VAC.
PAT440

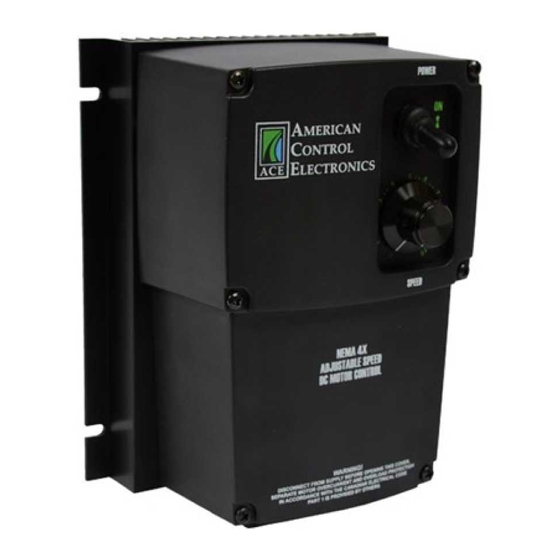

1Q SCR NEMA 4X Adjustable Speed Drive
for PMDC or Field Wound Brush Motors
READ ALL SAFETY WARNINGS BEFORE INSTALLING THIS EQUIPMENT
Continuous
Armature
• DO NOT INSTALL, REMOVE, OR REWIRE THIS EQUIPMENT WITH POWER APPLIED. Have a
Armature Horsepower
• qualified electrical technician install, adjust and service this equipment. Follow the National
Current (Amps) Range
• Electrical Code and all other applicable electrical and safety codes, including the provisions of the
1/8 - 1
10.0 • Occupational Safety and Health Act (OSHA), when installed equipment.
1/4 - 2
• Circuit potentials are at 115 or 230 VAC above earth ground. Avoid direct contact with the printed
• circuit board or with circuit elements to prevent the risk of serious injury or fatality. Use a non-
• metallic screwdriver for adjusting the calibration trim pots. Use approved personal protection
• equipment and insulated tools if working on this drive with power applied.
• Reduce the chance of an electrical fire, shock, or explosion by proper grounding, over-current
• protection, thermal protection, and enclosure. Follow sound maintenance procedures.
• ACE strongly recommends the installation of a master power switch in the line voltage input. The
• switch contacts should be rated for 250 VAC and 200% of motor nameplate current.
• Removing AC line power is the only acceptable method for emergency stopping. Do not use
• dynamic braking, decelerating to minimum speed, or coasting to a stop for emergency stopping.
• They may not stop a drive that is malfunctioning. Removing AC line power is the only acceptable
• method for emergency stopping.
• Line starting and stopping (applying and removing AC line voltage) is recommended for infrequent
• starting and stopping of a drive only. Dynamic braking, decelerating to minimum speed, or coasting
• to a stop is recommended for frequent starts and stops. Frequent starting and stopping can produce
• high torque. This may cause damage to motors.
• Do not disconnect any of the motor leads from the drive unless power is removed or the drive is
• disabled. Opening any one lead while the drive is running may destroy the drive.
• The field output is for shunt wound motors only. Do not make any connections to F1 and F2 when
• using a permanent magnet motor.
• Change voltage switch settings only when the drive is disconnected from AC line voltage. Make sure
• both switches are set to their correct position. If the switches are improperly set to a lower voltage
• position, the motor will not run at full voltage and may cause damage to the transformer. If the
• switches are improperly set to a higher voltage, the motor will overspeed, which may cause motor
• damage, or result in bodily injury or loss of life.
• Under no circumstances should power and logic level wires be bundled together.

Line Input

Connect the AC line power leads to terminals L1 and L2-115 if using 115 VAC line power or to terminals
L1 and L2-230 if using 230 VAC line power.

Motor

Connect the DC armature leads to terminals A1 and A2. If the motor does not spin in the desired direction,
power down the drive and reverse these connections.

Field

At 115 VAC, connect the field leads to terminals F1 and L1 for a 50 VDC field or to F1 and F2 for a 100 VDC field.
At 230 VAC, connect the field leads to terminals F1 and L1 for a 100 VDC field or to F1 and F2 for a 200 VDC field.
Do not make any connections to F1 and F2 if using a permanent magnet motor.

Speed Potentiometer (Pre-wired)

PAT440 series drives are pre-installed with a 10K ohm, 1/4 W potentiometer for speed control.
Inhibit
Short the INHIBIT terminals to coast the motor to minimum speed. Open the INHIBIT terminals to
accelerate the motor to set speed. Twist inhibit wires and seperate them from power-carrying wires or
sources of electrical noise. Use shielded cable if the inhibit wires are longer than 18 inches (46 cm). If
shielded cable is used, ground only one end of the shield to earth ground. Do not ground both ends of
the shield. Do not use the inhibit for emergency stopping.
ACE offers two accessory plug harnesses for connecting to the inhibit terminals; part number KTW-0001
[18 in (46 cm) leads] and part number KTW-0002 [36 in (91 cm) leads].

Safety Warnings

Connections
POWER
LOGIC
14300 De La Tour Drive
South Beloit, IL 61080
Phone: (815) 624-6915
Fax: (815) 624-6965
www.americancontrolelectronics.com
Full manuals available online or use QR code

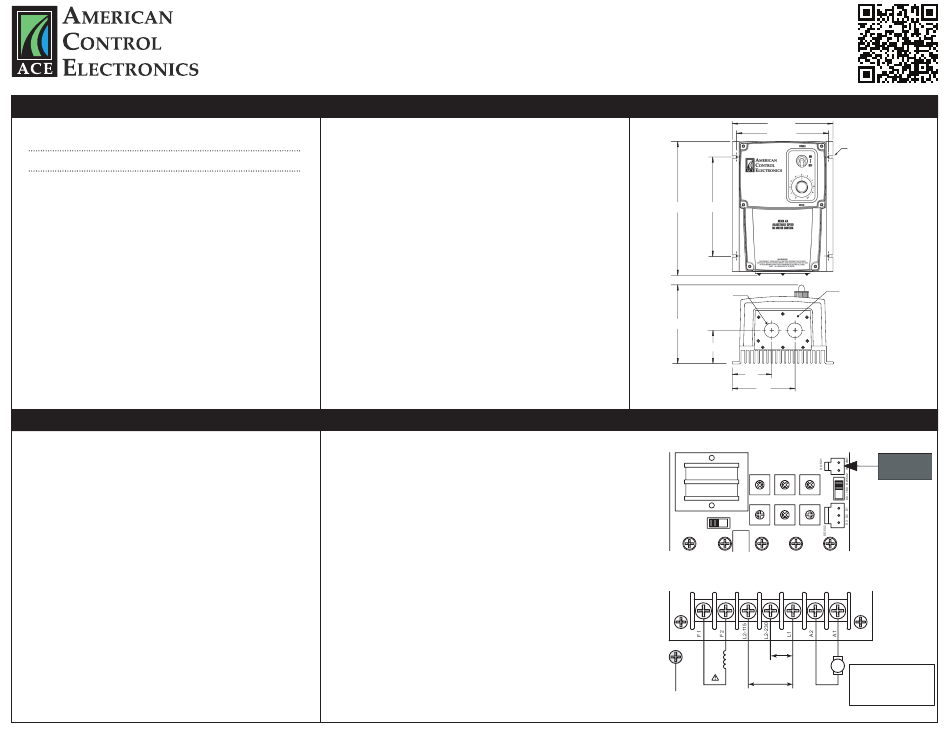

Dimensions

5.63 [143 ]
5.16 [ 131]
7.50 [191 ] 5.50 [140 ]
0.73 [18.5 ]
CONDUIT HOLES
2 PLACES
4.56 [1 16 ]
2.12 [53.8]
2.20
[55.9]
3.40
[86.4]
ALL DIMENSIONS IN INCHES [MILLIMETERS]
TQ LIMIT ACCEL DECE L
T501
SW50 1
R501
230 - 11 5 IR COMP MIN SP D MAX SPD
230 VA C
1 15 VA C
EARTH GROUND FIELD LINE VO LT AGE INPUT MOTO R
(GREEN SCREW) OUTPUT (1 15 or 230 V AC) ARMA TURE
0.19 [5.00]
SLOTTED HOLE S
4 PLACES
BOTT OM PLAT E
Inhibit
Terminals
+
NOTE: DO NOT make
any connections to
F1 and F2 if using a
permanent magnet motor .
