American Control Electronics LGC410 Series Installation

TM
An ISO 9001:2008 Certified Company

Specifications

Line Armature
Voltage Voltage Range
Model (VAC) (VDC)
115 0 - 90
LGC410-1.5
230 0 - 180
115 0 - 90
LGC410-10
230 0 - 180
* Heat sink kit HSK- 0002 must be used when the continuous output current is over 5 amps.
AC Line Voltage ......................................................115/230 VAC ± 10%, 50/60 Hz, single phase
Form Factor ...................................................................................................1.37 at base speed
Field Voltage with 115 VAC line voltage ..............................................................50 or 100 VDC
with 230 VAC line voltage ............................................................100 or 200 VDC
Maximum Field Current
...................................................................................................1 Amp
Acceleration Time Range for 90 VDC armature voltage ...................................0.5 - 11 seconds
for 180 VDC armature voltage
Deceleration Time Range for 90 VDC armature voltage
...................coast to stop - 13 seconds
for 180 VDC armature voltage
Analog Input Range (Signal must be isolated; S1 to S2)
with 115 VAC line voltage
..................................................................0 - 1.4 VDC
with 230 VAC line voltage ..................................................................0 - 2.8 VDC
Input Impedance (S1 to S2) .....................................................................................>100K ohms
Load Regulation ...................................................................................1% base speed or better
Speed Range ........................................................................................................................60:1
Vibration (0 - 50 Hz) ...........................................................................................0.5G maximum
(>50 Hz)
..............................................................................................0.1G maximum
Ambient Temperature Range ...................................................................................10°C - 55°C
Weight ..............................................................................................................................0.7 lbs
Safety Certifications.................................................. UL/cUL Listed Equipment, file # E132235
Safety Certifications......................................................................
Safety Certifications.................................................. CSA Certified Component, file # LR41380
Short Circuit Current Rating
Types of Branch
Drive Model
Circuit Protection
Maximum Current, A Maximum Voltage, V
Non-time Delay
LGD410-10 10,000 240 V
K5 Fuse

Installation

Mounting

NEMA 1 cased drives come with two 0.88 inch (22 mm) conduit holes at the bottom of the case. The
drives may be vertically wall mounted or horizontally bench mounted using the three keyholes on the
back of the case.
1. For access to the keyholes and the terminal strip, remove the two screws from the front of the case
1. by turning them counterclockwise. Grasp the front cover and pull it straight out.
2. Install the mounting screws in the three keyholes.
3. Set the POWER switch to the OFF position before applying the AC line voltage.
4. Install conduit hardware through the conduit holes at the bottom of the case. Connect external
3. wiring to the terminal block.
5. Reinstall the front cover. Avoid pinching any wires between the front cover and the case.
6. Reinstall the two screws on the front cover. Turn the screws clockwise to tighten.

Heat Sinking

The LGC410-10 requires an additional heat sink when the continuous armature current is above 5
amps. Use ACE heat sink kit part number HSK-0002. Use a thermally conductive heat sink compound
(such as Dow Corning 340® Heat Sink Compound) between the back of the case and the heat sink
surface for optimal heat transfer.

Wiring

Use 14 - 16 AWG wire for AC line and motor wiring.

Shielding Guidelines

As a general rule, it is recommended to shield all conductors. If it is not practical to shield power
conductors, it is recommended to shield all logic-level leads. If shielding of logic-level leads is not
practical, the user should twist all logic leads with themselves to minimize induced noise. It may be
necessary to earth ground the shielded cable. If noise is produced by devices other than the drive,
ground the shield at the drive end. If noise is generated by the drive, ground the shield at the end
away from the drive. Do not ground both ends of the shield.

Fusing

The drives provide fusing for the AC line (1, 3). Fuses are fast acting fuses. LGC410-1.5 models contain
fuses rated for 3A at 250 VAC. LGC410-10 models contain fuses rated for 15A at 250 VAC.

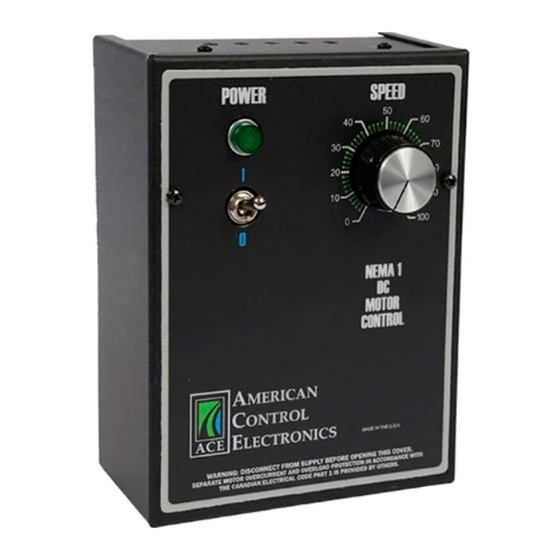

LGC410
1Q SCR NEMA 1 Adjustable Speed Drive
for PMDC or Field Wound Brushed Motors
READ ALL SAFETY WARNINGS BEFORE INSTALLING THIS EQUIPMENT
Continuous
• DO NOT INSTALL, REMOVE, OR REWIRE THIS EQUIPMENT WITH POWER APPLIED. Have a
Armature Horsepower
• qualified electrical technician install, adjust and service this equipment. Follow the National
Current (Amps) Range
• Electrical Code and all other applicable electrical and safety codes, including the provisions of the
1/20 - 1/8
• Occupational Safety and Health Act (OSHA), when installing equipment.
1.5
1/10 - 1/4
• Circuit potentials are at 115 or 230 VAC above earth ground. Avoid direct contact with the printed
• circuit board or with circuit elements to prevent the risk of serious injury or fatality. Use a non-
1/8 - 1
10.0*
• metallic screwdriver for adjusting the calibration trim pots. Use approved personal protection
1/4 - 2
• equipment and insulated tools if working on this drive with power applied.
• Reduce the chance of an electrical fire, shock, or explosion by using proper grounding techniques,
• over-current protection, thermal protection, and enclosure. Follow sound maintenance procedures.
• Removing AC line power is the only acceptable method for emergency stopping. Do not use
• dynamic braking, decelerating to minimum speed, or coasting to a stop for emergency stopping.
• They may not stop a drive that is malfunctioning. Removing AC line power is the only acceptable
• method for emergency stopping.
• Line starting and stopping (applying and removing AC line voltage) is recommended for infrequent
.................................0.5 - 22 seconds
• starting and stopping of a drive only. Dynamic braking, decelerating to minimum speed, or coasting
• to a stop is recommended for frequent starts and stops. Frequent starting and stopping can produce
.................coast to stop - 25 seconds
• high torque. This may cause damage to motors.
• Do not disconnect any of the motor leads from the drive unless power is removed or the drive is
• disabled. Opening any one lead while the drive is running may destroy the drive.
• The field output is for shunt wound motors only. Do not make any connections to F1 and F2 when
• using a permanent magnet motor.
• Change voltage switch settings only when the drive is disconnected from AC line voltage. Make sure
• both switches are set to their correct position. If the switches are improperly set to a lower voltage
• position, the motor will not run at full voltage and may cause damage to the transformer. If the
• switches are improperly set to a higher voltage, the motor will overspeed, which may cause motor
• damage, or result in bodily injury or loss of life.
• Under no circumstances should power and logic level wires be bundled together.
UL/cUL Overload Protection
• Be sure potentiometer tabs do no make contact with the potentiometer's body. Grounding the
• input will cause damage to the drive.
• This product does not have internal solid state motor overload protection. It does not contain speed-
Maximum Rating of
• sensitive overload protection, thermal memory retention, or provisions to receive and act upon
Overcurrent Protection
• signals from remote devices for over temperature protection. If motor protection is needed in the
Inverse Time
30 A
Circuit Breaker
• end-use product, it needs to be provided by additional equipment in accordance with NEC standards.
Line Input
Connect the AC line power leads to terminals 1 and 2 if using 115 VAC line power or to terminals 1 and 3 Connect the AC line power leads to terminals L1 and L2, or to a double-throw, single-pole master power
if using 230 VAC line power. switch (recommended). The switch should be rated at a minimum of 250 VAC and 200% of motor current.
Motor
Connect the DC armature leads to terminals 4 and 5. If the motor does not spin in the desired direction, Connect the DC armature leads to terminals A1 and A2. If the motor spins in the reverse of desired rotation,
power down the drive and reverse these connections.
Field
At 115 VAC, connect the field leads to terminals F1 and L1 for a 50 VDC field or to F1 and F2 for a 100 VDC field. At 115 VAC, connect the field leads to terminals 7 and 1 for a 50 VDC field or to 7 and 6 for a 100 VDC field.
At 230 VAC, connect the field leads to terminals 7 and 1 for a 100 VDC field or to 7 and 6 for a 200 VDC field. At 230 VAC, connect the field leads to terminals F1 and L1 for a 100 VDC field or to F1 and F2 for a 200 VDC.
Do not make any connections to terminals 6 and 7 if using a permanent magnet motor. Do not make any connections to F1 and F2 if using a permanent magnet motor.
Speed Potentiometer (Pre-wired)
LGC410 series drives are pre-installed with a 10K ohm, 1/4 W potentiometer for speed control.
to S2, and the supply to S3. If the potentiometer works inveresly of desired functionality, (i.e. to increase
Inhibit motor speed, you must turn the potentiometer counterclockwise), power off the drive and swap the S1 and
Short the INHIBIT terminals to coast the motor to minimum speed. Open the INHIBIT terminals to
accelerate the motor to set speed. Twist inhibit wires and seperate them from power-carrying wires or
sources of electrical noise. Use shielded cable if the inhibit wires are longer than 18 inches (46 cm). If
shielded cable is used, ground only one end of the shield to earth ground. Do not ground both ends of Short the inhibit terminals to coast the motor to minimum speed. Open the INHIBIT terminals to
the shield. Do not use the inhibit for emergency stopping. accelerate the motor to set speed. Twist inhibit wires and seperate them from power-carrying wires or
sources of electrical noise. Use shielded cable if the inhibit wires are longer than 18 inches (46 cm). If
ACE offers two accessory plug harnesses for connecting to the inhibit terminals; part number KTW-0001 shielded cable is used, ground only one end of the shield to earth ground. Do not ground both ends of
[18 in (46 cm) leads] and part number KTW-0002 [36 in (91 cm) leads].
ACE offers two accessory plug harnesses for connecting to the inhibit terminals; part number KTW-0001

Safety Warnings

POWER
Line Input
Motor
simply power down the drive and reverse these connections.
Field
LOGIC
Speed Potentiometer
S1, the wiper
S3 connections.
Inhibit
the shield.
[18 in (46 cm) leads] and part number KTW-0002 [36 in (91 cm) leads].
14300 De La Tour Drive
South Beloit, IL 61080
Phone: (844) AMCNTRL
Fax: (800) 394-6334
www.americancontrolelectronics.com

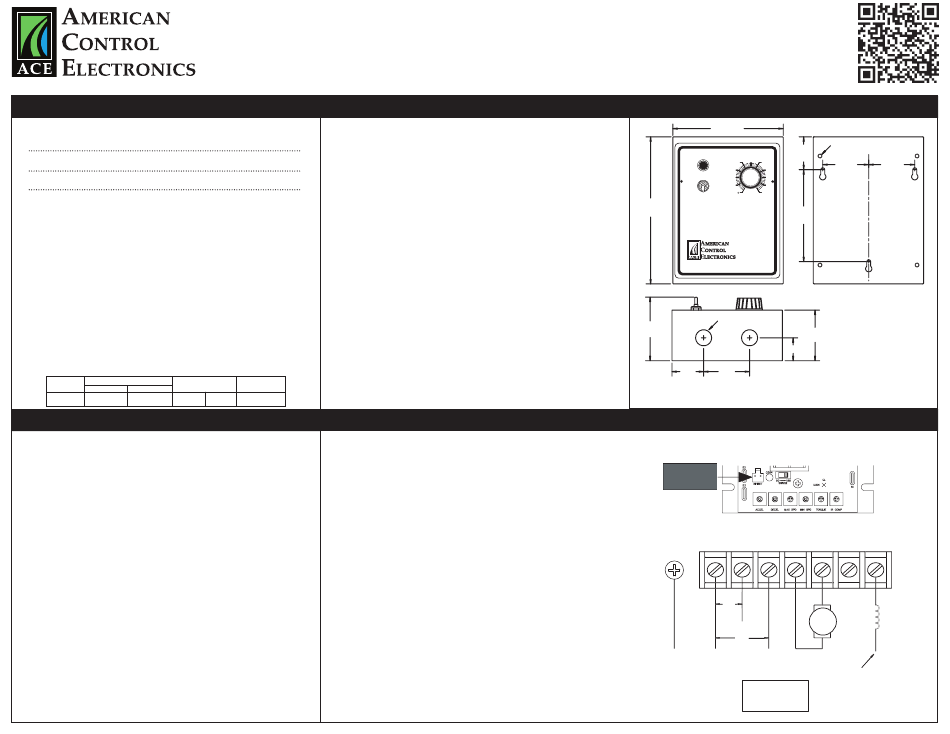

Dimensions

6.00 [125]
POWER
50
40
30
I
20
10
0
8.00
NEMA 1
[203]
DC
MOTOR
CONTROL
MADE IN THE U.S.A.
WARNING: DISCONNECT FROM SUPPLY BEFORE OPENING THIS COVER.
SEPARATE MOTOR OVERCURRENT AND OVERLOAD PROTECTION IN ACCORDANCE WITH
THE CANADIAN ELECTRICAL CODE PART 1 IS PROVIDED BY OTHERS.
Ø0.88
3.46
[22] (2)
[88]
1.72 2.50
[44] [64]
ALL DIMENSIONS IN INCHES [MILLIMETERS]

Connections

Inhibit
Terminals
1 2
115
VAC
230
VAC
EARTH GROUND
(GREEN SCREW)
NOTE: DO NOT make
terminals 6 and 7 if using a
permanent magnet motor.
Full manual available online
Ø0.19
C L
1.79
[5] (4)
[45]
2.50 2.50
60
[64] [64]
70
80
90
100
5.00
[127]
2.75
[70]
1.25 [32]
3 4 5 6 7
+
MOTOR FIELD
MOTOR
(SHUNT WOUND
ARMATURE
MOTORS ONLY)
-
WITH 115 VAC INPUT:
CONNECT TO TERMINAL 1 FOR 50 VOLT FIELD.
CONNECT TO TERMINAL 6 FOR 100 VOLT FIELD.
any connections to
WITH 230 VAC INPUT:
CONNECT TO TERMINAL 1 FOR 100 VOLT FIELD.
CONNECT TO TERMINAL 6 FOR 200 VOLT FIELD.
