JVC AV28H20EUS Service Manual page 29

Measuring
Item
instrument
BOW
adjustment
V-S.CR
&
V.LINEARITY
adjustment
Test point Ad justment part
11.BOW
Fig. B
12.V-S.CR
13.V-LIN
TOP
CENTER
BOT TOM
No. 51945
Description
•

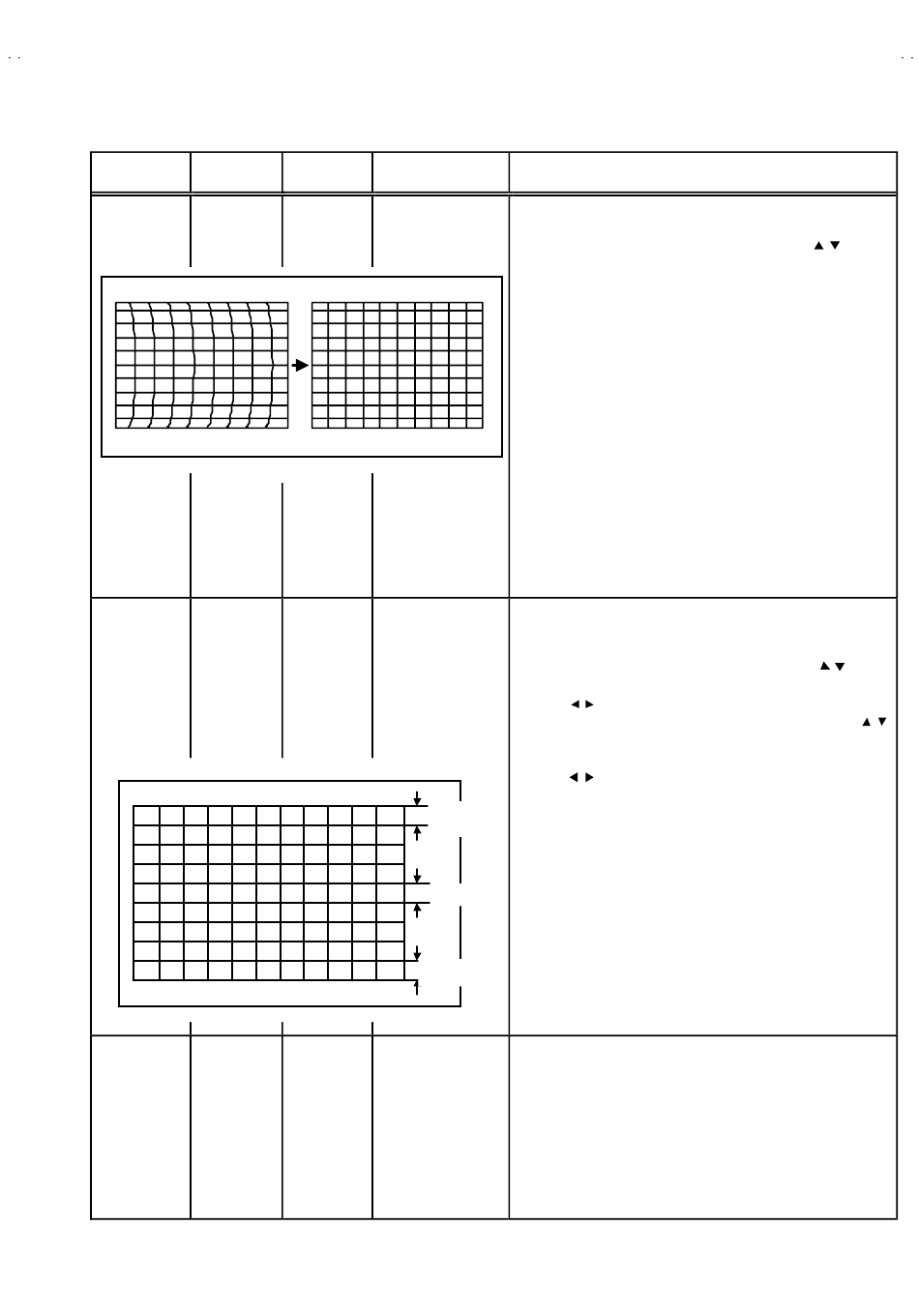

In case where th ere is a bow-shaped distortion o f images
on the screen. ( Fig.B)
1. Select 11.BOWwith the FUNCTION UP/DOWN ( / ) key.
2. Adjust BOW, and bring the VERTICAL lines straight.
3. Press the MENU key and memoriz e the s et value.
•
When the vertical linearity has been deteriorated
rem arkably, perform the following steps
1. Receive a cross-hatch signal.
2. Select 13.V-LIN with the FUNCTION UP/DOW N ( / )k ey.
3. Set the initial setting value of 13.V-LIN with the FUNCTION
- / + ( / ) key.
4. Select 12.V-S.COR with the FUNCTION UP / DOWN ( / )
key.
5. Set the initial setting value of 12.V-S.COR with the FUNCTION
- / + ( / ) key.
6. Adjust 13.V-LIN and 12.V-S.COR so that the spaces of eac h
line on TOP, CENTER and BOTTOM bec ome uniform.
NOTE : Do not adjust PANORAMIC & SUBTIT LE mode.
At first the adjustment in 100Hz FULL mode should be done,
then the data for the other aspect mode is corrected in the
respective value at the s ame time. And confirm the deflection
adjustment initial setting value in 120Hz (NTSC EXT mode)
FULL mode. If the adjustment in 100Hz eac h aspect mode has
been done and stored, the data for the s ame as pect modes in
120Hz is corrected in the res pective value. Only the data for the
other as pect mode in 120Hz is corrected for its elf.
