JVC AV28H20EUS Service Manual page 13

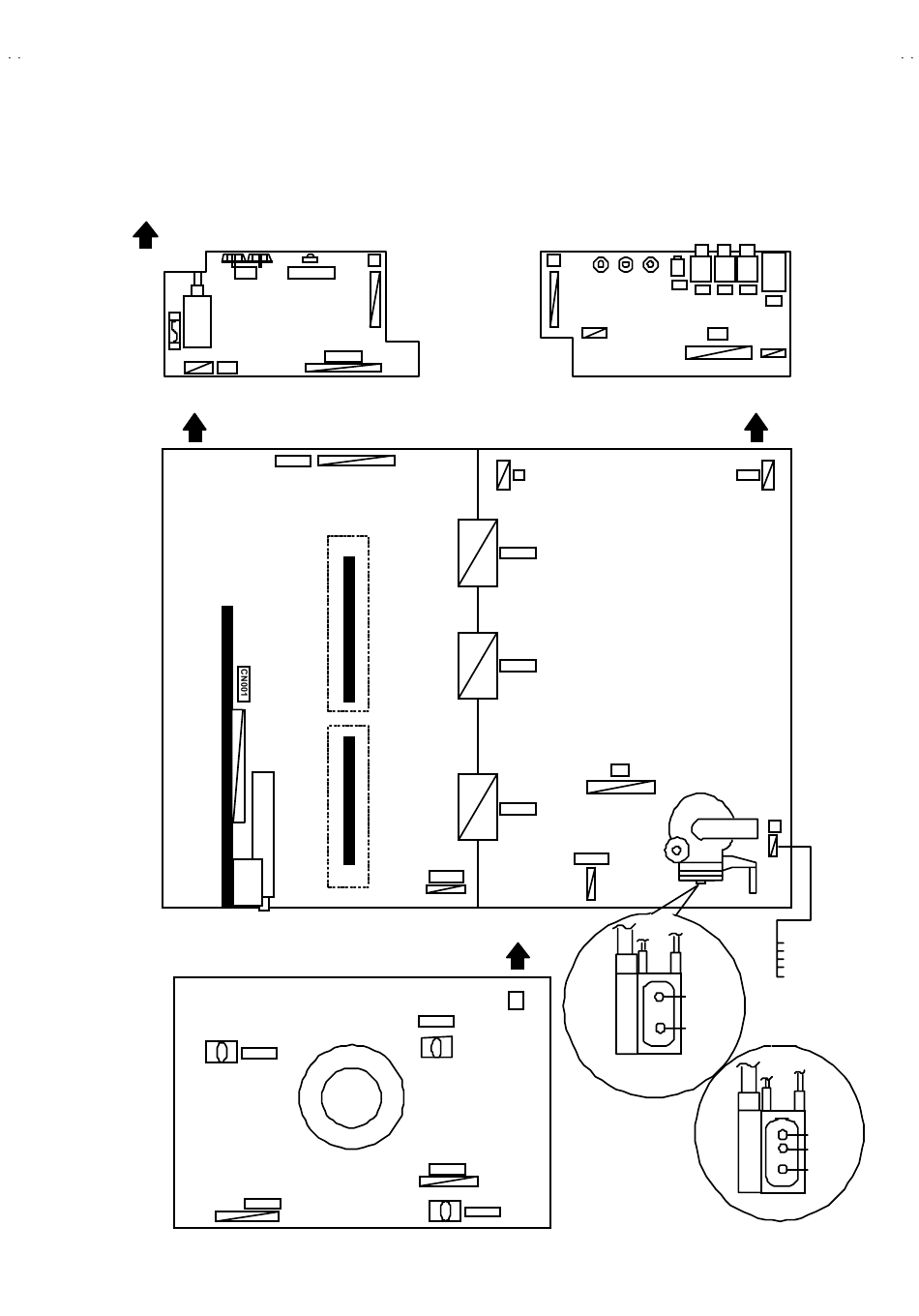

ADJUSTMENT LOCATIONS
FRONT
FRONT CONTROL P WB (1 /2)
LED
F90 1 POWER SW
PW
FRONT
MAIN PWB
AV SEL PWB
TU NER
CRT SOCKE T P WB
TP-E
CN013
J
REMOCON
CN002
CN002
MICOM
100Hz
CN013
(SOLDER SIDE)
TP-47B
CN014
FRONT CONTROL P WB (2 /2)
J
UP DOWN
SP R
PO WE R&DE F PWB
W
CN004
CN005
HV
CN006
CN014
TOP
E1
28"M OD EL
TP-Y
No. 51945
AV32H20EUS
AV28H20EUS
AV28H20EUB
HP
R L V
S
F
SP L
FRONT
DEG
HVT
X
1
5
1pin:B1(TP-91)
2pin:NC
3pin:X-ray
4pin:X-ray
5pin:TP-E
FOCUS
SCR EEN
FOCUS 1
FOCUS 2
SCR EEN
32"M OD EL
13
