Operation Manual, Parts Directory and Price List
MFV24
R
-I
M
c
each
n
ug
hIlleRs

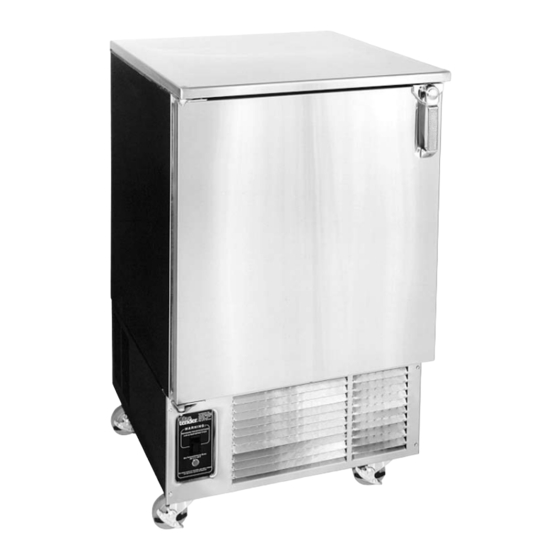

MFV24-SS(L)
with optional casters
Glastender, Inc. · 5400 North Michigan Road · Saginaw, MI · 48604-9780
800.748.0423 · 989.752.4275 · Fax 989.752.4444 · www.glastender.com
Rev 08-26-08
© 2008 Glastender, Inc.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MFV24 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Glastender MFV24

Summary of Contents for Glastender MFV24

  • Page 1 Operation Manual, Parts Directory and Price List MFV24 each hIlleRs MFV24-SS(L) with optional casters Glastender, Inc. · 5400 North Michigan Road · Saginaw, MI · 48604-9780 800.748.0423 · 989.752.4275 · Fax 989.752.4444 · www.glastender.com Rev 08-26-08 © 2008 Glastender, Inc.

  • Page 3: Table Of Contents

    Electrical components ... 8 Shelving and related parts ... 9 Doors, tops and related parts ... 10 Refrigeration compartment covers ... 11 Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780 800.748.0423 • 989.752.4275 • Fax 989.752.4444 • www.glastender.com...

  • Page 4: I Nstallation

    This manual describes the operational features of the Reach-In Mug Chiller model MFV24. Please review this information before attempting installation and operation. Long term, trouble-free service will follow if good housekeeping and maintenance procedures are followed. Thank you for selecting Glastender, Inc.

  • Page 5: Cleaning Instructions

    (L-to-R length lectrIcal 24” 115V, 1Ph., 60 Hz., 8.55 Amp Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780 800.748.0423 • 989.752.4275 • Fax 989.752.4444 • www.glastender.com nstallatIon hIller ase to loor PecIfIcatIons efrIgerant...

  • Page 6: Terms And Conditions

    A convenient credit application is available upon request. Visa and Mastercard are also accepted. LABOR: Glastender, Inc. warrants all products to be free of defects in material and workmanship. In established areas, a start-up and a 90- day labor warranty are included with glasswasher models GT-24 and GT-30.

  • Page 7: W Iring D Iagram

    RELAY, 1/3hp R404a, TECUMSEH COMPRESSOR START CAPACITOR, 1/3hp R404a, TECUMSEH COMPRESSOR FAN BLADE, CONDENSER, 5 BLADE EVAPORATOR FAN BLADE, 5 BLADE, BLACK Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780 800.748.0423 • 989.752.4275 • Fax 989.752.4444 • www.glastender.com IrIng Iagram...

  • Page 8: Compressor And Condenser Related Parts

    Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780 800.748.0423 • 989.752.4275 • Fax 989.752.4444 • www.glastender.com ondenser elated arts...
  • Page 9 GT-031716 22. 06004028 23. 06001313 GT-031400 Tecumseh 1/3 HP Compressor Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780 800.748.0423 • 989.752.4275 • Fax 989.752.4444 • www.glastender.com ondenser escrIPtIon 1/3 HP Aspera compressor, R404A (prior to 01/00)

  • Page 10: Evaporator And Related Parts

    07000360 14. 07000154 GT-032508 15. 06001574 GT-038833 Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780 800.748.0423 • 989.752.4275 • Fax 989.752.4444 • www.glastender.com vaPorator and escrIPtIon Evaporator coil replacement kit, prior to SN 404105086N Evaporator coil SN 404105068N and after...

  • Page 11: Electrical Components

    10. 07000171 GT-034907 11. 07000176 GT-035519 12. 07000227 GT-037419 Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780 800.748.0423 • 989.752.4275 • Fax 989.752.4444 • www.glastender.com omPonents escrIPtIon Exterior power cord, 11’ Replacement powercord assembly, includes (06001572 01000669 06001314)

  • Page 12: Shelving And Related Parts

    07000226 GT-036943 06001574 GT-038833 MFV24 = 2 Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780 800.748.0423 • 989.752.4275 • Fax 989.752.4444 • www.glastender.com helvIng and escrIPtIon 8” shelf bracket (2 required) 14” shelf bracket (2 required) Shelf, 19-5/8”...

  • Page 13: Doors, Tops And Related Parts

    6. 06001569 GT-038495 7. 06001485 GT-036012 8. 07000131 GT-031325 Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780 800.748.0423 • 989.752.4275 • Fax 989.752.4444 • www.glastender.com elated escrIPtIon Door handle, mirror finish stainless steel Door handle, polished brass...

  • Page 14: Refrigeration Compartment Covers

    07000210 GT-036170 4. 07000211 GT-036171 07000208 GT-036168 Front view Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780 800.748.0423 • 989.752.4275 • Fax 989.752.4444 • www.glastender.com omPartment escrIPtIon Front, black vinyl-clad Front, stainless steel Back, black vinyl-clad...
