Operation Manual, Parts Directory, and Price List
F
V
ront
enting
M
and
ug

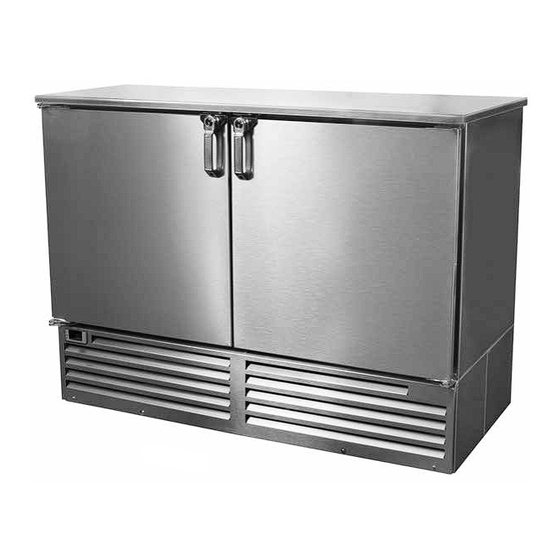

FV24, FV48
MFV24, MFV48
This manual applies to FV and MFV models manufactured in 2013 and after. See
page 1 for specific model release information. For FV and MFV models manufactured
prior, please see Vertical Door Coolers Operation Manual and Parts Directory.
Glastender, Inc. · 5400 North Michigan Road · Saginaw, MI · 48604-9780
800.748.0423 · 989.752.4275 · Fax 989.752.4444 · www.glastender.com
Rev. 06-11-15
S
-C
elF
F
roSterS
24
A Family Company Manufacturing
In The USA Since 1969
C
ontained
48
oolerS
© 2012 Glastender, Inc.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Glastender FV24
Summary of Contents for Glastender FV24
- Page 1 1 for specific model release information. For FV and MFV models manufactured prior, please see Vertical Door Coolers Operation Manual and Parts Directory. Glastender, Inc. · 5400 North Michigan Road · Saginaw, MI · 48604-9780 800.748.0423 · 989.752.4275 · Fax 989.752.4444 · www.glastender.com ©...
-
Page 2: Table Of Contents
220 Doors and Related Parts ................. 17 odel FFeCtiVe ateS This manual is specific to self-contained FV24, FV48, MFV24, and MFV48 coolers manufactured per information below. FV24 SN 134142753F and SN 134143411F / SN 134143788F manufactured 05-13-2013 and beyond FV48... -
Page 3: Igital Ontroller Peration
Service calls to reconnect the probe wiring are not covered by factory warranty. Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780 Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780 800.748.0423 • 989.752.4275 • Fax 989.752.4444 • www.glastender.com... -
Page 4: Erms And Onditions
If shortages occur, Glastender, Inc. must be notified in writing dimensional weight is excessive DB Schenker, UPS Supply Chain, or within five (5) days of delivery to honor any shortage claim. Glastender even common LTL carriers are the most cost effective choice. Spare... -
Page 5: Arranty
Attention Service Companies Glastender shall not be liable for loss of use, revenue, or profit, or for Please review the important warranty information on this page. If you any other indirect, incidental, special, or consequential damage includ- believe a service call should be covered by the factory, please call ing, but not limited to, product spoilage or loss. -
Page 6: Introduction
3. Dry with a soft clean cloth, removing standing water as soon as possible. Cleaning Instructions continued on page 6 Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780 800.748.0423 • 989.752.4275 • Fax 989.752.4444 • www.glastender.com... -
Page 7: Floor Sealing Instructions
COOLER WITH 6" LEGS COOLER WITHOUT LEGS Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780 800.748.0423 • 989.752.4275 • Fax 989.752.4444 • www.glastender.com... -
Page 8: Cooler Installation Checklist
5.0 full load amps, 1/5 HP R404A 10.0 oz MFV48 120v, 1 phase, 60 Hz. 5.5 full load amps, 1/5 HP R404A 10.0 oz Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780 800.748.0423 • 989.752.4275 • Fax 989.752.4444 • www.glastender.com... -
Page 9: Fv Wiring Diagram
FV W iring iagraM Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780 800.748.0423 • 989.752.4275 • Fax 989.752.4444 • www.glastender.com... -
Page 10: Mfv Wiring Diagram
MFV W iring iagraM Black Black Green Green White White Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780 800.748.0423 • 989.752.4275 • Fax 989.752.4444 • www.glastender.com... -
Page 11: Interior Parts
1.50 5. 07000607 Power supply bracket 5.00 6. 06009552 LED light kit (Light bar with LED lights, and wire connector)(FV24/MFV24) 55.00 06009553 LED light kit (2 light bars with LED lights, wire, and connector)(FV48/MFV48) 97.00 Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780... -
Page 12: Condensor And Evaporator Parts
24. 07000793 Defrost solenoid valve (MFV24 and MFV48), does not include coil 117.60 06001590 Defrost solenoid coil, 120V, 60Hz 63.00 Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780 800.748.0423 • 989.752.4275 • Fax 989.752.4444 • www.glastender.com... - Page 13 Vaporator artS Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780 800.748.0423 • 989.752.4275 • Fax 989.752.4444 • www.glastender.com...
-
Page 14: Doors And Related Parts
Bolts for brackets (6 required) .50 ea 9. 06001485 Plastic washer for hinge 1.00 10. 06001569 Bushing for hinge (gray) 1.00 Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780 800.748.0423 • 989.752.4275 • Fax 989.752.4444 • www.glastender.com... - Page 15 Door swings for heated glass doors require matching grill part #’s for wire recep- tacle access. If changing door swings of heated glass doors order appropriate grill from page 16. Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780 800.748.0423 • 989.752.4275 • Fax 989.752.4444 • www.glastender.com...
-
Page 16: Shelving, Racks, And Related Parts
Grey coated shelf, 17-3/8" x 21-9/16", left (FV48, MVF48) 77.00 3. 06009329 Grey coated shelf, 17-3/8” x 21-9/16”, right (FV48, MVF48) 77.00 Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780 800.748.0423 • 989.752.4275 • Fax 989.752.4444 • www.glastender.com... -
Page 17: Grills
(LR) left door is left hinge, right door is right hinge (RL) left door is right hinge, right door is left hinge Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780 800.748.0423 • 989.752.4275 • Fax 989.752.4444 • www.glastender.com... -
Page 18: 220 Condensor And Evaporator Parts
06009452 Heated glass door, right hinge, 220V, black (MFV) 926.00 06009453 Heated glass Door, right hinge, 220V, laminate (MFV) 1058.00 Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780 800.748.0423 • 989.752.4275 • Fax 989.752.4444 • www.glastender.com...
