Operation Manual and Parts Directory

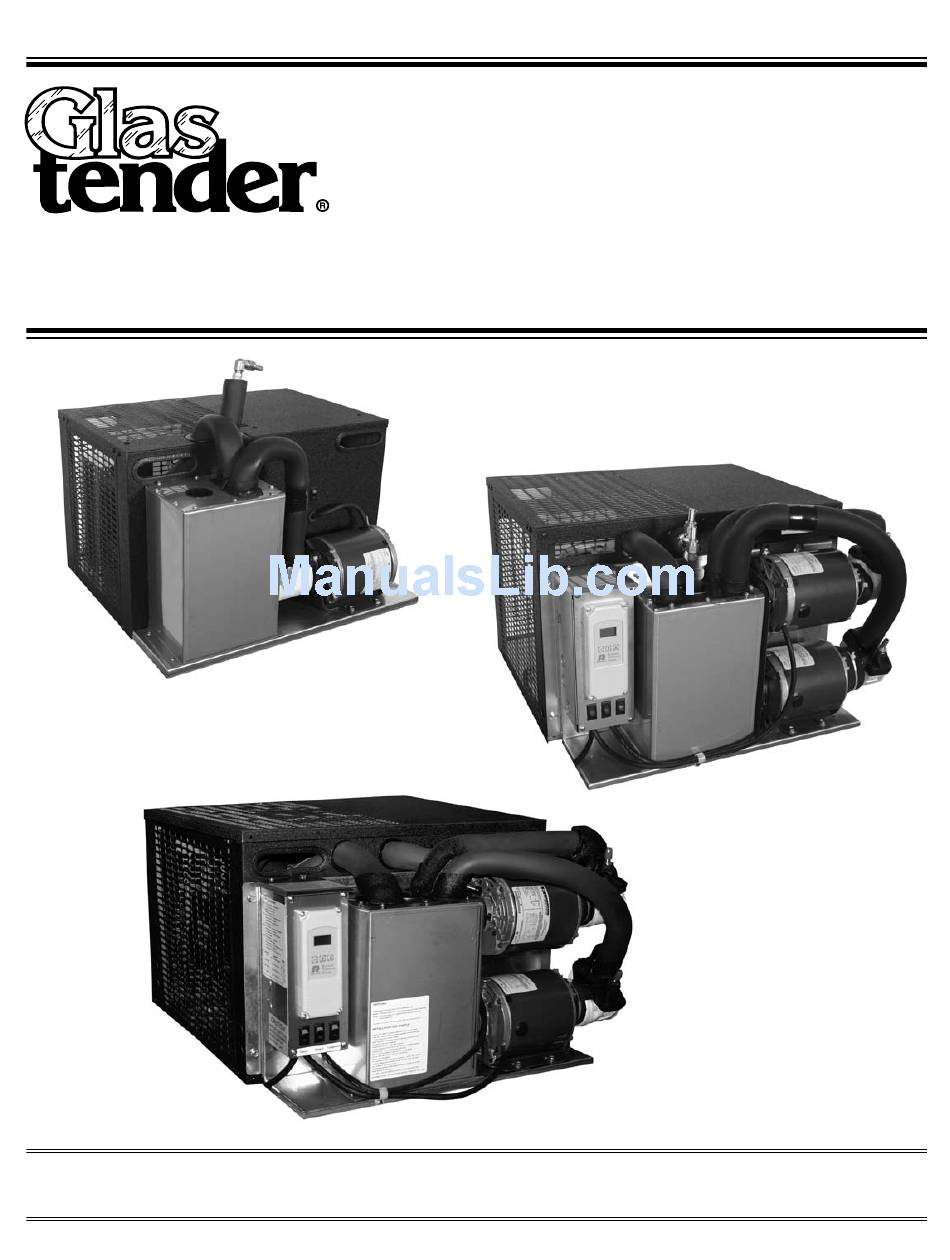

BLC-1/3-E, BLC-1/3, BLC-1/3-2, BLC-1/2, BLC-1/2-2, BLC-3/4, BLC-3/4-2
R
D
B
L
C
emote
Raft
eeR
ine
hiLLeRs
BLC-1/3-E
BLC-1/3-2
BLC-3/4-2
Glastender, Inc. · 5400 North Michigan Road · Saginaw, MI · 48604-9780
800.748.0423 · 989.752.4275 · Fax 989.752.4444 · www.glastender.com
Rev. 08-26-08
© 2008 Glastender, Inc.
Advertisement
Table of Contents
Related Manuals for Glastender BLC-1/2
Summary of Contents for Glastender BLC-1/2
- Page 1 Operation Manual and Parts Directory BLC-1/3-E, BLC-1/3, BLC-1/3-2, BLC-1/2, BLC-1/2-2, BLC-3/4, BLC-3/4-2 emote Raft hiLLeRs BLC-1/3-E BLC-1/3-2 BLC-3/4-2 Glastender, Inc. · 5400 North Michigan Road · Saginaw, MI · 48604-9780 800.748.0423 · 989.752.4275 · Fax 989.752.4444 · www.glastender.com Rev. 08-26-08 © 2008 Glastender, Inc.
- Page 3 BLC-3/4, BLC-3/4-2 ...13-14 Terms and Conditions ... 15 Warranty ... 15 Trouble Shooting ... 16 Installation Notes ... 16 Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780 800.748.0423 • 989.752.4275 • Fax 989.752.4444 • www.glastender.com nDex Page...
- Page 4 Circulating Pumps 60 gph Glycol Bath Capacity .94 gal Shipping Weight LBS (kg) 128 (58.1) Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780 800.748.0423 • 989.752.4275 • Fax 989.752.4444 • www.glastender.com BLC s peCifiCations Model: BLC-1/3-E tanDaRD eatuRes •...
-
Page 5: Line Connection
Models BLC-1/3, BLC-1/3-E, BLC-1/2, BLC-3/4, & BLC-3/4-2 are supplied with a 20 Amp grounded cord and plug that connects at the rear of the unit. Models BLC-1/3-2 & BLC-1/2-2 ship as hard wire units and are supplied with a 30 Amp grounded cord only (no plug) that connects at the rear of the unit. - Page 6 The glycol bath capacity is 1 gallon (US). Glycol supplied by Glastender, Inc. may be diluted to a ratio of (1) part glycol to (2) parts water for freeze protection down to 0ºF (-18ºC) or a ratio of (1) part glycol and (3) parts water for freeze protection down to 10ºF (-12ºC).
-
Page 7: Iring D Iagram
To increase the temperature turn the adjusting knob counter clockwise. BLC-1/3-e W Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780 800.748.0423 • 989.752.4275 • Fax 989.752.4444 • www.glastender.com empeRatuRe... - Page 8 RECIRC PUMP GREEN BLACK CONDENSER FAN OVERLOAD RELAY COMMON STARTER START COMPRESSOR Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780 800.748.0423 • 989.752.4275 • Fax 989.752.4444 • www.glastender.com Voltage Current Horse Power 115v 0.6amps 115v 5.8amps 1/3hp 115v 6.8amps...
-
Page 9: I Nstallation D Etail
Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780 800.748.0423 • 989.752.4275 • Fax 989.752.4444 • www.glastender.com... - Page 10 Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780 800.748.0423 • 989.752.4275 • Fax 989.752.4444 • www.glastender.com...
- Page 11 The Glastender exclusive, patent pending beer line chiller design houses the heat exchanger inside the condensing unit compartment. For models BLC-1/3, BLC-1/3-2, BLC1/2, BLC-1/2, BLC-3/4, and BLC-3/4-2, this unique feature allows the control panel with glycol bath and recirculating pump(s) to be easily installed separately from the condensing unit in a more conveniently accessible location.
-
Page 12: R Emote B Eer L Ine C Hiller A Ccessories
Photo shows BLC-1/3 in an installation setting with the control panel installed remotely from the condensing unit cabinet. emote All Glastender line chillers may be placed on 4″ legs that are adjust- able up to 5″. The leg set includes a 16 gauge galvanized steel frame plate that is sized to match the particular unit. - Page 13 16. 09000505 Side, compressor, black vinyl, flat plate chiller 09000510 Side, coil, black vinyl, flat plate chiller Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780 800.748.0423 • 989.752.4275 • Fax 989.752.4444 • www.glastender.com epLaCement aRts RiCe $435.00...
- Page 14 BLC-1/3, BLC-1/3-2, BLC-1/2, BLC-1/2-2 R Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780 800.748.0423 • 989.752.4275 • Fax 989.752.4444 • www.glastender.com epLaCement aRts...
- Page 15 16. 09000502 Side, compressor, black vinyl, flat plate chiller 09000522 Side, coil, black vinyl, flat plate chiller Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780 800.748.0423 • 989.752.4275 • Fax 989.752.4444 • www.glastender.com epLaCement RiCe aRts $435.00...
- Page 16 BLC-3/4 & BLC-3/4-2 R epLaCement aRts Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780 800.748.0423 • 989.752.4275 • Fax 989.752.4444 • www.glastender.com...
- Page 17 Back, compressor, black vinyl, flat plate chiller LeCtRiCaL esCRiption 06006121 Replacement powercord assembly, includes (06001572 06001314) Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780 800.748.0423 • 989.752.4275 • Fax 989.752.4444 • www.glastender.com epLaCement aRts omponents RiCe $880.00...
-
Page 18: Warranty
A convenient credit application is available upon request. Visa and Mastercard are also accepted. LABOR: Glastender, Inc. warrants all products to be free of defects in material and workmanship. In established areas, a start-up and a 90- day labor warranty are included with glasswasher models GT-24 and GT-30. -
Page 19: Installation Notes
City, State, Zip: _____________________________________________ Phone Number: _____________________________________________ Fax Number: _____________________________________________ Contact: _____________________________________________ Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780 800.748.0423 • 989.752.4275 • Fax 989.752.4444 • www.glastender.com RouBLe hootinG Refrigeration Compressor Runs But Not Cooling... •... - Page 20 Expect more more flexibility more features Glastender has the most complete line of bar equipment and the ability to manufacture custom units, giving you virtually unlimited design flexibility. Each piece of equipment is engineered with features that enhance your efficiency, ease your maintenance, and prolong the life of your investment.
