Summary of Contents for Glastender LC44

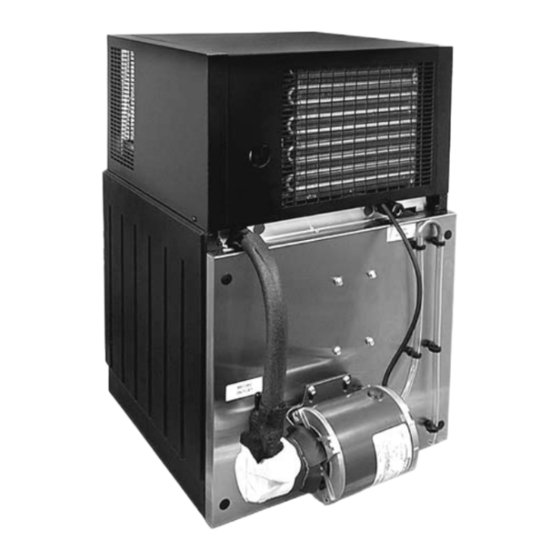

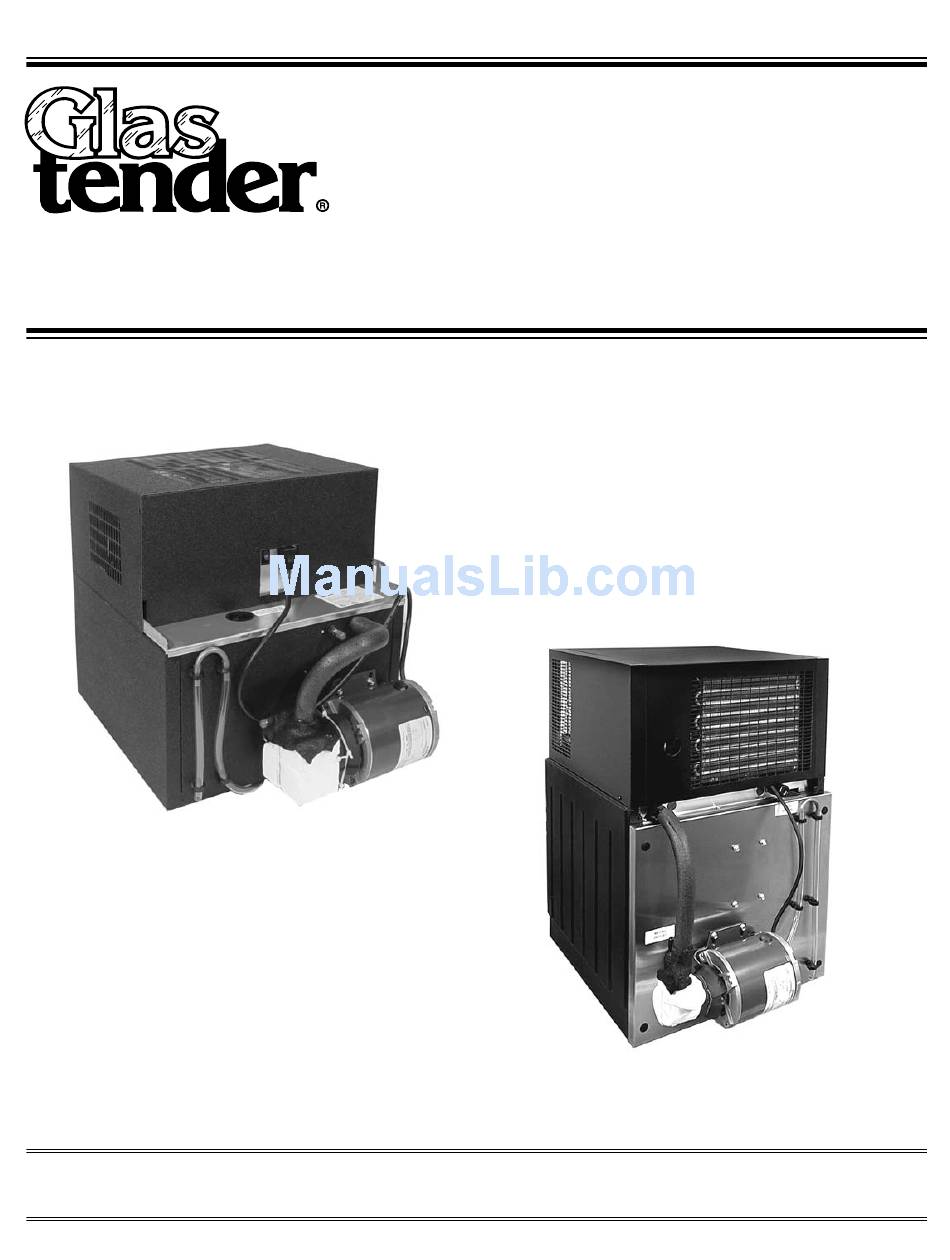

- Page 1 Operation Manual and Parts Directory LC65, LC85, LC86, LC44, LC47 raft emote lycol hillers LC65 LC44 Glastender, Inc. · 5400 North Michigan Road · Saginaw, MI · 48604-9780 800.748.0423 · 989.752.4275 · Fax 989.752.4444 · www.glastender.com Rev. 08-26-08 © 2007 Glastender, Inc.
-
Page 3: Table Of Contents
LC85 ...15-16 LC86 ...17-18 LC44 ...19-20 LC47 ...21-22 Remote Beer Line Chiller Accessories ... 23 Installation Notes ... 24 Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780 800.748.0423 • 989.752.4275 • Fax 989.752.4444 • www.glastender.com nDex Page... -
Page 4: Line Chiller Specifications And Wiring Diagrams
MAIN POWER SUPPLY BLACK GREEN 230v/60hz RECIRC MOTOR RECIRC MOTOR OPTIONAL Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780 800.748.0423 • 989.752.4275 • Fax 989.752.4444 • www.glastender.com lc65 s Pecifications lc65 W irinG BLACK BLACK GREEN... -
Page 5: Lc85
LC86 ONLY TERMINAL BLOCK OPTIONAL RECIRC MOTOR LC86 ONLY Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780 800.748.0423 • 989.752.4275 • Fax 989.752.4444 • www.glastender.com Pecifications tanDarD • Modular lift-out refrigeration system for easy in-field service •... -
Page 6: Lc86
• 4” Adjustable legs (up to 5-1/2”) OPTIONAL RECIRC SWITCH LC86 ONLY OPTIONAL RECIRC MOTOR LC86 ONLY Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780 800.748.0423 • 989.752.4275 • Fax 989.752.4444 • www.glastender.com lc86 s Pecifications lc86 W irinG MAIN POWER... -
Page 7: Lc44
RECEPTICAL RECIRC MOTOR RECIRC MOTOR OPTIONAL RECEPTICAL OPTIONAL Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780 800.748.0423 • 989.752.4275 • Fax 989.752.4444 • www.glastender.com Pecifications tanDarD • Modular lift-out refrigeration system for easy in- field service •... -
Page 8: Lc47
GREEN 230v/60hz RECIRC MOTOR RECIRC MOTOR OPTIONAL Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780 800.748.0423 • 989.752.4275 • Fax 989.752.4444 • www.glastender.com lc47 s Pecifications • Modular lift-out refrigeration system for easy • High capacity refrigeration and recirculation for •... -
Page 9: Warranty
God, attempted repairs, or improper installation by unauthorized persons. D. Glastender, Inc. shall not be liable for loss of use, revenue, or profit or for any other indirect, incidental, special, or consequential damage including, but not limited to product spoilage or loss. No representative, distributor, dealer, service company, or any other person is authorized to modify this warranty. - Page 10 Glastender, Inc. is not responsible for any loss, damage, or delay of merchandise during shipment. Such transit claims must be filed with the carrier. Merchandise must be examined on arrival. If shortages occur, Glastender, Inc. must be notified within five days of delivery to honor any shortage claim.
-
Page 11: Inspection Upon Arrival
Models LC65 and LC85 are supplied with a 15 Amp grounded cord and plug that connects at the rear of the unit. Models LC86, LC44, and LC47 are supplied with a 20 Amp grounded cord and plug that connects at the rear of the unit. A corresponding 15 Amp or 20 Amp grounded receptacle, depending on the line chiller model used, must be installed within reach of the factory installed cord and plug. -
Page 12: Glycol Filling
14.8 gallons (US). The LC44 and LC47 glycol bath capacity is 16.25 gallons (US). Glycol supplied by Glastender, Inc. may be diluted to a ratio of (1) part glycol to (2) parts water for freeze protection down to 0ºF (-18ºC) or a ratio of (1) part glycol and (3) parts water for freeze protec- tion down to 10ºF (-12ºC). -
Page 13: Cold Control Adjustment
NOTE: Be certain to close off the trunk line end with insulating tape at the point where the glycol recirculating lines enter, otherwise condensation will occur on exposed lines. Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780 800.748.0423 • 989.752.4275 • Fax 989.752.4444 • www.glastender.com Djustment anD... -
Page 14: Trouble Shooting
Ensure that pump and motor coupling has not worn free. • Check power supply to the motor. • Replace worn pump. Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780 800.748.0423 • 989.752.4275 • Fax 989.752.4444 • www.glastender.com rouble hootinG... -
Page 15: Typical Installation Detail
Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780 800.748.0423 • 989.752.4275 • Fax 989.752.4444 • www.glastender.com... -
Page 16: Parts Directory
Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780 800.748.0423 • 989.752.4275 • Fax 989.752.4444 • www.glastender.com... -
Page 17: Lc65
1 6. 06001409 GT-033304 1 7. 09000303 GT-033207 1 8. 09000429 GT-038474 09000261 GT-031404 1 9. 06001313 GT-031400 Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780 800.748.0423 • 989.752.4275 • Fax 989.752.4444 • www.glastender.com elateD escriPtion 1/3 HP 134A Tecumseh compressor... - Page 18 Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780 800.748.0423 • 989.752.4275 • Fax 989.752.4444 • www.glastender.com...
-
Page 19: Lc85
1 5. 06001409 GT-033304 1 6. 09000303 GT-033207 1 7. 09000429 GT-038474 1 8. 09000261 GT-031404 1 9. 06001313 GT-031400 Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780 800.748.0423 • 989.752.4275 • Fax 989.752.4444 • www.glastender.com escriPtion 1/3 HP 134A Tecumseh compressor Condenser fan motor... -
Page 20: Lc86
Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780 800.748.0423 • 989.752.4275 • Fax 989.752.4444 • www.glastender.com... - Page 21 1 5. 09000303 GT-033207 1 6. 09000429 GT-038474 1 7. 09000261 GT-031404 1 8. 06001313 GT-031400 Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780 800.748.0423 • 989.752.4275 • Fax 989.752.4444 • www.glastender.com omPressor anD escriPtion 1/2 HP R134A Tecumseh compressor...
- Page 22 Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780 800.748.0423 • 989.752.4275 • Fax 989.752.4444 • www.glastender.com...
-
Page 23: Lc44
1 6. 09000429 GT-038474 1 7. 09000261 GT-031404 1 8. 06001313 GT-031400 1 9. 09000411 GT-037111 09000362 GT-037439 Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780 800.748.0423 • 989.752.4275 • Fax 989.752.4444 • www.glastender.com omPressor anD escriPtion 1/2 HP R134A Tecumseh compressor... - Page 24 Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780 800.748.0423 • 989.752.4275 • Fax 989.752.4444 • www.glastender.com...
-
Page 25: Lc47
1 7. 06001412 GT-033421 1 8. 09000303 GT-033207 1 9. 09000429 GT-038474 2 0. 09000262 GT-031405 Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780 800.748.0423 • 989.752.4275 • Fax 989.752.4444 • www.glastender.com omPressor anD escriPtion 3/4 HP R134A Tecumseh compressor... -
Page 26: Remote Beer Line Chiller Accessories
All Glastender line chillers may be placed on 4″ legs that are adjustable up to 5-1/2″. The leg set includes a 16 gauge galvanized steel frame plate that is sized to match the particular unit. LCLS-6 hiLLer Model Description LCLS-6 4″ leg set and frame plate for LC65... -
Page 27: Installation Notes
Original System Installer Company: _____________________________________________ Address: _____________________________________________ _____________________________________________ City, State, Zip: _____________________________________________ Phone Number: _____________________________________________ Fax Number: _____________________________________________ Contact: _____________________________________________ Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780 800.748.0423 • 989.752.4275 • Fax 989.752.4444 • www.glastender.com nstallation otes...
