Operation Manual & Parts List
A Family Company Manufacturing In The USA Since 1969
BLC-1/3-E, BLC-1/3, BLC-1/3-2, BLC-1/2, BLC-1/2-2, BLC-3/4, BLC-3/4-2
R
D
B
L
C
emote
Raft
eeR
ine
hiLLeRs

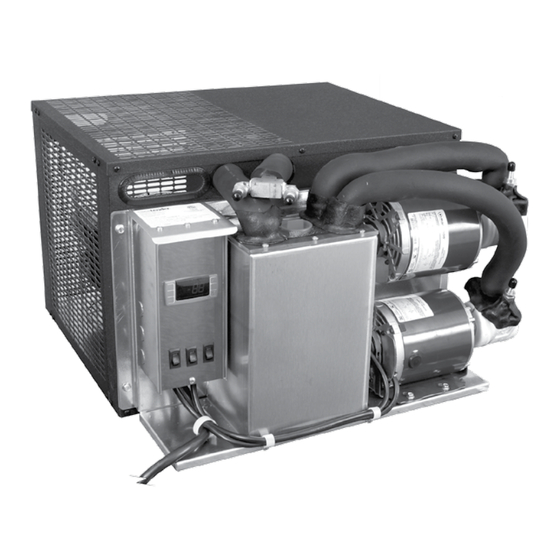

BLC-1/3-E
BLC-1/3-2
Glastender, Inc. · 5400 North Michigan Road · Saginaw, MI · 48604-9780
800.748.0423 · 989.752.4275 · Fax 989.752.4444 · www.glastender.com
Rev. 05-16-18
© 2008 Glastender, Inc.
Advertisement
Table of Contents
Related Manuals for Glastender BLC-1/3-E
Summary of Contents for Glastender BLC-1/3-E
- Page 1 A Family Company Manufacturing In The USA Since 1969 BLC-1/3-E, BLC-1/3, BLC-1/3-2, BLC-1/2, BLC-1/2-2, BLC-3/4, BLC-3/4-2 emote Raft hiLLeRs BLC-1/3-E BLC-1/3-2 Glastender, Inc. · 5400 North Michigan Road · Saginaw, MI · 48604-9780 800.748.0423 · 989.752.4275 · Fax 989.752.4444 · www.glastender.com Rev. 05-16-18 © 2008 Glastender, Inc.
-
Page 2: Table Of Contents
BLC-1/3-E ........................17 Electrical Components ....................18 220V Electrical Components ..................18 Terms and Conditions ......................19 Warranty ..........................20 Trouble Shooting .........................21 Installation Notes .........................21 Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780 800.748.0423 • 989.752.4275 • Fax 989.752.4444 • www.glastender.com... -
Page 3: Beer Line Chiller Specifications
.94 gal. Shipping Weight LBS (kg) 128 (58.1) 150 (68.0) 163 (73.9) 153 (69.4) 166 (75.3) 175 (79.5) 193 (87.7) Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780 800.748.0423 • 989.752.4275 • Fax 989.752.4444 • www.glastender.com... -
Page 4: Inspection Upon Arrival
LeCtRiCaL Models BLC-1/3, BLC-1/3-E, BLC-1/2, BLC-3/4, & BLC-3/4-2 are supplied with a 20 Amp grounded cord and plug that connects at the rear of the unit. Models BLC-1/3-2 & BLC-1/2-2 ship as hard wire units and are supplied with a 30 Amp grounded cord only (no plug) that connects at the rear of the unit. -
Page 5: Glycol Filling
The glycol bath capacity is 1 gallon (US). Glycol supplied by Glastender, Inc. may be diluted to a ratio of (1) part glycol to (2) parts water for freeze protection down to 0ºF (-18ºC) or a ratio of (1) part glycol and (3) parts water for freeze protection down to 10ºF (-12ºC). -
Page 6: Digital Controller Operation
Service calls to reconnect the probe wiring are not covered by Probe wire factory warranty. connector Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780 800.748.0423 • 989.752.4275 • Fax 989.752.4444 • www.glastender.com... -
Page 7: Cold Control Adjustment
Use the up or down arrow to toggle between and select C1, cooling or H1, heating mode. Step 5 Press the SET key again to complete programming. Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780 800.748.0423 • 989.752.4275 • Fax 989.752.4444 • www.glastender.com... -
Page 8: Wiring Diagrams
BLC-1/3-e w iRinG iaGRam BLC-1/3, BLC-1/3-2 w iRinG iaGRam Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780 800.748.0423 • 989.752.4275 • Fax 989.752.4444 • www.glastender.com... -
Page 9: Blc-1/2, Blc-1/2-2
BLC-1/2, BLC-1/2-2 w iRinG iaGRam BLC-3/4, BLC-3/4-2 w iRinG iaGRam Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780 800.748.0423 • 989.752.4275 • Fax 989.752.4444 • www.glastender.com... -
Page 10: Typical Installation Detail
Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780 800.748.0423 • 989.752.4275 • Fax 989.752.4444 • www.glastender.com... -
Page 11: Remote Installation Directions
Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780 800.748.0423 • 989.752.4275 • Fax 989.752.4444 • www.glastender.com... - Page 12 The Glastender exclusive, patent pending beer line chiller design houses the heat exchanger inside the condensing unit compartment. For models BLC-1/3, BLC-1/3-2, BLC1/2, BLC-1/2-2, BLC-3/4, and BLC-3/4-2, this unique feature allows the control panel with glycol bath and recirculating pump(s) to be easily installed separately from the condensing unit in a more conveniently accessible location.
-
Page 13: Remote Control Panel Installation Photo
CCessoRies All Glastender line chillers may be placed on 6" legs that are adjust- able up to 7". The leg set includes 16 gauge galvanized steel that are mounted to the base plate of the unit. A line chiller stand is 26-1/2" wide by 39" high by 24" deep and comes with adjustable feet for leveling. -
Page 14: Replacement Parts
BLC-1/3, BLC-1/3-2, BLC-1/2, BLC-1/2-2 R epLaCement aRts Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780 800.748.0423 • 989.752.4275 • Fax 989.752.4444 • www.glastender.com... - Page 15 35.00 18. 09000502 Side, compressor, black vinyl, flat plate chiller 27.00 09000522 Side, coil, black vinyl, flat plate chiller 15.00 Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780 800.748.0423 • 989.752.4275 • Fax 989.752.4444 • www.glastender.com...
-
Page 16: Blc-3/4, Blc-3/4-2
BLC-3/4 & BLC-3/4-2 R epLaCement aRts Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780 800.748.0423 • 989.752.4275 • Fax 989.752.4444 • www.glastender.com... - Page 17 35.00 18. 09000502 Side, compressor, black vinyl, flat plate chiller 27.00 09000500 Back, compressor, black vinyl, flat plate chiller 35.00 Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780 800.748.0423 • 989.752.4275 • Fax 989.752.4444 • www.glastender.com...
-
Page 18: Blc-1/3-E
35.00 16. 09000505 Side, compressor, black vinyl, flat plate chiller 20.00 09000510 Side, coil, black vinyl, flat plate chiller 12.00 Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780 800.748.0423 • 989.752.4275 • Fax 989.752.4444 • www.glastender.com... -
Page 19: Electrical Components
Power Cord, India (BLC-1/2, BLC-1/2-2, BLC-1/3, BLC-1/3-2, BLC-1/3-E) 40.00 09000264 Power cord, American, 220V (BLC-1/2, BLC-1/2-2, BLC-1/3, BLC-1/3-2, BLC-1/3-E) 73.00 Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780 800.748.0423 • 989.752.4275 • Fax 989.752.4444 • www.glastender.com... -
Page 20: Terms And Conditions
If shortages occur, Glastender, Inc. must be notified in writing • Self-contained refrigeration equipment - Class 150 within five (5) days of delivery to honor any shortage claim. Glastender • Ice Display Units (IDU and GDU) - Class 85 will assume responsibility for freight claims on Prepay and Add ship- •... -
Page 21: Warranty
Attention Service Companies unit will void the warranty. Glastender shall not be liable for loss of use, revenue, or profit, or for Please review the important warranty information on this page. If you any other indirect, incidental, special, or consequential damage includ- believe a service call should be covered by the factory, please call ing, but not limited to, product spoilage or loss. -
Page 22: Trouble Shooting
