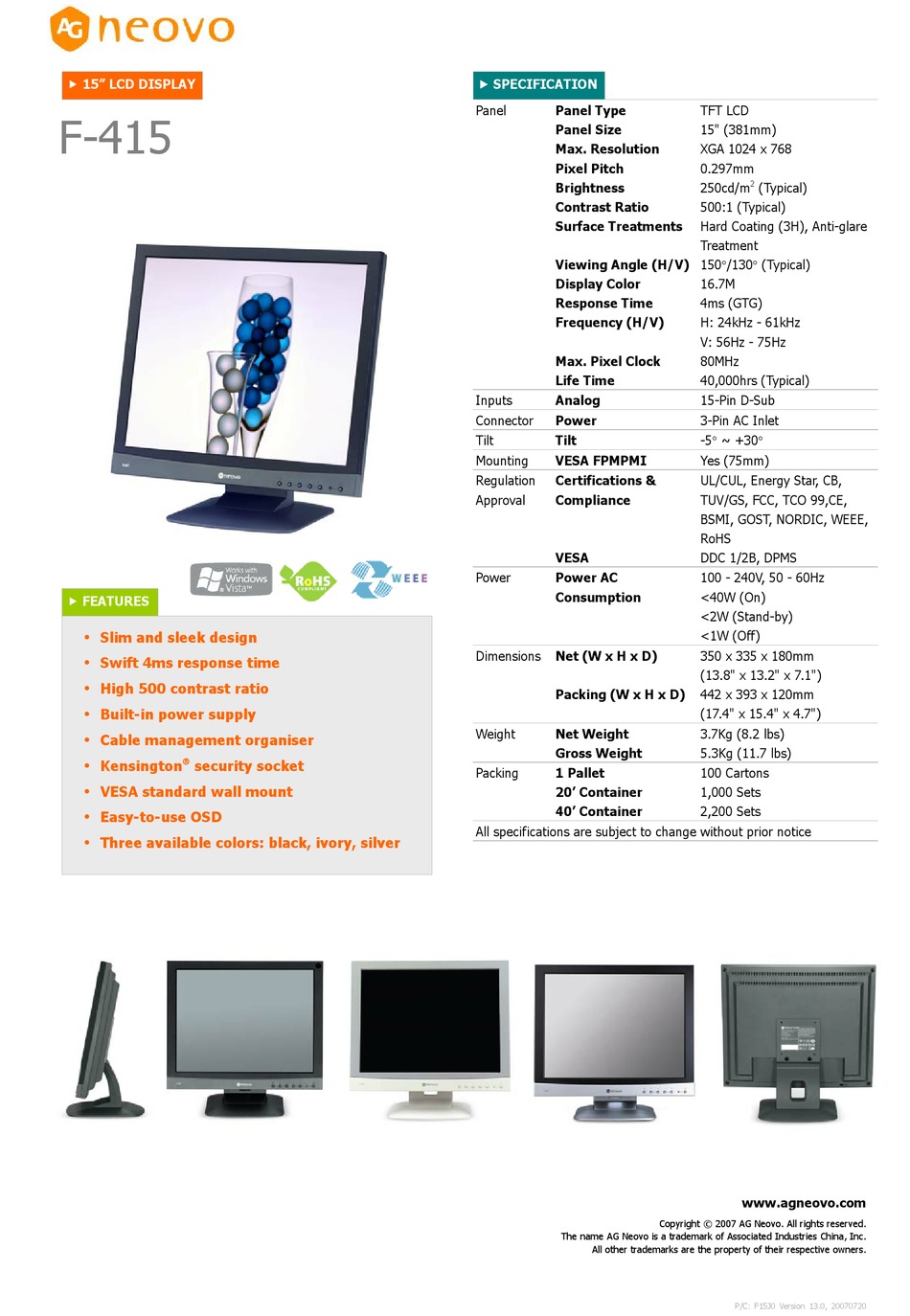

AG Neovo Neovo F 415 F-415 F-415 Specifications

15" LCD DISPLAY

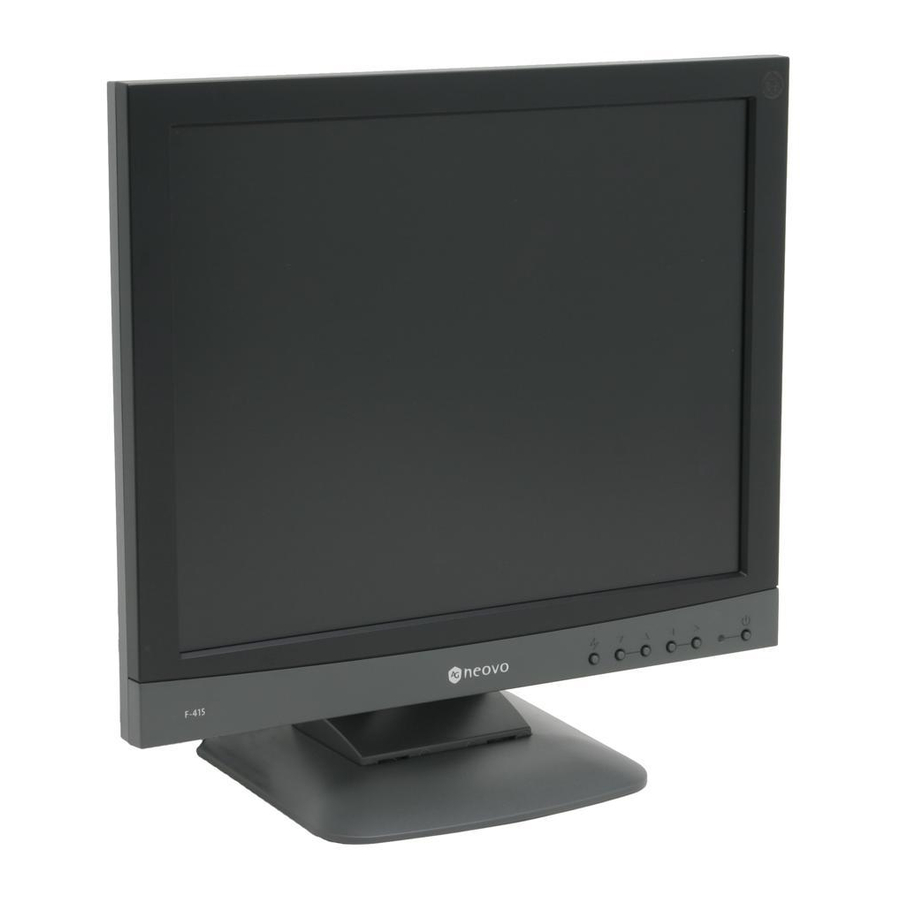

F-415
FEATURES
Slim and sleek design
Swift 4ms response time
High 500 contrast ratio
Built-in power supply
Cable management organiser

Kensington security socket
VESA standard wall mount
Easy-to-use OSD
Three available colors: black, ivory, silver
SPECIFICATION
Panel Panel Type
Panel Size
Max. Resolution
Pixel Pitch
Brightness
Contrast Ratio
Surface Treatments
Viewing Angle (H/V) 150°/130° (Typical)
Display Color
Response Time
Frequency (H/V)
Max. Pixel Clock
Life Time
Inputs Analog
Connector Power
Tilt Tilt
Mounting VESA FPMPMI
Regulation Certifications &
Approval Compliance
VESA
Power Power AC
Consumption
Dimensions Net (W x H x D)
Packing (W x H x D)
Weight Net Weight
Gross Weight
Packing 1 Pallet
20' Container
40' Container
All specifications are subject to change without prior notice
The name AG Neovo is a trademark of Associated Industries China, Inc.
All other trademarks are the property of their respective owners.
TFT LCD
15" (381mm)
XGA 1024 x 768
0.297mm
250cd/m 2 (Typical)
500:1 (Typical)
Hard Coating (3H), Anti-glare
Treatment
16.7M
4ms (GTG)
H: 24kHz - 61kHz
V: 56Hz - 75Hz
80MHz
40,000hrs (Typical)
15-Pin D-Sub
3-Pin AC Inlet
-5° ~ +30°
Yes (75mm)
UL/CUL, Energy Star, CB,
TUV/GS, FCC, TCO 99,CE,
BSMI, GOST, NORDIC, WEEE,
RoHS
DDC 1/2B, DPMS
100 - 240V, 50 - 60Hz
<40W (On)
<2W (Stand-by)
<1W (Off)
350 x 335 x 180mm
(13.8" x 13.2" x 7.1")
442 x 393 x 120mm
(17.4" x 15.4" x 4.7")
3.7Kg (8.2 lbs)
5.3Kg (11.7 lbs)
100 Cartons
1,000 Sets
2,200 Sets
www.agneovo.com
Copyright © 2007 AG Neovo. All rights reserved.
P/C: F15J0 Version 13.0, 20070720
