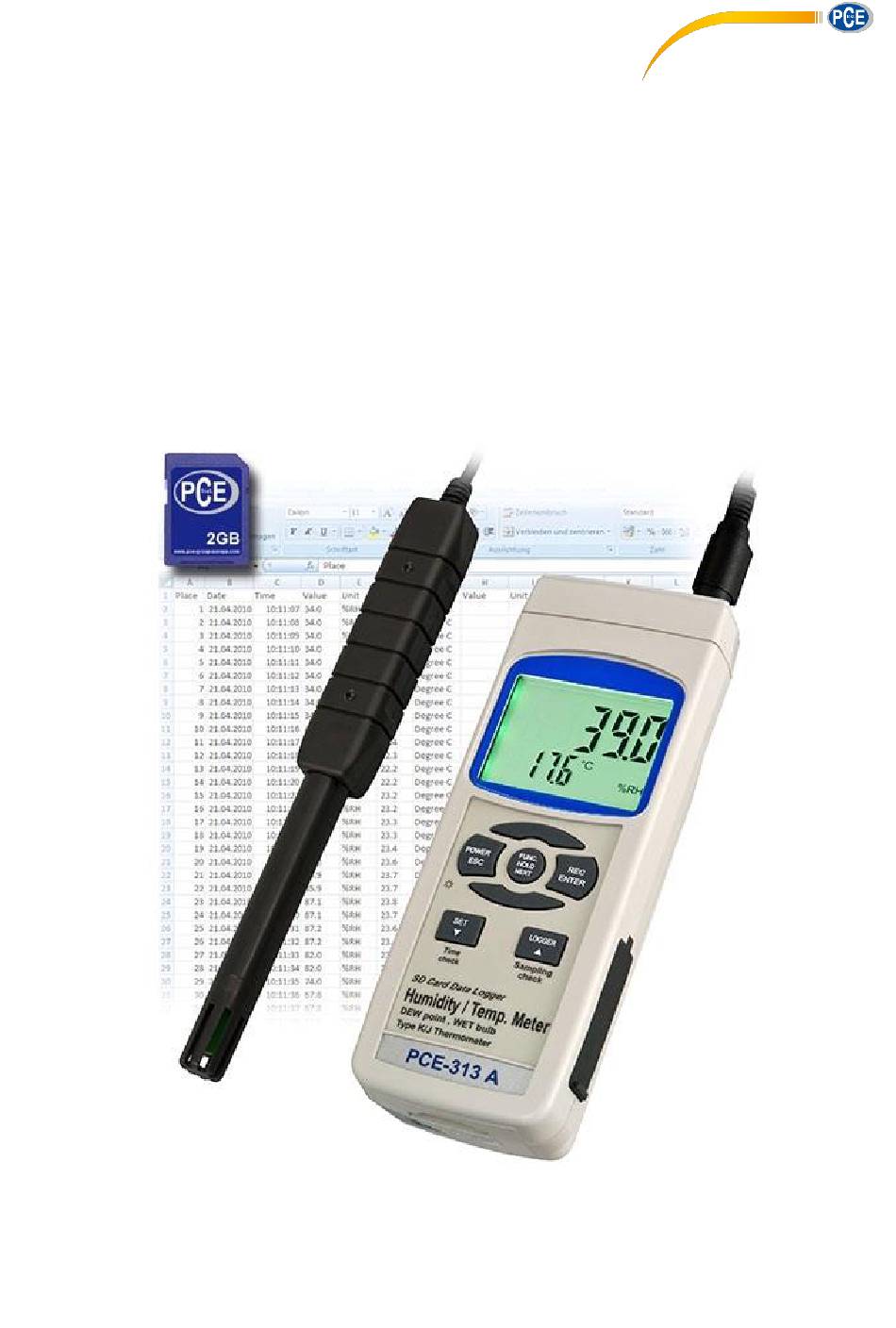

Condition Monitoring Thermometer PCE-313A
Manual
Version 3.1
Date of creation: 15.04.2015
Date of last change: 20.05.2019
PCE Americas Inc.
711 Commerce Way
Suite 8
Jupiter
FL-33458
USA
From outside US: +1
Tel: (561) 320-9162
Fax: (561) 320-9176
info@pce-americas.com
www.pce-instruments.com/english
www.pce-instruments.com
PCE Instruments UK Ltd.
Unit 11
Southpoint Business Park
Ensign way
Hampshire / Southampton
United Kingdom, SO31 4RF
From outside UK: +44
Tel: (0) 2380 98703 0
Fax: (0) 2380 98703 9
info@pce-instruments.co.uk
Advertisement
Table of Contents
Related Manuals for PCE Health and Fitness 4250348700308
Summary of Contents for PCE Health and Fitness 4250348700308
- Page 1 PCE Americas Inc. PCE Instruments UK Ltd. 711 Commerce Way Unit 11 Suite 8 Southpoint Business Park Jupiter Ensign way FL-33458 Hampshire / Southampton United Kingdom, SO31 4RF From outside US: +1 From outside UK: +44 Tel: (561) 320-9162 Tel: (0) 2380 98703 0 Fax: (561) 320-9176 Fax: (0) 2380 98703 9 info@pce-americas.com...
-
Page 2: Table Of Contents
Contents Introduction ......................3 Safety notes ......................3 Specifications ......................4 System description ....................5 Instructions ......................6 How to select the function ......................6 Data Hold function ........................6 Max / Min function ........................7 Backlight ............................. 7 Memory ............................7 5.5.1 Preparation ............................. -
Page 3: Introduction
Manual Introduction Thank you for purchasing a PCE-313A from PCE Instruments. The PCE-313A humidity and temperature data logger has been designed for professional use, for instance in the air conditioning sector. It can measure the relative humidity as well as the ambient temperature. -
Page 4: Specifications
Manual Specifications Measurement ranges - temperature 5 ... 95 % RH - relative humidity 0 ... + 50 °C - K-type -50 ... +1300 °C - calculated dew point -25.3 ... +48.9 °C - calculated wet bulb temperature -21.6 ... +50 °C Resolution - temperature 0.1 % RH... -
Page 5: System Description
Manual System description Display Power key (ESC, backlight) Hold key (function key, next key) REC key (enter key) SET key ( key, check time) Logger key ( key, check sampling rate) Sensor input socket (humidity and temperature sensor) K- / J-type input SD card slot RS-232 output Reset key... -
Page 6: Instructions
Manual Instructions How to select the function 1. Switch on the device by pressing the power key (2). If you hold the power key for more than 2 seconds, this will switch off the instrument. 2. The device has 4 functions: a) humidity and temperature b) dew point c) wet bulb... -
Page 7: Max / Min Function
Manual Max / Min function 1. This function saves the maximum and minimum values of a series of measurements. You can activate this function by pressing the REC key (4). “REC” is displayed. 2. When the “REC” icon appears in the display, you can retrieve the maximum value by means of the REC key (4). -
Page 8: Manual Data Logger Function
Manual 5.5.3 Manual data logger function a) Set the sampling rate to 0 seconds (see settings chapter). Press the REC key (4) once so that the REC symbol appears in the display. After that, press the logger key (6). The REC symbol will start flashing and you hear the beeper. -
Page 9: How To Transfer Data To A Pc
Manual How to transfer data to a PC 1. After saving data to the SD card by means of the meter, remove the SD card from its slot (9). 2. Insert the SD memory card into the card reader of your computer. 3. -
Page 10: How To Set The Date And Time
Manual 5.7.1 How to set the date and time 1. When “dAtE” is displayed, confirm your selection by means of the enter key (4). You can now set the value by means of the (5) and the keys (6). The year comes first. After setting the value, press the enter key (4) to get to the next value. -
Page 11: Mains Adaptor
Manual Mains adaptor In addition to battery power supply, the device can also be powered by a 9 V dc mains adaptor. To do so, please use the 9 V input socket (12). If you use the device with the mains adaptor, it is always on. Thus, the power key (2) will not work. -
Page 12: Batteries
Manual Batteries When the battery level indicator appears in the left corner of the display, the batteries must be replaced. 1. Loose the screws (14) of the battery compartment cover (13) on the rear side of the device. 2. Remove the batteries and replace them by 6 new AA batteries. Make sure that the polarity is correct when you insert the batteries.
