PCE-TC 24/PCE-TC 25
Please read this manual carefully
and keep it for reference before operation.
User's Manual
Thermometer
PCE Americas Inc.
711 Commerce Way
Suite 8
Jupiter
FL-33458
USA
From outside US: +1
Tel: (561) 320-9162
Fax: (561) 320-9176
info@pce-americas.com
www.pce-instruments.com/english
www.pce-instruments.com
PCE Instruments UK Ltd.
Unit 11
Southpoint Business Park
Ensign way
Hampshire / Southampton
United Kingdom, SO31 4RF
From outside UK: +44
Tel: (0) 2380 98703 0
Fax: (0) 2380 98703 9
info@pce-instruments.co.uk
Advertisement
Table of Contents
Related Manuals for PCE Health and Fitness PCE-TC 24
Summary of Contents for PCE Health and Fitness PCE-TC 24

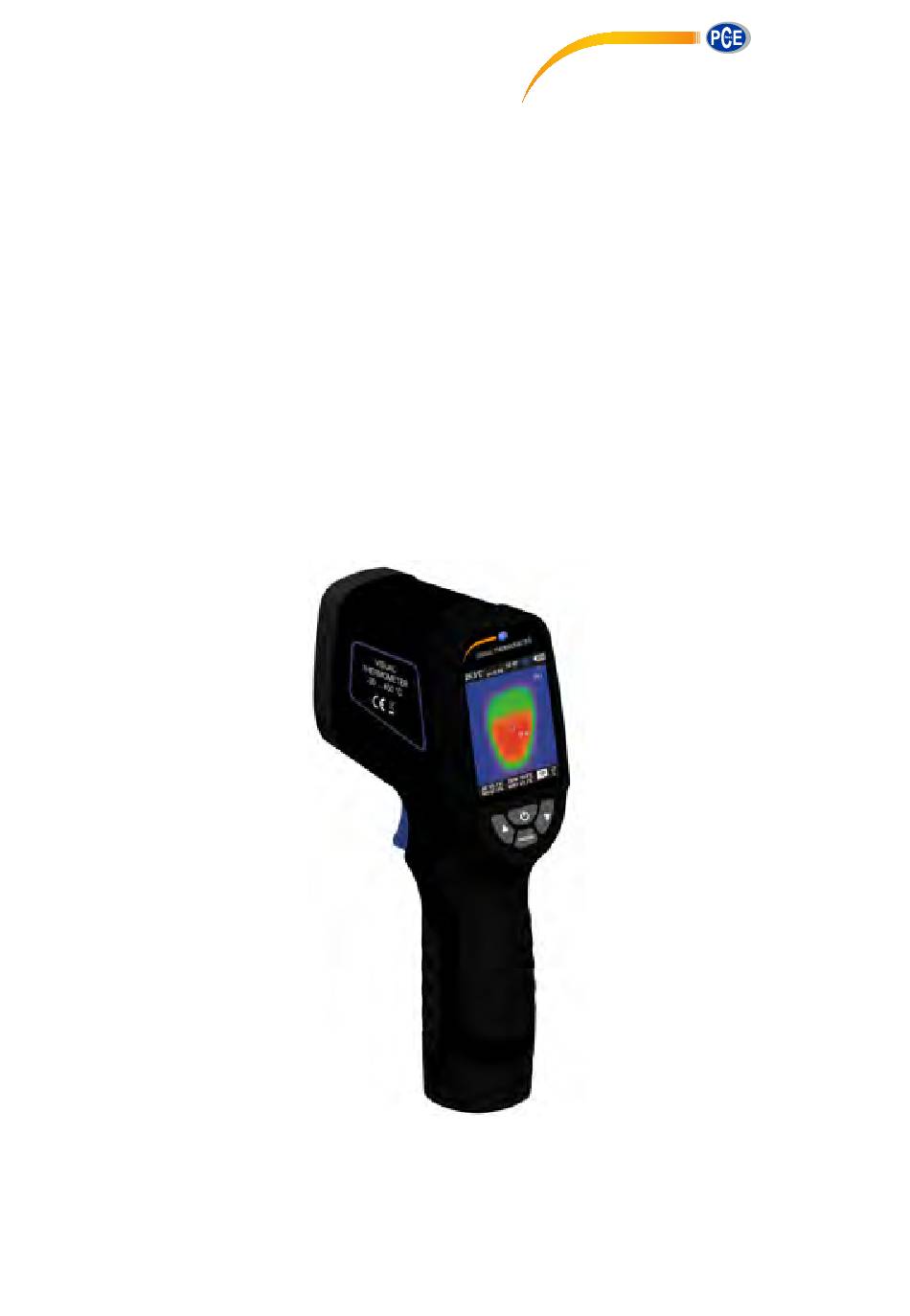

- Page 1 From outside UK: +44 Tel: (561) 320-9162 Tel: (0) 2380 98703 0 Fax: (561) 320-9176 Fax: (0) 2380 98703 9 info@pce-americas.com info@pce-instruments.co.uk www.pce-instruments.com/english www.pce-instruments.com User's Manual Thermometer PCE-TC 24/PCE-TC 25 Please read this manual carefully and keep it for reference before operation.
-
Page 2: Table Of Contents
Contents 1. Safety................1 2. Description............... 1 3. Features................2 4. Technical Data..............3 5 . Structure Description............4 6. Key Function Description..........7 7. Main Menu Description........... 8 8. Secondary Menu Description........... 9 9. Attention.................16 10. Emissivity Value of Common Material....... 17 11.Accessories..............18 12.Warranty................19... -
Page 3: Safety
1. Safety Before operating this instrument, please read the following instructions and use them according to the specifications. Do not use this instrument in explosive, steam, humid or corrosive environment. Use of environmental conditions: Relative humidity less than (non-condensation) 2) Operating temperature -5～40℃/23～104℉ Maintenance and cleaning 1) Repair or repair shall be carried out by professionals, not by instructions alone. -
Page 4: Features
real-time thermal image.the traditional single-point infrared thermometer needs to measure each component one by one, while the thermal image does not need to do so, thus saving the measurement time.Potential problems can be clearly displayed on the color display screen, which helps users quickly and accurately locate the center point to measure the cursor and temperature. -
Page 5: Technical Data
5. Hybrid imaging of visual and infrared images 6. Images capture saved in SD card 7. Connecting PC with USB can read the image stored in instrument directly. 8. USB power supply 4. Technical Data PCE-TC 24 PCE-TC 25 Infrared Temperature -20~380℃ /-4~716℉ Range Above 0 ℃, ±2% or reading ±2℃... - Page 6 35~70% RH; +3.0% RH Accuracy Others; +4.0% RH DEW Range -30～100℃/-22～212℉ ±1.0℃/1.8℉ （25℃/77℉, Accuracy 35～70%RH） WET Range -30～100℃/-22～212℉ ±1.0℃/1.8℉ （25℃/77℉, Accuracy 35～70%RH) Infrared Image 33X 33 (1089 pixels) Resolution Visual Image 300000pixels Resolution Field Angle 32* 32 degrees Minimum 0.5m Focal Length Thermal 0.15℃/0.27℉...
-
Page 7: Structure Description
Blending of the visual and the infrared View from full infrared to full visual in Options 25 % steps File Format Storage 8GB Micro SD Card Memory Scroll all saved images and view them on View the screen Auto Power 3minutes, 5 minutes, 10 minutes are optional Working... - Page 8 (4) Image capture key (5) Installation nuts for battery cover and tripod (6) Up button (7) Menu key/confirmation key (8) Down button (9) Power key/return key (10) TFT high definition color screen (11) SD card, USB interface...
-
Page 9: Key Function Description
6. Key Function Description 6.1" ” Function: hold down“ ” button about 3 seconds, and the instrument can be controlled to turn on and off. In setting mode, press“ ” button to exit the function. 6.2" ”Function: press“ ”button one time, the instrument enters the setting menu interface.In menu setting mode, press“... -
Page 10: Main Menu Description
6.4 Image capture function of trigger key; When the trigger key is pressed, YES and NO symbols will be displayed on the screen, the image will be saved by pressing “▲”, and the captured image will be cancelled by pressing “▼” if "SD card error! please check!"... -
Page 11: Secondary Menu Description
Backlight intensity regulation Temperature unit settings Automatic shutdown settings Memory card capacity Palette setting Emissivity settings Hot and cold markers 8. Secondary Menu Description 8.1 Time Settings Power on the meter, press "MODE" to enter the time setting mode as figure below, press the "▲"key or "▼" key to select the desired value. - Page 12 in turn.Pressing the power button to saves the time settings and return to main menu. 8.2 Storage Image Power on the meter, press the "MODE" key to enter into menu setting mode, select the image list as below by pressing "▼" key and "MODE" key to view the saved image.
- Page 13 8.3 Backlight Settings Power on the meter, press the "MODE" key to enter into menu setting mode, select the backlight settings icon by pressing "▼" key as shown in the figure below.after pressing the "MODE" key, the brightness of the screen is set by pressing the "▲"...
- Page 14 8.5 Memory Card Capacity Power on the meter, press the "MODE" key to enter into menu setting mode, select the memory card capacity by pressing "▼" key to view the remaining capacity of the existing memory card. 8.6 palette settings Power on the meter, press the "MODE"...
- Page 15 as shown in the figure below.The five modes of palette can be switched in turn: ink color, black and white, rainbow color, ocean blue and iron red. 8.7 Emissivity Settings Power on the meter, press the "MODE" key to enter into menu setting mode, select the emissivity setting mode by pressing pressing "▼"...
- Page 16 8.8 MAX/MIN Point Temperature Marker Power on the meter, press the "MODE" key to enter into menu setting mode, select the emisivity setting mode by pressing pressing "▼" key, press the "MODE" key to switch the point temperature label switch as below: ON: enable the MAX/MIN point temperature label, OFF: disable the MAX/MIN point temperature label.
- Page 17 Power on the meter, press the "MODE" key to enter into menu setting mode, select the timing automatic shutdown mode by pressing pressing "▼" key,select the timed automatic shutdown bar, as shown in the figure below, press the "MODE" key to switch off the function of automatic shutdown timing, which can be set in four modes: 1) OFF: None timed shutdown...
-
Page 18: Attention
9. Attention All objects radiate infrared energy, which is based on the actual surface temperature and surface radiation coefficient of the object.The product perceives the infrared energy on the surface of the object and uses the data to calculate the estimated temperature.many common objects and materials (such as painted metal, wood, water, skin and fabric) can radiate energy effectively, so it is easy to obtain relatively accurate... -
Page 19: Emissivity Value Of Common Material
10. Emissivity Value of Common Material Material Emissivity Material Emissivity Aluminum 0.30 Glass 0.90 to 0.95 Iron Bitumen 0.90~ 0.98 0.78 to 0.82 Oxides Concrete 0.95 Paint 0.80 to 0.95 Plastic Asbestos 0.95 0.85 to 0.95 Cement Ceramics 0.90~ 0.95 Paper 0.70 to 0.94 Brass... -
Page 20: Accessories
11.Accessories User’s manual Canvas bag SD card SD card reader USB cable 12. Warranty You can read our warranty terms in our General Business Terms which you can find here: https://www.pce-instruments.com/english/terms.
