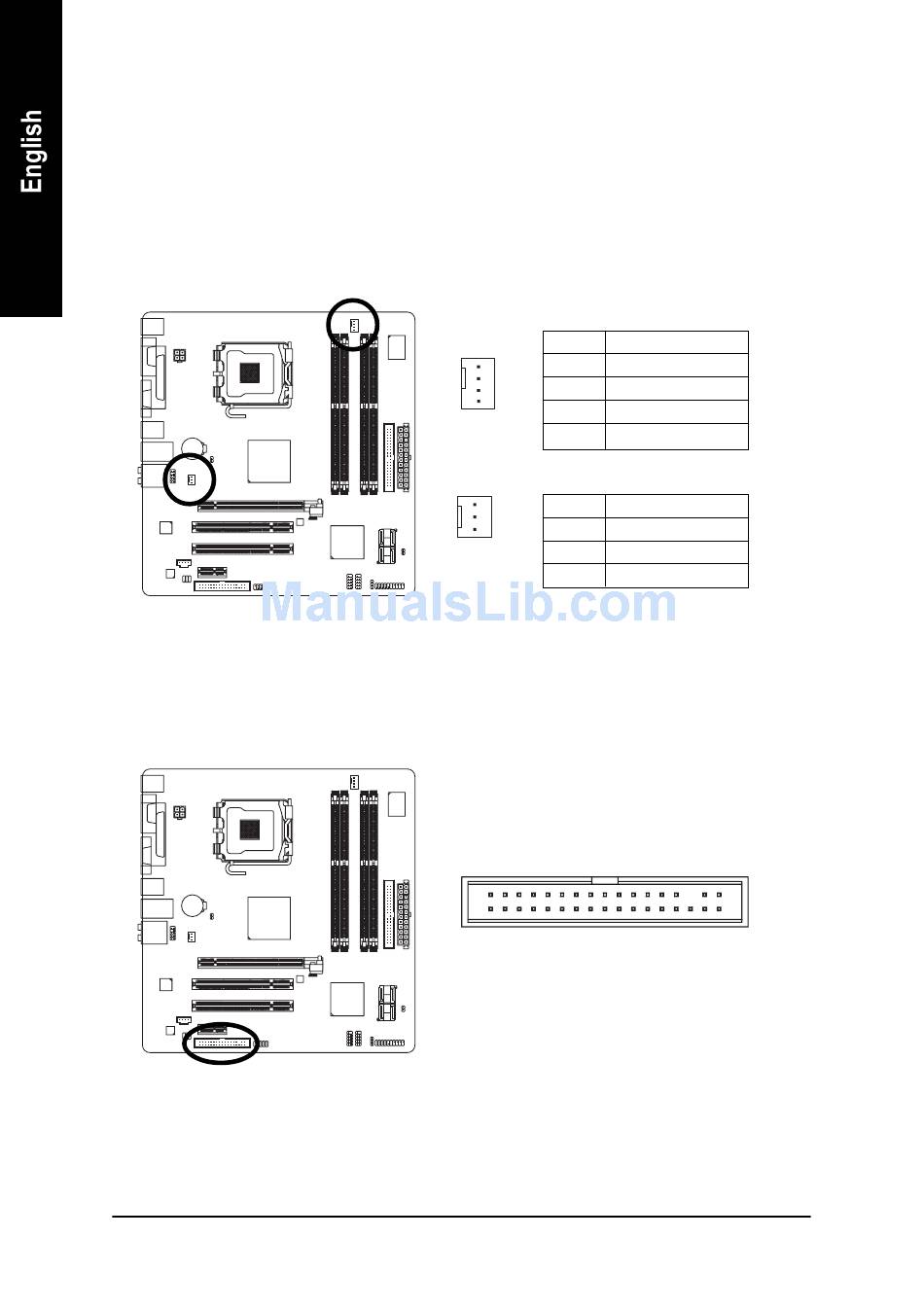

3/4) CPU_FAN/SYS_FAN (Cooler Fan Power Connector)
The cooler fan power connector supplies a +12V power voltage via a 3-pin/4-pin (only for
CPU_FAN) power connector and possesses a foolproof connection design.
Most coolers are designed with color-coded power connector wires. A red power connector wire
indicates a positive connection and requires a +12V power voltage. The black connector wire is
the ground wire (GND).
Remember to connect the CPU/system fan cable to the CPU_FAN/SYS_FAN connector to prevent
CPU damage or system hanging caused by overheating.
5) FDD (Floppy Connector)
The FDD connector is used to connect the FDD cable while the other end of the cable connects to the
FDD drive. The types of FDD drives supported are: 360 KB, 720 KB, 1.2 MB, 1.44 MB and
2.88MB. Before attaching the FDD cable, please take note of the foolproof groove in the FDD
connector.
GA-946GM-DS2/S2 (rev. 2.0) Motherboard
CPU_FAN:
Pin No.
1
1
2
3
CPU_FAN
4
SYS_FAN:
1
Pin No.
1
SYS_FAN
2
3
33
34
- 20 -
Definition
GND
+12V/Speed Control
Sense
Speed Control
Definition
GND
+12V
Sense
1
2
