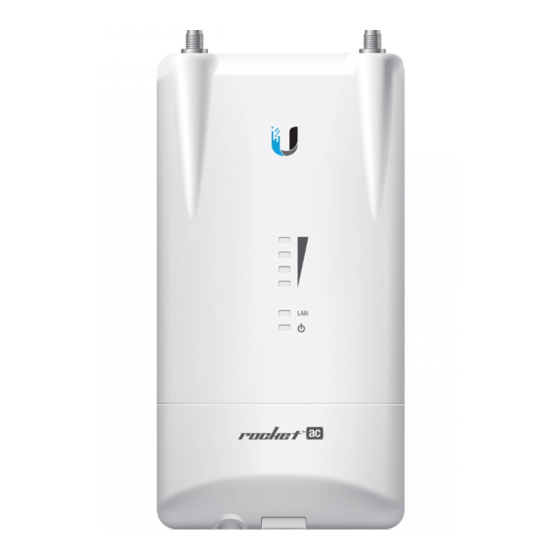

Ubiquiti Rocket AC R5AC-Lite Quick Start Manual
5 ghz carrier class airmax ac basestation
Hide thumbs
Also See for Rocket AC R5AC-Lite:
- Quick start manual (25 pages) ,
- Quick start manual (25 pages) ,
- Quick start manual (25 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ubiquiti Rocket AC R5AC-Lite
Summary of Contents for Ubiquiti Rocket AC R5AC-Lite

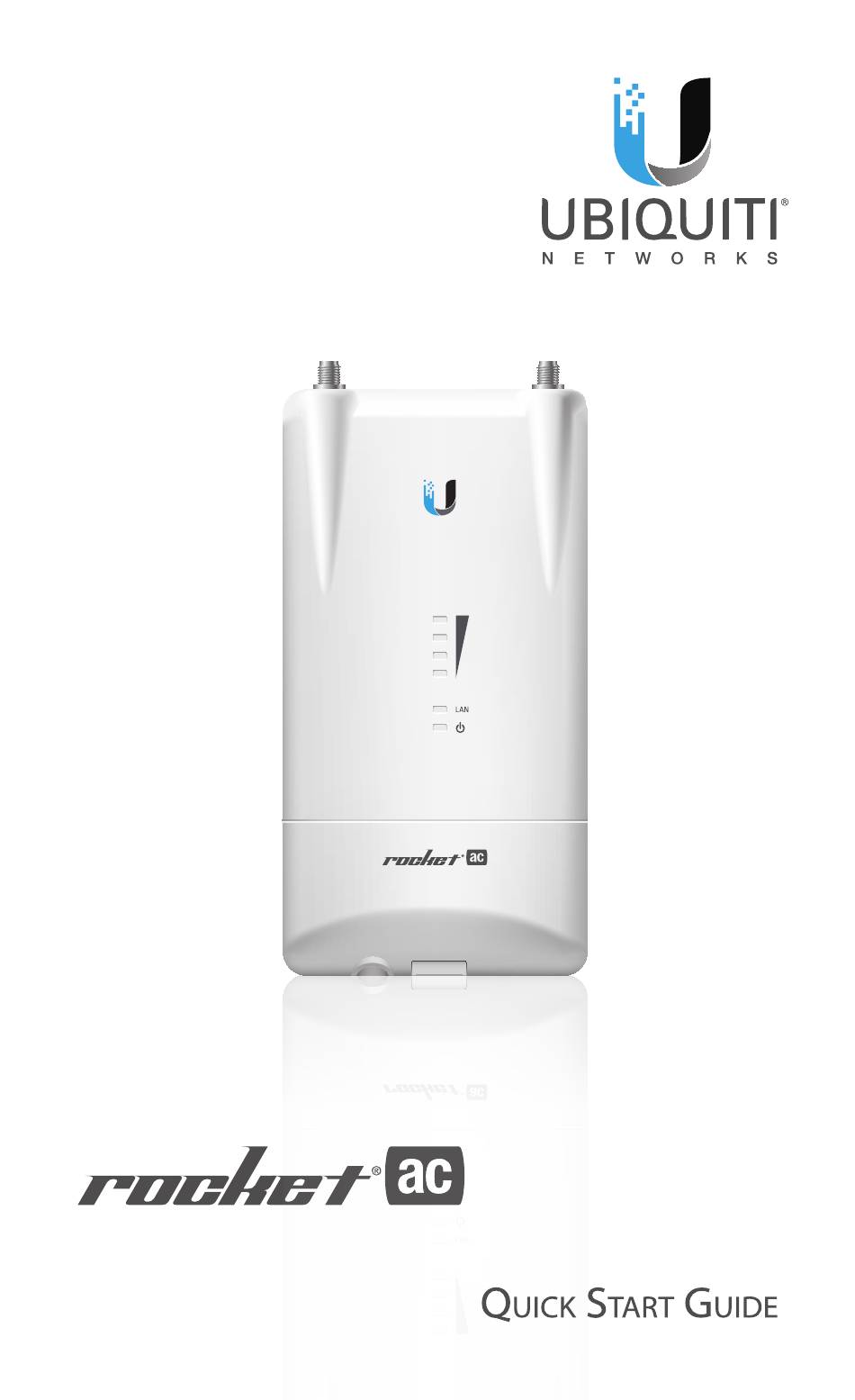

- Page 1 5 GHz Carrier Class airMAX ac BaseStation ® Model: R5AC-Lite...
-
Page 2: Package Contents
ESD events with industrial‑grade, shielded Ethernet cable from Ubiquiti Networks. For more details, visit www.ubnt.com/toughcable TERMS OF USE: Ubiquiti radio devices must be professionally installed. Shielded Ethernet cable and earth grounding must be used as conditions of product warranty. TOUGHCable ™... -
Page 3: Hardware Overview
Hardware Overview RP-SMA Antenna Connectors LED Panel Port Cover... - Page 4 LED Panel Signal In airOS®, you can modify the wireless signal strength threshold values for each LED on the Wireless tab under Signal LED Thresholds. The default values are shown below: LED will light blue when the wireless signal strength is equal to or above ‑65 dBm. LED will light blue when the wireless signal strength is equal to or above ‑73 dBm.
- Page 5 Ports Reset Button LAN Port This Gigabit Ethernet port is used to connect the power and should be connected to the LAN. Reset Button To reset to factory defaults, press and hold the Reset button for more than 10 seconds while the device is powered on.
-
Page 6: Hardware Installation
Hardware Installation The Rocket5ac Lite is designed to mount directly onto a Ubiquiti airMAX RocketDish antenna for Point‑to‑Point use or ™ an airMAX Sector antenna for Point‑to‑MultiPoint use. 1. Lift the release latch on the bottom of the Rocket and slide the Port Cover off. - Page 7 3. Replace the Port Cover. 4. Connect the RF cables (included with the antenna) to the RP-SMA Connectors located on top of the Rocket. 5. Attach the Rocket to the antenna. a. Align the mounting tabs on the back of the Rocket with the four mounting slots on the antenna.
- Page 8 6. Attach the other end of the RF Cables to the RF connectors on the antenna. Connecting to a RocketDish Connecting to a Sector Antenna 7. Attach the Protective Shroud. Align the hash mark on the top Slide the Protective Shroud of the shroud with the notch on down over the Rocket until it the RocketDish.
-
Page 9: Connecting Power Over Ethernet
Connecting Power over Ethernet 1. Connect the other end of the Ethernet cable from the device to the Ethernet port labeled POE on the Gigabit PoE Adapter. 2. Connect an Ethernet cable from your LAN to the Ethernet port labeled LAN on the Gigabit PoE Adapter. 3. - Page 10 For additional details on the airOS Configuration Interface, refer to the User Guide available at www.ubnt.com/download/airmax You can also manage your device using the Ubiquiti Network Management System. Setup using the UNMS app requires ™...
-
Page 11: Installer Compliance Responsibility
Since Ubiquiti Networks equipment can be paired with a variety of antennas and cables, the Antenna Gain, Cable Loss, and Output Power fields are provided to the professional... -
Page 12: Specifications
Specifications Rocket5ac Lite Dimensions 162 x 84 x 37 mm (6.4 x 3.3 x 1.5") Weight 250 g (8.82 oz) Networking Interface (1) 10/100/1000 Ethernet Port RF Connectors (2) RP‑SMA (Waterproof ) LEDs Power, LAN, (4) Signal Strength Enclosure Outdoor UV Stabilized Plastic Max. -
Page 13: Safety Notices
Safety Notices Read, follow, and keep these instructions. Heed all warnings. Only use attachments/accessories specified by the manufacturer. WARNING: Do not use this product in location that can be submerged by water. WARNING: Avoid using this product during an electrical storm. -
Page 14: Limited Warranty
Ubiquiti MAC label, or is missing any other original Ubiquiti label(s); or (VII) has not been received by Ubiquiti within 30 days of issuance of the RMA. In addition, the above warranty shall apply only if: the product has been properly installed and used at all times in accordance, and in all material respects, with the applicable Product documentation;... - Page 15 No Products will be accepted for replacement or repair without obtaining a Return Materials Authorization (RMA) number from UBIQUITI NETWORKS during the warranty period, and the Products being received at UBIQUITI NETWORKS’ facility freight prepaid in accordance with the RMA process of UBIQUITI NETWORKS.
-
Page 16: Limitation Of Liability
Limitation of Liability EXCEPT TO THE EXTENT PROHIBITED BY LOCAL LAW, IN NO EVENT WILL UBIQUITI OR ITS SUBSIDIARIES, AFFILIATES OR SUPPLIERS BE LIABLE FOR DIRECT, SPECIAL, INCIDENTAL, CONSEQUENTIAL OR OTHER DAMAGES (INCLUDING LOST PROFIT, LOST DATA, OR DOWNTIME COSTS), ARISING... - Page 17 Compliance Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions. This device may not cause harmful interference, and This device must accept any interference received, including interference that may cause undesired operation.
- Page 18 ISED Canada CAN ICES‑3(A)/NMB‑3(A) This device complies with ISED Canada licence‑exempt RSS standard(s). Operation is subject to the following two conditions: This device may not cause interference, and This device must accept any interference, including interference that may cause undesired operation of the device. This radio transmitter (IC: 6545A‑R5ACL) has been approved by ISED Canada to operate with the antenna types listed below with the maximum permissible gain and required antenna impedance for each antenna type...
- Page 19 RF Exposure Warning The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be located or operating in conjunction with any other antenna or transmitter. Les antennes utilisées pour ce transmetteur doivent être installé...
- Page 20 RoHS/WEEE Compliance Statement English European Directive 2012/19/EU requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product should be disposed of separately from regular household waste streams.
- Page 21 Español La Directiva 2012/19/UE exige que los equipos que lleven este símbolo en el propio aparato y/o en su embalaje no deben eliminarse junto con otros residuos urbanos no seleccionados. El símbolo indica que el producto en cuestión debe separarse de los residuos domésticos convencionales con vistas a su eliminación.
-
Page 22: Declaration Of Conformity
Íslenska [Icelandic] Hér með lýsir UBIQUITI NETWORKS yfir því að R5AC-Lite er í samræmi við grunnkröfur og aðrar kröfur, sem gerðar eru í tilskipun 2014/53/EU. Fullur texti ESB samræmisyfirlýsing er að finna á eftirfarandi netfangi: www.ubnt.com/compliance... -
Page 23: Online Resources
Malti [Maltese] B’dan, UBIQUITI NETWORKS, niddikjara li dan it-tip ta’ tagħmir tar-radju R5AC-Lite huwa konformi mad-Direttiva 2014/53/UE. Id-dikjarazzjoni tal-konformità tista’ tiġi kkonsultata minn www.ubnt.com/compliance Norsk [Norwegian] UBIQUITI NETWORKS erklærer herved at utstyret R5AC-Lite er i samsvar med de grunnleggende krav og øvrige relevante krav i direktiv 2014/53/EU. Den fulle teksten til EU-samsvarserklæringen er tilgjengelig på... - Page 24 New York, NY 10017 ©2013‑2018 Ubiquiti Networks, Inc. All rights reserved. Ubiquiti, Ubiquiti Networks, the Ubiquiti U logo, the Ubiquiti beam logo, airMAX, airOS, Rocket, RocketDish, TOUGHCable, and UNMS are trademarks or registered trademarks of Ubiquiti Networks, Inc. in the United States and in other countries.
