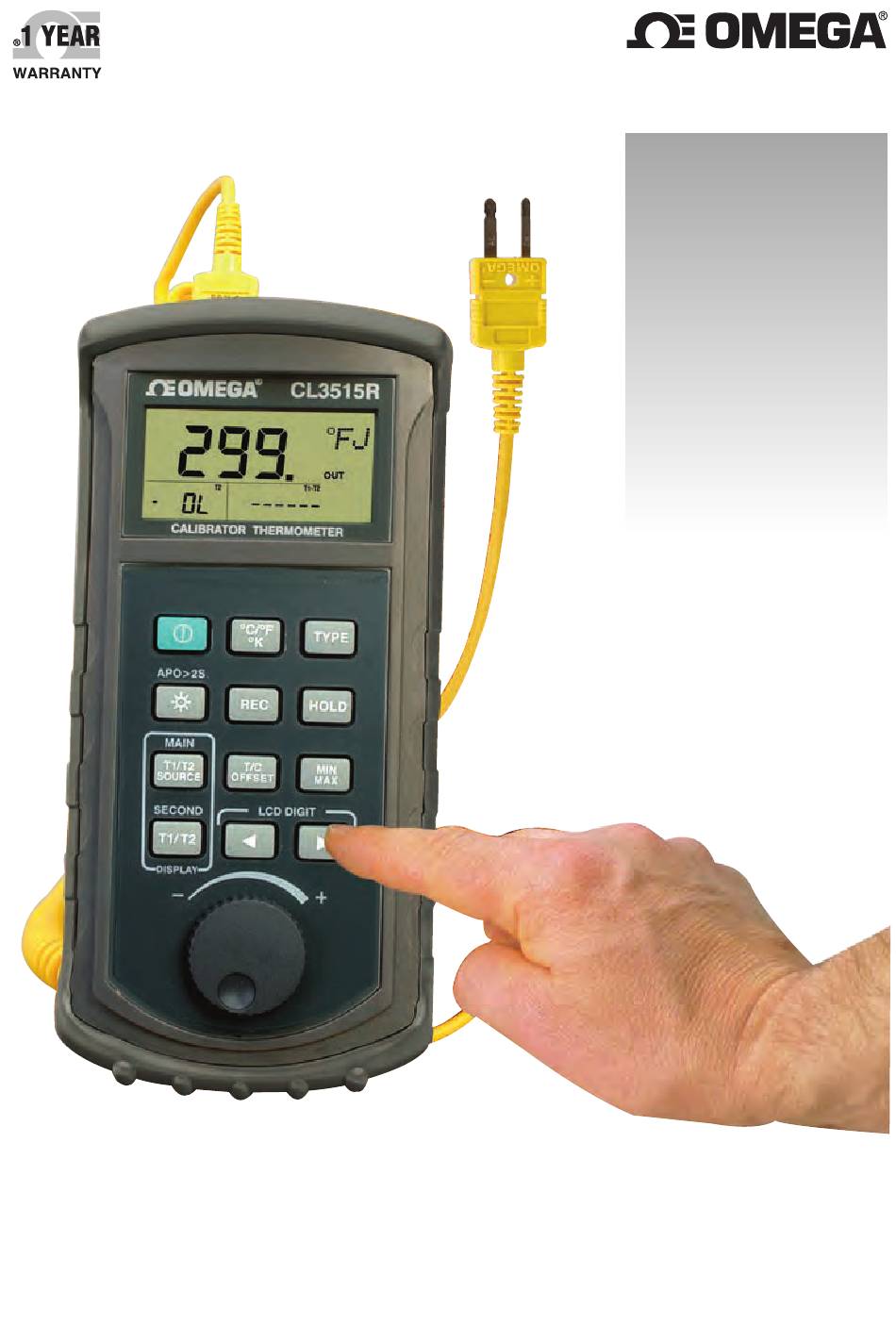

- Page 1 User’s Guide Shop online at omega.com e-mail: info@omega.com For latest product manuals: www.omegamanual.info CL3515R K/J/T/E/R/S/N/L/U/B/C Calibrator Thermometer...
- Page 2 Tel: (203) 359-1660 Fax: (203) 359-7700 e-mail: info@omega.com For Other Locations Visit omega.com/worldwide The information contained in this document is believed to be correct, but OMEGA accepts no liability for any errors it contains, and reserves the right to alter specifications without notice.
-
Page 3: Safety Information
CL3515R K/J/T/E/R/S/N/L/U/B/C Calibrator Thermometer INTRODUCTION This instrument is a 4 1/2 digit, compact-sized portable digital calibrator thermometer designed to use external K/J/T/E/R/S/N/L/U/B/C type thermocouples as temperature sensor. The thermometer features a dual thermocouple input, an adjustable T/C offset. The thermocouples types comply with the (N.I.S.T. Monograph 175 Revised to ITS 90 standard). -
Page 4: General Specifications
CL3515R K/J/T/E/R/S/N/L/U/B/C Calibrator Thermometer GENERAL SPECIFICATIONS Displays: There are three different display areas, Main Second and Third. The Main and Second display panels are 4 1/2 digit liquid crystal display (LCD) with maximum reading of 19999. The main is used for displaying the value of T1, T2 or output setting. The second displays T1 or T2 readings and the third T1-T2 and groups settings. -
Page 5: Specifications
CL3515R K/J/T/E/R/S/N/L/U/B/C Calibrator Thermometer SPECIFICATIONS ELECTRICAL Temperature Scale: Celsius or Fahrenheit user-selectable. Measurement Range: K-TYPE(0.1°) -200°C to 1372°C or -328°F to 2501°F J-TYPE(0.1°) -210°C to 1200°C or -346°F to 2192°F T-TYPE(0.1°) -250°C to 400°C or -418°F to 752°F E-TYPE(0.1°) -250°C to 1000°C or -418°F to1832°F R-TYPE(1°) - Page 6 CL3515R K/J/T/E/R/S/N/L/U/B/C Calibrator Thermometer THERMOCOUPLE SIMULATE RANGE Resolution: 0.1° (1° for R/S/B/C-TYPE) Accuracy: ±(0.3°C + 10uV) Accuracy: Specified for operating temperatures over the range of 18°C to 28°C (64°F to 82°F), for 1 year, not including thermocouple error. mV Range: Range: -25.00mV to 75.00mV...
- Page 7 CL3515R K/J/T/E/R/S/N/L/U/B/C Calibrator Thermometer 1. Power button “ ” The “ ” button turns the thermometer on or off. When entering REC mode, the power off function is disabled. Remark: The meter will run self calibration when the meter starts.
- Page 8 ” button to make right or left shifts to the desired position. Rotary knob to increase or decrease the values. Press T1/T2 SOURCE to save the one step setting. CL3515R can set 10 step, (Group 1 to 9 use software setting) press T/C OFFSET exit group set mode.
-
Page 9: Maintenance
CL3515R K/J/T/E/R/S/N/L/U/B/C Calibrator Thermometer Group out In the OUT mode, press T/C OFFSET less than two seconds. Rotary knob to select step. Press T/C OFFSET exit group out mode. WARNING To avoid possible electrical shock, disconnect the thermocouple connectors from the thermometer before removing the cover. - Page 10 CL3515R K/J/T/E/R/S/N/L/U/B/C Calibrator Thermometer I CL3515R Software Install Click Next Click Next...
- Page 11 CL3515R K/J/T/E/R/S/N/L/U/B/C Calibrator Thermometer Click Next Click Finish II Uninstall Star setting control new/remove program CL3515R...
- Page 12 CL3515R K/J/T/E/R/S/N/L/U/B/C Calibrator Thermometer III Software Operating Instructions Start Program CL3515R CL3515R Com Port Select Select CL3515R Connection Com Port.
- Page 13 CL3515R K/J/T/E/R/S/N/L/U/B/C Calibrator Thermometer IV Measurement 1. T1, T2, Channel Subtract (NONE, T1-T2, T2-T1) ALARM function Disable Hi enable Enables alarm Hi function, and it will become red flashing, when it is over Hi setting value. Lo enable Enables alarm Lo function, and it will become blue flashing, when it is below Lo setting value.
- Page 14 2. Calibrate Out Adjust output in real time. Value Set the output vale. Send Press “Send” CL3515R send out the output setting vale. 3. Auto Send Group Item Group 0 to Group 9. Step Item Send Step Item 0 to Step Item 9.
- Page 15 CL3515R K/J/T/E/R/S/N/L/U/B/C Calibrator Thermometer 4. Record Export Both Display drawing T1 and T2. Display drawing T1. Display drawing T2. State Value Setting Interval. Start File type *.txt or *.xls Quit Exit...
- Page 16 CL3515R K/J/T/E/R/S/N/L/U/B/C Calibrator Thermometer 5. Set State Read Read out the groups reading of CL3515R. Save Make the setting value read in CL3515R. EXIT 6. Meter Temperature Unit °C, °F, °K Type K, J, T, E, R, S, N, L, U, B, C, mV...
- Page 17 CL3515R K/J/T/E/R/S/N/L/U/B/C Calibrator Thermometer Type K, J, T, E, R, S, N, L, U, B, C, mV Step Item Step 1 to Step 10 Edit Default CL3515R setting values. Clear Clear the current group. Clear All Clear all group’s value.
- Page 18 CL3515R K/J/T/E/R/S/N/L/U/B/C Calibrator Thermometer Temperature Channel Hi, Lo Setting Hi, Lo Setting Subtract Hi, Lo Setting File Data Count 10000, 20000, 30000 8. T/C Offset Channel T/C Offset Offset ±5°C...
- Page 19 CONDITIONS: Equipment sold by OMEGA is not intended to be used, nor shall it be used: (1) as a “Basic Component” under 10 CFR 21 (NRC), used in or with any nuclear installation or activity;...
-
Page 20: Data Acquisition
Where Do I Find Everything I Need for Process Measurement and Control? OMEGA…Of Course! Shop online at omega.com TEMPERATURE M U Thermocouple, RTD & Thermistor Probes, Connectors, Panels & Assemblies M U Wire: Thermocouple, RTD & Thermistor M U Calibrators & Ice Point References M U Recorders, Controllers &...
