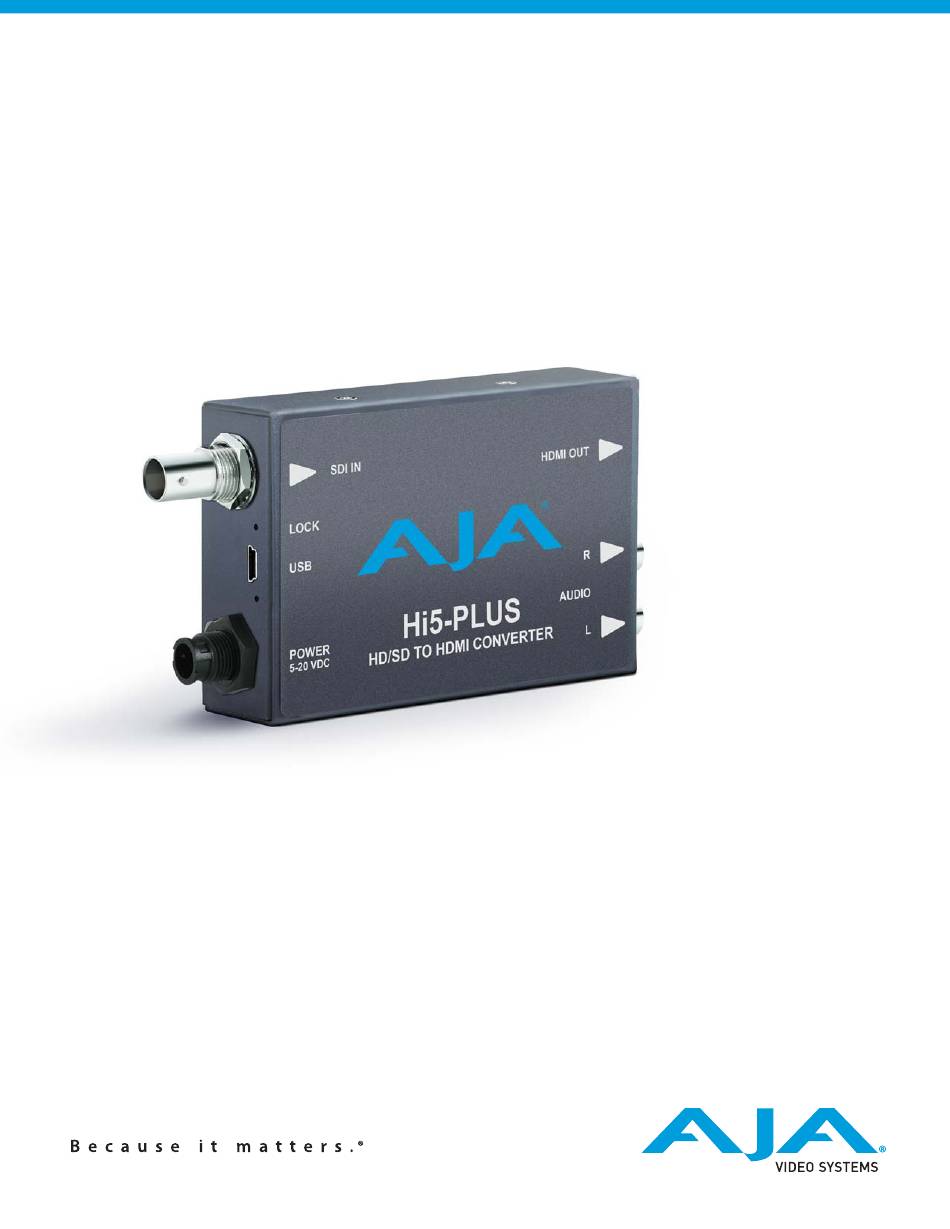

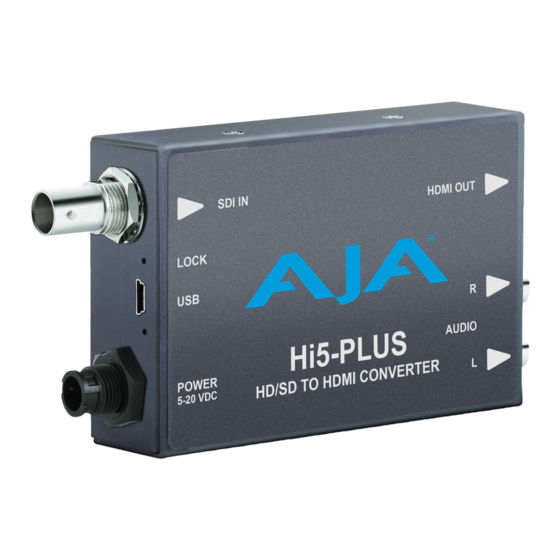

- Page 1 Hi5-Plus Mini-Converter 3G-SDI to HDMI Installation & Operation Guide Version 1.3r1 Published: January 11, 2016...
-
Page 2: Table Of Contents
USB Control and Setup—Using AJA Mini-Config........ - Page 3 Index............29 Hi5-Plus Mini-Converter v1.3r1...
-
Page 4: Notices
AJA® and Because it matters.® are registered trademarks of AJA Video Systems, Inc. for use with most AJA products. AJA™ is a trademark of AJA Video Systems, Inc. for use with recorder, router, software and camera products. Because it matters.™ is a trademark of AJA Video Systems, Inc. for use with camera products. -
Page 5: Chapter 1: Introduction
Chapter 1: Introduction Overview The Hi5-Plus converts 3G, HD, and SD-SDI to HDMI for driving HDMI monitors. Embedded SDI audio is supported in the HDMI output allowing a convenient single cable audio/ video connection. The Hi5-Plus provides 2 RCA style audio outputs for separate audio monitoring if needed. -
Page 6: I/O Connections
In most cases, manual configuration is not necessary. Advanced Mini-Config control supports color space and bit depth adjustments, and audio channel selection. Configuration set via Mini-Config is stored in the Hi5-Plus unit through subsequent power cycles. Installation Typically, Hi5-Plus installation consists of the following steps: 1. -
Page 7: Chapter 2: Operation
Chapter 2: Operation USB Control and Setup—Using AJA Mini-Config Your AJA Mini-Converter can be used right out of the box for some applications since it is designed to recognize inputs and perform standard actions automatically by default. However, to use its full capability, you must use AJA’s Mini-Config software application for PCs and Macs. -
Page 8: Mac Installation
5. Click Next to begin. Answer the questions in the subsequent dialogues. When finished, an AJA Mini-Config shortcut will be installed on the desktop, and you will be able to locate the Mini-Config application in the AJA folder in the Programs listing. -
Page 9: Running Mini-Config
(supplied) to the Mini-Converter. PC Startup To run Mini-Config on a PC, double-click on the AJA Mini-Config icon on your desktop, or open the AJA folder in the program list and click on the AJA Mini-Config application located inside the Mini-Config folder. -
Page 10: Operating Mini-Config
Screens are virtually the same on both PC and Mac, with subtle differences that reflect the general look of the platform environment. Running Multiple Mini- Mini-Config can manage multiple AJA Mini-Converters connected via USB—even when Converters they are of differing types. However it only connects to one at a time. You can choose which Mini-Converter you wish to control using the pulldown menu in the upper right hand corner. -
Page 11: Tabbed Screens
Mini-Converter type. When you Click on any of the tab buttons, the pane below the tabs will change to match your tab selection. Any changes you make are immediately applied and will be saved, overwriting previous settings. Hi5-Plus Mini-Converter v1.3r1 www.aja.com... -
Page 12: Input Screen
The following two settings only apply to 3G-B video in Dual Stream mode. • 1 x HD DS1 - use only Data Stream 1 as a single video. • 1 x HD DS2 - use only Data Stream 2 as a single video. Hi5-Plus Mini-Converter v1.3r1 www.aja.com... -
Page 13: Output Screen
Output Screen Click on the Output tab to view and make changes to the Hi5-Plus Output settings. Color Space Selects the desired output video format. Choose from the following: • Auto - selects the video format based on the input video and the attached device's capabilities. -
Page 14: Audio Screen
Audio Screen Click on the Audio tab to view and make changes to the Hi5-Plus audio settings. NOTE: When using the DVI video protocol no audio is output, since that protocol is video only. Input Source Choose which embedded audio channels are routed to the HDMI output. Eight channels are routed at a time. -
Page 15: Update Screen
This indicator bar shows the progress of firmware installation. Software Update 1. Check the AJA website for new Mini-Config software for your Mini-Converter. If new software is found, download it and uncompress the file archive (zip). Here is the URL... -
Page 16: Info Screen
Type: This is the factory set model name of the Mini-Converter. Assembly: This is the factory assembly number. Serial Number: This is the factory set unique serial number of your Mini-Converter. If you ever call AJA. Hi5-Plus Mini-Converter v1.3r1 www.aja.com... -
Page 17: Appendix A: Specifications
• 8-bit RGB 4:4:4 • 10-bit YCbCr 4:2:2 • 12-bit HDCP The Hi5-Plus does not encode the HDMI output with HDCP encryption. Audio Input SDI Audio • Eight channels (4 pairs) of embedded audio supported • Select Ch 1-8 or Ch 9-16 •... -
Page 18: Analog Audio
• Ch 1-2 (or 9-10), through Ch 7-8 (or 15-16) Physical Power • +5 to 20V DC regulated, 6 watts max • AJA external power supply model DWP-U-R1 (included): • 100-240V, 50/60Hz universal input Size • 4.6" x 2.4" x 1" (117mm x 61mm x 25mm.) -
Page 19: Appendix B: Safety And Compliance
Cet appareil numérique respecte les limites de bruits radioélectriques visant les appareils numériques de classe B prescrites dans le Règlement sur le brouillage radioélectrique du ministère des Communications du Canada. Cet appareil numérique de la Classe B est conforme à la norme NMB-003 du Canada. Hi5-Plus Mini-Converter v1.3r1 www.aja.com... -
Page 20: European Union And European Free Trade Association (Efta)
Benutzer für entsprechende Gegenmaßnahmen verantwortlich ist. Attention! Ceci est un produit de Classe B. Dans un environnement domestique, ce produit risque de créer des interférences radioélectriques, il appartiendra alors à l?utilisateur de prendre les mesures spécifiques appropriées. Hi5-Plus Mini-Converter v1.3r1 www.aja.com... -
Page 21: Recycling Notice
This is a Class B product based on the standard of the VCCI Council (VCCI V-3/2011.04). If this equipment is used in a domestic environment, radio interference may occur, in which case, the user may be required to take corrective actions. Hi5-Plus Mini-Converter v1.3r1 www.aja.com... -
Page 22: Translated Warning And Caution Messages
¡Advertencia! No utilice este dispositivo cerca del agua y límpielo solamente con un paño seco. Aviso! Não utilize este dispositivo perto da água e limpe-o somente com um pano seco. Avviso! Non utilizzare questo dispositivo vicino all'acqua e pulirlo soltanto con un panno asciutto. Hi5-Plus Mini-Converter v1.3r1 www.aja.com... - Page 23 Aviso! Não instale perto de nenhuma fonte de calor tal como radiadores, saídas de calor, fogões ou outros aparelhos (incluindo amplificadores) que produzam calor. Avviso! Non installare vicino a fonti di calore come termosifoni, diffusori di aria calda, stufe o altri apparecchi (amplificatori compresi) che emettono calore. Hi5-Plus Mini-Converter v1.3r1 www.aja.com...
- Page 24 Lo spinotto largo o il terzo polo sono forniti per motivi di sicurezza. Se la spina fornita non si inserisce nella presa di corrente, contattare un elettricista per la sostituzione della presa obsoleta. Hi5-Plus Mini-Converter v1.3r1 www.aja.com...
- Page 25 Avviso! Proteggere il cavo di alimentazione in modo che nessuno ci cammini sopra e che non venga schiacciato soprattutto in corrispondenza delle spine e del punto in cui esce dal dispositivo. Hi5-Plus Mini-Converter v1.3r1 www.aja.com...
- Page 26 è stato rovesciato del liquido è stato rovesciato o qualche oggetto è caduto nel dispositivo, il dispositivo è stato esposto a pioggia o umidità, non funziona correttamente o è caduto. Hi5-Plus Mini-Converter v1.3r1 www.aja.com...
- Page 27 Warning! Do not open the chassis. There are no user-serviceable parts inside. Opening the chassis will void the warranty unless performed by an AJA service center or licensed facility. Avertissement! Ne pas ouvrir le châssis. Aucun élément à l’intérieur du châssis ne peut être réparé...
-
Page 28: Warranty Information
Warranty Information Limited Warranty AJA Video Systems, Inc. (AJA Video) warrants that this product will be free from defects in materials and workmanship for a period of five years from the date of purchase. If a product proves to be defective during this warranty period, AJA Video, at its option, will either repair the defective product without charge for parts and labor, or will provide a replacement in exchange for the defective product. -
Page 29: Index
Installation on PC 7 Operation 10 Running Multiple Converters 10 Screen Description 11 Startup 9 Mini-Converter Documentation 7 Output Channel Count setting 14 Output Screen 13 RGB Range (input) setting 12 RGB Range (output) setting 13 Safety Statements 19 Hi5-Plus Mini-Converter v1.3r1 www.aja.com...
