1x4 HDMI TRUE 4K@60 SPLITTER
7.1
2.0a
SU R RO U N D
© 2015 Avenview Inc. All rights reserved.
The contents of this document are provided in connection with Avenview Inc. ("Avenview") products. Avenview makes no representations or
warranties with respect to the accuracy or completeness of the contents of this publication and reserves the right to make changes to specifications
and product descriptions at any time without notice. No license, whether express, implied, or otherwise, to any intellectual property rights is granted
by this publication. Except as set forth in Avenview Standard Terms and Conditions of Sale, Avenview assumes no liability whatsoever, and claims any
express or implied warranty, relating to its products are is strictly prohibited.
Control Your Video...
W/ EDID & HD Support
VIDEO WALLS
VIDEO PROCESSORS
VIDEO MATRIX SWITCHES
EXTENDERS
SPLITTERS
CABLES & ACCESSORIES
Model #: SPLIT-HDM2-T4K-4-V2
WIRELESS
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Avenview SPLIT-HDM2-T4K-4-V2
Summary of Contents for Avenview SPLIT-HDM2-T4K-4-V2
- Page 1 No license, whether express, implied, or otherwise, to any intellectual property rights is granted by this publication. Except as set forth in Avenview Standard Terms and Conditions of Sale, Avenview assumes no liability whatsoever, and claims any...
- Page 2 Product Application & Market Sectors Corporate House of Worship Military Residential Education Industrial Medical Aviation www.avenview.com...
-
Page 3: Table Of Contents
PACKAGE CONTENTS ....................... 4 BEFORE INSTALLATION ....................4 CABLE SPECIFICATION ....................5 APPLICATION DIAGRAM ....................6 PANEL DESCRIPTION ....................... 7 INPUT PANEL (SPLIT-HDM2-T4K-4-V2) BACK PANEL ........... 7 2.4.1 INPUT PANEL (SPLIT-HDM2-T4K-4-V2) FRONT PANEL ..........7 2.4.2 INSTALLATION(SPLIT-HDM2-T4K-4-V2) ..............…..8 GENERAL TROUBLESHOOTING ..................9 SPECIFICATIONS ...................... -
Page 4: Getting Started
• Any other causes which does not relate to a product defect. • Removal, installation, and set-up service charges. The SPLIT-HDM2-T4K-4-V2 port HDMI Splitter has been tested for conformance to safety regulations and requirements, and has been certified for international use. However, like all electronic equipments, the SPLIT-HDM2-T4K-4-V2 should be used with care. -
Page 5: Regulatory Notices Federal Communications Commission (Fcc)
DO NOT TAMPER WITH THE UNIT. DOING SO WILL VOID THE WARRANTY AND CONTINUED USE OF THE PRODUCT. THE VIDEO BOARDS ARE VERY SENSITIVE TO STATIC. PLEASE ENSURE IF RACK MOUNTED OR INSTALLED ON A SURFACE, IT SHOULD BE IN A GROUNDED ENVIROMENT. www.avenview.com Page 2... -
Page 6: Introduction

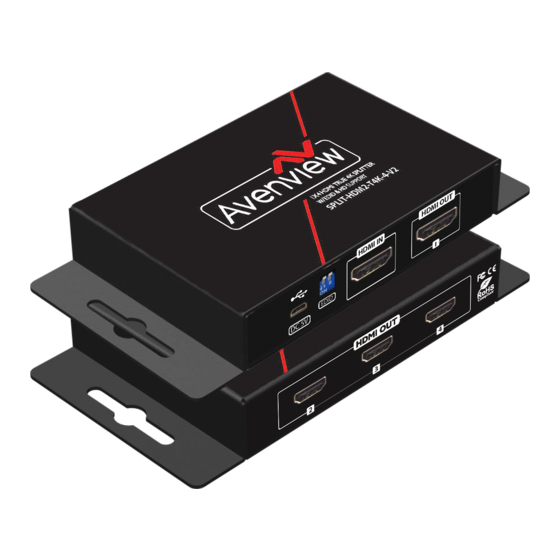

Audio Signals: DTS-HD Master Audio, Dolby TruHD Dolby Digital, DTS, DVD-Audio, LPCM, SACD, MPCM The SPLIT-HDM2-T4K-4-V2 includes one unit: 4 port Splitter with one (1) HDMI Input that can be up to 5m (16ft) and four (4) output ports which allows the user to extend over HDMI cable video and audio up to 5m (16ft). -
Page 7: Package Contents
PACKAGE CONTENTS Before you start the installation of the splitter, please check the package contents. SPLIT-HDM2-T4K-4-V2 Universal Power Adapter 5V 2A X1 Mounting Brackets User’s Manual BEBEFORE INSTALLATION • put the product in a level and stable location. If the product falls, it may cause damage or malfunction to components within the casing. -
Page 8: Cable Specification
CABLE SPECIFICATION We highly recommend achieving best results with our SPLIT-HDM2-T4K-4-V2 you acquire a high quality 26 or 24 AWG HDMI cable with the below specifications to maintain signal integrity and distances. Features • Simultaneous delivery of dual video and audio streams •... -
Page 9: Application Diagram
Page 6... -
Page 10: Panel Description
ANEL DESCRI TION 2.4.1 INPUT PANEL (SPLIT-HDM2-T4K-4-V2) Front Panel LED INDICATOR: Illuminates RED when the supplied 5V 2A power adapter is plugged into AC wall outlet. MICRO USB : USB Type B Female Connector for power and firmware upgrade EDID MODE: DIP switch allows the user to easily sync between source, unit and display timings. -
Page 11: Installation Split-Hdm2-T4K-4-V2
INSTALLATION SPLIT-HDM2-T4K-4-V2 To setup the Avenview SPLIT-HDM2-T4K-4-V2please follow the steps below to experience the best results: 1. Please ensure the connecting devices are powered off before proceeding. 2. Connect the HDMI video source to the Input (HDMI IN)- Example Blu-ray or 4K Digital player or Camera 3. -
Page 12: General Troubleshooting
Please ensure your source device and the displays are fully compatible before attempting to connect and provide a full solution. Extended display identification data EDID Readers -Monitor Asset Manager -http://www.entechtaiwan.com/util/moninfo.shtm High-bandwidth Digital Content Protection (HDCP) Compliance with source and display. www.avenview.com Page... -
Page 13: Specifications
SECTION 11: SPECIFICATIONS Item Description UNITS SPLIT-HDM2-T4K-4-V2 UNIT DESCRIPTION ULTRA HD/ 4k@60 SPLITTER HDCP COMPLIANCE HDCP 2.2 VIDEO BANDWIDTH Single-Link 600MHz (18 Gbps) HDMI SUPPORTED RESOLUTIONS HDR 4K2K@60 (4:2:0 10bits) / 4K2K@60 (4:4:4 8bits) HDMI CABLE 5-15meter (50feet) Dolby TrueHD, Dolby Digital plus and DTS-HD Master Audio... - Page 14 PARTS: During the Warranty Period of THREE (3) YEARS, Avenview will supply new or rebuilt replacements in exchange for defective parts of the product(s) at no cost if the product(s) is determined to have abide by Avenview’s published guidelines. Cost of Parts applicable to product(s) after Warranty Period. For part(s) costs, please contact support@avenview.com.
- Page 15 Disclaimer While every precaution has been taken in the preparation of this document, Avenview Inc. assumes no liability with respect to the operation or use of Avenview hardware, software or other products and documentation described herein, for any act or omission of Avenview concerning such products or this documentation, for any interruption of service, loss or interruption of business, loss of anticipatory profits, or for punitive, incidental or consequential damages in connection with the furnishing, performance, or use of the Avenview hardware, software, or other products and documentation provided herein.
