PERLICK RESIDENTIAL INSTALLATION MANUAL

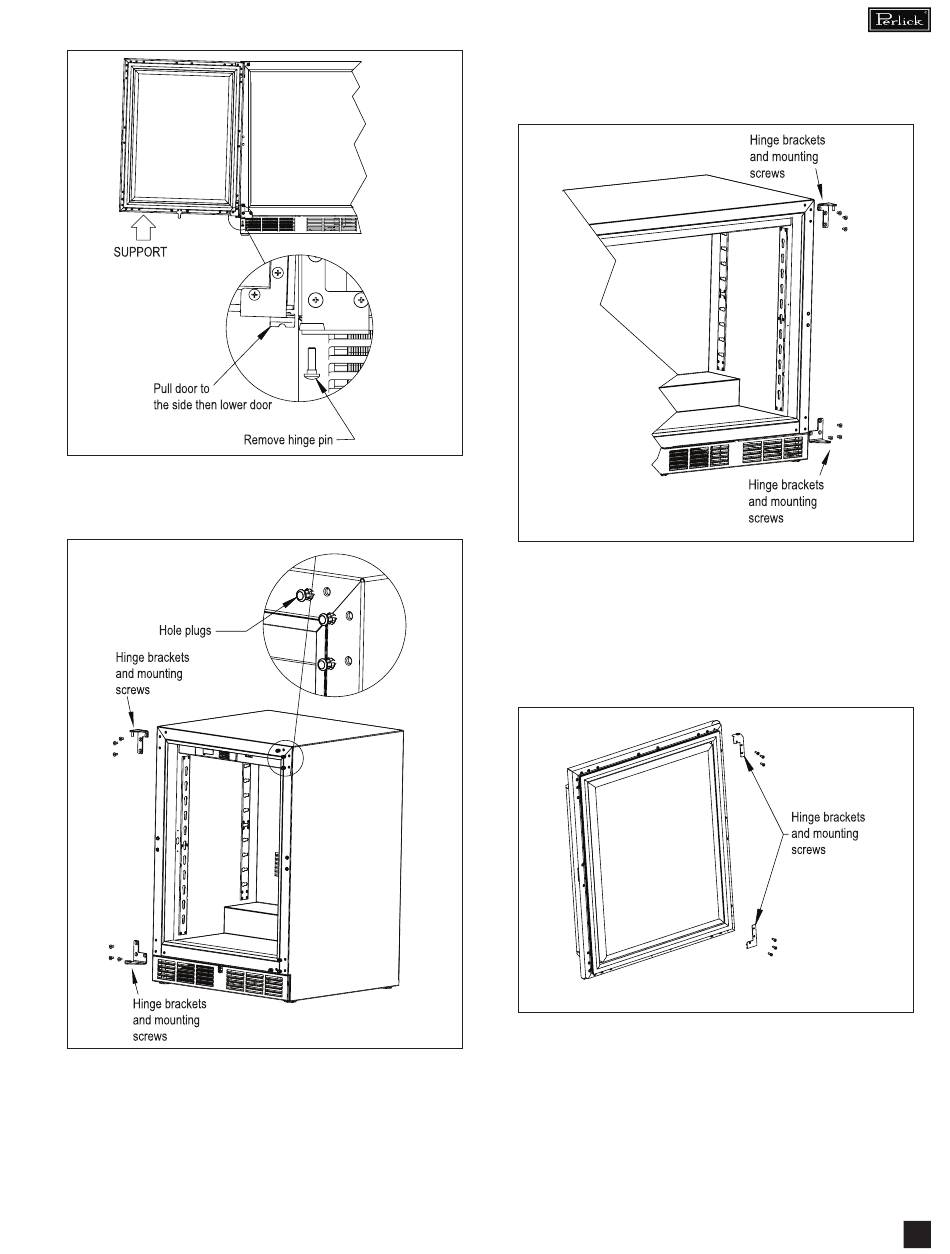

5). Using the screws removed in step 3, install the top and
bottom hinge brackets from the kit (Fig. 9).
Figure 7. Door Removal
Figure 9. Hinge Installation
6). Remove the top and bottom door hinge brackets and
the push plunger brackets (Fig. 10). Retain the screws for
later use.
Figure 10. Door Brackets
Figure 8. Hinge Removal
perlick.com
9
