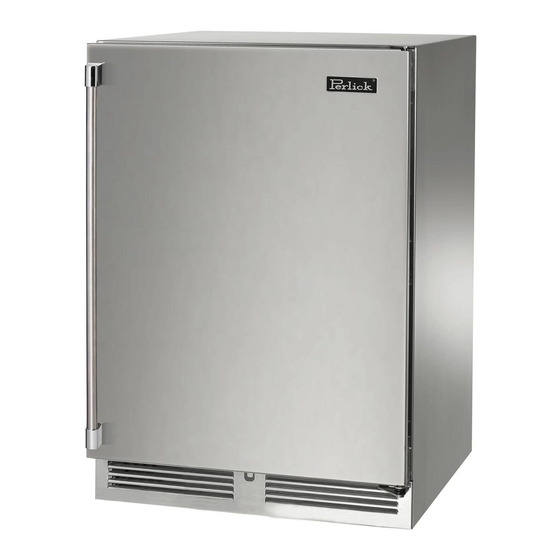

Perlick HP15 Manual
Hide thumbs
Also See for HP15:
- Operation & installation manual (38 pages) ,
- Installation instructions manual (18 pages) ,
- Installation manual (13 pages)
Table of Contents
Advertisement
Quick Links
PART NUMBER
1033280
INSTRUCTION START DATE
11/29/2021
AFFECTED MODELS
HP15, HP24, HC24 & HA24
KIT PART NUMBER(S)
RS-SK-15L, RS-SK-15R, RS-SK-24L, RS-SK-24R,
RS-SK-18L & RS-SK-18R
INSTRUCTION PURPOSE
WORK INSTRUCTIONS FOR STACKING 15" AND
24'' WITH DOOR CABINET UNITS.
TOOLS REQUIRED
PPE (GLOVES AND SAFETY GOOGLES)
PHILIPS SCREWDRIVER
DRILL, AND 5/32' DRILL BIT
Advertisement
Table of Contents
Related Manuals for Perlick HP15
Summary of Contents for Perlick HP15
- Page 1 PART NUMBER 1033280 INSTRUCTION START DATE 11/29/2021 AFFECTED MODELS HP15, HP24, HC24 & HA24 KIT PART NUMBER(S) RS-SK-15L, RS-SK-15R, RS-SK-24L, RS-SK-24R, RS-SK-18L & RS-SK-18R INSTRUCTION PURPOSE WORK INSTRUCTIONS FOR STACKING 15” AND 24’’ WITH DOOR CABINET UNITS. TOOLS REQUIRED PPE (GLOVES AND SAFETY GOOGLES) PHILIPS SCREWDRIVER DRILL, AND 5/32’...
- Page 2 OPERATION 1: DRILL OUT RIVETS CAUTION: THESE CABINETS ARE EXTREMELY HEAVY. ENSURE THAT YOU HAVE ENOUGH PEOPLE ON HAND TO HELP REPOSITIONING THE UNIT SO IT CAN BE DONE SAFELY AND WITHOUT DAMAGE. UTILLIZING A DRILL WITH A 5/32” DRILL BIT, DRILL OUT TOP ROW OF RIVETS ALONG BACK OF THE •...
- Page 3 OPERATION 3: ATTACHING MOUNTING PLATE CAUTION: THESE CABINETS ARE EXTREMELY HEAVY. ENSURE THAT YOU HAVE ENOUGH PEOPLE ON HAND TO HELP REPOSITIONING THE UNIT SO IT CAN BE DONE SAFELY AND WITHOUT DAMAGE. 1. WHILE CABINET LAYING ON ITS BACK, BRING MOUNTING PLATE AND ALIGN IT TO THREADED HOLES WHERE LEG LEVELERS WERE REMOVED IN STEP 2.
- Page 4 OPERATION 5: SCREWS REMOVAL 1. WITH A PHILLIPS HEAD SCREWDRIVER, REMOVE SCREWS (2X) FROM UNIT SIDE BRACKETS. 2. KEEP COMPONENTS (SCREWS) ASIDE FOR RE-ASSEMBLY LATER. 24 1/16” 23 7/8” SCREWS 68 15/16” OPERATION 6: INSTALL MOUNTING BRACKET 1. ALIGN MOUNTING BRACKET TO HOLES (4X), 2 HOLES FROM WHERE OLD GRILL WAS SECURED TO (STEP 2), AND THE OTHER TWO HOLES ARE THE ONES FROM PREVIOUS STEP (STEP 5).
- Page 5 OPERATION 7: INSTALL FEMALE LATCHES TO BRACKET 1. CAREFULLY INSTALL FEMALE LATCHES (2X) INTO MOUNTING BRACKET ONE ON EACH SIDE BY PRESSING DOWN FIRMLY AGAINST SQUARE OPENING IN BRACKET. MAKE SURE FEMALE LATCHES ARE ALL WAY IN AND ORIENTED AS PICTURE BELOW (VERTICAL OPENING). FEMALE LATCH (2X) OPERATION 8: PREPARING GRILL (LATCH &...
- Page 6 OPERATION 9: INSTALL STACKING GRILL 1. PLACE AND ALIGN STACKING GRILL TO HOLES LOCATED RIGHT ABOVE FEMALE LATCHES ON EACH SIDE OF MOUNTING BRACKET. 2. UTILIZING A PHILLIPS HEAD SCREWDRIVER, SECURE STACKING GRILL WITH TWO #10 SCREWS PROVIDED IN KIT. SCREWS (2X) HOLE OPERATION 10: FINAL STAGE...
