Intermediary Vesa Mount Plate (Optional) - Fujitsu STYLISTIC Q Series Operating Manual

Accessories for your Tablet PC (optional)

Intermediary VESA Mount Plate (optional)

The VESA mount kit includes the following parts: VESA mount
and four M2.5XL5-1 screws.
For Tablet PC models with VESA Shell (screw holes), an optional VESA mounting
attachment, the Intermediary VESA Mount Plate, can be attached to the rear.
Use the Intermediary VESA Mount Plate to secure the Tablet PC to a cart, counter,
or stand with the corresponding screw holes, for example.
• The Intermediary VESA Mount Plate cannot be used in combination
with the TPU cover with shoulder strap.
• Use the appropriate tool of the correct size when securing the screws.
• Keep the screws out of the reach of children.

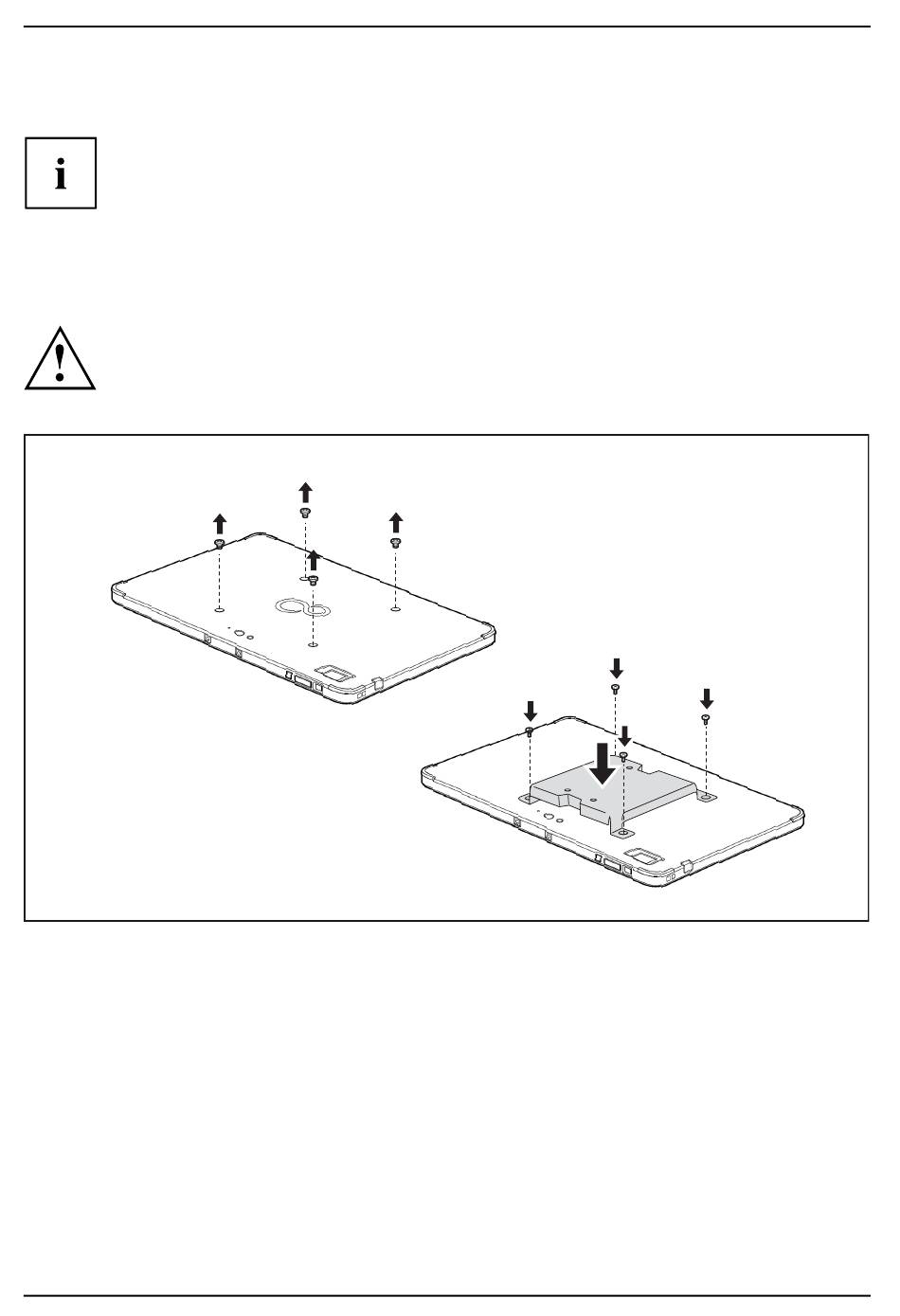

► Remove the covers from the screw holes on the rear of the Tablet PC (1).
► Position the Intermediary VESA Mount Plate on the Tablet PC (2). Make sure that the screw
holes of the Intermediary VESA Mount Plate and of the Tablet PC lie exactly on top of each other.
► Secure the Intermediary VESA Mount Plate with the screws (3).
