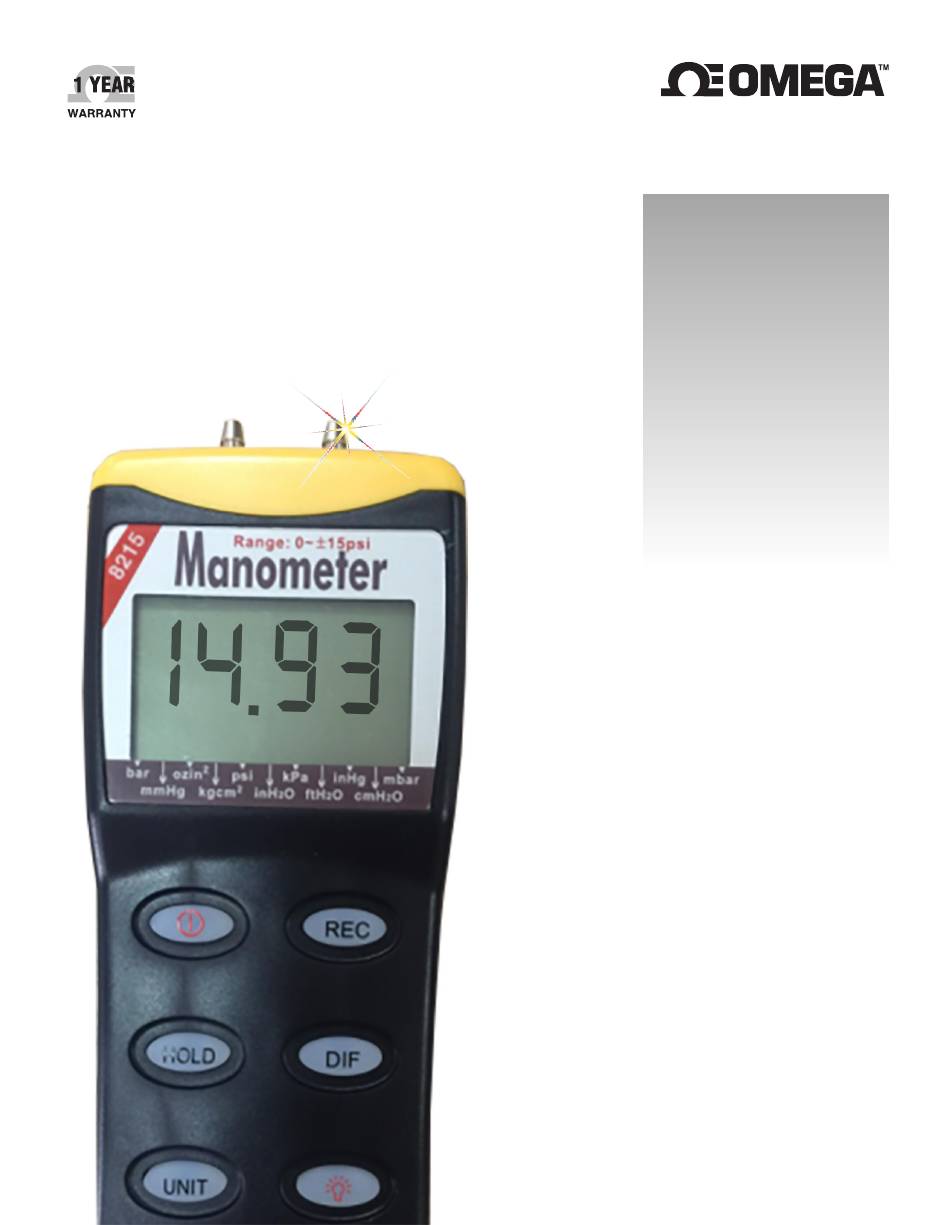

- Page 1 User’s Gui d e Shop online at omega.com e-mail: info@omega.com For latest product manuals: www.omegamanual.info HHP8200 SERIES Digital Manometer...
- Page 2 Fax: (203) 359-7700 e-mail: info@omega.com For Other Locations Visit omega.com/worldwide The information contained in this document is believed to be correct, but OMEGA accepts no liability for any errors it contains, and reserves the right to alter specifications without notice.
- Page 3 Introduction Section 1 - Introduction • The Meter will display all LCD segments when it is first turned on for approx. 3 seconds. Though you might see DATALOGGER, Y/M/D, REL, AVG... these segments are not available for these meters. • The LCD is divided into two distinct sections: One large (primary) top screen and one smaller right - bottom screen (Relative Clock).
- Page 4 Introduction Section 1.1 - Conversion & Resolution Resolution Resolution Resolution Resolution 1.000000 0.003 0.01 0.02 inch of H20 27.680517 0.068948 0.001 0.001 0.002 0.004 mbar 68.948253 mm of Hg 51.712016 oz/inch^2 16.000844 0.05 kg/cm^2 0.070309 0.001 0.001 0.002 0.004 6.894859 0.02 ft of H2O 2.306719...
-
Page 5: Section 2.1 - Controls And Indicators
Controls Section 2.1 - Controls and Indicators 1. Primary Data Screen displays pressure value. : Minus pressure display. "-" 3. MAX MIN : Pressure recorded. 4. REC : Starts recording mod and displays max/min. pressure recorded. 5. AVG : Average records (N/A). 6. -
Page 6: Section 2.2 - Auto Power Off (Sleep Function)
Controls " + " : Positive pressure hoseplug. " - " : Negative pressure hoseplug. : Freezes pressure reading. Hold 15. REL : Establish a relative zero for the primary screen information. (N/A) Section 2.2 - Auto Power Off (Sleep Function) This instrument will automatically shut off in approx. -
Page 7: Section 2.3 - Mode Options
Controls Section 2.3 - Mode Options Delete and replace with programmable user selectable start-up mode. The display will default to the mode last used. For your convenience, the meter defaults to the setting used during the last operation. The following table lists the last operation. The following table lists the modes of operation that can be invoked by pressing the button indicated. - Page 8 Controls Section 2.3 - Mode Options cont. Differential Pressure: A measure of the difference between two pressures, i.e. use differential pressure sensor to measure gauge pressure by leaving one process connection open to atmosphere and connecting the second sensor port to your system.
-
Page 9: Maintenance
Maintenance Section 3.1 - Maintenance Use a damp cloth and mild soap to clean the case of the Manometer, do not use harsh detergents or abrasives as these may mark the surface or damage the unit’s case with an adverse chemical reaction... -
Page 10: Section 4.1 - Calibration
Calibration Section 4.1 - Calibration Calibration mode is only applicable for a standard Manometer calibrator or any qualified meter calibration facility for annual calibration. - Page 11 Calibration Section 4.1 - Calibration cont. Check: (a) The calibration pressure...
-
Page 12: Section 4.2 - Manual Zero Setting
Calibration Section 4.1 - Calibration cont. Section 4.2 - Manual Zero Setting "0 "... -
Page 13: Section 5.1 - Troubleshooting
Troubleshooting Section 5.1 - TroubleShooting... - Page 14 Troubleshooting Section 5.1 - Troubleshooting cont.
-
Page 15: Section 5.2 - Replacing The Battery
Troubleshooting Section 5.2 - Replacing The Battery To replace the battery :... -
Page 16: Operation
Operation Section 6.1 - Operating Conditions Model Max. Pressure HHP8205 20 psi HHP8215 30 psi HHP8230 60 psi HHP8200 150 psi Pressure Range 0~±(5 or 15 or 30 or 100 psi) Resolution See page 8 data sheet Accuracy ± 0.3% of full scale at ± 25°C 7.2"... -
Page 17: Section 6.1 - Materials Supplied
Materials/accessories Section 6.1 - Materials supplied Section 6.2 - Optional Accessories Section 6.3 - Optional Accessories... -
Page 18: Section 6.4 - Warranty
Materials/Accessories Section 6.3 - Optional Accessories cont. Section 6.4 - Warranty This meter is warranted to be free from defects in material and workmanship for a period of one year from the date of purchase. This warranty covers normal operation and does not cover battery, misuse, abuse, alteration, tampering, neglect, improper maintenance, or damage resulting from leaking batteries. - Page 19 Where Do I Find Everything I Need for Process Measurement and Control? OMEGA…Of Course! Shop online at omega.com TEMPERATURE M U Thermocouple, RTD & Thermistor Probes, Connectors, Panels & Assemblies M U Wire: Thermocouple, RTD & Thermistor M U Calibrators & Ice Point References M U Recorders, Controllers &...
- Page 20 Department will issue an Authorized Return (AR) number immediately upon phone or written request. Upon examination by OMEGA, if the unit is found to be defective, it will be repaired or replaced at no charge. OMEGA’s WARRANTY does not apply to defects resulting from any action of the purchaser, including but not limited to mishandling, improper interfacing, operation outside of design limits, improper repair, or unauthorized modification.
