Summary of Contents for Omega HHP680

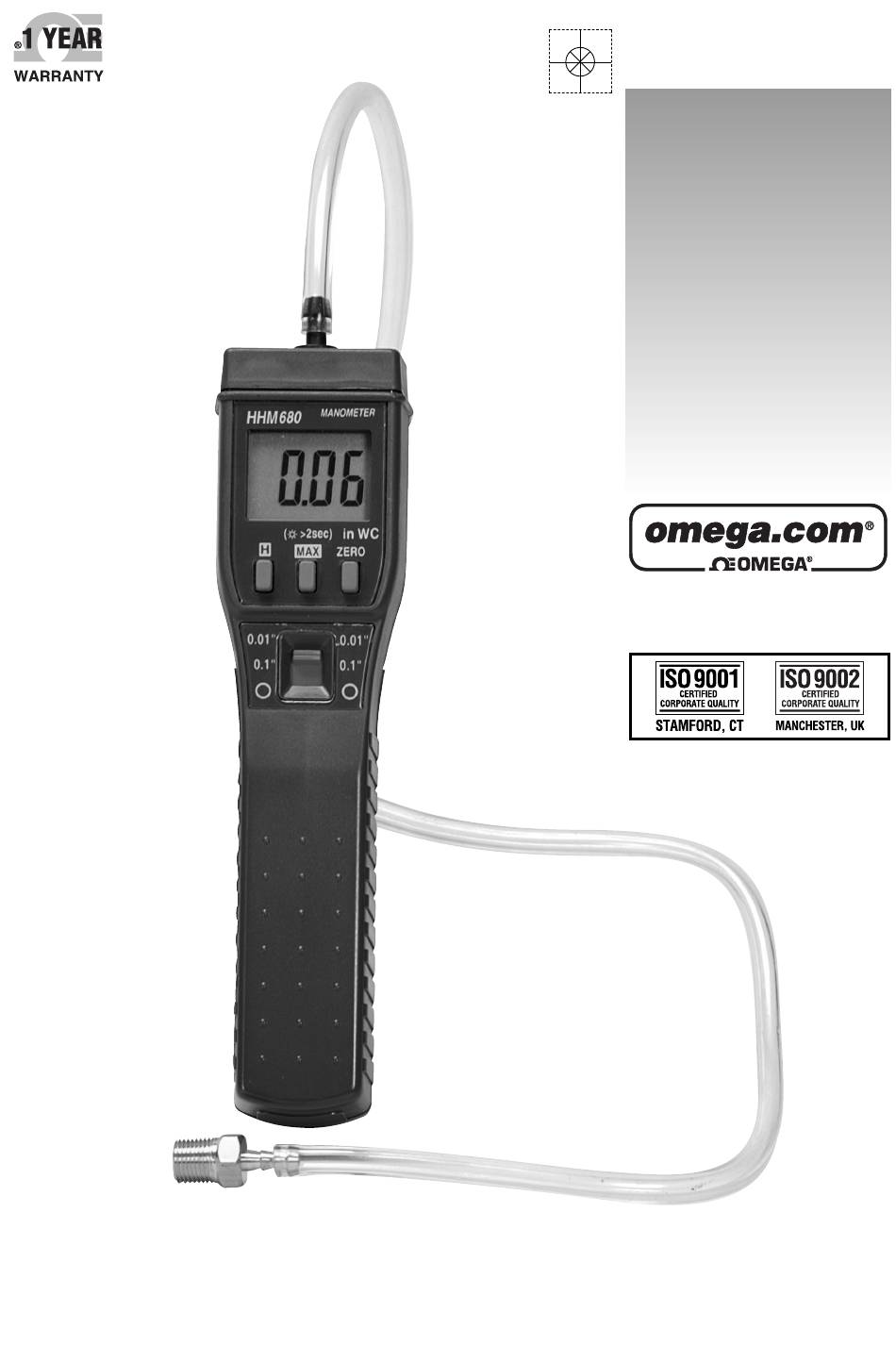

- Page 1 User’ s Guide Shop online at www.omega.com e-mail: info@omega.com HHP680 Manometer...
- Page 2 Toll Free in United Kingdom: 0800-488-488 e-mail: sales@omega.co.uk It is the policy of OMEGA to comply with all worldwide safety and EMC/EMI regulations that apply. OMEGA is constantly pursuing certification of its products to the European New Approach Directives. OMEGA will add the CE mark to every appropriate device upon certification.
-
Page 3: Maintenance
HHP680 Manometer Specifications General Display: ⁄ digit liquid crystal display (LCD). Low battery indication: The “ “ is displayed when the battery voltage drops below the operating level. Operating Temperature: 0 to 40°C (32 to 105°F). Operating relative humidity: 15 to 90% R. H., non-condensing. - Page 4 HHP680 Manometer Figure 1. Open Battery Cover 5. Install 4 pcs of new AAA 1.5V batteries (MN-2400), Alkaline type is recommended. 6. Slide battery cover back to its position and fasten the screw. Cleaning Periodically wipe the case with a damp cloth and detergent, do not use abrasives or solvents.
- Page 5 0.01" 0.01" 0.1" 0.1" Figure 2. Positions of Switch and Button HHP680 Calibration Procedure N O T E Only qualified technicians who have access to the items, as following should perform the following calibration procedure. Equipment: Pressure Calibrator, Pressure Pump Pressure Calibration 1.
- Page 6 HHP680 Manometer NOTES:...
- Page 7 OMEGA be liable for consequential, incidental or special damages. CONDITIONS: Equipment sold by OMEGA is not intended to be used, nor shall it be used: (1) as a “Basic Component” under 10 CFR 21 (NRC), used in or with any nuclear installation or activity;...
-
