Summary of Contents for Omega HHF1001A

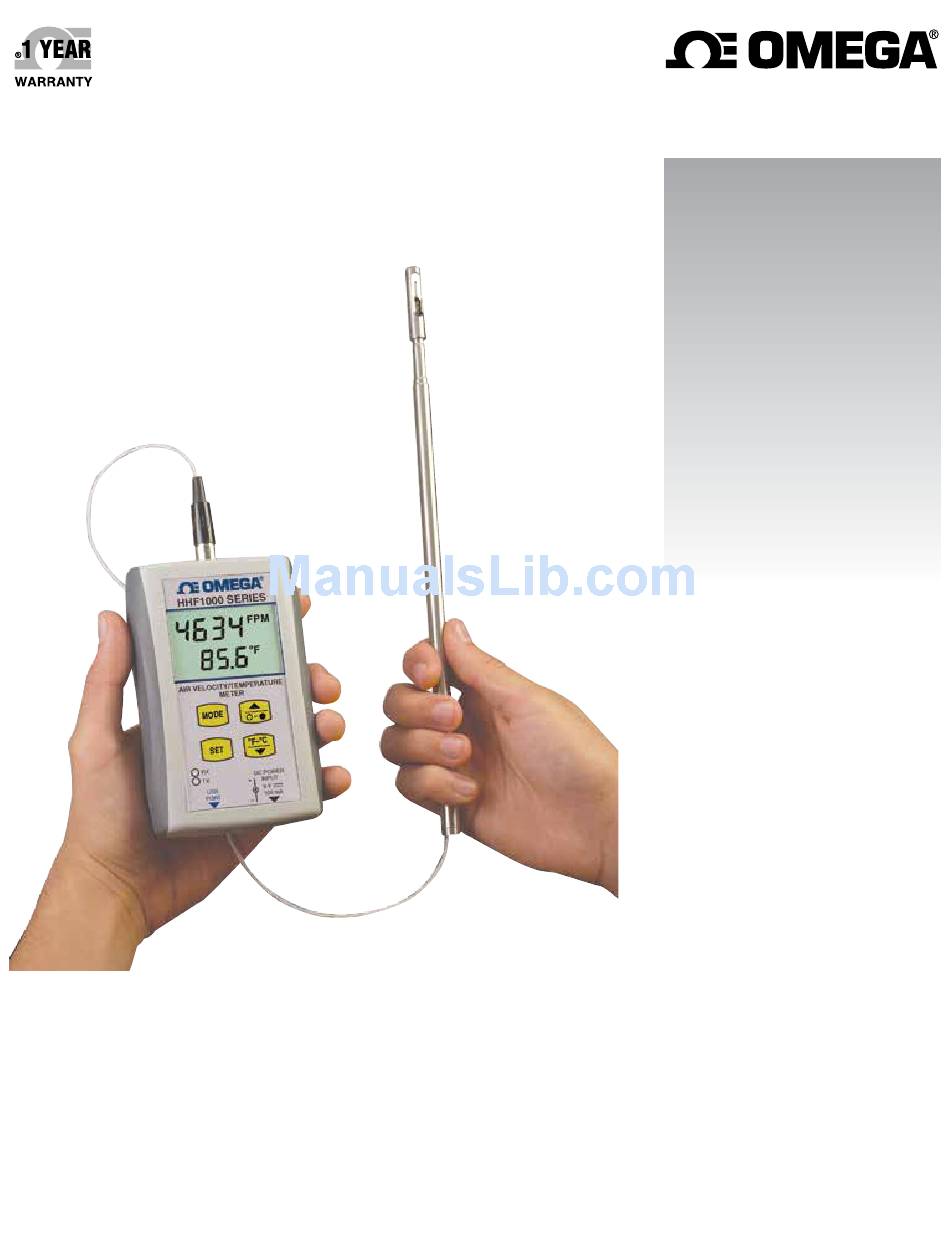

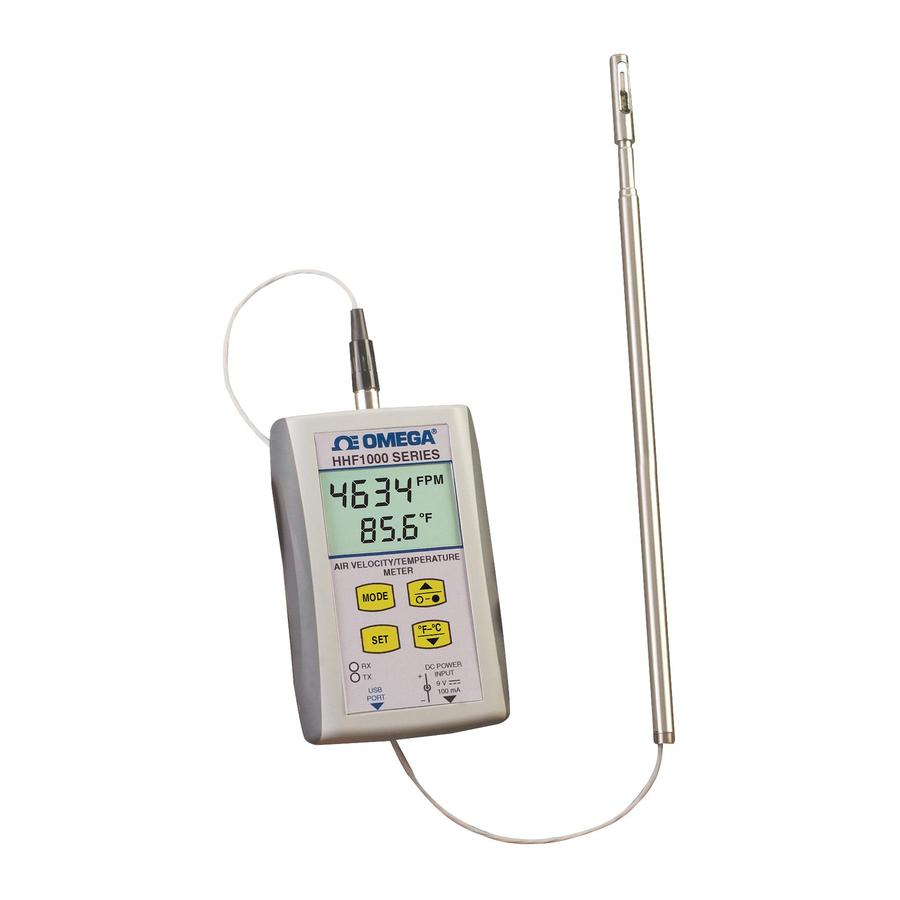

- Page 1 User’s Guide Shop online at omega.com e-mail: info@omega.com For latest product manuals: www.omegamanual.info HHF1000 SERIES Handheld Air Velocity/ Temperature Meter with Wireless PC Communication Option...
- Page 2 Fax: (203) 359-7700 e-mail: info@omega.com For Other Locations Visit omega.com/worldwide The information contained in this document is believed to be correct, but OMEGA accepts no liability for any errors it contains, and reserves the right to alter specifications without notice.
-
Page 3: Table Of Contents
HHF1000 SERIES Handheld Air Velocity/Temperature Meter Table of Contents Section Page Section 1 - Package Introduction ..............1-1 Section 2 - Installation ..................2-1 Section 3 - Main Operation ................3-1 Section 4 - PC Interface ..................4-1 Section 5 - Wireless PC Communications ............5-1 Section 6 - Specifications .................. - Page 4 HHF1000 SERIES Handheld Air Velocity/Temperature Meter List of Figures and Tables Figure Description Page Table 1 Piping Requirement ................2-2 HHF1000 General Dimensions And Controls ....... 2-3 HHF1000 Fixed Probe Mount and Remote Telescopic Probe ..2-4 Table 2 Keypad Functional Flow Chart ............3-2 Display Functional Flow Chart ............
-
Page 5: Section 1 - Package Introduction
The unit powers from a 9V battery or a 9Vdc adapter. The following table shows all the models of this product: Model No. Velocity Range FPM(m/s) Description HHF1001A 0 to 5000 (0 to 25.4) Air velocity/temperature meter, Fixed probe HHF1001R 0 to 5000 (0 to 25.4) - Page 6 Introduction The HHF1000 series air velocity/temperature meter is intended for use with clean air or Nitrogen ONLY. Do not use with other gases, as it will produce an un-calibrated and non-linear display measurement. In addition, air carrying dust or oil (such as found in blower/compressor systems that utilize oil) can lead to coating of the sensor and thus inaccurate readings.
-
Page 7: Section 2 - Installation
5. One way of installing the sensor probe into a flow stream is to utilize a compression fitting such as Omega’s SSLK-14-14 stainless steel compression fitting with Teflon ferrule, which allows adjustment of the insertion depth of the probe. -
Page 8: Table 1 Piping Requirement
Installation Recommended Straight Pipe T ypical Piping Remarks Length "A " Withou t With V anes Va ne s 15 D C losed Branch Elbow . Te e, 15 D Branch Pipe Elbow , 2 planes Long-radius 15 D bend s Elbow Long-radius bend s... -
Page 9: Hhf1000 General Dimensions And Controls
(1.310) (1.250) INPUT AIR/TEMP PROBE CONNECTION 77.77 (3.062) CASE SCREWS OMEGA FCC ID: OUR-XBEEPRO IC #4214A-XBEEPRO HHF1000 SERIES This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1- This device may not cause harmful interference. -
Page 10: Hhf1000 Fixed Probe Mount And Remote Telescopic Probe
Installation 304.8 (12.0) workable length SCORE LINE FOR FLOW ALIGNMENT AIR VELOCITY/ TEMPERATURE SENSOR 373.4 (14.7) FIXED PROBE MOUNT HHF1000 SERIES AIR FLOW AIR FLOW TO BE PERPENDICULAR TO THE SENSOR WINDOW 1/4" OD 304 STAINLESS STEEL TUBING LOCKING WITH INCH MARKING BUTTON EXTENDS FROM 254.0 (10) to 914.4 (36) inches TELESCOPIC AIR/TEMP PROBE... -
Page 11: Section 3 - Main Operation
Main Operation Section 3 - Main Operation The HHF1000 transmitter has a built-in LCD backlit display and keypad. Using the display and keypad, you can view the following parameters: • The air velocity & air temperature in real time (Main Display) •... -
Page 12: Table 2 Keypad Functional Flow Chart
Main Operation Table 2 shows the Keypad Functional Flow Chart. MODE MODE MODE MODE °F-°C °F-°C Operation Press Press Press Press Real Time Go to Max °F °C or Turn On/off Mode vice versa LCD Light °F-°C °F-°C Km/h Display Max Vel. Go to Min ____________ _____________... -
Page 13: Display Functional Flow Chart
Main Operation NOTE: The HHF1000 air velocity/temperature meter saves the following parameters in the non-volatile memory, so removing the power will not affect these settings: High & Low alarm air velocity set points & status (On or Off) Display Response time in msec, Cross sectional area in Square inches, Atmospheric Pressure in mmHg PRESS Km/h... -
Page 14: Section 4 - Pc Interface
PC Interface Section 4 - PC Interface The HHF1000 series comes with a Windows based user application. This application runs on Windows XP, Vista, and Seven. It allows you to perform the following functions: • Monitor and display the air velocity and temperature in real time, including line graph of the two channels. - Page 15 PC Interface Figure 4-1. Main Window Screen You can save the logged data into a data file. This file can be imported into Excel spread sheet for further analysis. Figure 4-2 shows a typical data file. You can save up to 144,000 sets of velocity and temperature data. 4-2 Figure 4-2.
-
Page 16: Typical Data File
PC Interface Figure 4-3 shows the Settings menu. You can set the following parameters: • COM port number on your PC. • Baud rate selection (9600 or 115200) Select 9600 for the HHF1001/ HHF1001W. • Turn the audible indicator on/off. •... -
Page 17: Section 5 - Wireless Pc Communications
Operation is subject to the following two conditions: 1) This device may not cause harmful interference; 2) This device must accept any interference received, including interference that may cause undesired operation. °F-°C OMEGA ENGINEERING, INC. omega.com Made in U.S.A. Stamford, CT 06907 DC POWER INPUT... -
Page 18: General And Mounting Dimensions
Wireless PC Communications Standby (SB) yellow indicator light - The yellow indicator light marked “SB” on the front of the receiver will blink continuously during normal operation. This indicates that the receiver is in Standby mode and is waiting for incoming data from the wireless transmitter. -
Page 19: Establishing Communications With Hhf1000 Screen
Wireless PC Communications 5.1 End Device Configuration The wireless transmitter (HHF1001x-W) has the following default settings: Data Transmission time interval: 2 seconds Unit ID Address: 01 You can change the transmission interval and the unit ID address of the wireless transmitter using this software application. -
Page 20: Options Menu Screen
Wireless PC Communications Figure 5-5. Options Menu Screen NOTE: The wireless transmitter (HHF1001X-W) will not transmit when connected to the USB port of a PC. You must disconnect the transmitter from the PC for wireless transmission. NOTE: 1. If the sensor probe is disconnected, or any sensor failure, the red LED blinks 3 times every 15 seconds. -
Page 21: Tc Central Main Menu Screen
Wireless PC Communications 5.2 TC Central Once the wireless transmitter is set using the end device configuration software, connect the wireless receiver (UWTC-REC1) to the PC USB port. Then run the TC central software. The software will recognize and connect to the wireless receiver. -
Page 22: Y Axis Configuration Screen
Wireless PC Communications Figure 5-7. Y Axis Configuration Screen Figure 5-8. Data Plotting/Logging Menu Selection Screen 5-6... -
Page 23: Air Velocity/Temperature Plot In Real Time Screen
Wireless PC Communications Figure 5-9. Air Velocity/Temperature Plot In Real Time Screen Figure 5-10. Data Log Screen 5-7... -
Page 24: Section 6 - Specifications
Specifications Section 6 - Specifications GENERAL Range Air Velocity: 0-5000 FPM (0 to 25.4 m/sec) Air Temperature: -40 to 93ºC (-40 to 199ºF) Accuracy Air Velocity: 1.5% Full scale Air Temperature: 0.5% Full scale Display Resolution Air Velocity: 1 FPM, 0.01 m/s, 0.01 MPH, 0.01 Km/h Air Temperature: 0.1 Degree Sensor Probe... - Page 25 Specifications Meter Case: ABS Plastic PC Interface: USB , 9600 baud rate, 8 bit data No parity, 1 stop bit General Dimensions (Case): 121.4 L x 77.7 W x 33.2 mm D (4.78 x 3.06 x 1.31”) Weight: 300g (0.66 lbs) WIRELESS PC INTERFACE Wireless Transmitter, HHF1001x-W RF Transmitter Carrier:...
-
Page 26: Section 7 - Approvals, Regulatory Compliance
Approvals, Regulatory Compliance Section 7 - Approvals, Regulatory Compliance FCC (Domestic Use: USA & Canada) (USA) FCC ID: OUR-XBEEPRO (CANADA) IC #4214A-EXBEEPRO This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1.) This device may not cause harmful interference. - Page 27 Department will issue an Authorized Return (AR) number immediately upon phone or written request. Upon examination by OMEGA, if the unit is found to be defective, it will be repaired or replaced at no charge. OMEGA’s WARRANTY does not apply to defects resulting from any action of the purchaser, including but not limited to mishandling, improper interfacing, operation outside of design limits, improper repair, or unauthorized modification.
- Page 28 Where Do I Find Everything I Need for Process Measurement and Control? OMEGA…Of Course! Shop online at omega.com TEMPERATURE M U Thermocouple, RTD & Thermistor Probes, Connectors, Panels & Assemblies M U Wire: Thermocouple, RTD & Thermistor M U Calibrators & Ice Point References M U Recorders, Controllers &...
