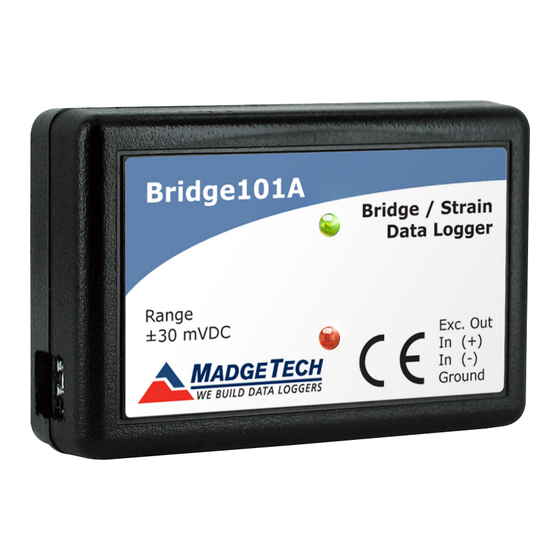

MadgeTech Bridge101A-30 Product Information Card

Description
Range
Resolution
Accuracy
1,000,000 readings; software configurable memory wrap
Memory
330,000 readings in multiple start/stop
Wrap Around
Sample Rate
LED Indicator
µ
Units
V, mV, V, Engineering Units specified through software
Reg. Interface
Baud rate
10 months typical at a 1 minute reading rate with a 350Ω load
Battery Life
2 years typical at a 1 minute reading rate with a 1000Ω load
Operating -40ºC to +80ºC (-40ºF to +176ºF),
Environment 0%RH to 90%RH non-condensing
Material
Dimensions 1.4" x 2.5" x 0.6" (36mm x 64mm x 16mm)
Weight
Approvals
*Bridge101A Range, Resolution and Accuracy
Nominal Range ±30 mV
Measurement Range ±30 mV
Resolution 1 µV
±0.01% FSR;
Calibrated Accuracy
±3 Microvolts
Input Range 0 to 2.5V
Reference Voltage 2.5 V
Battery Warning
WARNING: FIRE, EXPLOSION, AND SEVERE BURN HAZARD. DO NOT SHORT CIRCUIT,
CHARGE, FORCE OVER DISCHARGE, DISASSEMBLE, CRUSH, PENETRATE OR INCINERATE.
BATTERY MAY LEAK OR EXPLODE IF HEATED ABOVE 80°C (176°F).
Specifications subject to change.
1.800.561.8187
Bridge101A
See Table Below*
Yes
4Hz to 1 every 24 hours
Red and Green
IFC200
115,200
ABS plastic
0.8 oz (24 g)
CE
±150 mV ±1000 mV
±160 mV ±1200 mV
5 µV 50 µV
±0.01% FSR; ±0.01% FSR;
±16 Microvolts ±120 Microvolts
0 to 2.5 V 0 to 2.5 V
2.5 V 2.5 V
REV 13 2014.01.02
www.
Product Information Card
Bridge101A-30
30mV Bridge Data Logger
Bridge101A-150
150mV Bridge Data Logger
Bridge101A-1000
1000mV Bridge Data Logger
