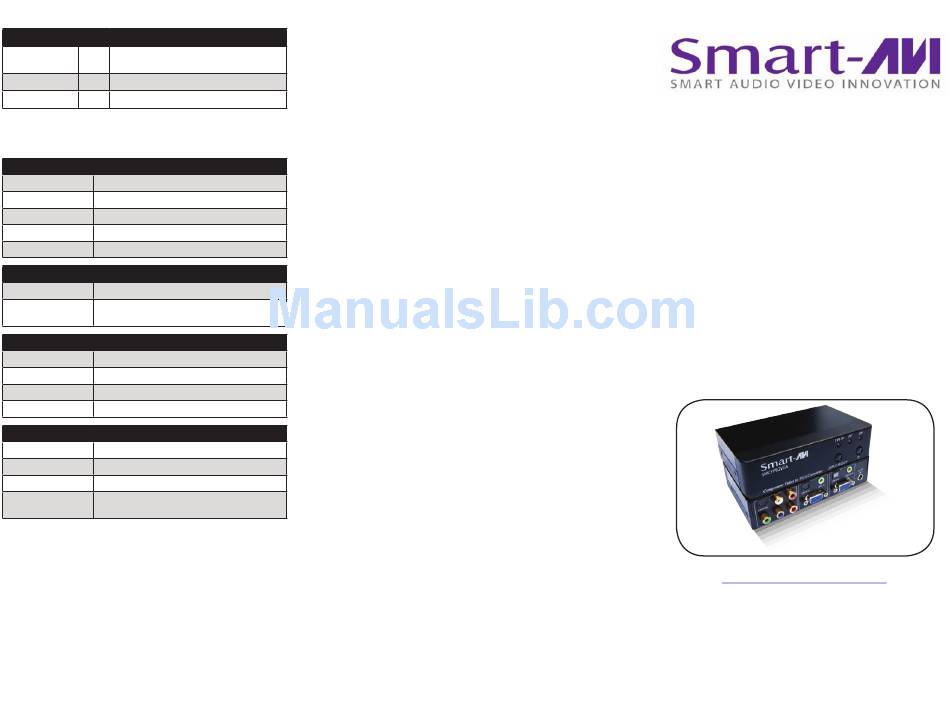

SMART-AVI SMCYPB2VGA Installation Manual

What's in the Box?
PART NO. QTY DESCRIPTION
SMCYPB2VGA 1 YPbPr to VGA active Converter Includes:
[CYPPB2VGA & (PS5VD2A)]
Power Supply 1 PS5VDC2A
User Manual 1

Technical Specifications

VGA VIDEO
Format VGA RGB Analog (75Ω, 0.7Vp-p)
Resolution Up to UXGA (1600x1200)
Input Interface (1) HD-15 Female
Output Interface (1) HD-15 Female
Sync H/V Separated (TTL)
COMPONENT VIDEO
Format (RCA) Y (75Ω, 1.0Vp-p), PbPr (75Ω, 0.7Vp-p)
Resolution 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
(24/25/30Hz)
AUDIO
Analog Input RCA R/L x 1 (10KΩ), 3.5mm x 1 (10KΩ)
Analog Output 3.5mm x 1 (10KΩ)
Digital Input Optical x 2
Digital Output Optical x 1
OTHER
Power External 5VDC2A @ 10W
Dimensions 5.5"W x 1.75"H x 3.5"D
Weight 0.6 lbs.
Approvals Device: CE, ROHS
Power Supply: C-UL US, CE
NOTICE
T h e i n f o r m a t i o n c o n t a i n e d i n t h i s d o c u m e n t
is subject to change without notice. Smart-AVI makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and fitness for any particular purpose.
Smart-AVI will not be liable for errors contained herein or for
incidental or consequential damages in connection with the
furnishing, performance or use of this material.
No part of this document may be photocopied, reproduced or
translated into another language without prior written consent
from Smart-AVI.
Installation
Manual

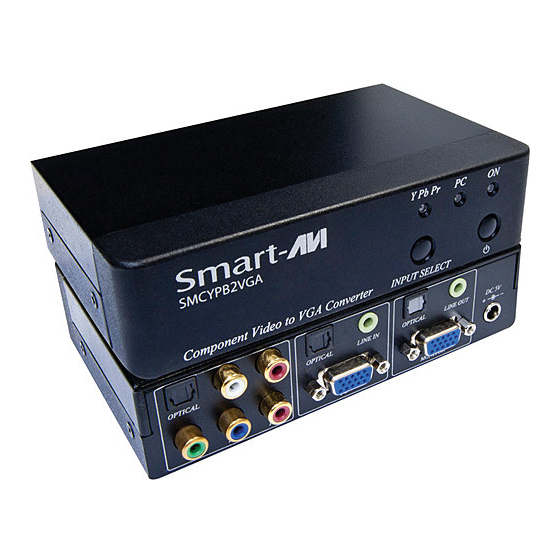

SMCY P B2VGA

Component Video YPbPr

to VGA Converter
2-Port Switch with Audio
