Page 1: Installation Instructions

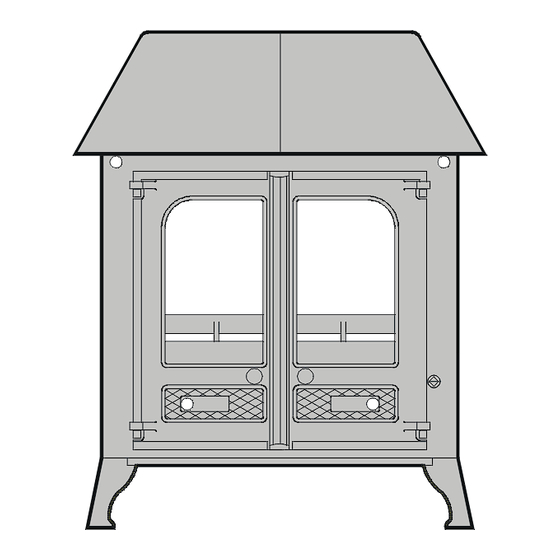

Charnwood Country 8 and Country 12 Flat Top, Low Canopy & High Canopy Multifuel Roomheaters Operating Installation Instructions Bishops Way, Newport, Isle of Wight, PO30 5WS, U.K. Tel. (01983) 537799 Fax. (01983) 537788... -
Page 2: Door Operation
Page 3 Country 10/93 MULTIFUEL GRATE Your Charnwood stove is fitted with a multifuel grate which enables both solid fuels and wood to be burned equally effectively. The grate has two positions:- 1) In the solid fuel position the grate... -
Page 3: Ash Clearance
To make ash removal easier there is a special Charnwood ash carrier available. This may be purchased from your supplier or, in case of difficulty, from ourselves. -
Page 4: Overnight Burning
each stage for the flames to appear above the fire. After a period of slumbering always turn the air control up to maximum and wait until flames appear above the fuel bed before opening the doors. Burning coal will produce more soot deposits than other fuels, especially if the fire is run at low levels for long periods. -
Page 5: Troubleshooting
First remove the side fire plates, front firebars and the throat plate. Then sweep the chimney ensuring that soot is removed from all horizontal surfaces after sweeping. In situations where it is not possible to sweep through the appliance the installer will have provided alternative means, such as a soot door. -
Page 6: Hearth And Fire Surround
Solid Fuel burning appliances, flues and chimneys must also be observed. PERFORMANCE The output of the Country 12 LC and FT is 12.0 kW (40,900 Btu/h), the Country 12 HC output is 12.5kW (42650 Btu/h). The output of the Country 8 LC and FT is 8.0 kW... -
Page 7: Hot Water System
FITTING THE OPTIONAL ADD-IN BOILER The boiler for the Country 12 replaces the rear firebrick, the boiler for the Country 8 replaces the rear and righthand side firebricks. Before fitting the boiler, remove the... -
Page 8: Connections To Flues
Gaps between the boiler and the firebricks should be filled with fire cement. Replace the back fireplate, the side fireplates, the front firebar and the throat plate. Connect the boiler to the heating system ensuring that the flow pipe rises from the boiler. Fill the system with water and check for leaks. - Page 9 Country 8 HC (High Canopy) Country 8 LC (Low Canopy) Country 8 FT (Flat Top) N.B. If the optional extension legs are fitted then all vertical dimensions will be increased by 62mm Country 8 Dimensions (All Dimensions Are In mm) Page 10 Country 10/93...
- Page 10 Country 12 HC (High Canopy) Country 12 LC (Low Canopy) Country 12 FT (Flat Top) Country 12 Dimensions (All Dimensions Are In mm) Page 11 Country 10/93...
