Installation
Instructions
AND
Use and Care
Guide
IMPORTANT:
Read and save these instructions.
IMPORTANT:
Installer: Leave this guide with
homeowner.
Homeowner: Keep this guide for
future reference. Save this guide for
local electrical inspector's use.
A Note to You
Please read the Installation Instructions
and Use and Care Guide. It contains
important information about how to install,
operate and maintain your hot water
dispenser properly and safely. Please
read it carefully.
Also, please complete and mail the
Product Registration Card provided
with your hot water dispenser. This card
helps us notify you about any new
information for your hot water dispenser.
Hot Water Dispenser
®
Record your model's information
Write down the following information about your hot water dispenser to better
help you obtain assistance or service if you ever need it. You will need to know
your complete model number and serial number. You can find this information
on the model and serial number label/plate.
If you need assistance or service, first see the "Troubleshooting" section of this
book. After checking "Troubleshooting," additional help can be found by
checking the "Requesting Assistance or Service" section.
Builder/dealer name
Address
Phone number
Model number
Serial number
Purchase date
Date installed
(See the "Parts and Features" section for model and serial number label/plate
location.)
Keep this book and your sales slip together for future reference.
Part No. 3192760

Advertisement

Table of Contents
loading

Summary of Contents for Whirlpool HD1000XSW8

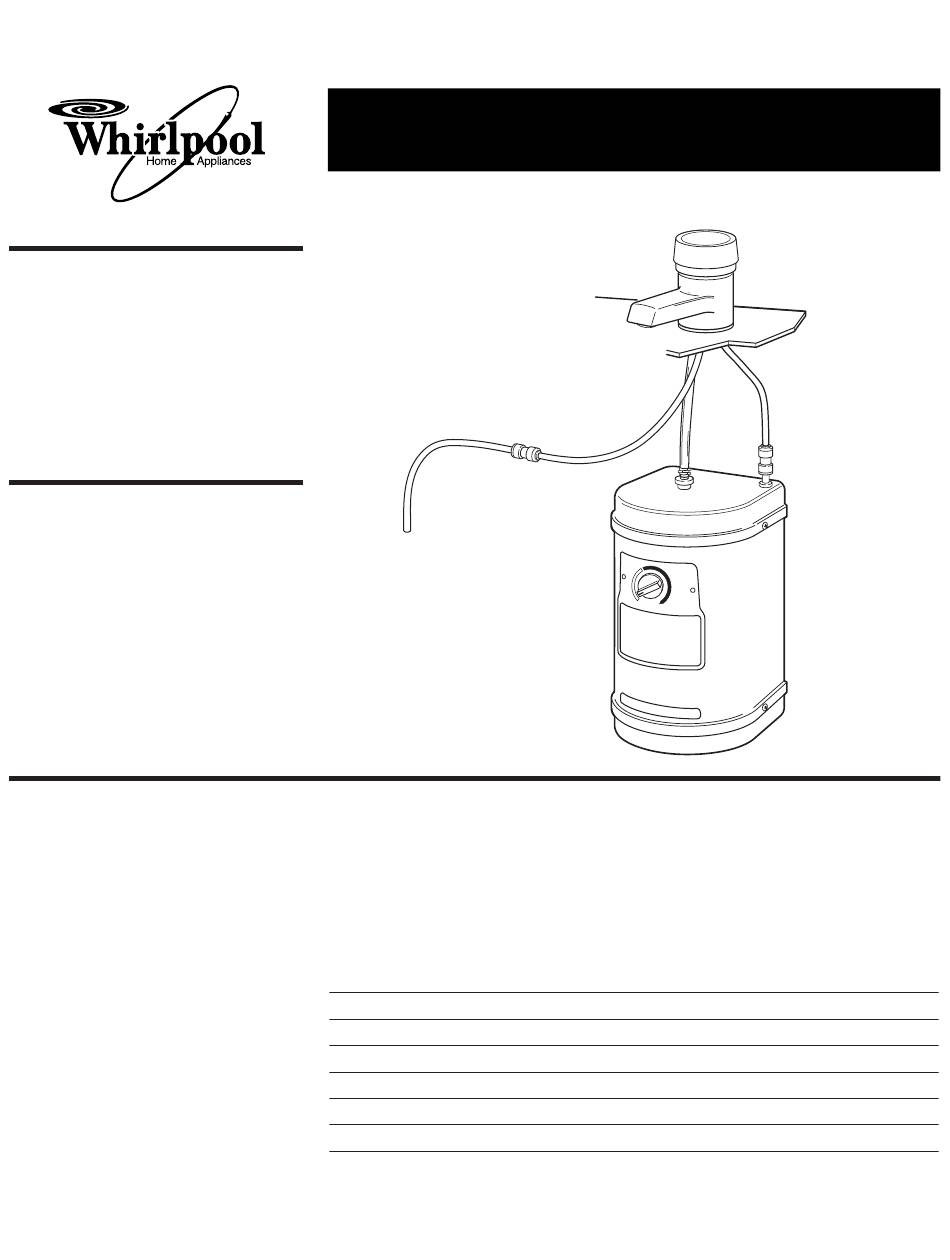

  • Page 1 Hot Water Dispenser ® Installation Instructions Use and Care Guide IMPORTANT: Read and save these instructions. IMPORTANT: Installer: Leave this guide with homeowner. Homeowner: Keep this guide for future reference. Save this guide for local electrical inspector’s use. A Note to You Record your model’s information Please read the Installation Instructions Write down the following information about your hot water dispenser to better...
  • Page 2: Table Of Contents

    Table of Contents A Note to you ... . Cover Using Your Hot Water Troubleshooting... . . 12 Dispenser ....10 Hot Water Dispenser Safety .
  • Page 3: Parts And Features

    Parts and Features How your hot water dispenser works Water is electrically heated to a enters the bottom of the tank and brewing/cooking hot 190°F by a forces hot water out of the faucet. tank that mounts under the sink. A The system is vented so the tank is thermostat maintains it at this not pressurized.
  • Page 4: Before You Start

    Before You Start Check location where hot water If spout is not to be installed in sink dispenser will be installed. Proper spray hose opening, contact a installation is your responsibility. qualified installer for the best Make sure you have everything procedure for cutting a spout necessary for correct installation.
  • Page 5: Tools And Materials Needed

    cont. Before You Start Tools and materials needed Electrical requirements ruler or WARNING measuring tape 3-prong pliers ground-type wall receptacle pencil 3-prong gloves ground flat-blade plug screwdriver Electrical Shock Hazard safety glasses ground Plug into a grounded 3 prong prong outlet.
  • Page 6: Installation Instructions

    Installation Instructions Numbers correspond to steps. clear tubing position NOTE: Do NOT plug power supply cord into outlet. Put on gloves and safety glasses. Determine where you will install NOTE: It is recommended that only your hot water dispenser. Check a licensed plumber or professional below sink to assure that reinforcing installer cut an opening in the sink...
  • Page 7 Installation Instructions cont. NOTE: Do NOT plug power supply cord into outlet. Lay spout assembly on flat Slide gasket over tubing so that lip surface with coiled tubing facing up. side of gasket is seated into base of Using one hand to hold tubing just spout.
  • Page 8 Installation Instructions cont. NOTE: Do NOT plug power supply cord into outlet. Connect 1/4" spout tubing NOTE: If you need to remove tubing, (longer tubing) to the rear quick- push down on collet. Pull tubing out connect fitting on top of tank. Push of quick-connect fitting.
  • Page 9 Installation Instructions cont. Connect water supply line NOTE: If you need to remove tubing, from saddle valve to spout copper push down on collet. Pull tubing out tubing with the factory-assembled of quick-connect fitting. water supply quick-connect fitting. Push water line supply line tubing straight into fitting quick-connect...
  • Page 10: Using Your Hot Water Dispenser

    Using Your Hot Water Dispenser Before using the first time Check that installation Steps 14-16 were completed. The hot water dispenser can be permanently damaged if these steps are not followed. Temperature control The water temperature is best performance. However, under thermostatically controlled.
  • Page 11: Caring For Your Hot Water Dispenser

    Caring For Your Hot Water Dispenser Energy-saving tips and preparation for periods of nonuse On average, you will use your hot However, if the hot water dispenser water dispenser to heat 7 to 8 cups will not be used for an extended of water per day.
  • Page 12: Troubleshooting

    Troubleshooting Before calling for service... If hot water dispenser does not operate, check these points first: Has circuit breaker tripped or Is the Temperature Control set Is the electrical outlet house fuse blown? to the “Off” position? controlled by a switch? Is power supply cord plugged Has the water supply been turned off?
  • Page 13: Requesting Assistance Or Service

    3. If you need FSP replacement parts … ® FSP is a registered trademark of Whirlpool Corporation To locate FSP replacement parts in your area, refer to for quality parts. Look for this symbol of quality when- Step 2 or call the Whirlpool Consumer Assistance ever you need a replacement part for your Center number in Step 1.
  • Page 14: Warranty

    This warranty gives you specific legal rights, and you may also have other rights which may vary from state to state. Outside the United States, a different warranty may apply. For details, please contact your authorized Whirlpool dealer. If you need service, first see the “Troubleshooting Guide” section of this book. After checking the “Troubleshooting Guide,”...
