MikroTik Antenna D-5G-30D3-PA
Quick setup guide and warranty information
Package contents
A
F
G
M
N
O

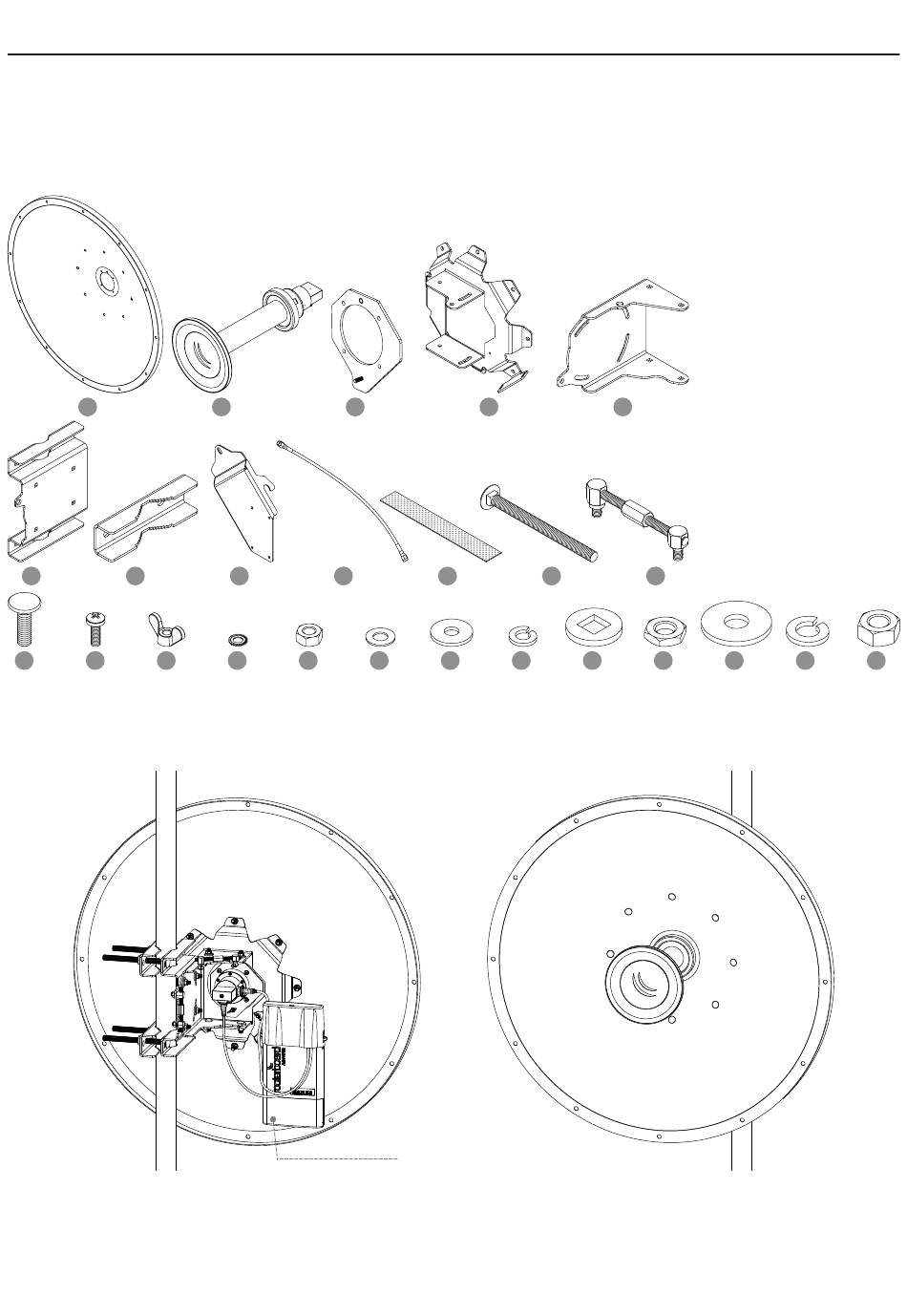

MikroTik Antenna assembly preview
MikroTik Antenna assembly preview back*
*The preview is valid if a MikroTik RB900 series
outdoor device (sold separately) is installed.
B
C
H
I
P
Q
R
MikroTik Radio
D
J
K
S
T
U
MikroTik Antenna assembly preview front
ITEM
DESCRIPTION
A
Parabolic Dish
B
Antenna Feed
C
Feed Bracket
D
Back Plate
E
Alignment Bracket
F
Pole Bracket
G
Pole Clamp
H
Case Holder
I
RF Cable
J
Self-Bonding Tape Slice
K
M10x130 Bolt
L
Adjusting Mechanism
M
M6x20 Bolt
E
N
M4x12 Bolt
O
M4 Wing Nut
P
M4 Serrated Washer
Q
M6 Nut
R
M6 Washer
S
M6 Fender Washer
T
M6 Spring Lock Washer
U
M10 Square Washer
V
M10 Jam Nut
W
M10 Fender Washer
X
M10 Spring Lock Washer
Y
M10 Nut
L
V
W
QTY
1
1
1
1
1
1
2
1
2
2
4
2
16
4
2
5
20
12
8
16
4
4
4
4
4
X
Y
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for MikroTik MTAD-5G-30D3-PA
Summary of Contents for MikroTik MTAD-5G-30D3-PA
- Page 1 M10 Fender Washer M10 Spring Lock Washer M10 Nut MikroTik Antenna assembly preview MikroTik Radio MikroTik Antenna assembly preview back* MikroTik Antenna assembly preview front *The preview is valid if a MikroTik RB900 series outdoor device (sold separately) is installed.
- Page 2 Installation Guide 0. Items Required • 10mm Wrench • 17mm Wrench • PH2 Screw Driver • • This guide is written to be used with a MikroTik RB900 series outdoor device (sold separately) • 1. Install Back Plate to Parabolic Dish Install Back Plate [D] to Parabolic Dish [A] using: [M] M6x20 Bolt x 8 pcs;...
