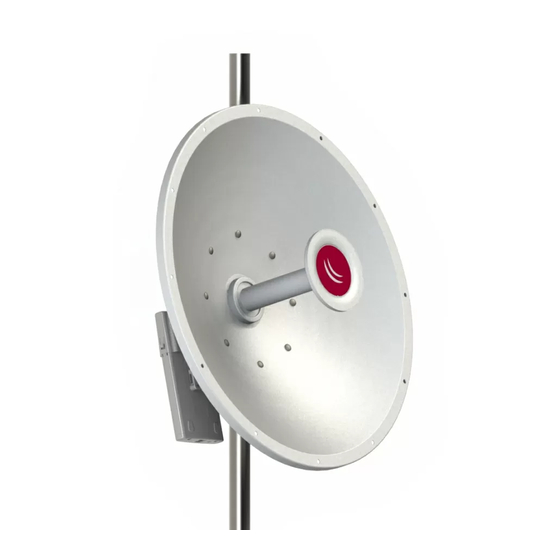

MikroTik mANT30 Quick Start Manual

mANT30 Polarization Slant Guide
This guide is written to slant mANT30 PA* Horizontal/Vertical polarization layout to +45°/-45°.
Slant can positively** affect Point-to-Point link:
1) reduce RF interference in signal congested areas;
2) reduce the impact on local microwave devices;
3) unify the channel output if deployed near a body of water.
* The polarization slant support mANT30 antennas with 8x square-bore parabolic dish. The guide assumes the mANT30 is preassembled.
** The upgrade is optional. Customer shall decide if polarization slant is useful of being applied. Slant must be applied to both antennas in Point-to-Point link.
mANT30 PA assembly preview back
Horizontal/Vertical polarization*
Slant Guide for preassembled mANT30 PA

0. Items Required

• 8mm, 10mm Wrench • This guide is written to be used with a MikroTik RB900
series outdoor device (sold separately) • mANT30 must be detached from pole •

1. Disconnect RF cables

Remove the MikroTIK Radio cover. Disconnect RF cables.
Use 8mm wrench to loosen the RF cables.

2. Remove MikroTIK Radio unit

Loosen the Wing Nut and remove the MikroTIK Radio with Case Holder
as shown in Figure 2.
*The preview is valid if a MikroTIK RB900 series radio device (sold separately)
+45°/-45° polarization*
is installed.

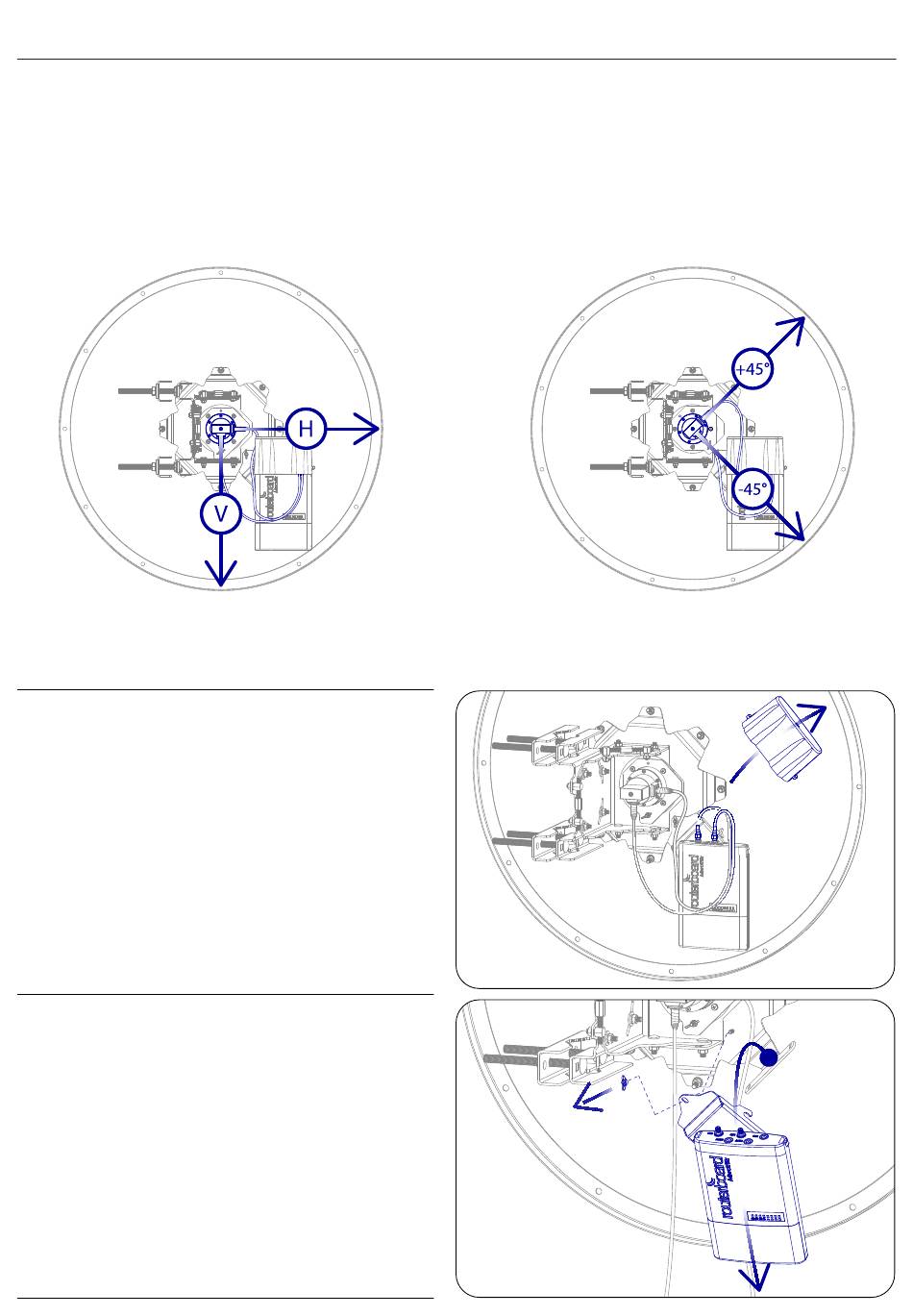

FIG. 1
FIG. 2
